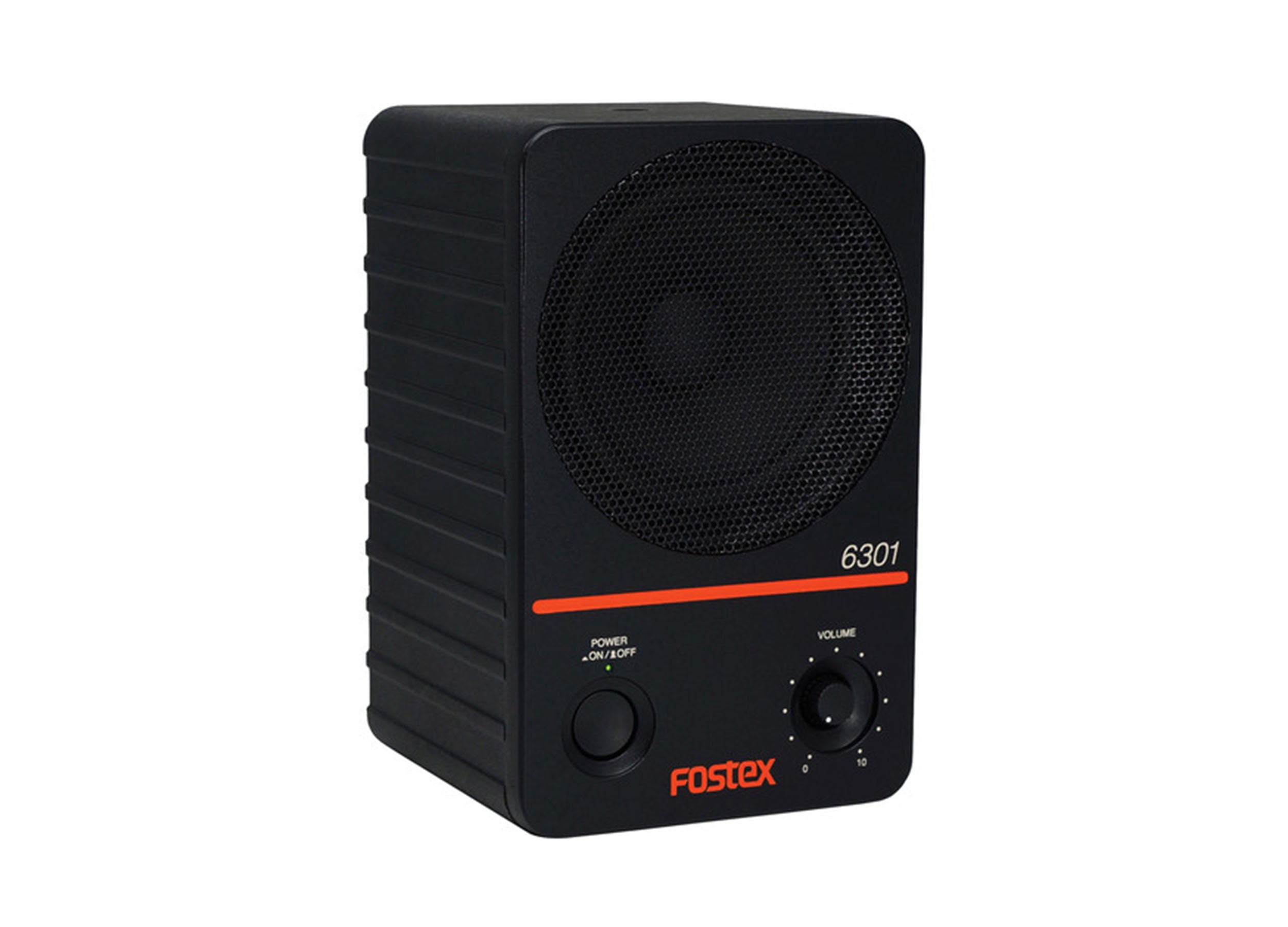

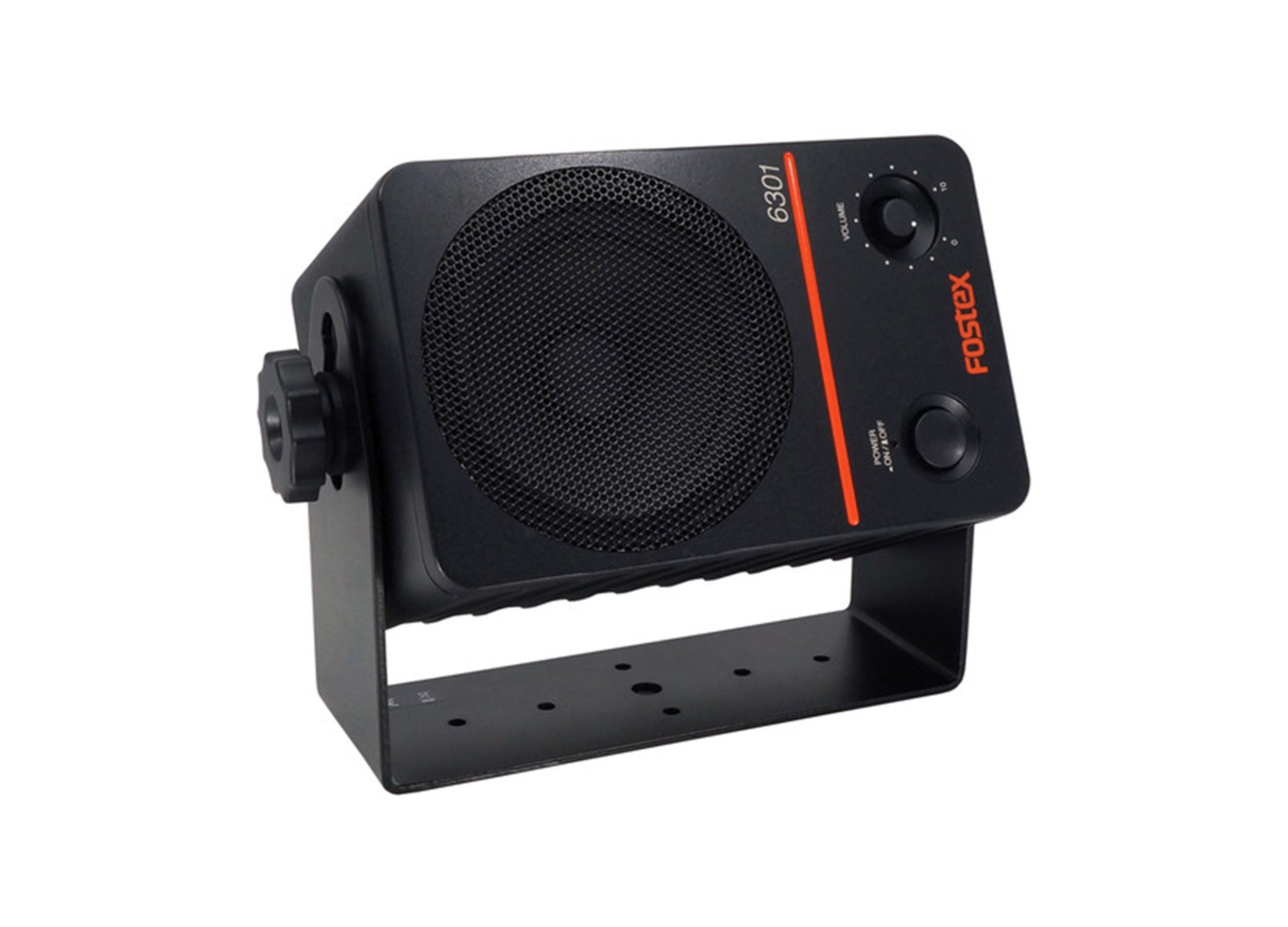

Fostex 6301NE Active 20-Watt Monitor Speaker w/ XLR Electronically

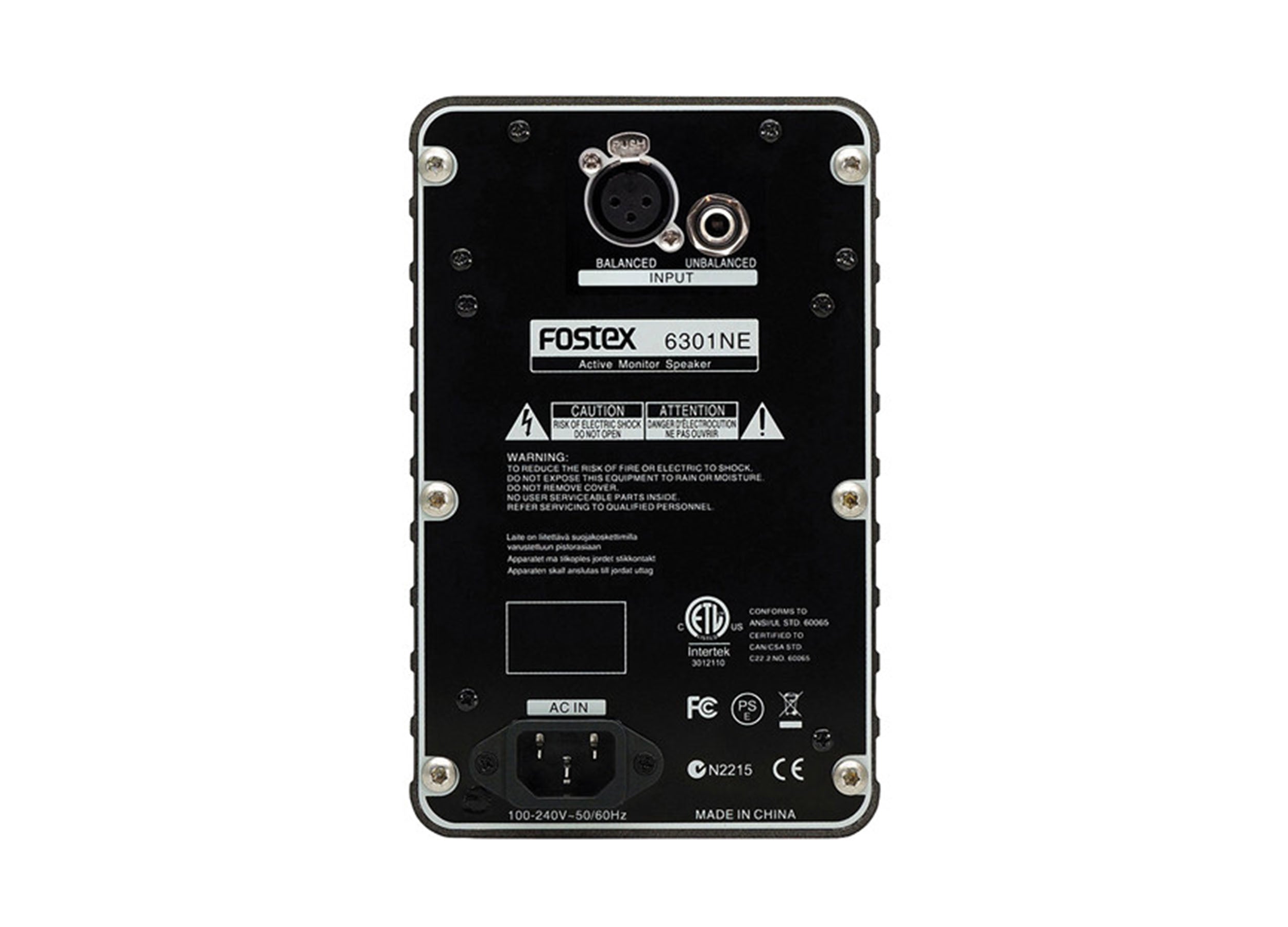

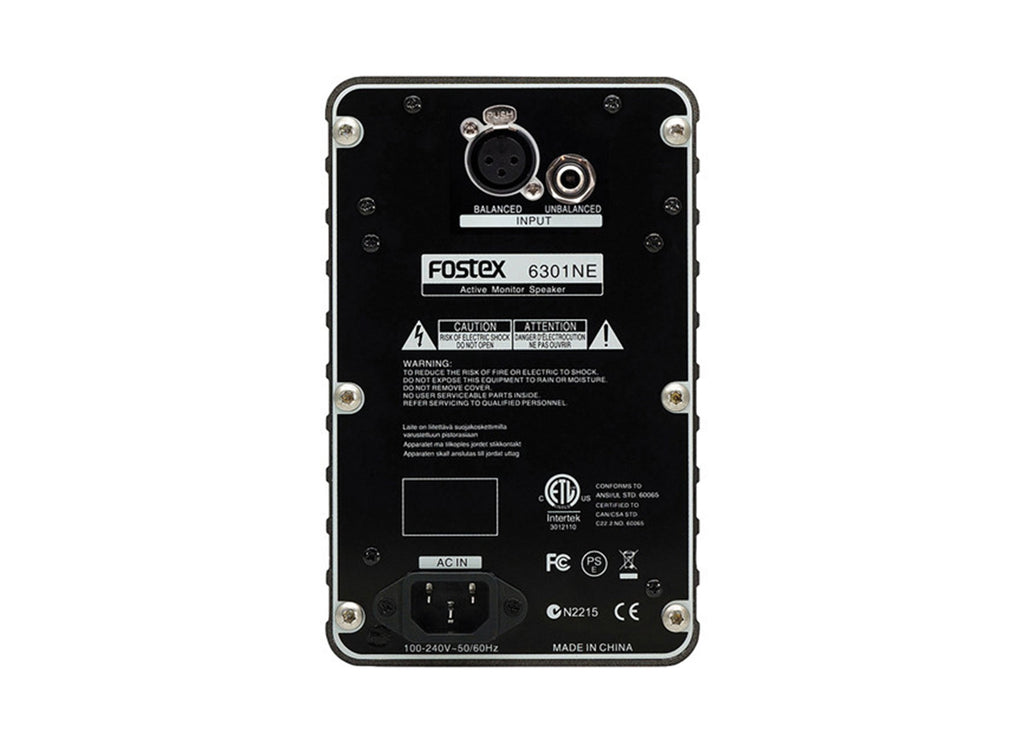

The Fostex 6301NE Active 20-Watt Monitor Speaker with XLR Electronically Balanced Input Connector - 4 Inch is for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 20W D-class amplifier. Inputs include an electronically balanced XLR connector and a 1/4" unbalanced connector.

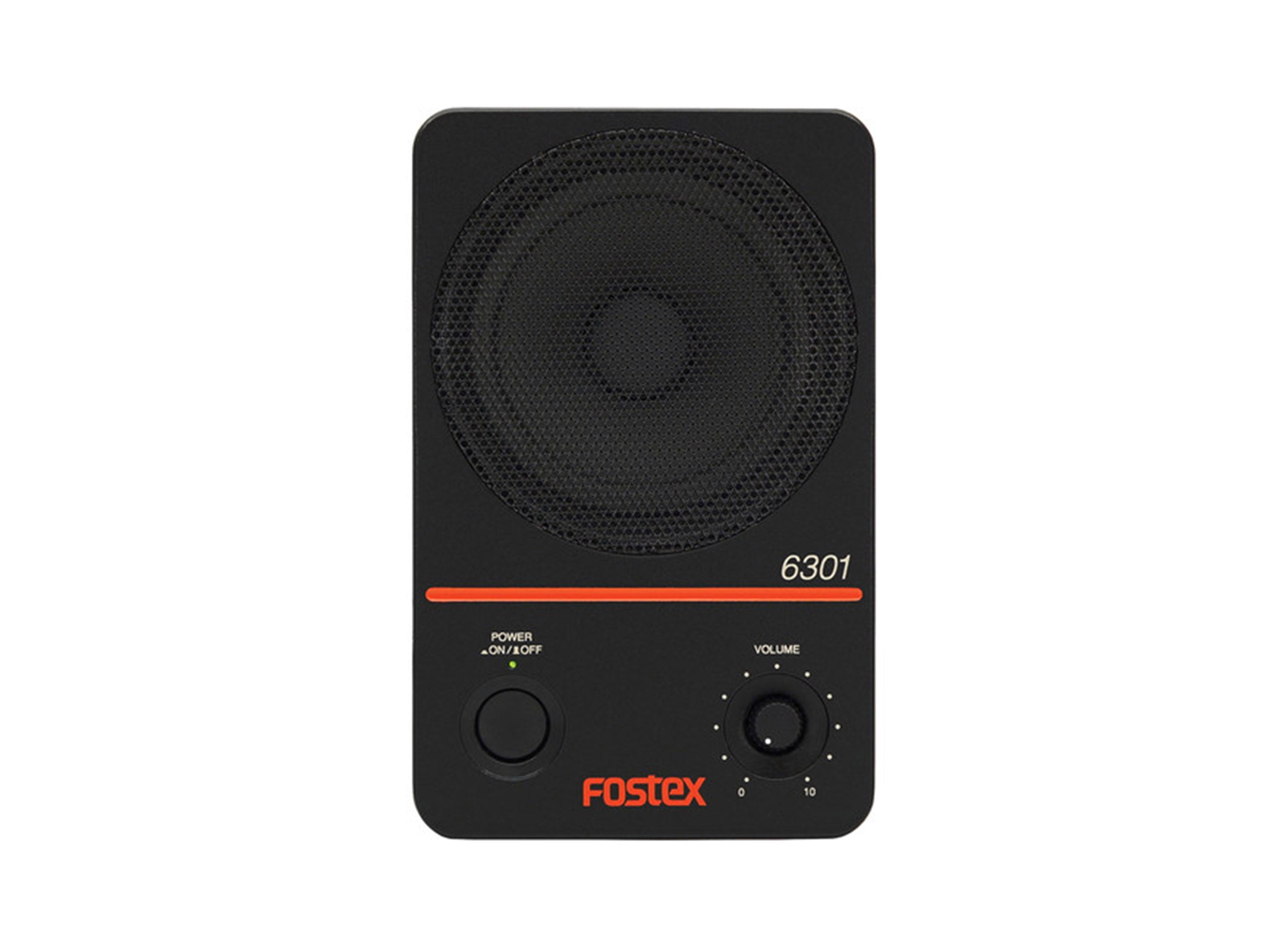

The front panel provides a power switch and a rotary level control for easy volume adjustments. An automated protection circuitry prevents overloads and short circuits, while the die-cast aluminum enclosure is made to withstand the rigors of professional use. The 6301NE ships with a standard IEC power cord.

Product Specifications:

Enclosure type: Closed type (Material: Aluminum die-casting)

Unit: Cone type 10 cm full range unit × 1

Frequency response: 70 Hz to 15 kHz

Sound Pressure Level: 85 dB/W (1 m)

Maximum Sound Pressure Level: 98 dB

Amplifier section:

Rated output: 20 W

Analog input:

Unbalanced: Φ6.3 mm (1/4″) TS phone,

input sensitivity: -14 dBV (0.2 Vrms), input impedance 10 kΩ min.

Balanced input: XLR-3-31 type,

Input sensitivity: +4 dBu (1.2 Vrms), input impedance 10 kΩ min.

T.H.D.: 0.05% (at 1 kHz / 1 W output)

Residual noise: -70 dBV

Guaranteed Operating Environment:

Temperature: -10 °C to +50 °C

Humidity: Within 90%

General:

Power requirement: AC 100–230 V (50/60 Hz)

Power consumption: 10 W (standby mode: 0.5 W or less, compliant with European ErP Directive)

Accessories: Power cable (2 m)

Product Dimensions: 7.4 x 4.7 x 4.7"

Product Weight: 4.9 lbs.

Shipping Dimensions: 9.75 x 9.5 x 7.2"

Shipping Weight: 6.14 lbs.
