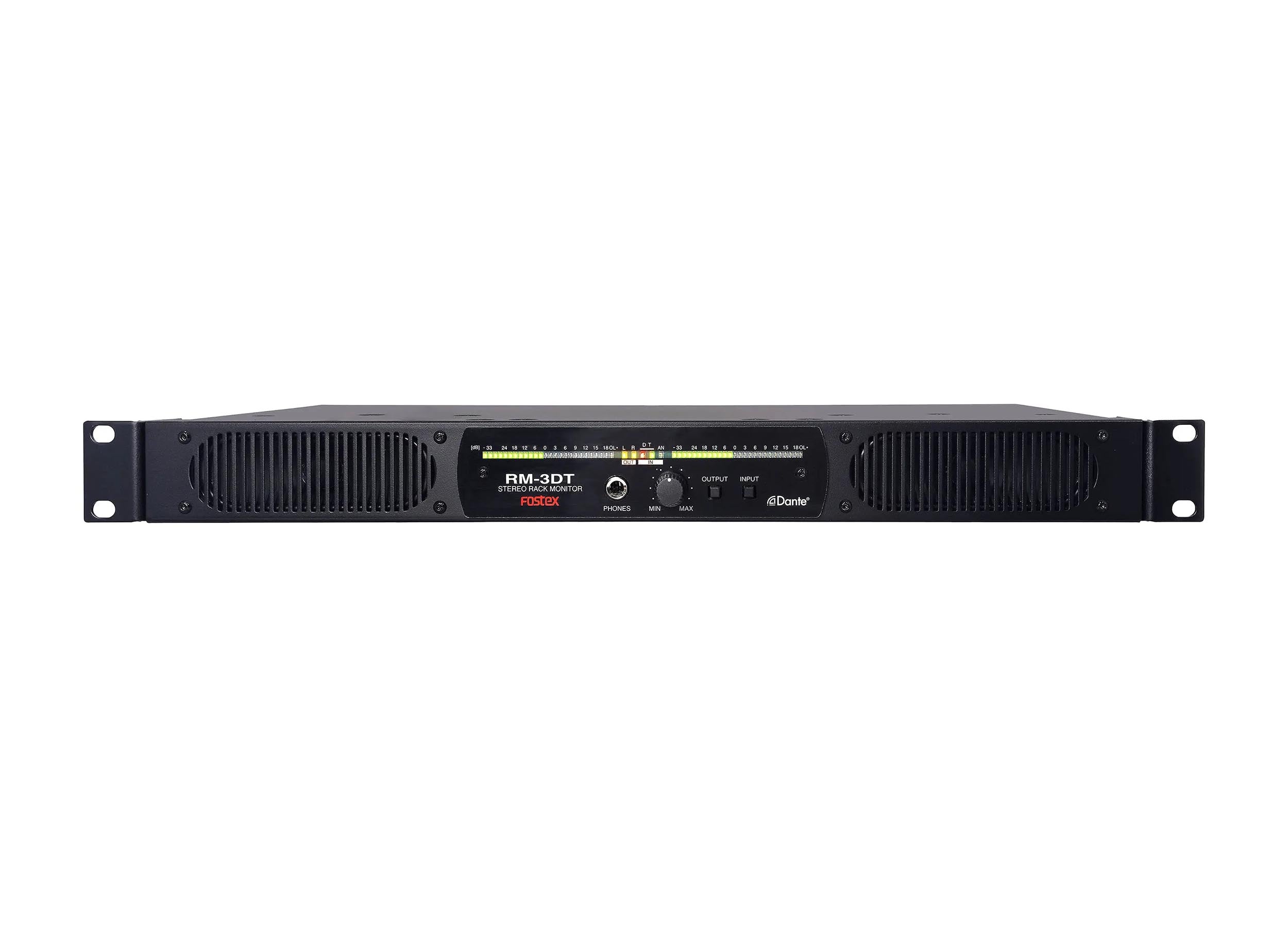

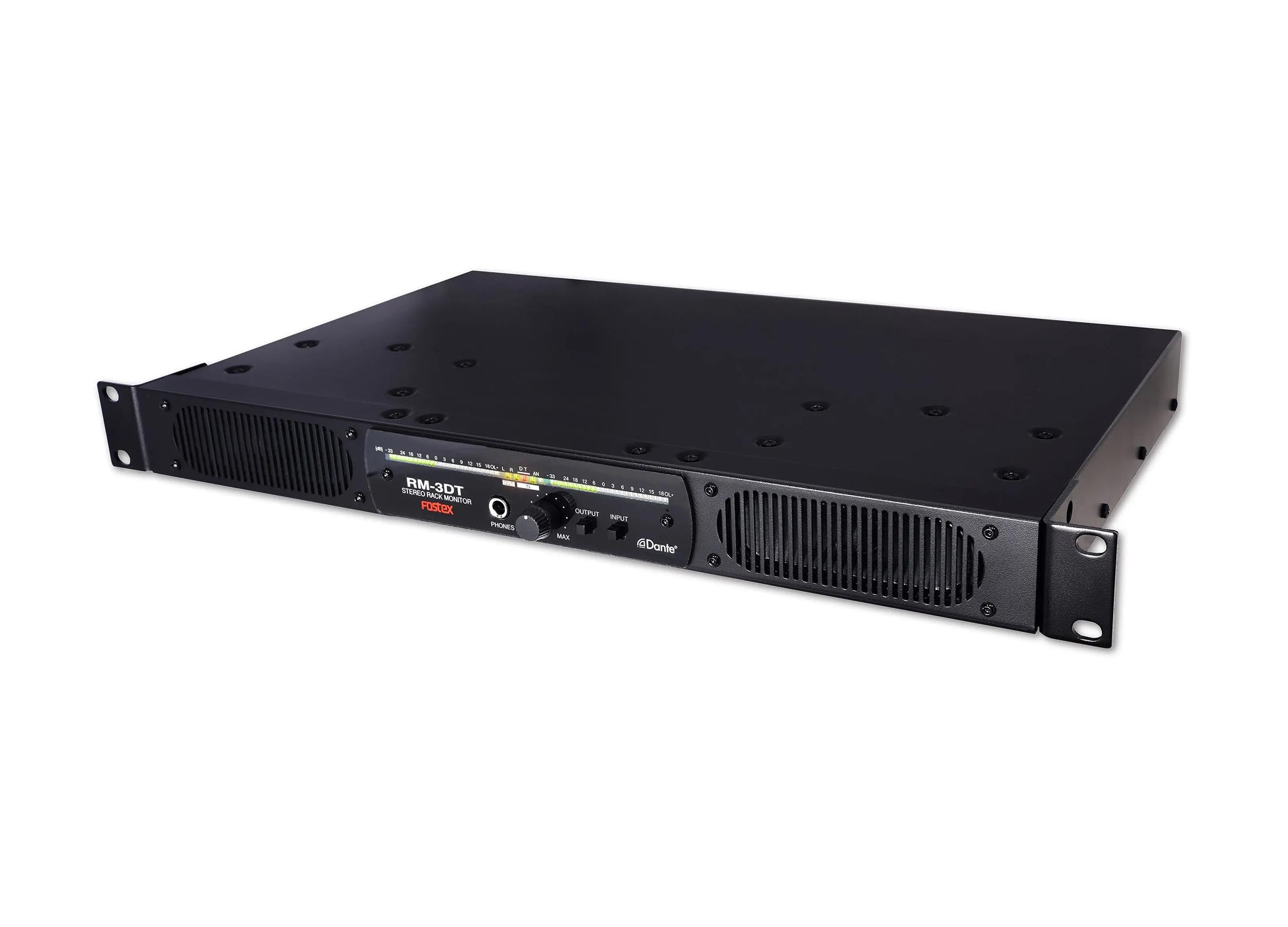

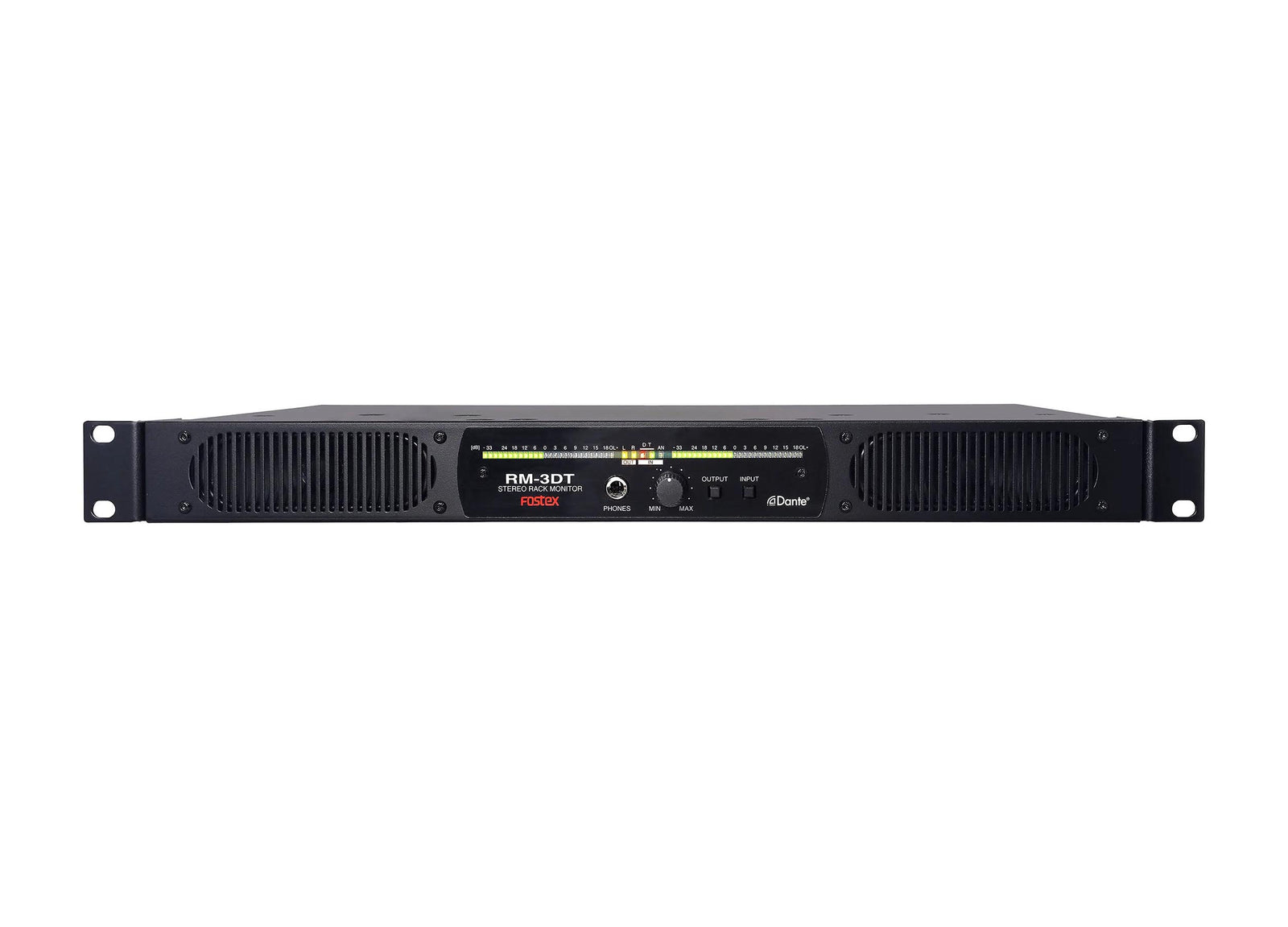

Fostex RM-3DT Rackmount Active Monitor Speaker

The Fostex RM-3DT Rackmount Active Monitor Speaker is a Dante-equipped active monitor speaker that occupies just 1 RU of rack space. It can accept digital signal over a Dante network or a stereo analog source via balanced XLR inputs, ensuring compatibility with a wide range of systems. Signal can be output in one of four modes to the built-in rectangular stereo speakers, while the balanced XLR output jacks act as a thru-put to send the analog input to another destination. The front-panel 1/4" headphone jack allows for personal monitoring without pushing sound through the speakers.

Left and right 26-dot LED meters give you a visual representation of your levels. The volume control also functions as a mute switch, which can be programmed for total mute, or to provide a 20 dB attenuation based on your preference. The RM-3DT supports sample rates up to 96 kHz and features a power-saving design that keeps its power consumption down to just 10W. Sporting the same dimensions as the non-Dante RM-3, the RM-3DT can be conveniently swapped in its place.

Analog and Digital Inputs

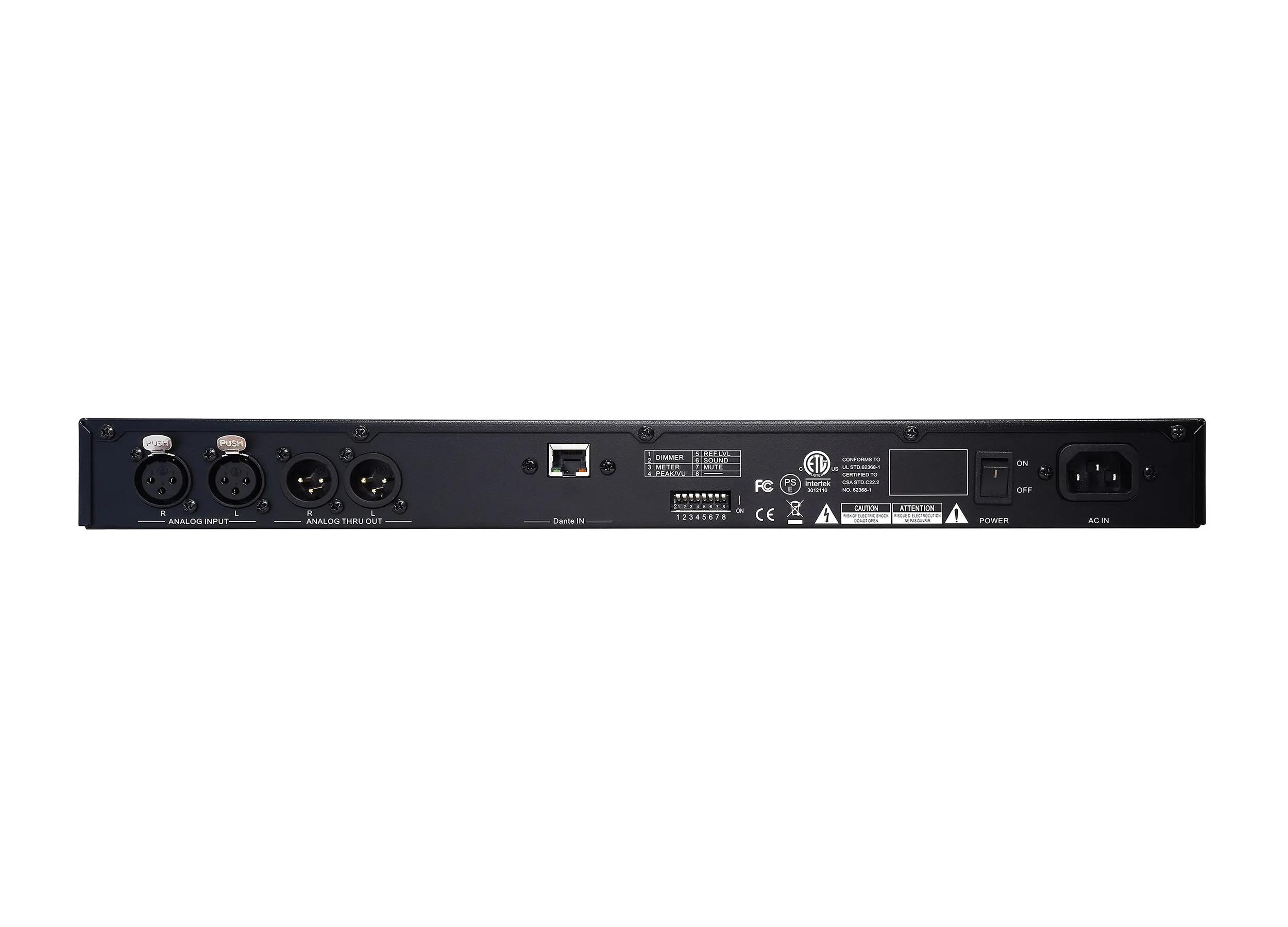

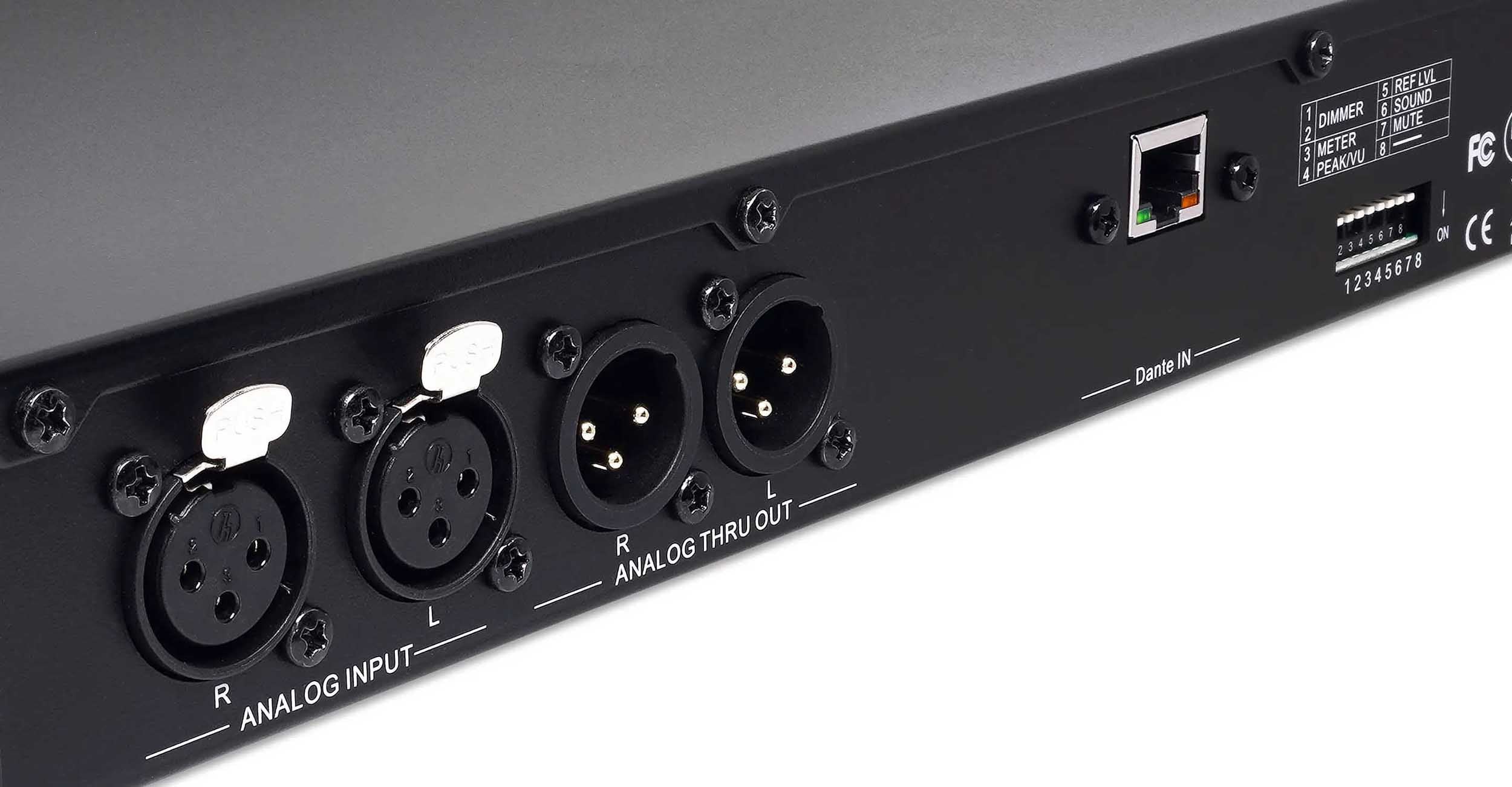

Accepts balanced analog sources via two XLR 3-pin female inputs and Dante signal via an RJ45 female input

Built-In Speakers

Outputs either or both of any 2-channel digital signals extracted from Dante network signals to built-in rectangular speakers, each powered by 10W of onboard amplification

Line and Headphone Outputs

Two XLR balanced analog outputs on the rear panel and one 1/4" stereo headphone jack on the front

High-Resolution Audio

Supports sample rates up to 96 kHz

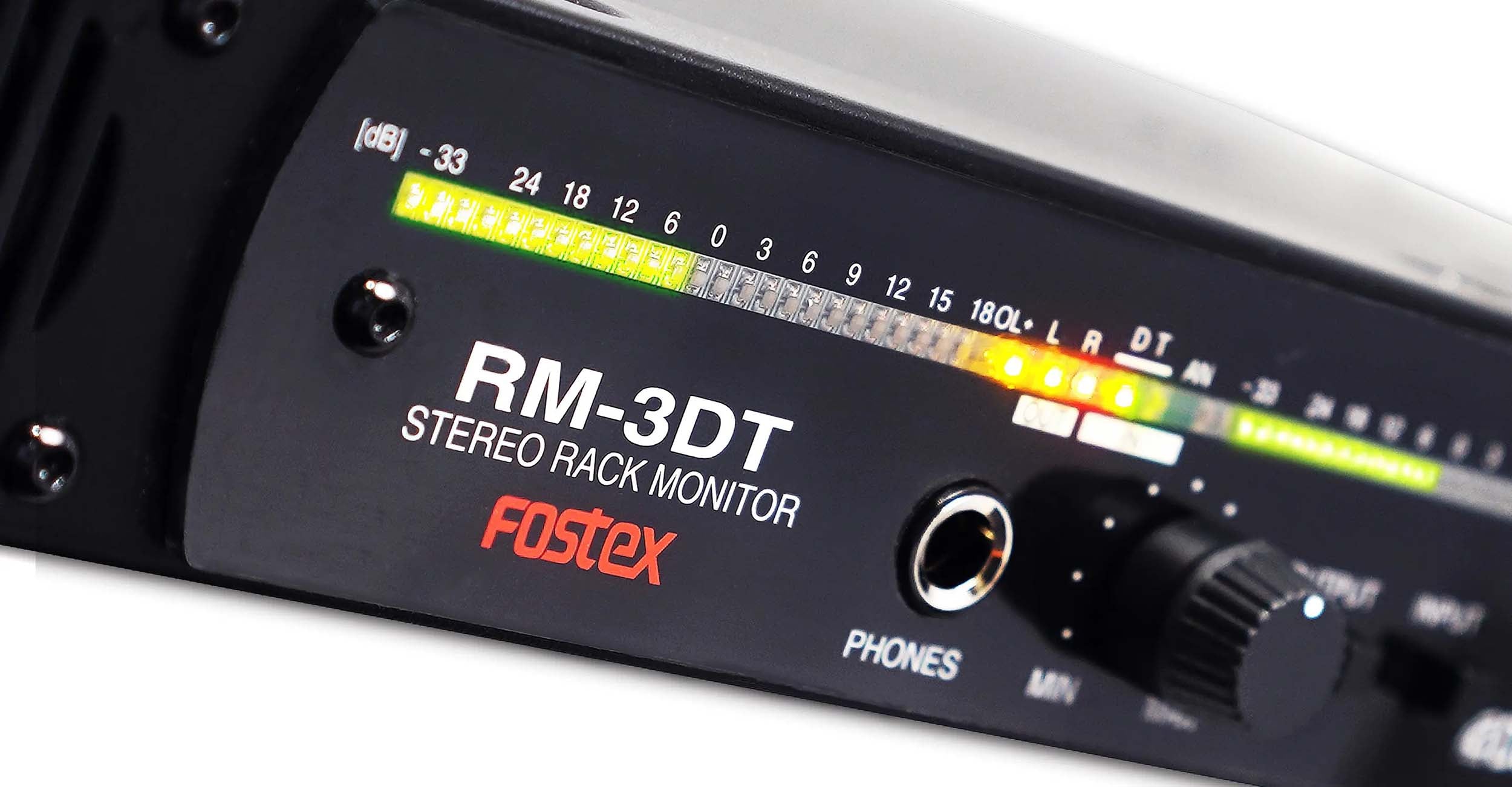

Dual LED Meters

Dual 26-dot LED meters indicate either VU, VU + Peak, VU + Peak Hold, or Peak + Peak Hold

Adjustable Brightness

Display brightness can be adjusted in four levels

Low Power Consumption

Digital amplifier and switching power supply yield a power-saving design

Rackmount Form Factor

Physical dimensions are identical to the conventional RM-3 for easy replacement.

Product Specifications:

Built-In Speakers: 4.3 x 1.6" / 11 x 4 cm Rectangle Cone Speakers

Impedance: 8 Ohms

SPL: 84 dB/W (1 m)

Frequency Response: 200 Hz to 20 kHz

Power Amplifier:

Maximum Output: 10 W x 2

Residual Noise: -50 dBV or Less (DIN AUDIO)

Distortion: <0.1%

Supported Sample Rate: 44.1, 48, 88.2, and 96 kHz

Digital Input: 1 x RJ45 Female

Analog Input: 2 x XLR 3-Pin Female Line Input (Balanced)

Analog Output:

2 x XLR 3-Pin Male Line Output (Balanced)

1 x 1/4"" TRS Female Headphone Output (Unbalanced)

Impedance:

Analog Input: ≥10 Kilohms

Headphone Output: ≥16 Ohms

Input Level:

Analog Input: +4/0 dBu (Balanced)

Output Level:

Headphone Output: 20 mW + 20 mW (32 Ohms, 1 kHz, Maximum)

Level Meters:

Display: 2 x 26-Dot LED Meters

Reference Level: +4/0 dBu (Analog)

General:

Power Consumption: 10 W

Power: 100 to 240 VAC, 50/60 Hz

Dimensions: 19 x 1.7 x 11.2"

Weight: 7.7 lbs.

Shipping Dimensions: 20.1 x 15.1 x 6.4"

Shipping Weight: 10.675 lbs.
