Description
The Global Truss IB-C2-H90-KIT is a horizontal circular truss kit designed to create a 6.56 ft outside diameter circle. The complete circle is assembled from four 90° arc sections that connect together to form a continuous circular structure. Its larger 2 m diameter provides additional space for lighting, displays, signage, branding, and decorative installations. The horizontal configuration offers an effective solution for creating curved truss layouts and distinctive event structures, while its modular design allows the circle to be incorporated into larger compatible truss configurations. This makes the kit suitable for professional staging, exhibitions, events, and architectural applications.

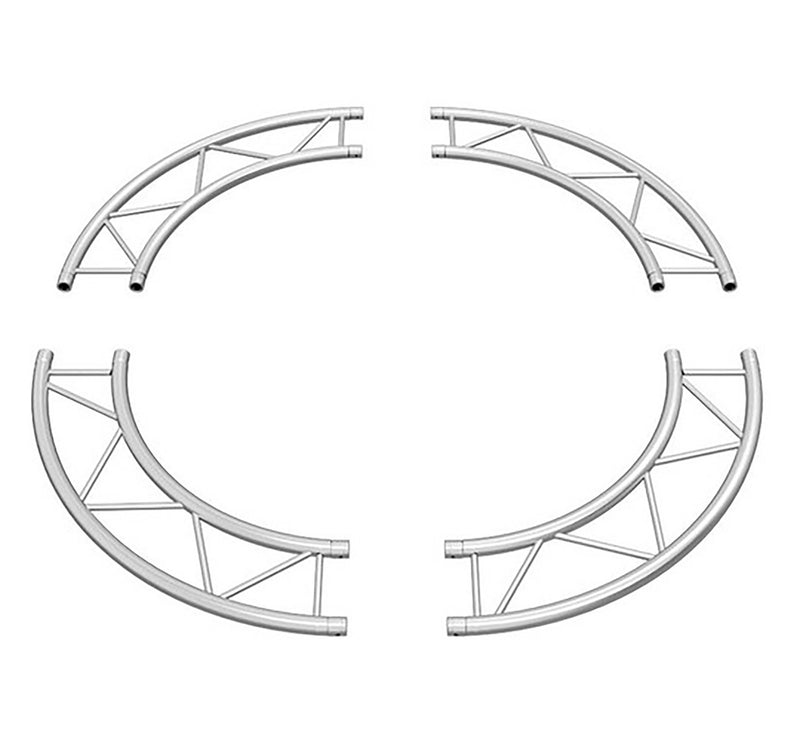

Four 90° Arc Sections
The kit includes four IB-C2H ARC90 components, with each section forming a 90° portion of the complete circle. Joining the four matching sections creates the full 6.56 ft circular truss structure. The segmented configuration makes the system easier to transport, handle, store, and install compared with a single-piece circular structure. Each arc is designed to maintain the circular geometry required to produce a clean and consistent finished structure. The modular format also provides flexibility when designing custom truss configurations, making the kit practical for production companies, rental businesses, staging crews, and event professionals requiring reusable curved truss components.
F32 I-Beam Compatibility
The IB-C2-H90-KIT is designed for integration with Global Truss F32 I-Beam truss systems. Its 11 7/16 in. overall width matches the F32 truss profile for compatible system integration, allowing the circular sections to be incorporated into appropriately configured F32 truss structures. The standardized profile helps create clean transitions when used with compatible straight or curved truss sections. This compatibility expands the design possibilities available when building custom event, exhibition, and staging structures, providing a versatile circular component for professional modular truss system configurations.
Durable Aluminum Construction
The truss sections feature 2 in. (50 mm) outer diameter aluminum tubing designed to provide a strong yet manageable structure. Each section uses 3/4 in. (20 mm) diagonal bracing for additional structural rigidity, while the tubing features a 0.08 in. (2 mm) wall thickness for durable professional-use construction. The aluminum design provides a practical balance between structural strength and transportation weight. This construction is suited to demanding staging, exhibition, event, and production environments where reliable modular equipment is required. The reinforced framework provides the durability and stability expected from professional truss equipment.
Versatile Production Applications
The 6.56 ft circular configuration provides numerous possibilities for stage, event, exhibition, display, and architectural designs. It can be used for circular lighting structures, display frames, decorative installations, signage, branding, and other appropriately engineered applications. The curved profile can create a strong visual focal point while integrating with compatible truss systems. Its modular construction allows production teams to reuse the individual components across different event configurations and layouts. The kit is suitable for rental companies, staging professionals, exhibit designers, event producers, and production crews looking for additional creative flexibility beyond conventional straight truss sections.
Modular and Portable Design
The four-piece configuration makes the circular truss easier to transport and store between productions. Each 90° arc can be handled individually during setup, positioning, assembly, and teardown, helping crews manage the structure more efficiently. With a total unit weight of 40 lb, the complete kit provides manageable portability for professional event crews. The modular sections can be packed efficiently for transportation to venues, exhibitions, trade shows, and production sites. This design helps simplify storage and transportation logistics while retaining the visual and functional benefits of a full circular truss structure. Overall, the IB-C2-H90-KIT combines practical handling, modular construction, and flexible circular truss functionality for professional applications.
Product Specifications:
Product Type: Horizontal Circular Truss Kit
Truss Series: F32 I-Beam Truss
Configuration: Horizontal Circle
Outside Diameter: 6.56 ft
Inside Diameter: 4.66 ft
Arc Configuration: 4 x 90° Arcs
Kit Components: 4 x IB-C2H ARC90
Overall Width: 11 7/16 in. (290 mm)
Outer Tube Diameter: 2 in. (50 mm)
Diagonal Bracing Diameter: 3/4 in. (20 mm)
Wall Thickness: 0.08 in. (2 mm)
Construction: Aluminum Truss
Shape: Circular
Orientation: Horizontal
System Compatibility: Global Truss F32 I-Beam System
Application: Stage, Event, Exhibition, Display, and Architectural Installations
Color: Silver
Product Weight: 40 lbs.
Product Dimensions (L x W x H): 78.74 x 11.44 x 11.44 in.
