Description

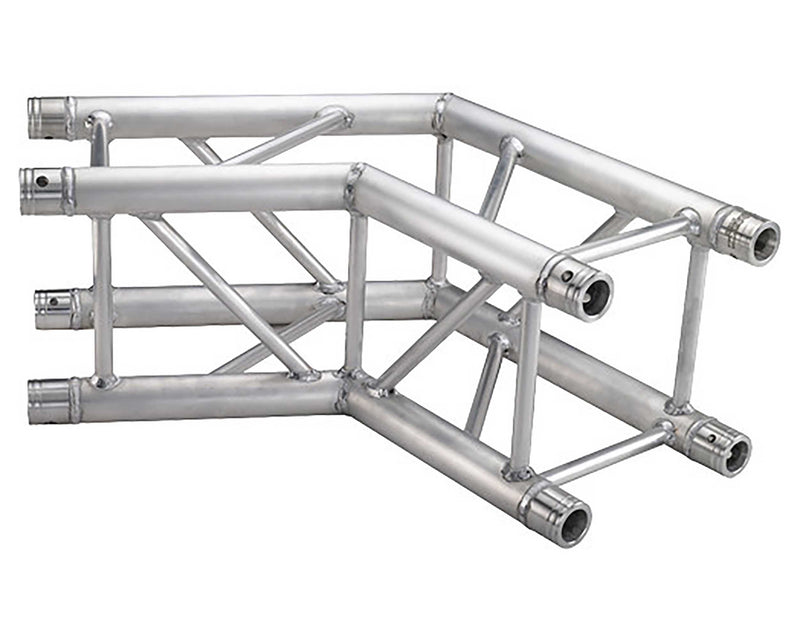

The Global Truss SQ-4123, 2-Way 135° Corner is designed to work with F34 Square systems. This angle creates a 135° corner or turn in your system and has a length of 1.64'. It also features a durable 6082-T6 aluminum alloy construction to match the rest of the system as well as similar measurements. This includes an outside diameter of 11.42", outside tubing measuring 1.97", 0.75" bracing, and a wall thickness of 0.08".
Product Specification:
Outside Diameter: 11.42" / 290 mm
Tubing Diameter: 1.97" / 50 mm
Tube Wall Thickness: 0.08" / 2 mm
Center Brace: 0.75" / 19 mm
Angle: 135°
Length: 1.64' / 0.5 m
Construction: 6082-T6 aluminum alloy
Weight: 16 lb / 7.26 kg
