Global Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global Truss
Global Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global Truss
Global Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global Truss
Global Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global TrussGlobal Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global TrussGlobal Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full SQ-C7 Circle by Global Truss

Global Truss SQ-C7-ARC45 One Single Part of Eight that Create 1 Full
Save $3,386.95
SKU H-GLOB-SQC7ARC45 MPN SQ-C7 ARC45 One Single Part
Price:
$6,774.00 $10,160.95

Sign in to see your rewards

Sign in
Earn 3387000 points (worth $338.7)

Safety Notice: Buyer Responsibility

Truss, staging and rigging equipment can cause serious injury, death or property damage if it is assembled, loaded, rigged or inspected incorrectly. By purchasing this product, the buyer accepts full responsibility for its safe selection, assembly, installation, loading, inspection, maintenance and use, and for following the manufacturer's instructions, all applicable codes and any venue requirements.

Hollywood DJ is the retailer, not the manufacturer, engineer or installer. We do not design, approve or inspect truss or rigging systems, and to the fullest extent permitted by law, Hollywood DJ is not responsible for injury or damage resulting from how this product is assembled, installed or used.

Hollywood DJ provides load information, including the manufacturer load tables we host, for general reference only. It is not intended to replace a qualified engineer or professional rigger, who should plan and approve any truss or staging installation.

Teryn Cooper | Sales Engineer

ASK AN EXPERT

Our Certified Gear Technician is ready to help!

(213) 816 4102

30-Day Price Protection Guarantee If we lower our price within 30 days of your order, we'll refund the difference. Shop now with confidence. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase. Use your points toward future gear purchases with us. Points expire 90 days after they're earned.

Call us for package deal pricing anytime 800-700-4542.

Description

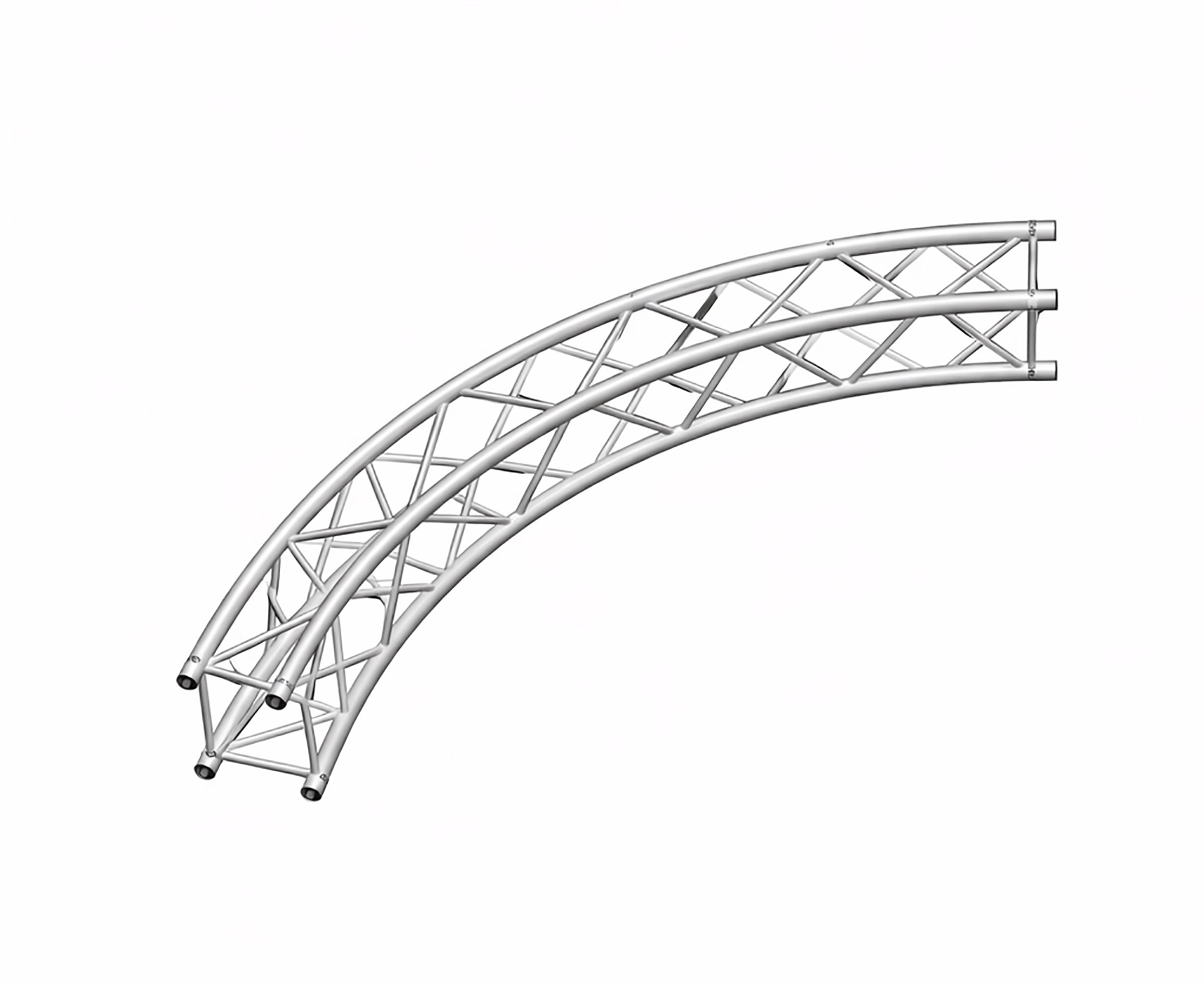

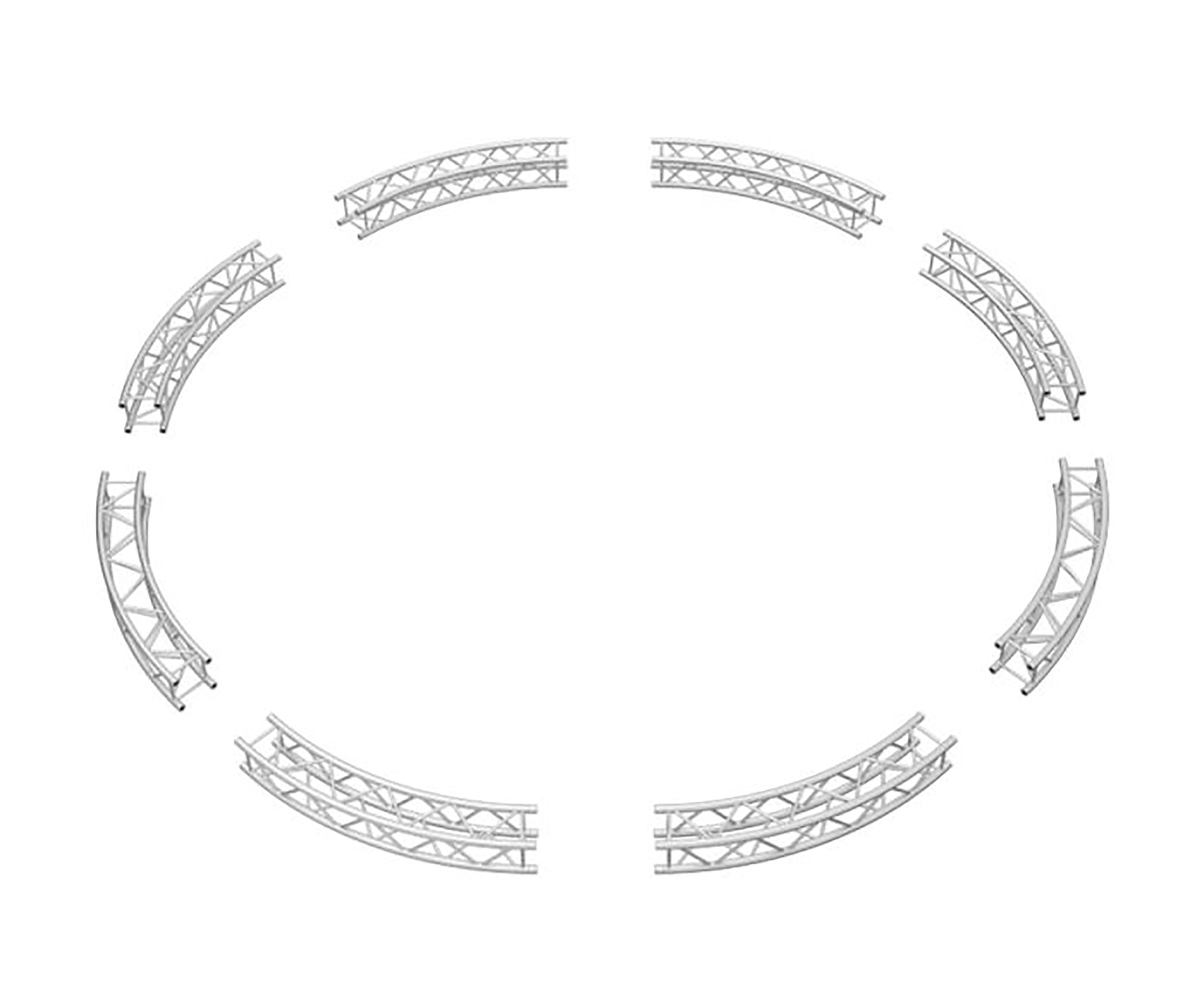

The Global Truss SQ-C7-ARC45 is a single 45° arc segment designed as one of eight sections required to assemble a complete SQ-C7 circular truss system. It’s intended as one of eight identical arc sections that combine to form a full 22.96 ft (7 m) diameter circular truss. Manufactured from durable aluminum with standard F33 triangular truss geometry, this arc section provides a reliable, lightweight structural component for staging, lighting rigs, exhibits, and architectural displays. It features sturdy diagonal bracing and precise fabrication for secure connections with other truss components.

Product Specifications:

Single Arc Section

Segment Angle: 45° (one-eighth of full circle)

Compatible Full Circle Diameter (Outside): 22.96 ft (7.0 m)

Compatible Full Circle Diameter (Inside): 21.06 ft

Overall Width: 11 7/16 in (290 mm)

Main Tube Outer Diameter: 2 in (50 mm)

Diagonal Bracing Diameter: 3/4 in (20 mm)

Wall Thickness (Tubing & Bracing): 0.08 in (2 mm)

Material: Aluminum alloy (F33 Series)

Finish: Standard industrial (anodized or raw aluminum)

Connection Type: Standard F33 conical/coupler style (for use with matching truss)
