Description

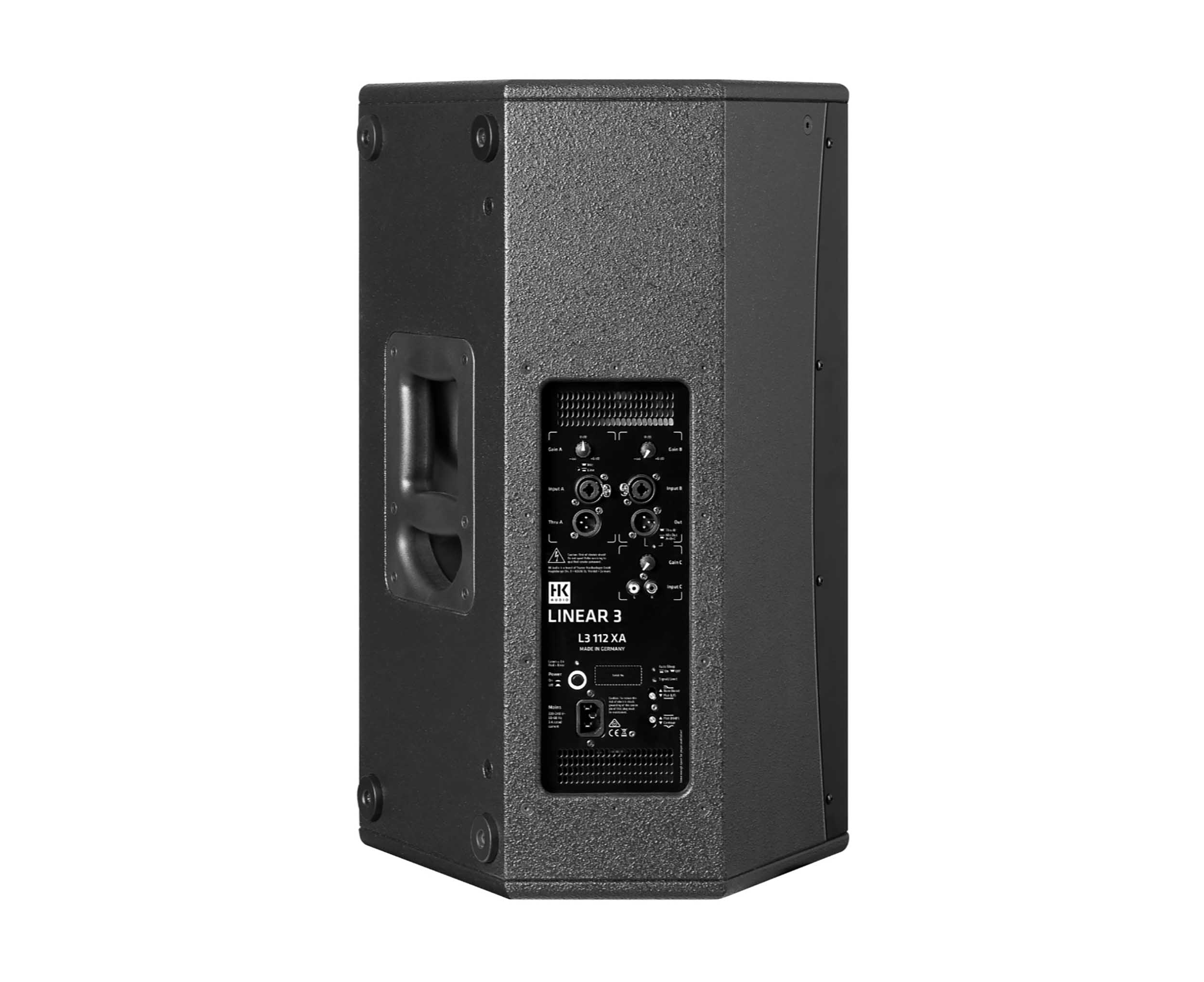

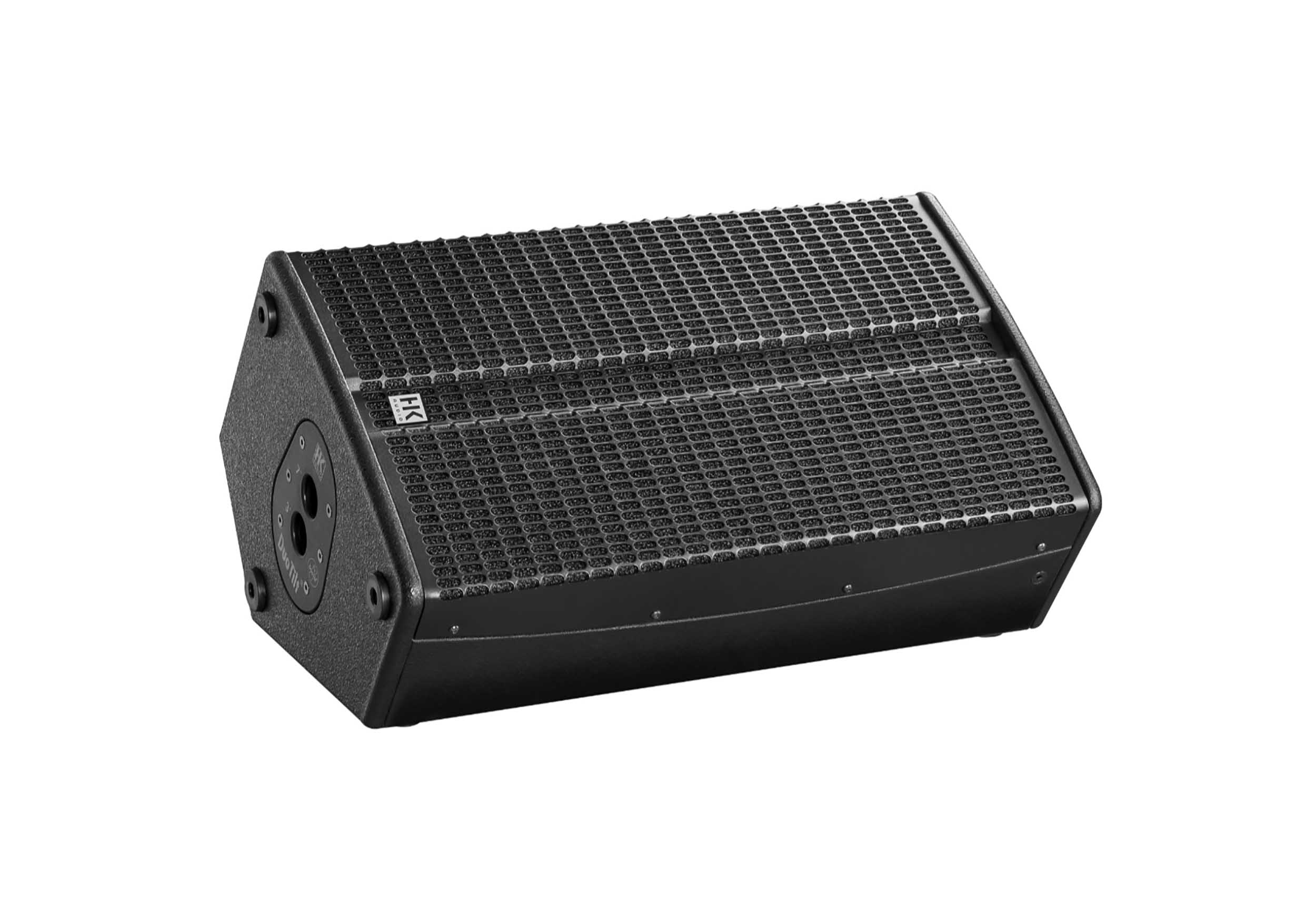

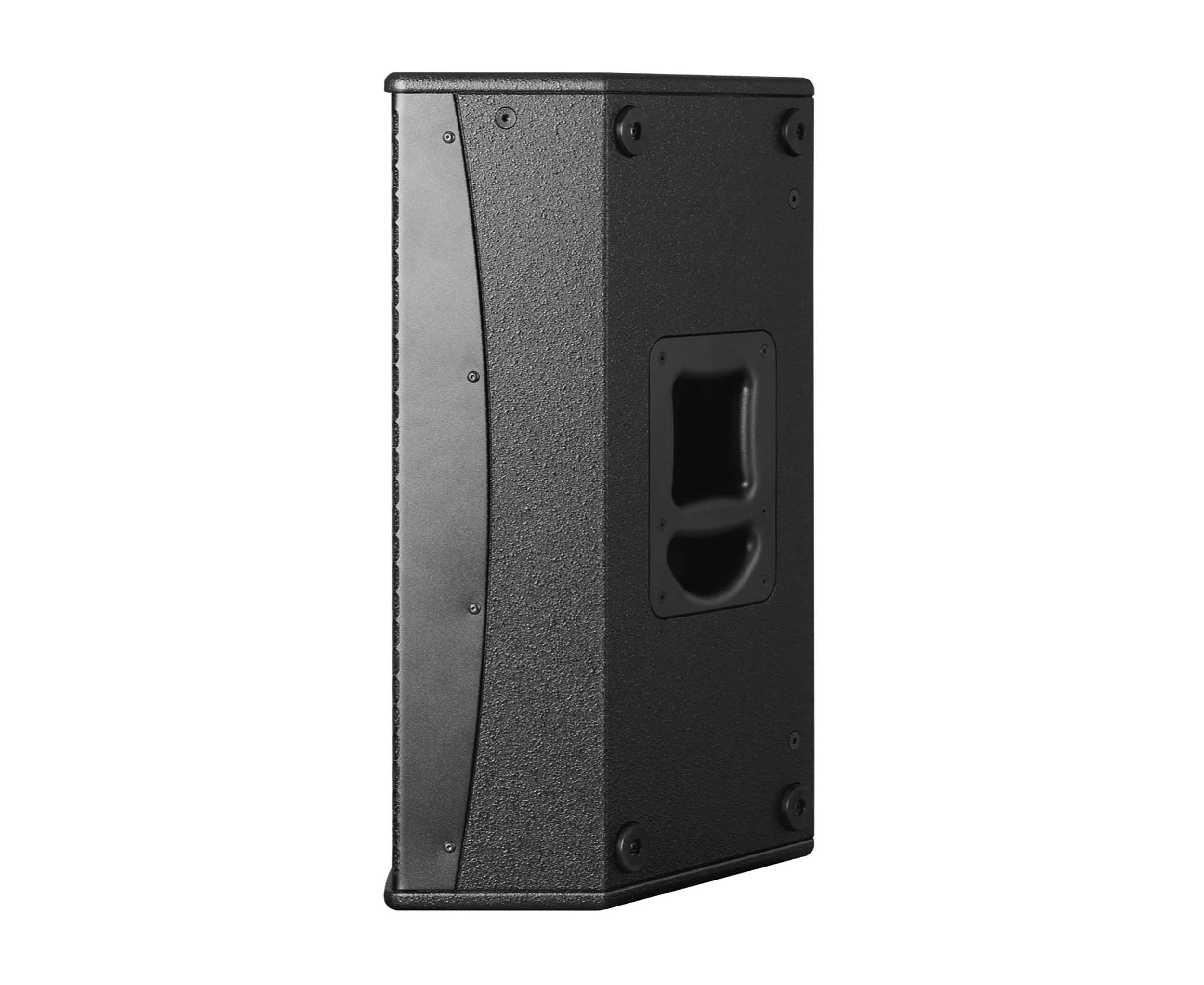

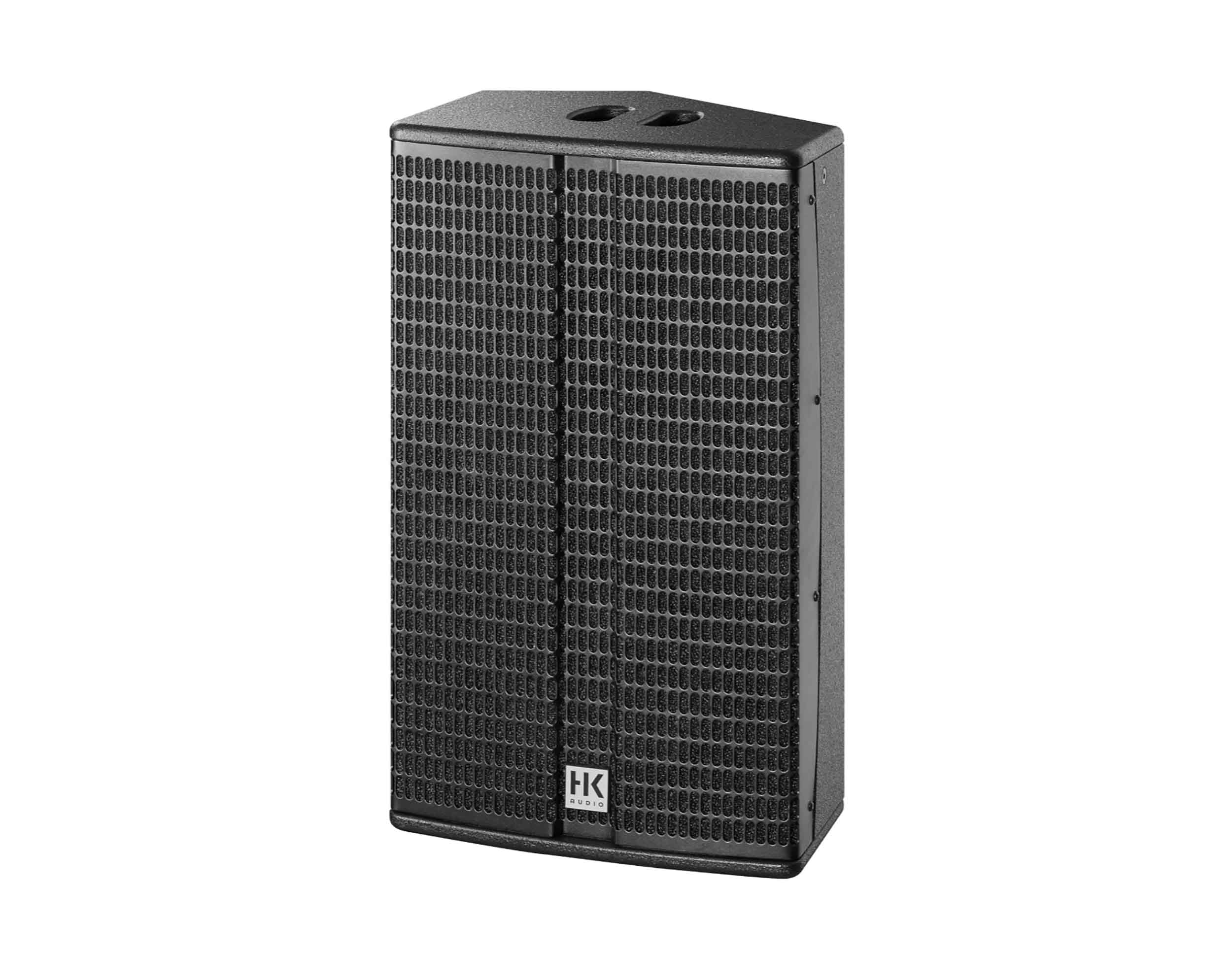

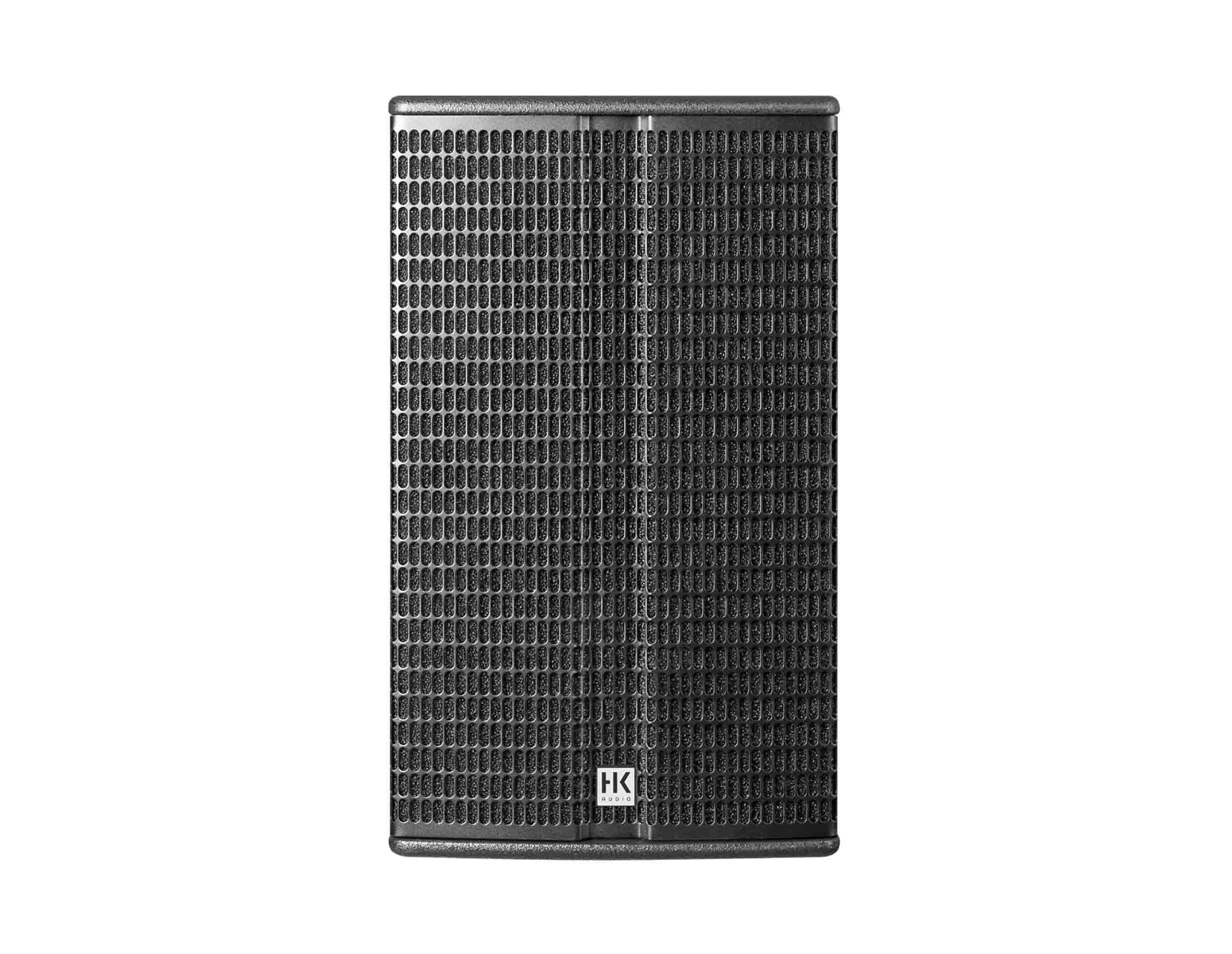

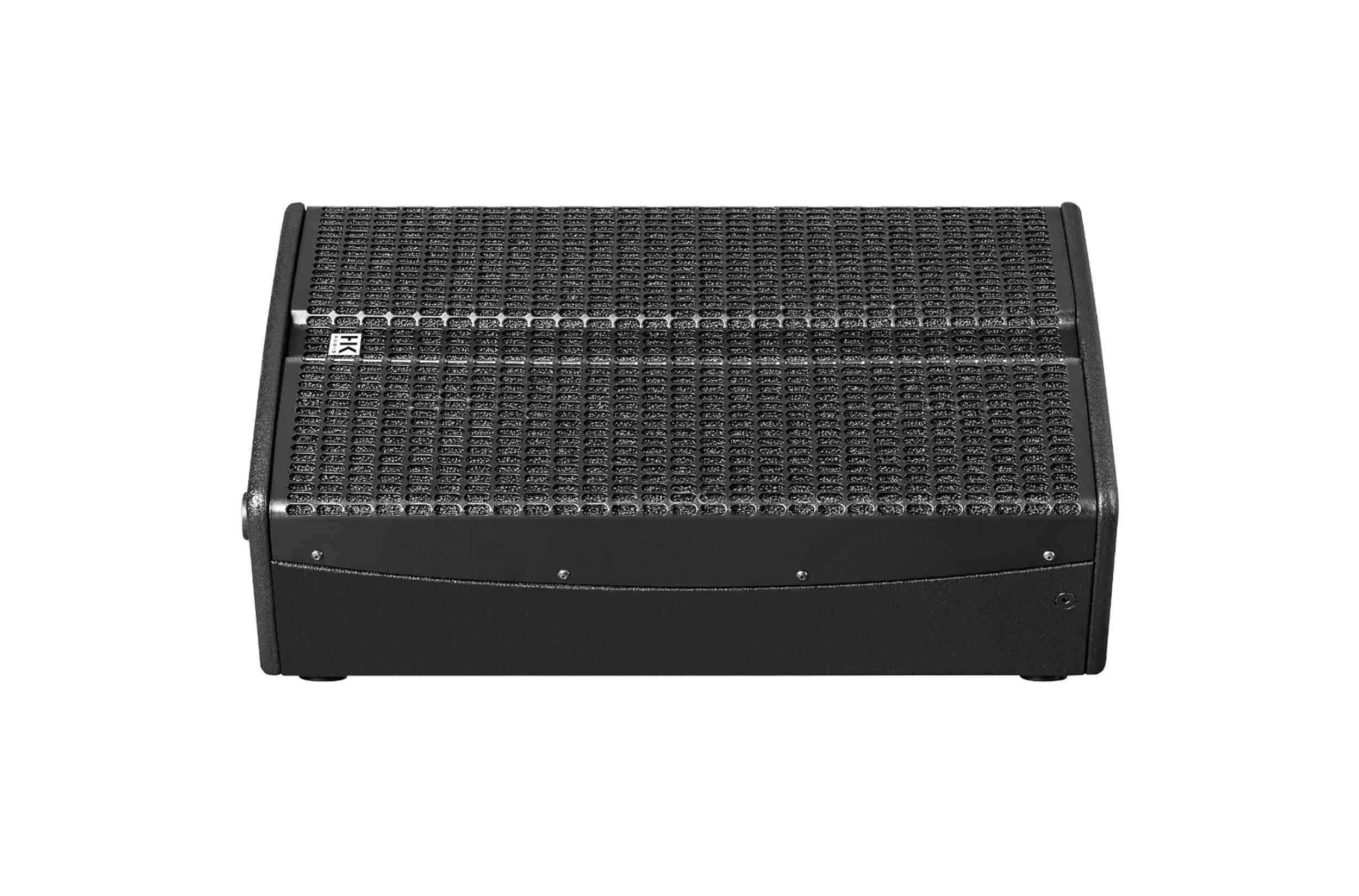

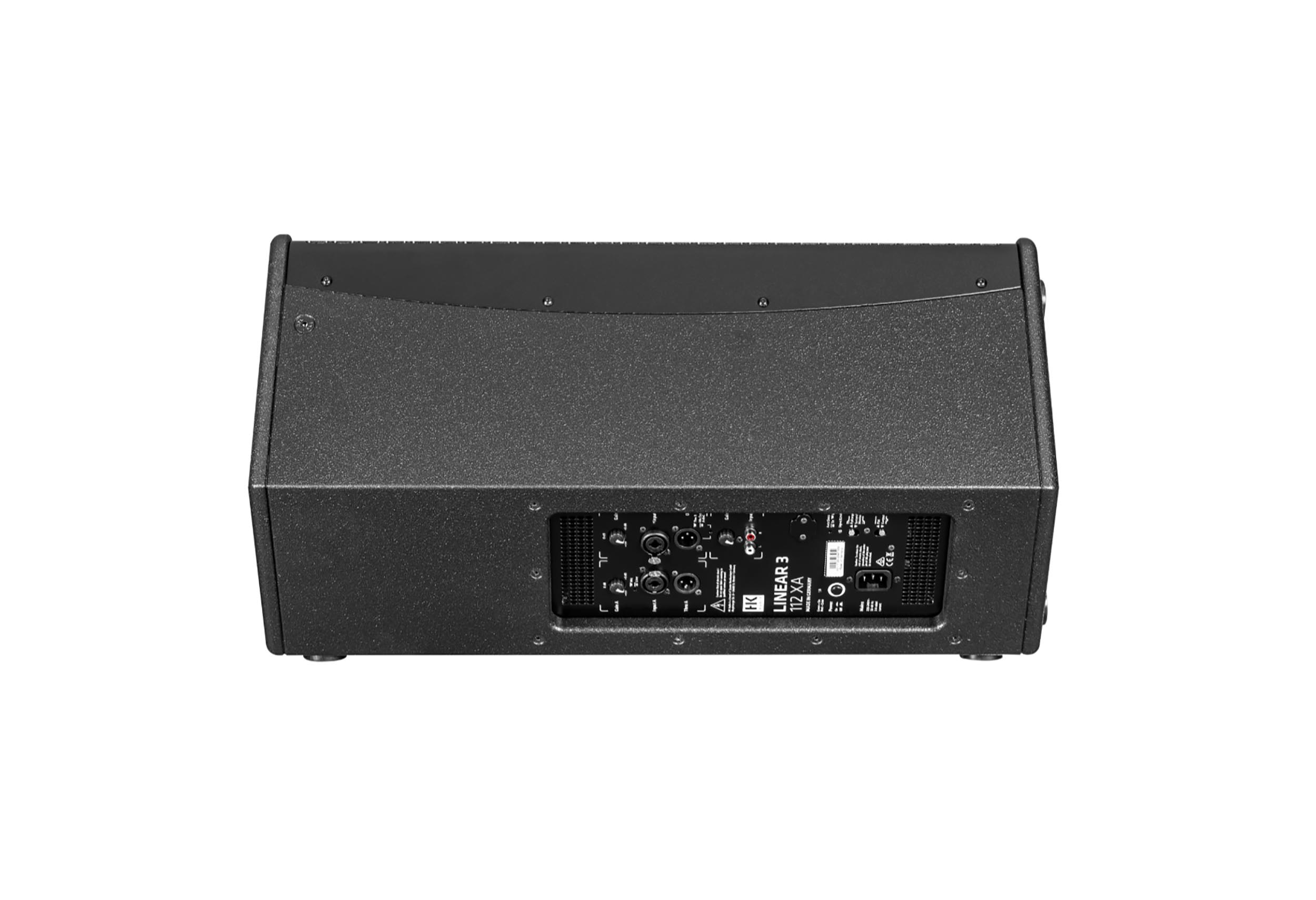

The HK Audio LINEAR 3 112 XA multifunctional speaker is not only an excellent PA speaker for small to medium-sized events, but thanks to its slanted cabinet, it is also the fi rst choice for use as a stage monitor. Equipped with the same DSP features as the two full-range models in the LINEAR 3 series, the LINEAR 3 112 XA also delivers impressively high sound pressure, crystal-clear sound and simple operation. Thanks to integrated EQ presets, the LINEAR 3 112 XA can be quickly and easily adapted to various stage situations and locations. LINEAR 3 has been developed for bands, musicians and DJs who are regularly on the road with their own PA and no sound engineer and who are looking for a powerful sound without a large amount of additional e‑ ort. The LINEAR 3 112 XA meets precisely this challenge.
Product Specifications:
Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD: 135 dB half space
Frequency response +/-3 dB: 67 Hz – 18 kHz
Frequency response -10 dB: 62 Hz – 18 kHz
Power amp output (peak power): 1200 W
Preamp: DSP (Time Alignment)
Amp type: Class D - biamped
Active protective circuits:
Under-voltage, thermal, short circuit, over-current protection,
subsonic filter, look ahead temperature control,
peak, RMS and multiband limiters
Low-/mid speaker 1x 12“, 2“voice coil
HF driver: 1“, 1“voice coil
Horn directivity: 90° x 55° CD horn
Active crossover frequency: 2.3 kHz FIR X-over with 72 dB/oct.
Audio ports in: 2x XLR combo balanced, 1x Stereo RCA
Audio ports out: 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity: +4 dBu @ Gain center-notched
Sensitivity switch: Line/Mic Input A
Filter presets:
2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector: 1x IEC socket with V-Lock cord retainer
Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Angels up (Monitor angle): 33°
Pole mount: DuoTilt 3°/7°
Rigging points: 4x M8 (AP-8)
Carrying handles: 1x SingleGrip, 1x MultiGrip
Housing: 16 mm MDF
Finish: Black acrylic enamel
Front grille: 2 mm metal grille backed with black acoustic foam
Shipping Weight: 55 lbs,
Shipping Dimensions (L x W x H): 18" x 16" x 28"
