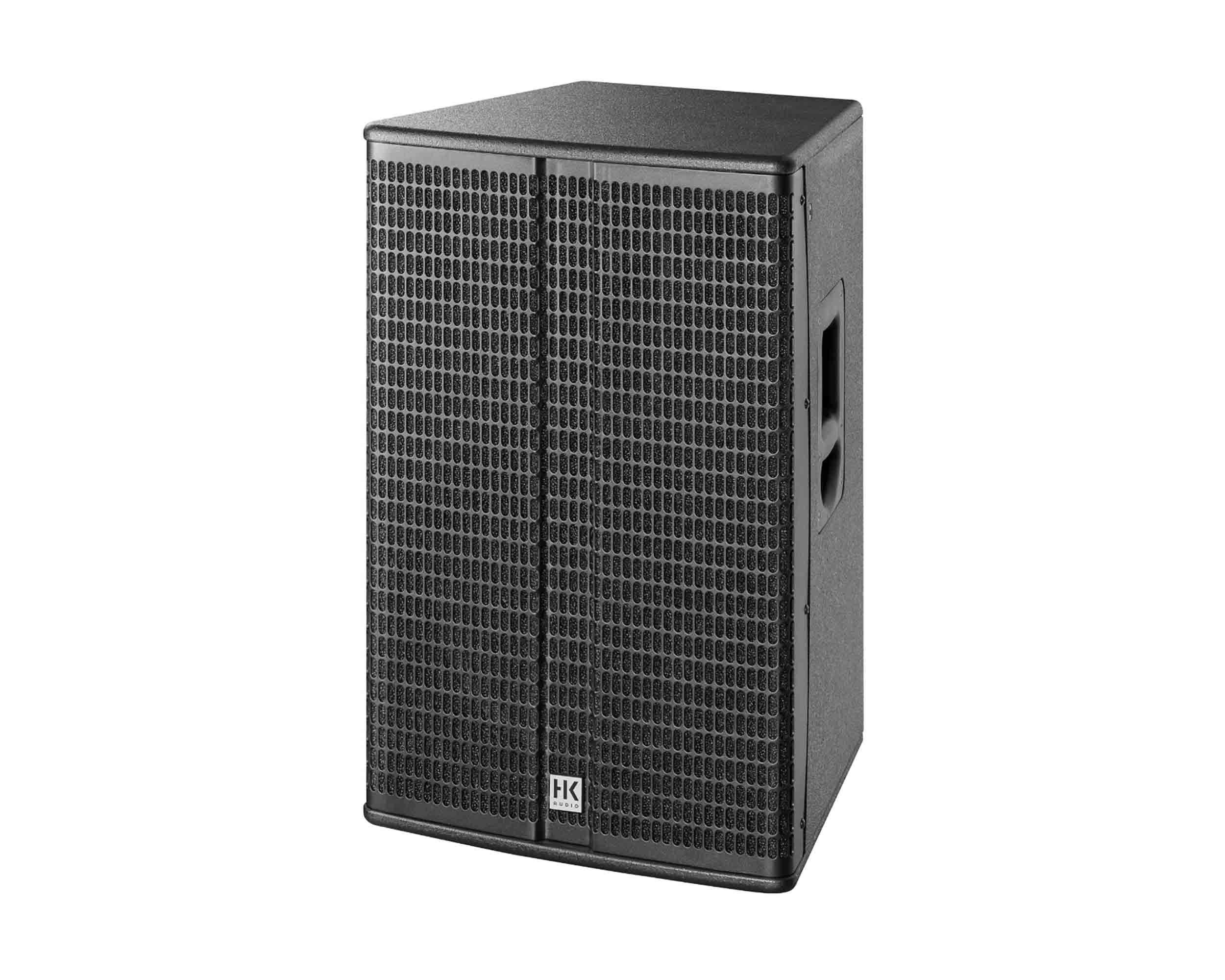

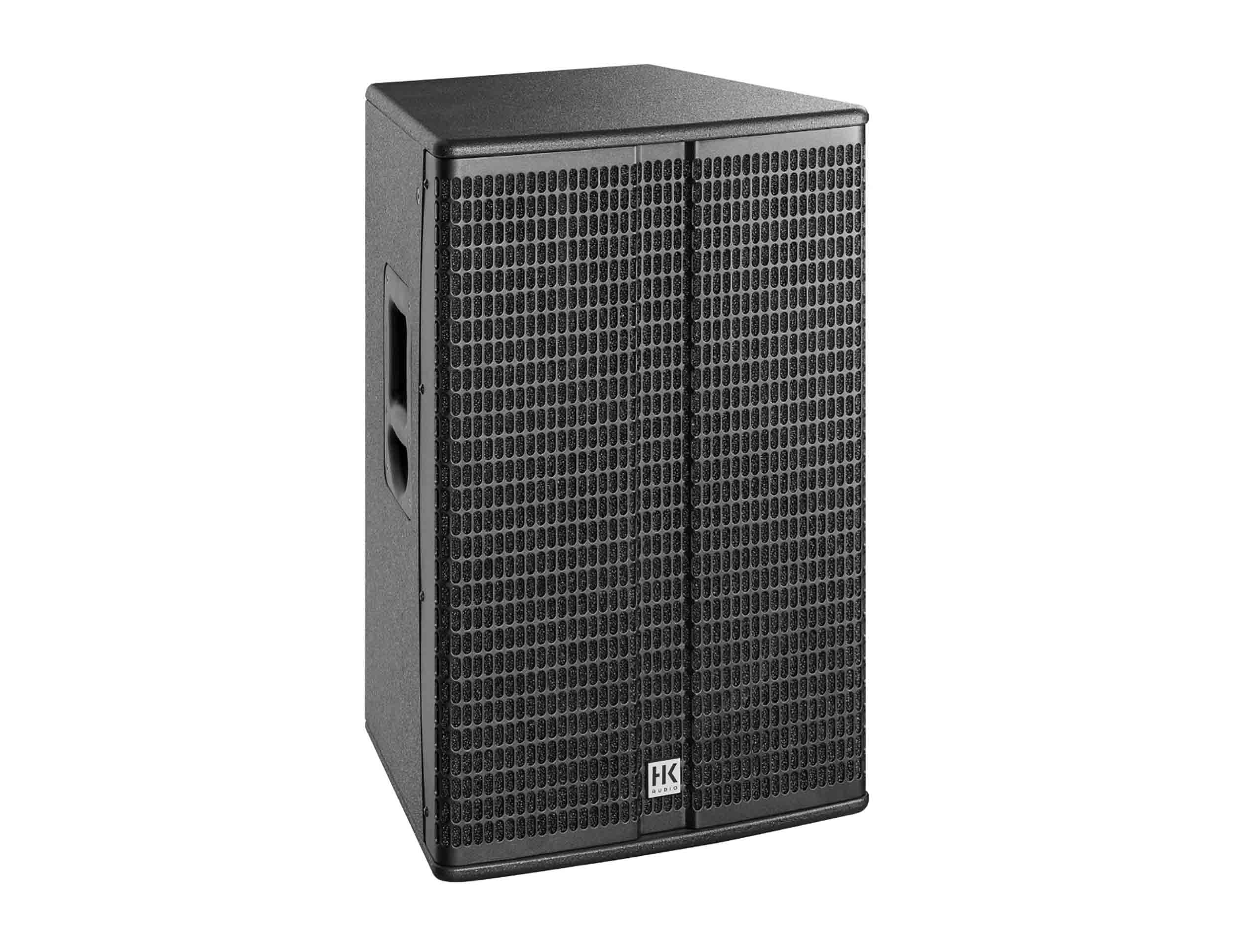

Description

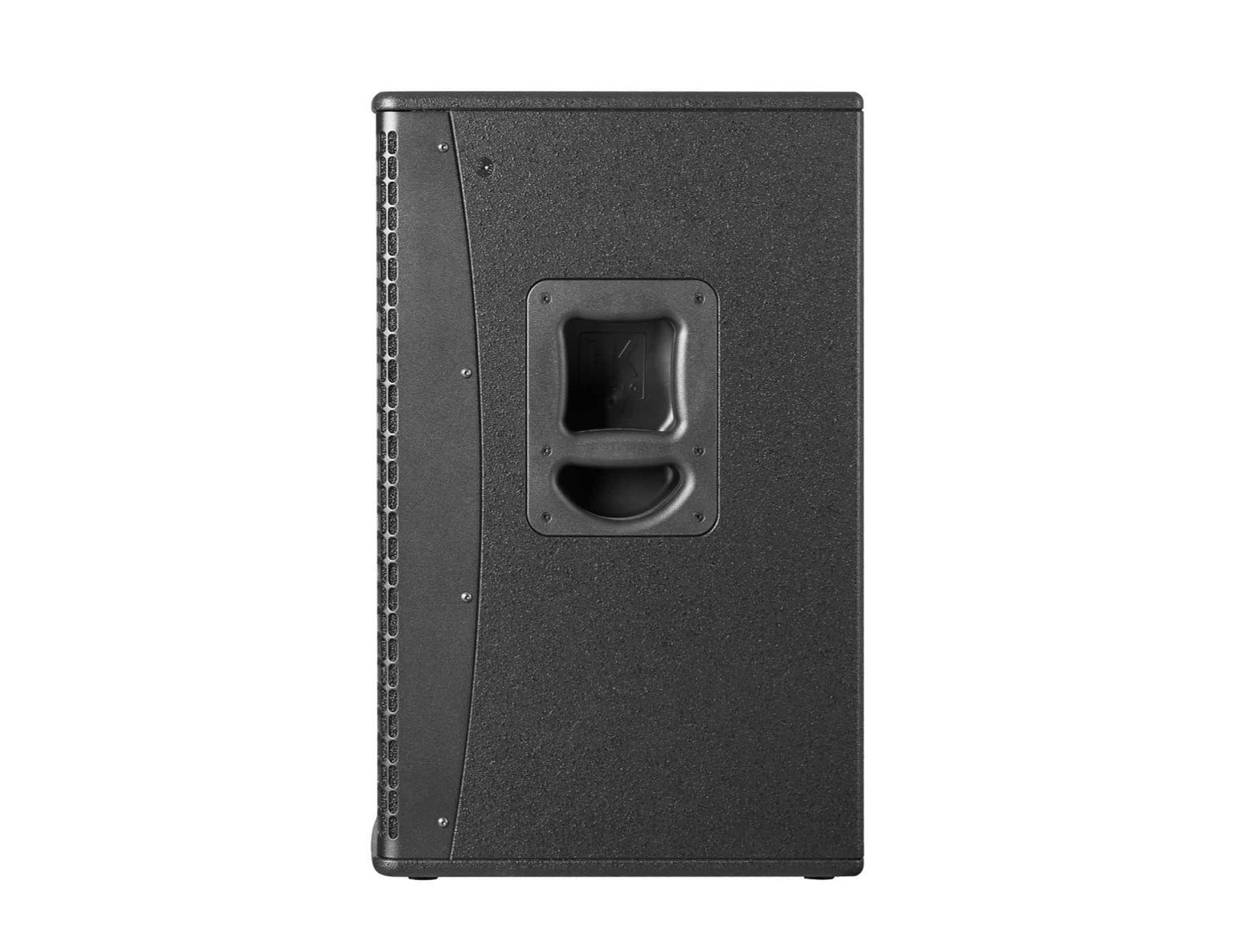

The HK Audio LINEAR 3 115 FA speaker ensures impressively simple acoustic control by the user as well as outstanding full-range characteristics with significantly enhanced depth compared to the LINEAR 3 112 FA. Thanks to its high-performance power amplifier with an output of 1,200 watts, high sound pressure levels can be achieved, even in larger venues. Equipped with a 1“tweeter and a 15“woofer, the LINEAR 3 115 FA covers a wide frequency range. Thanks to integrated DSP technology, you as a user can deploy this active speaker for a whole host of different events with the help of the four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour. LINEAR 3 has been developed for bands, musicians and DJs who are regularly on the road with their own PA and no sound engineer and who are looking for a powerful sound without a large amount of additional e‑ ort. The LINEAR 3 115 FA meets precisely this challenge.
Product Specifications:
Max. SPL @ 10% THD: 126 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD: 135 dB half space
Frequency response +/-3 dB: 58 Hz – 18 kHz
Frequency response -10 dB: 49 Hz – 18 kHz
Power amp output (peak power): 1200 W
Preamp: DSP (Time Alignment)
Amp type: Class D - biamped
Active protective circuits:
Under-voltage, thermal, short circuit, over-current protection,
subsonic filter, look ahead temperature control,
peak, RMS and multiband limiters
Low-/mid speaker 1x 15“, 2.5“voice coil
HF driver: 1“, 1“voice coil
Horn directivity: 90° x 55° CD horn
Active crossover frequency: 2.3 kHz FIR X-over with 72 dB/oct.

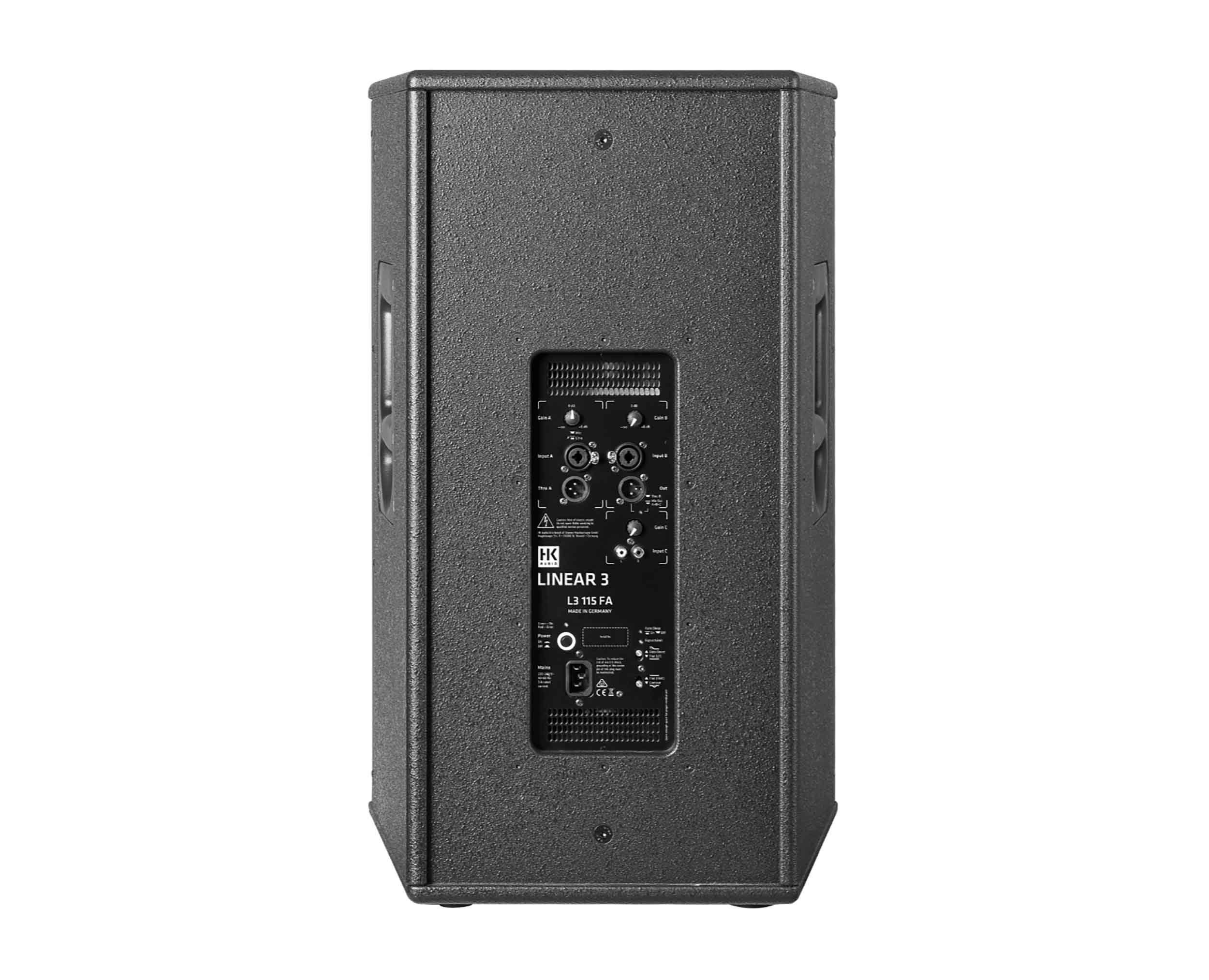

Audio ports in: 2x XLR combo balanced, 1x Stereo RCA
Audio ports out: 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity: +4 dBu @ Gain center-notched
Sensitivity switch: Line/Mic Input A
Filter presets:
2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector: 1x IEC socket with V-Lock cord retainer
Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

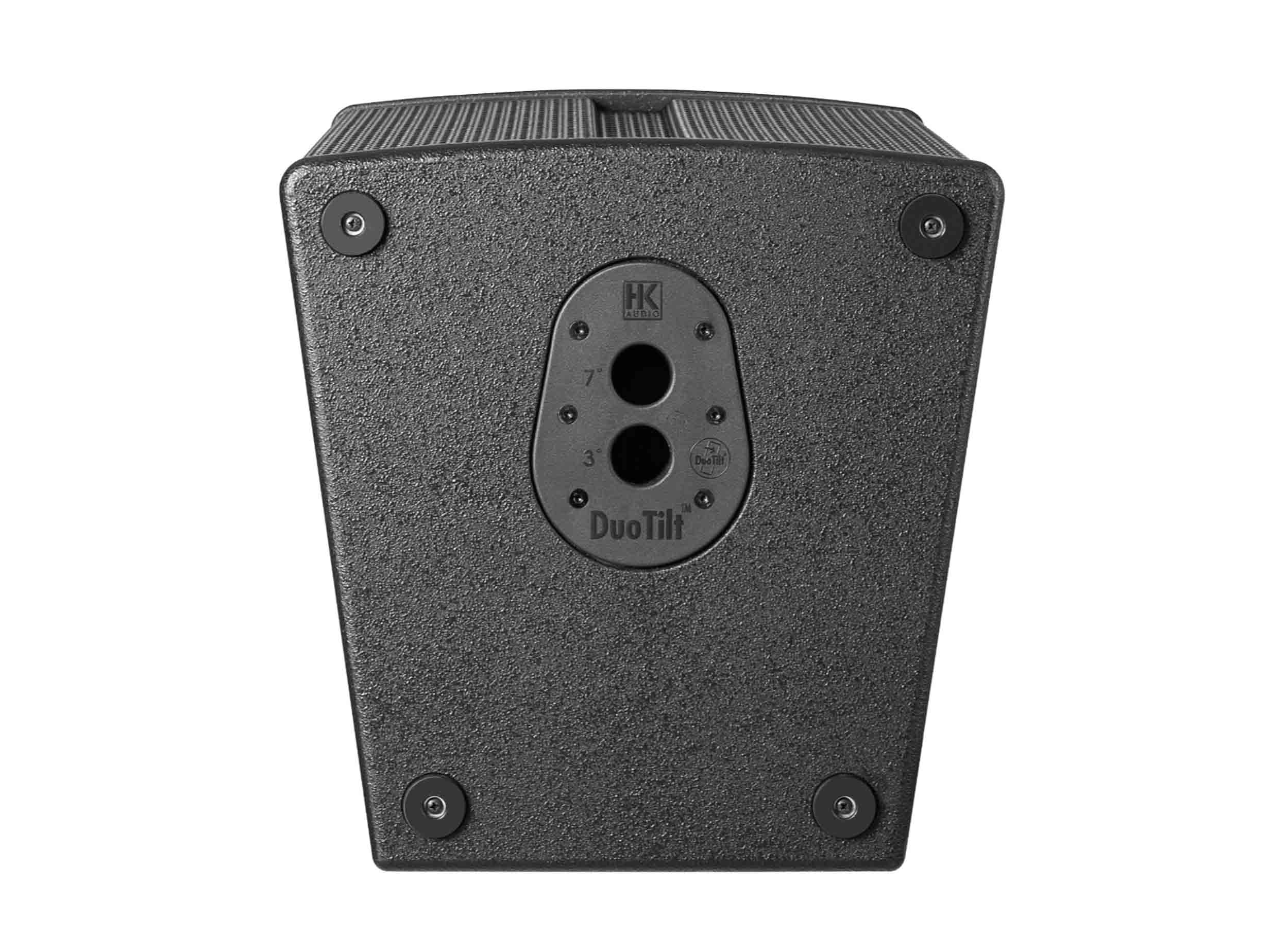

Pole mount: DuoTilt 3°/7°
Rigging points: 4x M8 (AP-8)

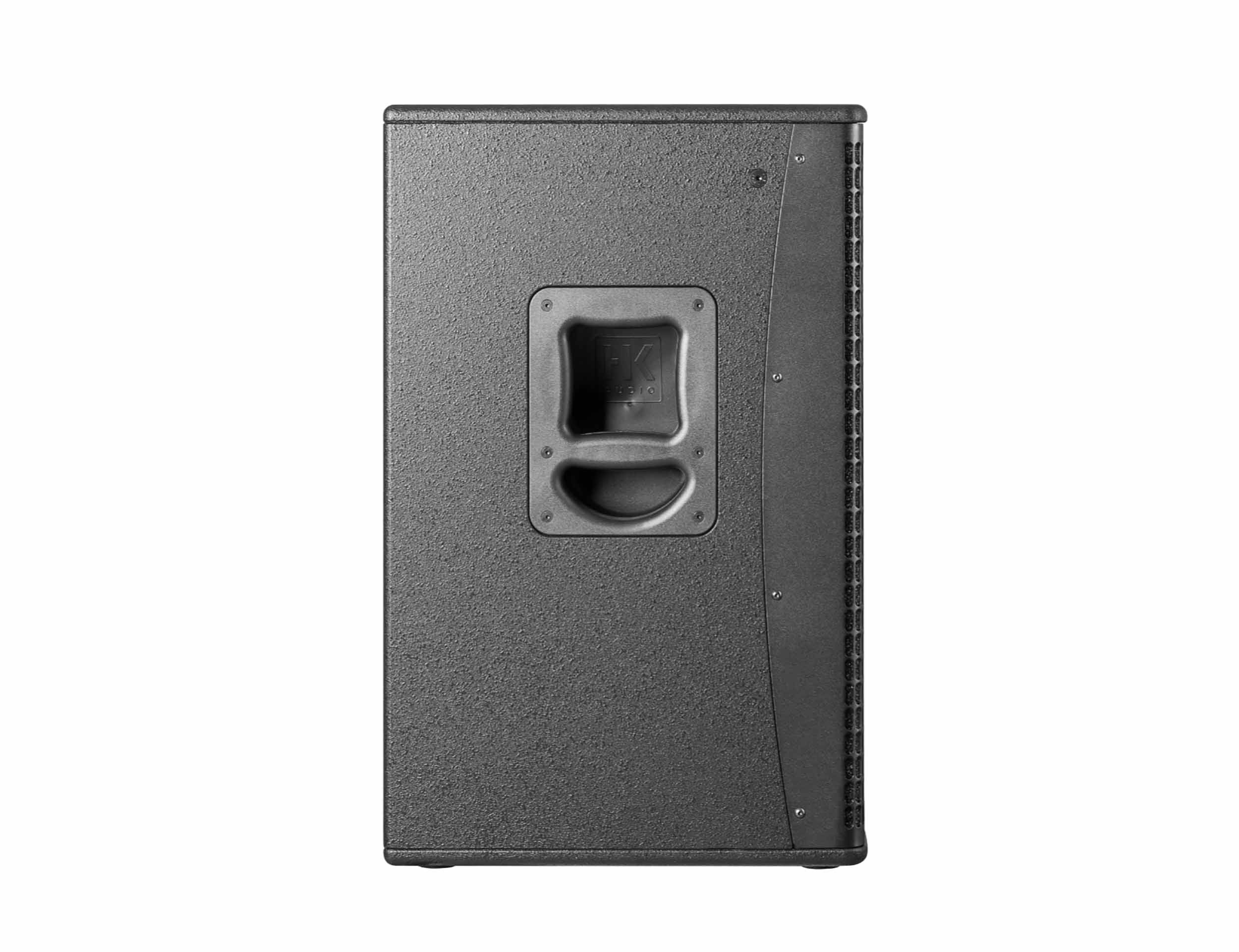

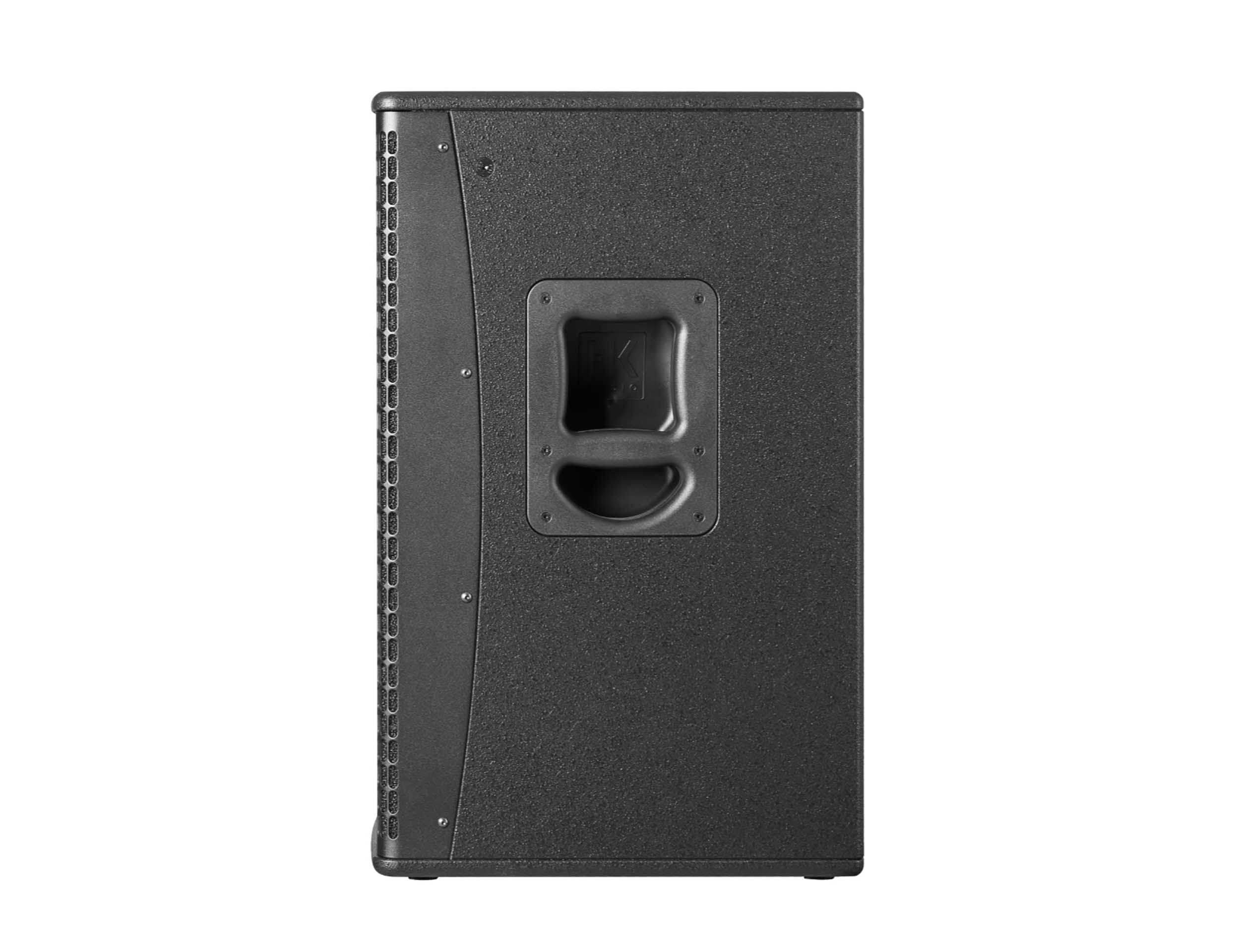

Carrying handles: 2x MultiGrip
Housing: 16 mm MDF
Finish: Black acrylic enamel

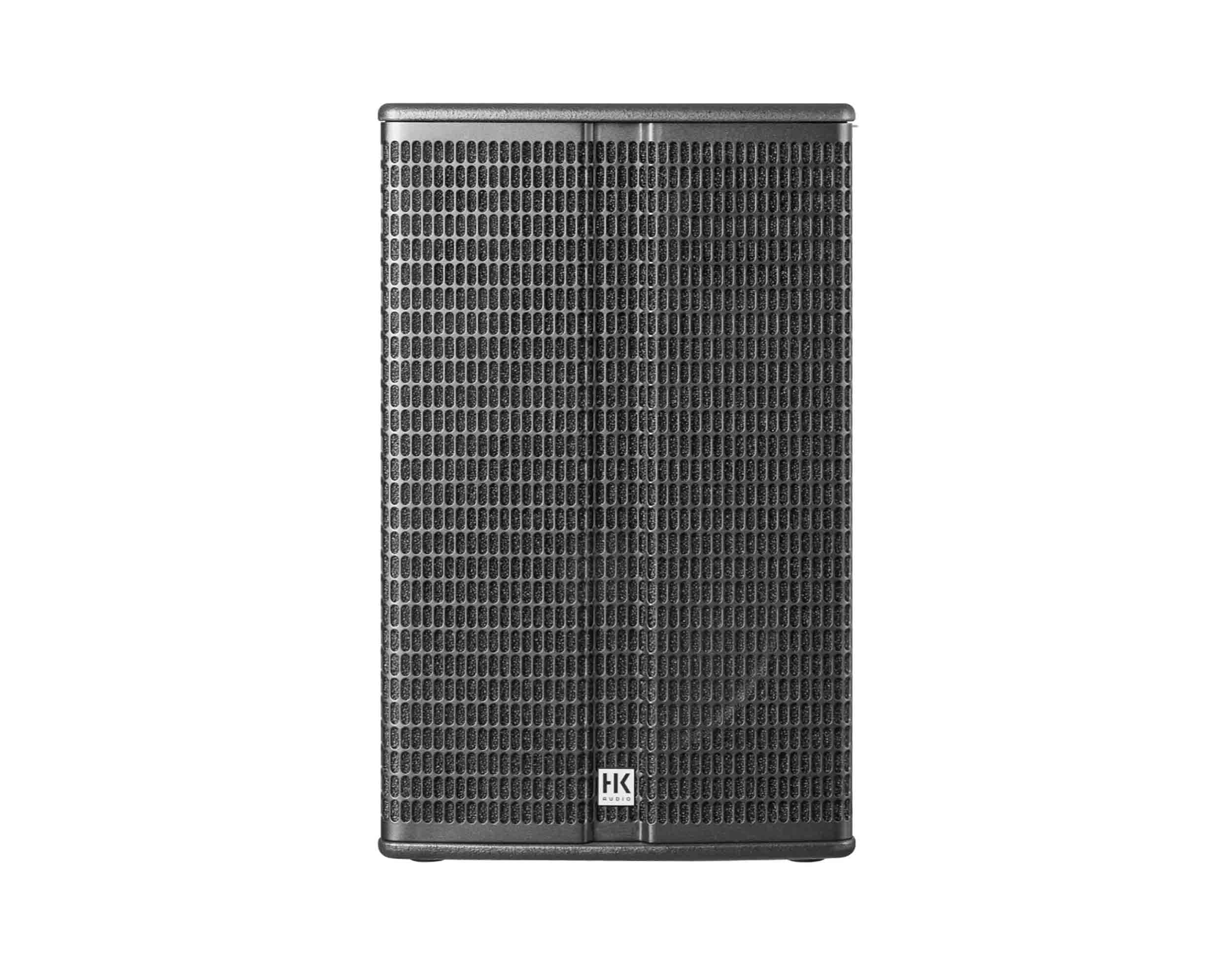

Front grille: 2 mm metal grille backed with black acoustic foam
Shipping Weight: 70 lbs,
Shipping Dimensions (L x W x H): 21" x 19" x 30"
