Description

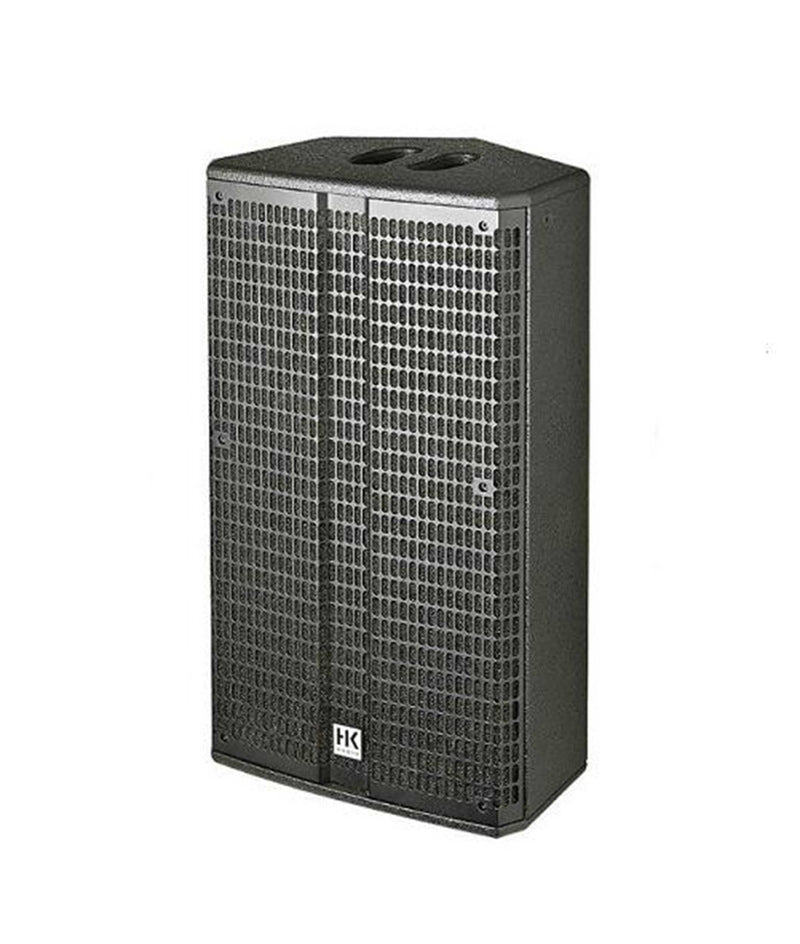

The HK Audio L5-112XA, 1000W 12-Inch Active Wedge Monitor Speaker - Black is housed in a multipurpose enclosure. It is tuned to deliver high sound pressure levels (up to 135 dB SPL peak) and can be used as a top unit in a PA system with Linear SUB 2000/2000 A units. The speaker also makes an excellent monitor thanks to its rotatable 60° x 40° CD horn, which provides the right coverage pattern for each scenario.
Product Specifications
| Specification | Details |
|---|---|
| Max SPL calculated | 138 dB half space |
| Max SPL peak | 135 dB half space |
| Cut-off Frequency active | 1.65 kHz, 24 dB/Octave |
| Max SPL | 129 dB half space |
| Power Rating | 1000 Watt |
| Frequency response +/- 3 dB | 100 Hz - 18 kHz |
| Frequency response -10 dB | 72 Hz - 20 kHz |
| Sensitivity LF, 1W/1m | 98 dB full space / 104 dB half space |
| Sensitivity HF, 1W/1m | 110 dB full space / 116 dB half space |
| Low/Midrange amplifier | 650 Watt at 4 Ohm |
| HF Amplifier | 350 Watt at 4 Ohm |
| Input Sensitivity | +4 dBu at Gain Center click / L5 System Level |
| Protection | Subsonic 24 dB/Octave, Peak Limiter |
| Connections | 2 x XLR-Combi IN, 2 x XLR-Thru, 1 x XLR-Mix Out |
| Low/Mid Speaker | 12" with 2.5" voice coil (4 Ohm) |
| HF Driver | 1" with 1.75" voice coil (16 Ohm) |
| Horn characteristics | 60° x 40° CD horn, rotatable |
| Equalizer | EQ switch Monitor / Flat Top |
| Subsonic filter | Yes |
| Peak limiter | Yes |
| Amplifier | Class D - Biamped |
| Sensitivity switch | Yes - Line/Mic Input A |
| Rigging points | 3 x M8 |
| Handles | 2 integrated |
| Enclosure | Hybrid (birch multiplex / MDF) |
| Grille | 2mm metal grille backed with black acoustic foam |
| Finish | Acrylic enamel, black |
| Dimensions (W x H x D) | 14.56 x 26.29 x 11.81 inches |
| Weight | 46.5 lbs |
