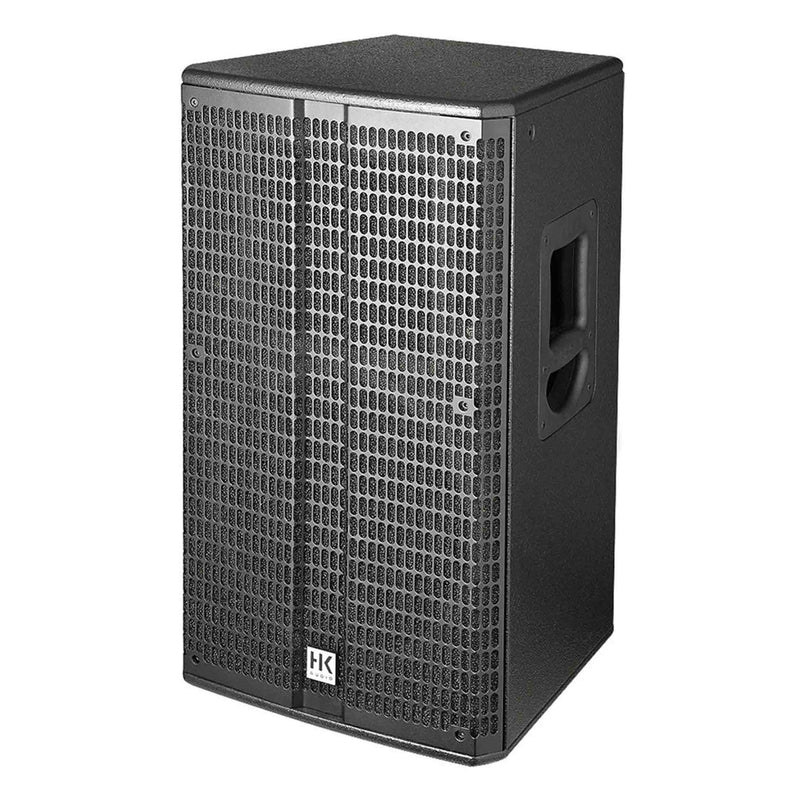

The HK Audio L5-115FA, 15-Inch 2-Way Active Speaker with Fly Points is a member of HK Audio's LINEAR 5 speaker line. The L5-115FA is able to handle 1,000 watts as a stand-alone cabinet to furnish the needs of everything for professional bands and PA providers to get the job done, day in and day out.
The L5-115FA has an ultra-efficient 15-inch speaker supported by the 1-inch driver that features an asymmetrical horn with an optimized coverage pattern that is wider up front and grows more directed with distance, thereby achieving greater range.
Product Specifications:
Max SPL: 128 dB half space (@ 10% THD)
Max SPL peak: 137 dB half space (@ 10% THD)
Max SPL calculated: 138 dB half space
Frequency response +/- 3 dB: 57 Hz - 18 kHz
Frequency response -10 dB: 48 Hz - 20 kHz
Power Rating: 1000 W
Amplifier: Class D - Biamped
Low/Mid Speaker: 1x 15"
HF Driver: 1"
Horn characteristics: 60°- 90°(asymm) x 55° CD horn, rotatable
Cut-off Frequency active: 1,65 kHz, 24 dB/oct.
Connections: 2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity: +4dBu @ Gain Center click / L5 System Level
Sensitivity switch: Line/Mic Input A
Equalizer: EQ switch Small Venue/High Power
Pole mount: DuoTilt 3/7
Rigging points: 3x M8
Handles: 2 integrated
Enclosure: Hybrid (birch multiplex / MDF)
Grille: 2 mm metal grille backed with black acoustic foam
Finish: Acrylic enamel, black
Optional accessories: Protective cover
Dimensions (W x H x D): 17.7 x 28 x 17.7 in
Weight: 68 lbs
