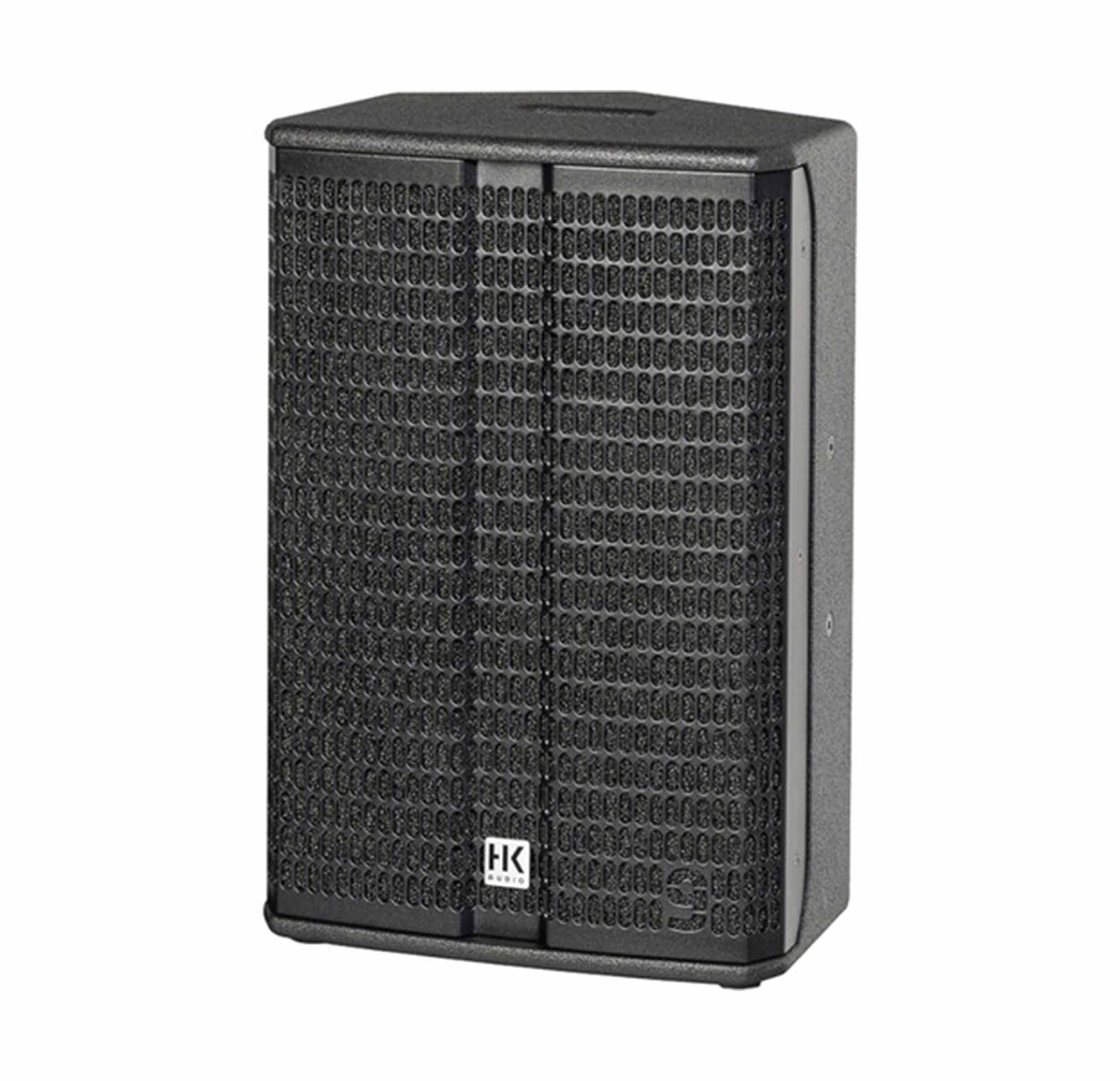

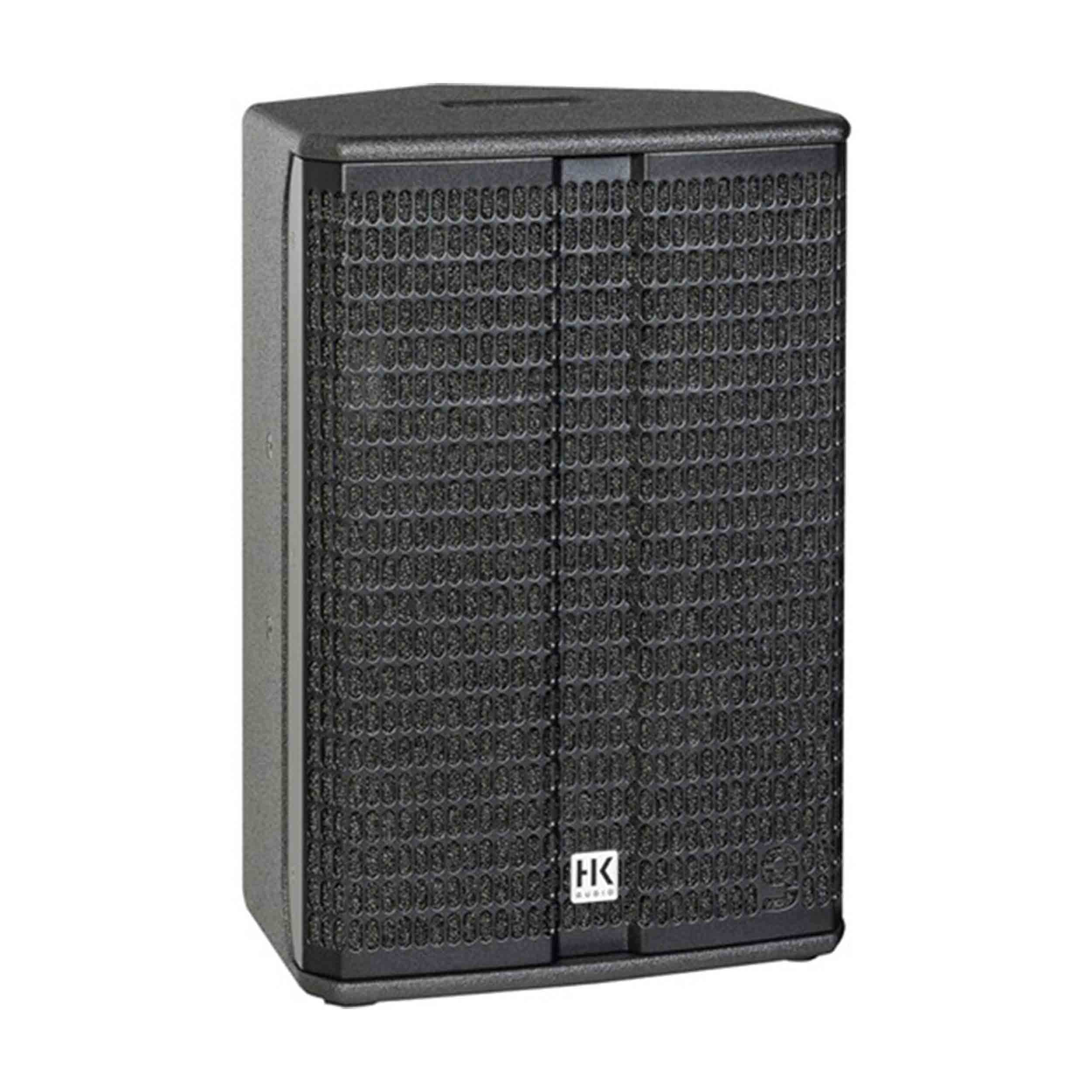

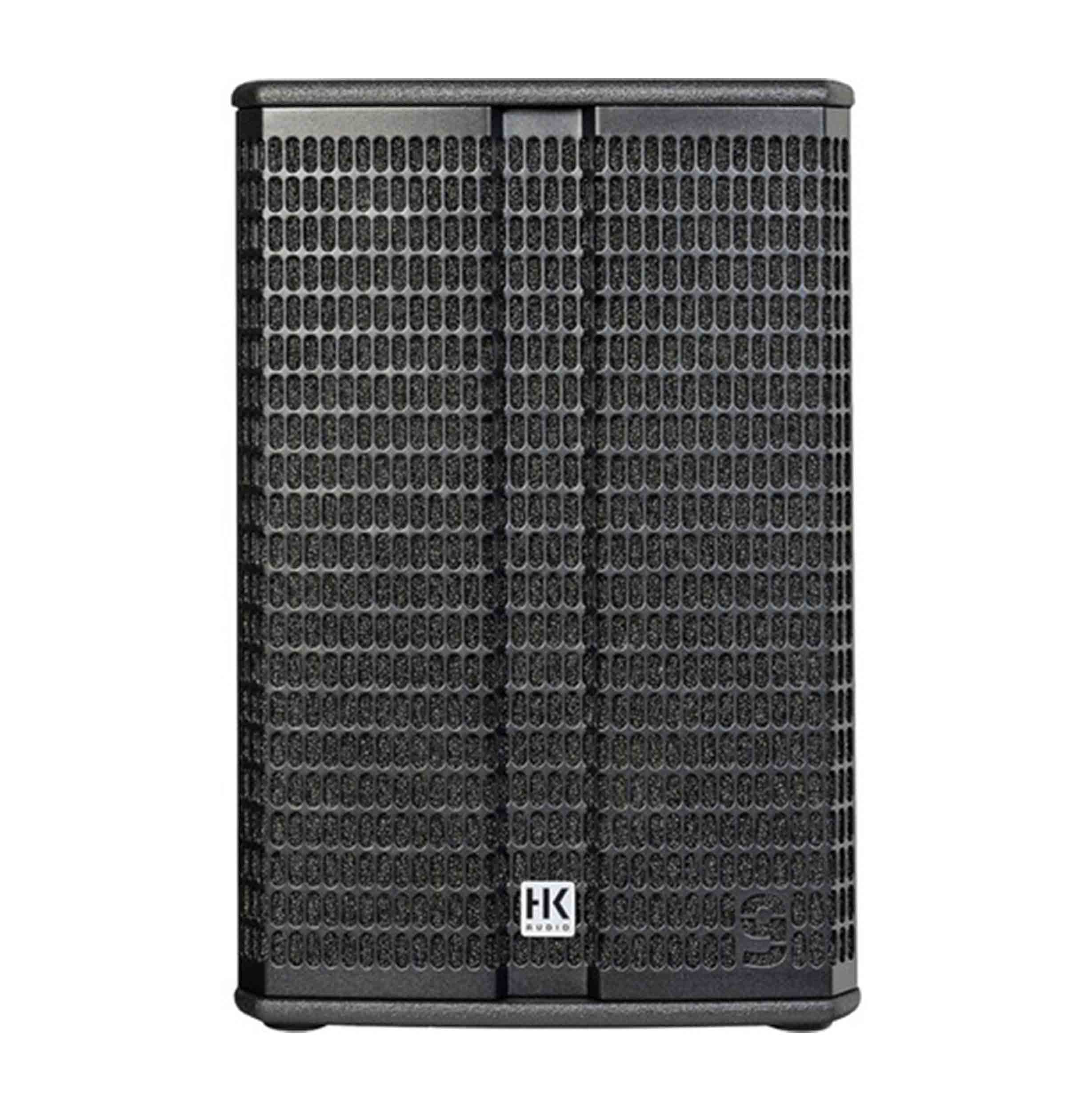

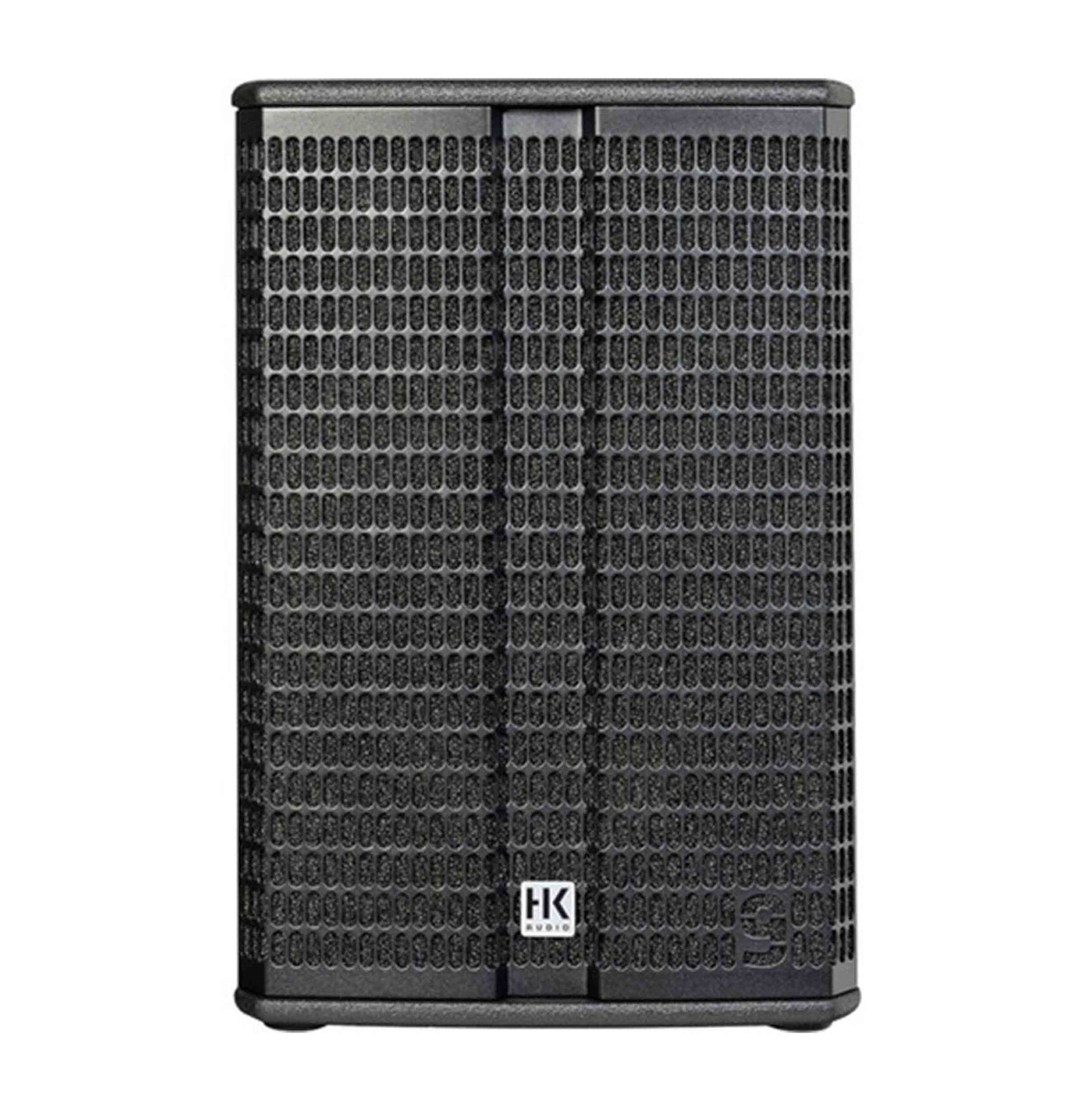

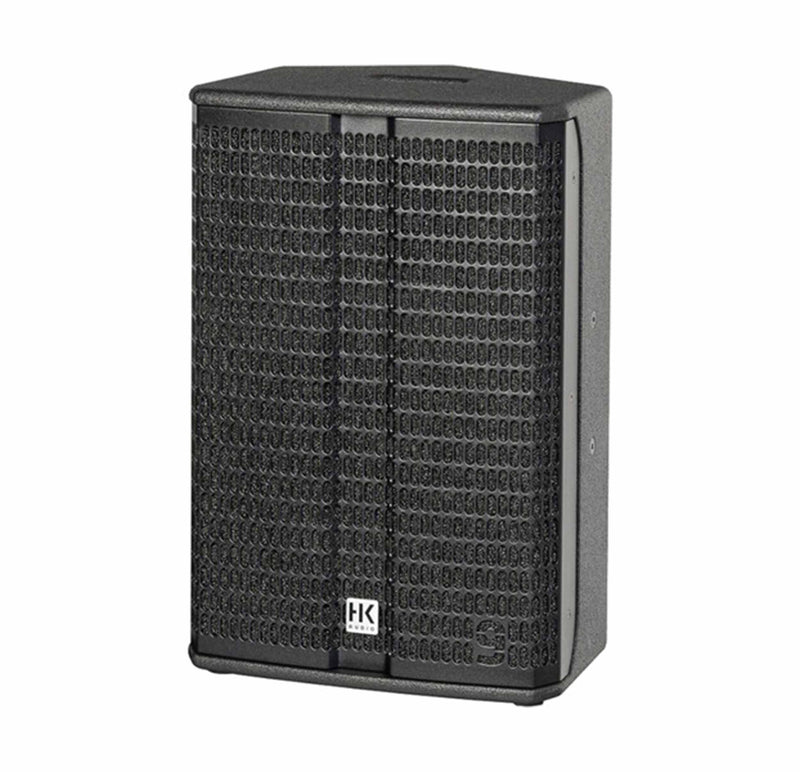

HK Audio L9-110XA, Powered 700W 10-Inch 2-Way Loudspeaker - Black

The HK Audio L9-110XA, Powered 700W 10-Inch 2-Way Loudspeaker - Black is a versatile loudspeaker that can be used for a variety of applications, including live sound, PA, and monitoring. It features a rotating 80° and 60° horn that allows the speaker to be deployed horizontally or vertically, making it ideal for both nearfield and far field applications.

The speaker is powered by a 700W RMS Class-D amplifier that drives a 1" high-frequency driver and a 10" woofer. This combination produces a full-range sound with a frequency response of 70 Hz to 19 kHz and a maximum SPL of 129 dB.

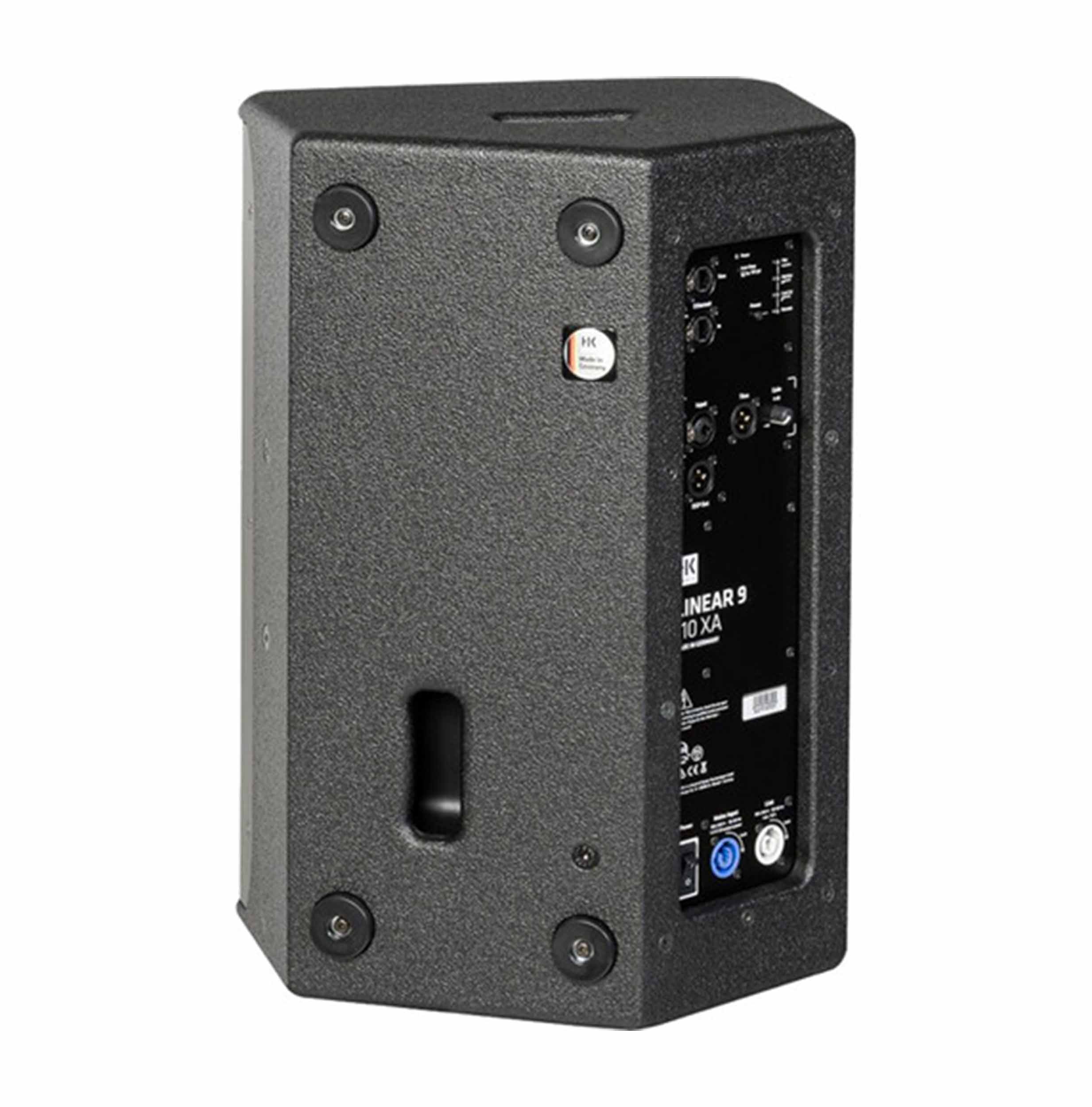

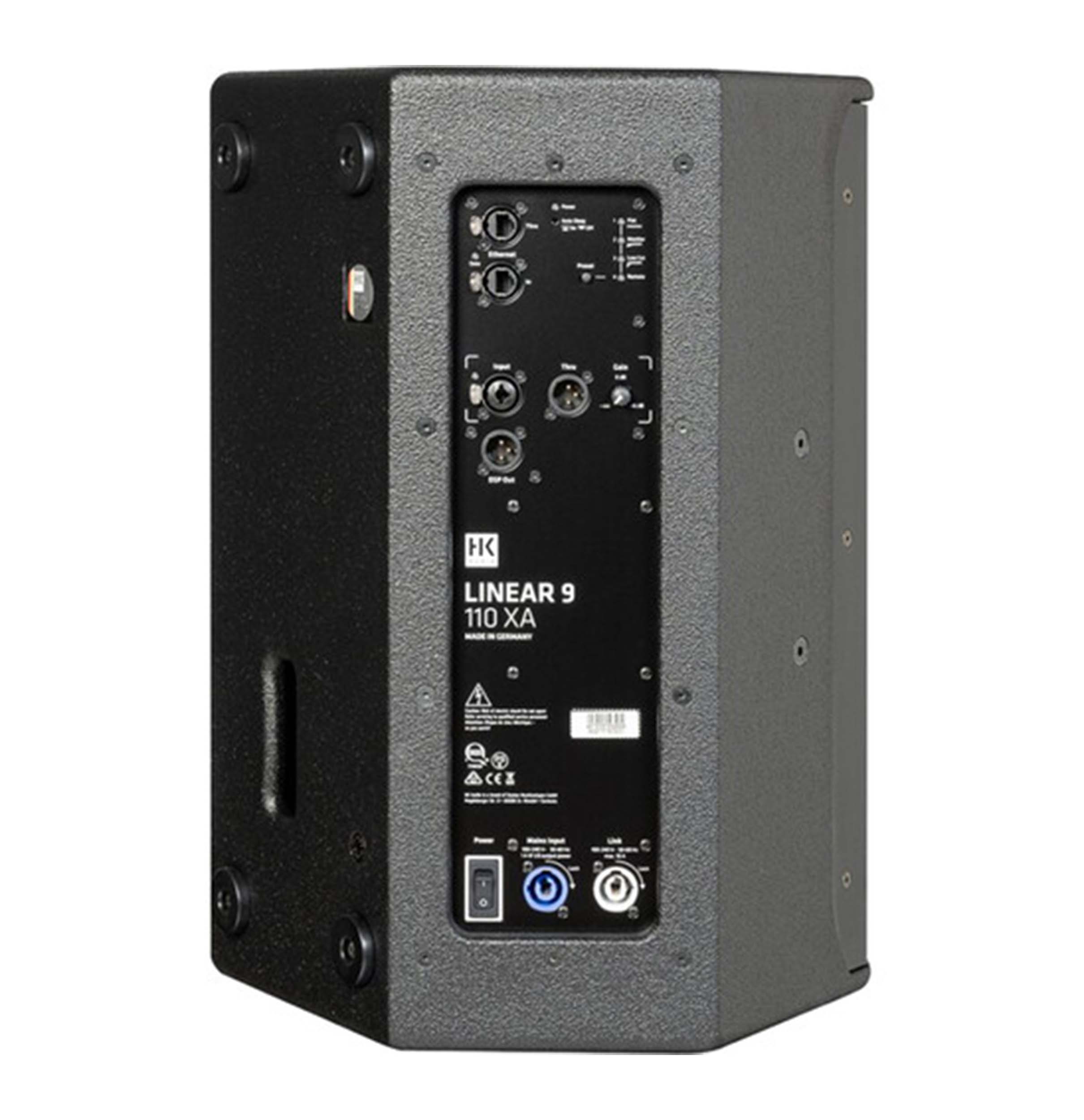

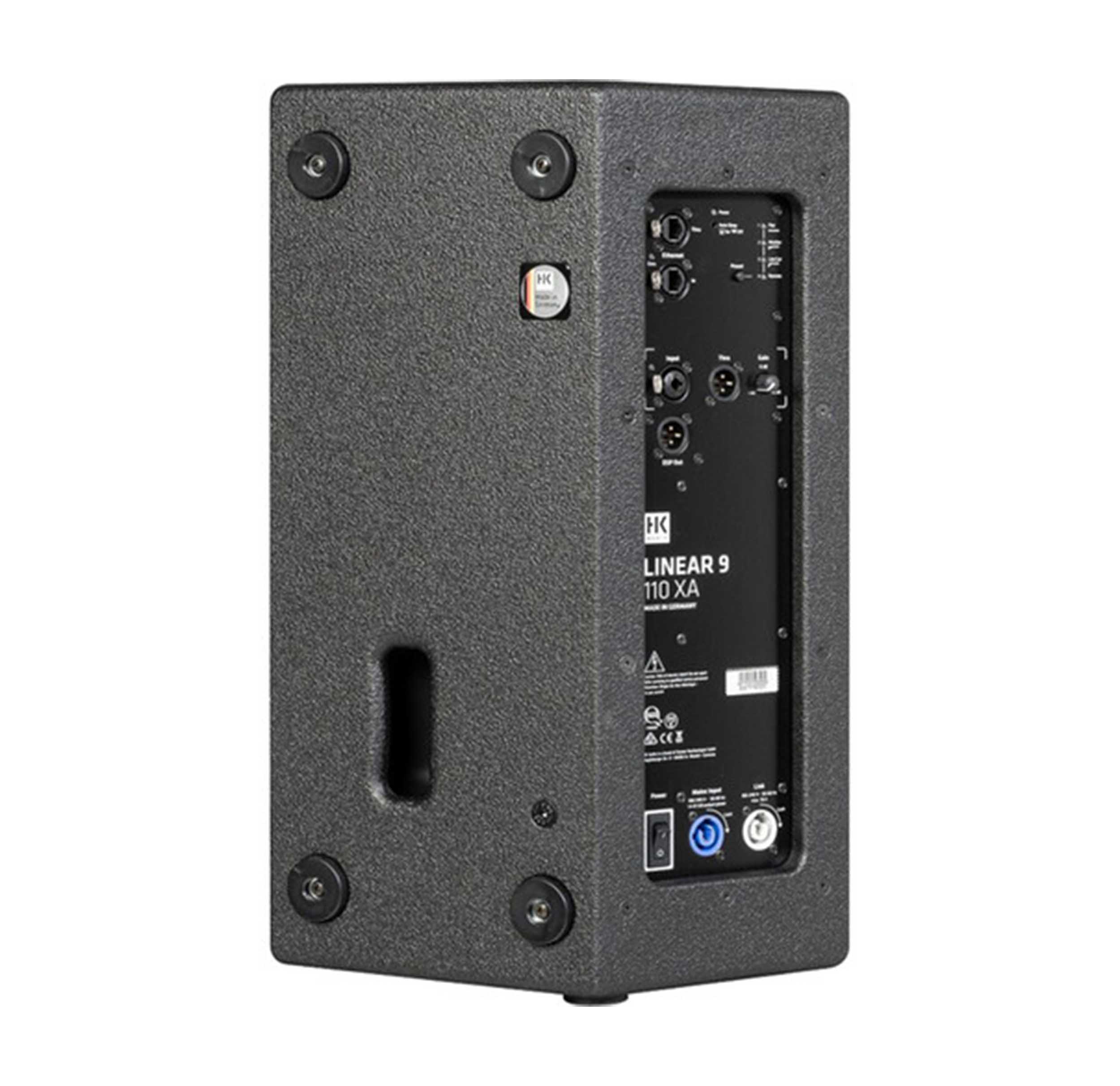

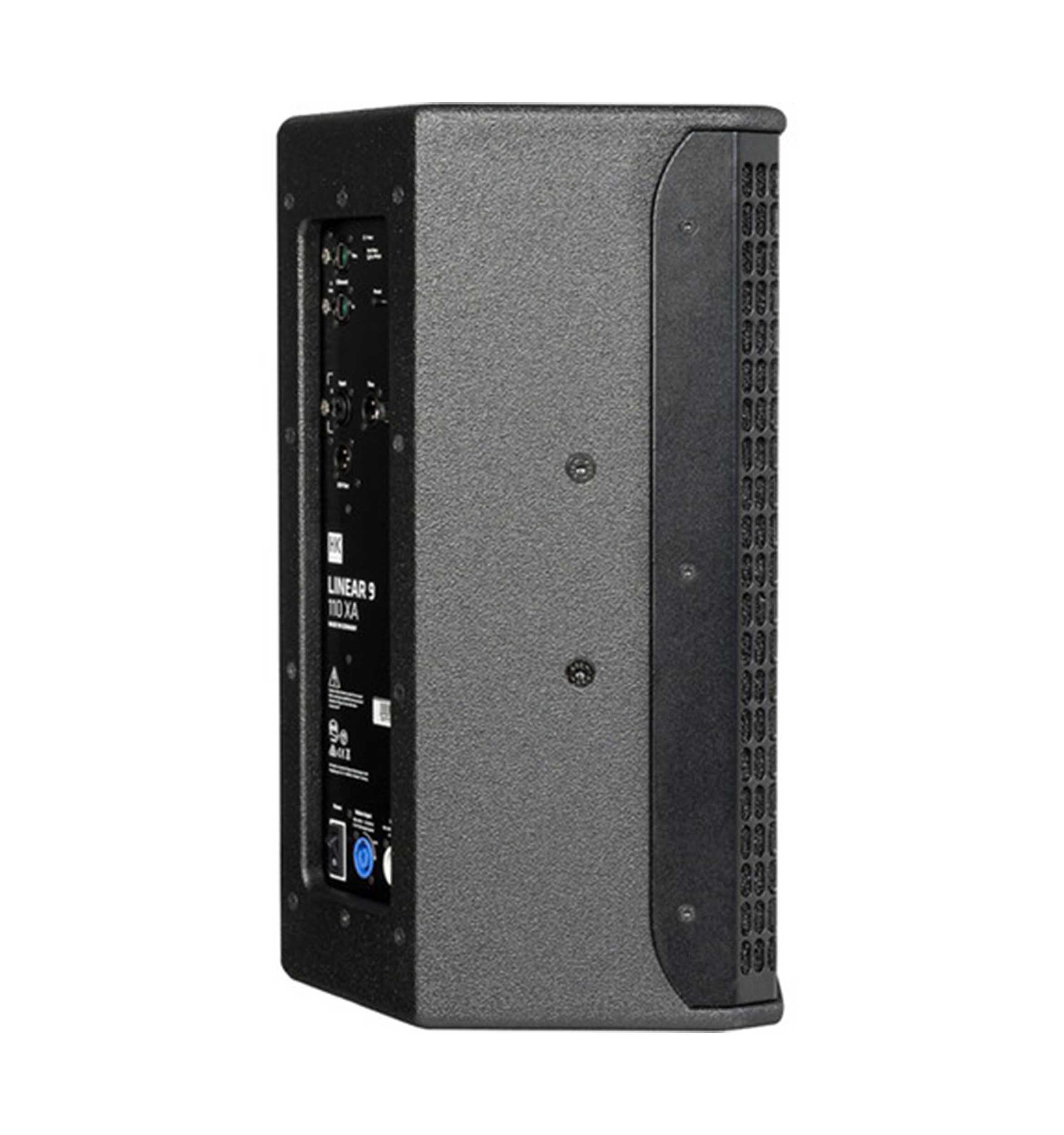

The rear panel of the speaker features a pair of RJ45 network ports that connect to the internal speaker DSP. The DSP allows you to adjust a variety of parameters, including the frequency response, EQ, delay, and limiting. The speaker also features a combo XLR-1/4" input and XLR output for connecting to other audio equipment. A DSP XLR output provides a networked DSP-controlled channel for non-network speakers.

Product Specifications:

Configuration: Active 2-Way

Enclosure Type: Bass-Reflex Loudspeaker

Total Power Capacity: 700 W RMS

Amplifier Class: Class-D

HF Driver: 1 x 1" / 2.5 cm Rotatable Horn

HF Voice Coil: 1.4" / 3.6 cm

MF Driver: None

LF Driver: 1 x 10" / 254 mm Woofer

LF Voice Coil: 2.5" / 63.5 mm

Frequency Range: 65 Hz to 20 kHz -10 dB

Frequency Response: 70 Hz to 19 kHz 3 dB

Maximum SPL: 129 dB (Half-Space)

Coverage Angle: 80° H x 60° V (Rotatable Horn)

Max Input Level: +20 dB

Gain Range: -12 dB to +6 dB

Protections: Signal Limiter

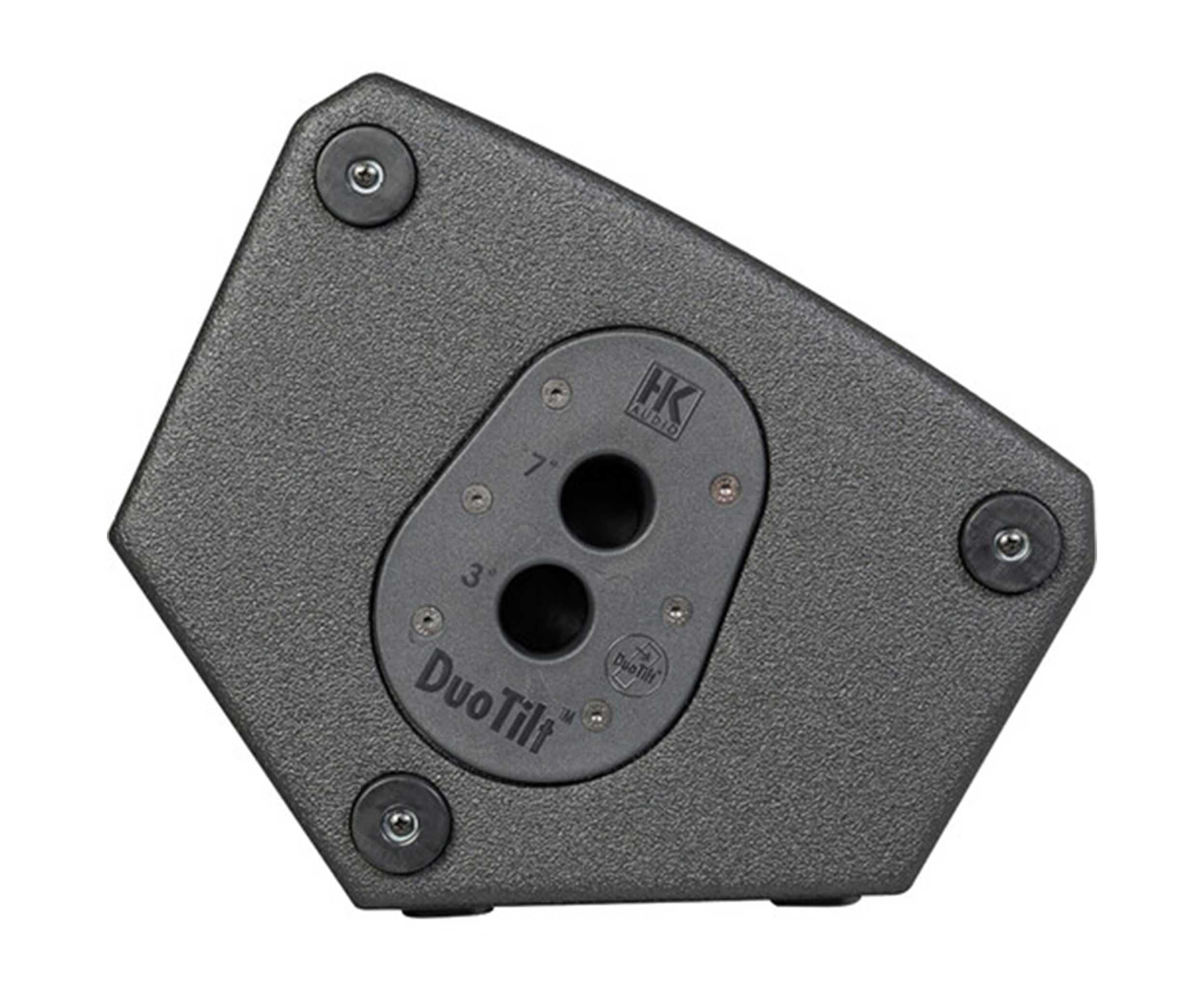

Mounting: Pole Socket (Dual Angle, Bottom)

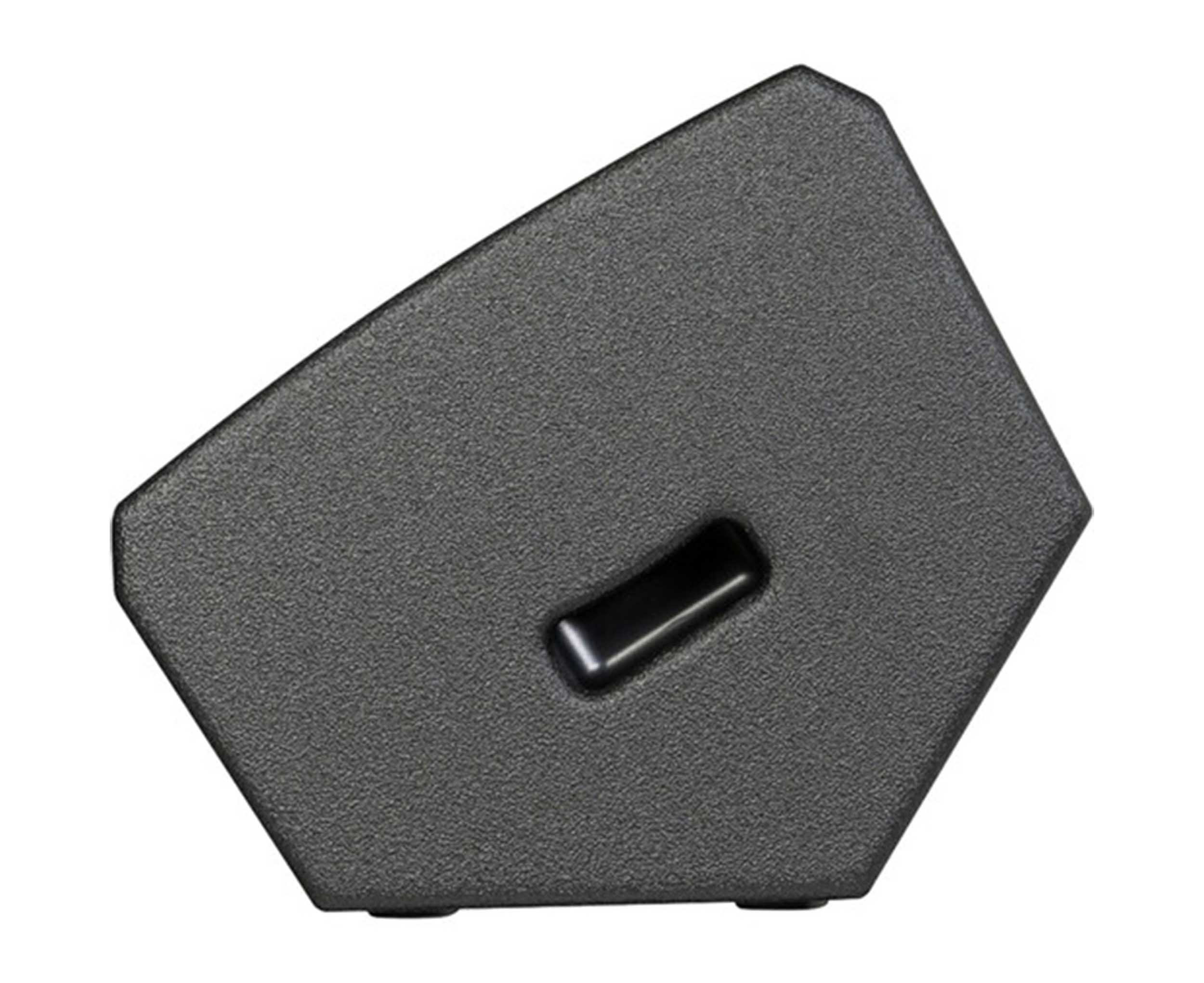

Handles

1 x Top

1 x Side

Construction Material: Metal Grille, Wood

Dimensions: 21.3 x 14.2 x 12.2"

Weight: 36.4 lbs
