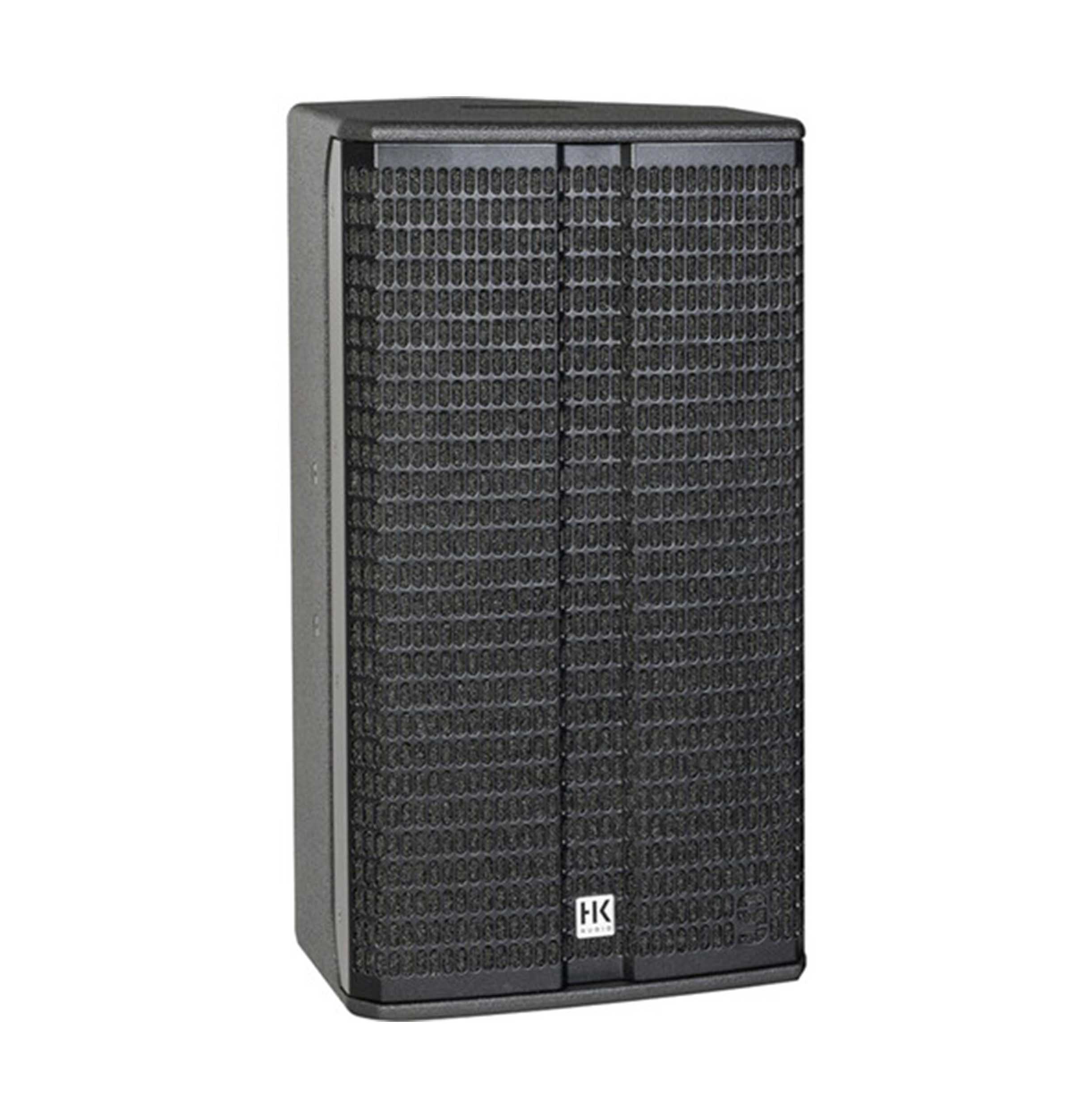

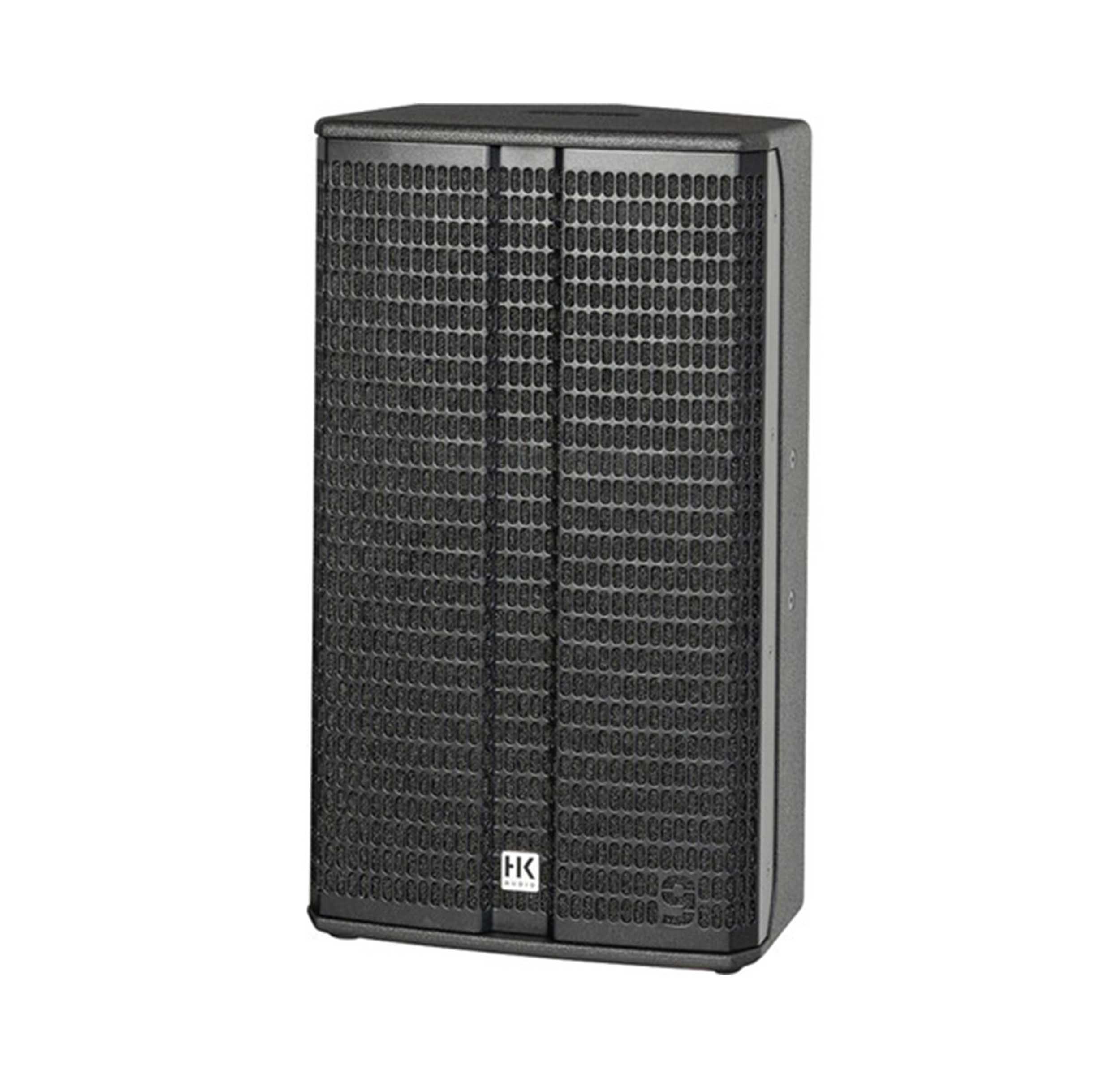

HK Audio L9-112XA, Powered 700W 12-Inch 2-Way Loudspeaker - Black

The HK Audio L9-112XA, Powered 700W 12-Inch 2-Way Loudspeaker - Black is a versatile loudspeaker that can be used for a variety of applications, including live sound, touring, and fixed installations. It features a rotating 70 x 50° horn that allows the speaker to be deployed horizontally or vertically, and a 700W (2800W peak) Class-D amplifier that powers the 1" HF driver and 12" woofer. The speaker produces a full range sound (67 Hz to 19 kHz) with a maximum SPL of 131 dB.

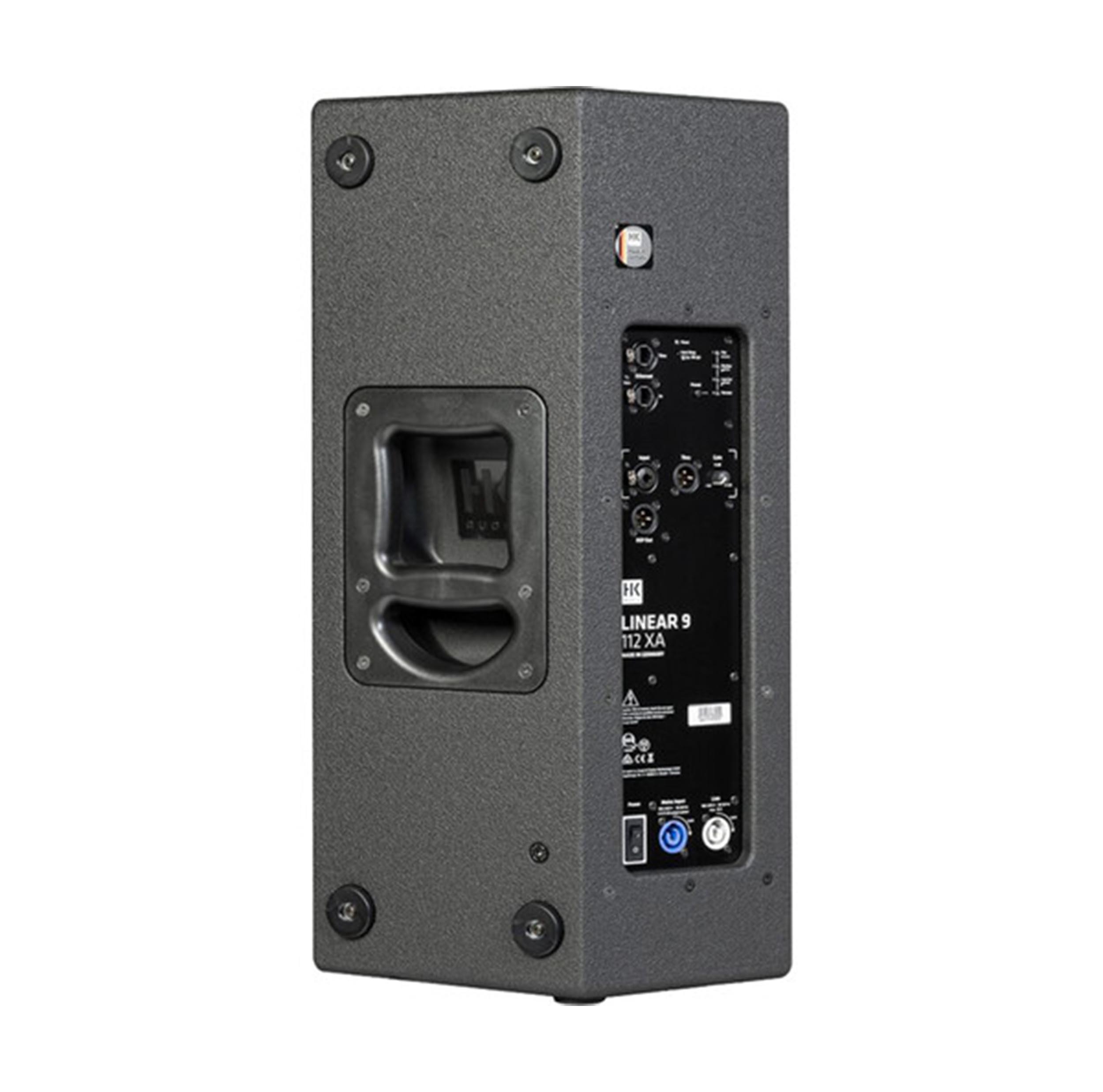

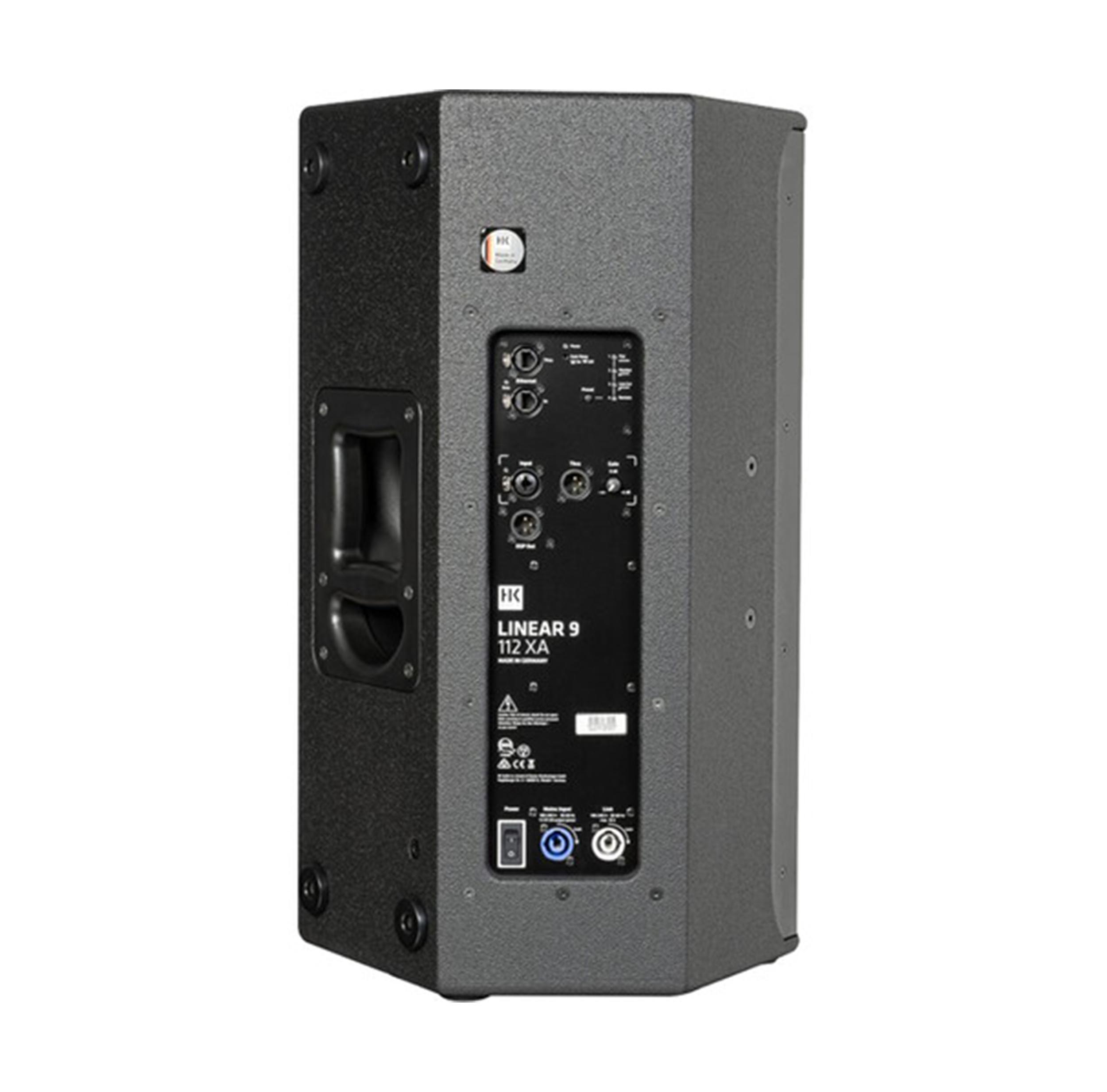

The rear panel of the LINEAR 9 112 XA features a pair of RJ45 network ports that connect to the internal speaker DSP, as well as four factory presets. For I/O, the speaker features a combo XLR-1/4" input and XLR output. A DSP XLR output provides a networked DSP-controlled channel for non-network speakers. A power cord is included.

Product Specifications:

Configuration: Active 2-Way

Enclosure Type: Bass-Reflex Loudspeaker

Total Power Capacity: 700 W RMS

Amplifier Class: Class-D

HF Driver: 1 x 1" / 2.5 cm Rotatable Horn

HF Voice Coil: 1.7" / 4.3 cm

MF Driver: None

LF Driver: 1 x 12" / 304.8 mm Woofer

LF Voice Coil: 2.5" / 63.5 mm

Frequency Range: 62 Hz to 20 kHz -10 dB

Frequency Response: 67 Hz to 19 kHz ±3 dB

Maximum SPL: 131 dB (Half-Space)

Coverage Angle: 70° H x 50° V (Rotatable Horn)

Max Input Level: +20 dB

Gain Range: -12 dB to +6 dB

Protections: Signal Limiter

Mounting:

5 x M8 Fly Point

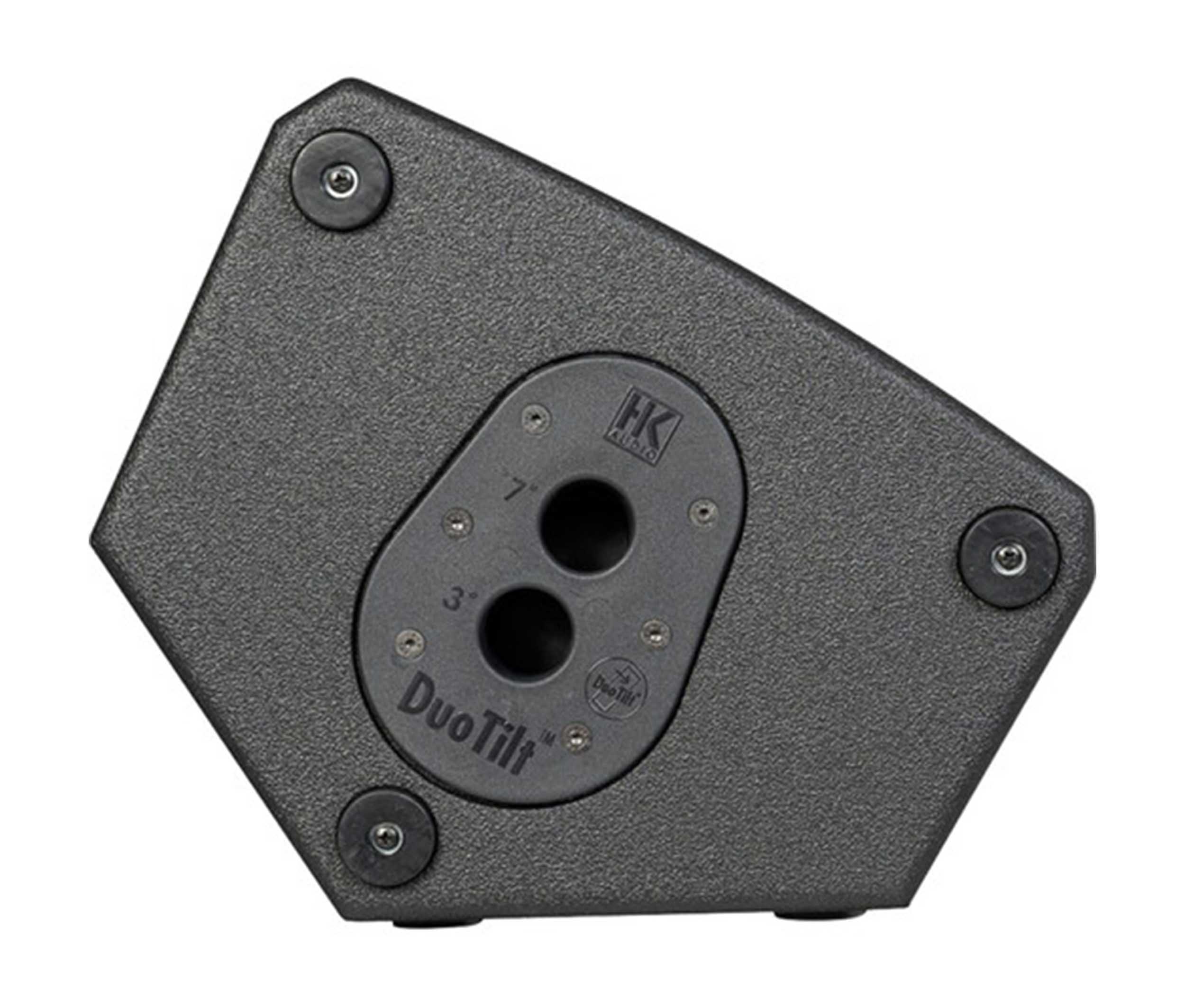

Pole Socket (Dual Angle, Bottom)

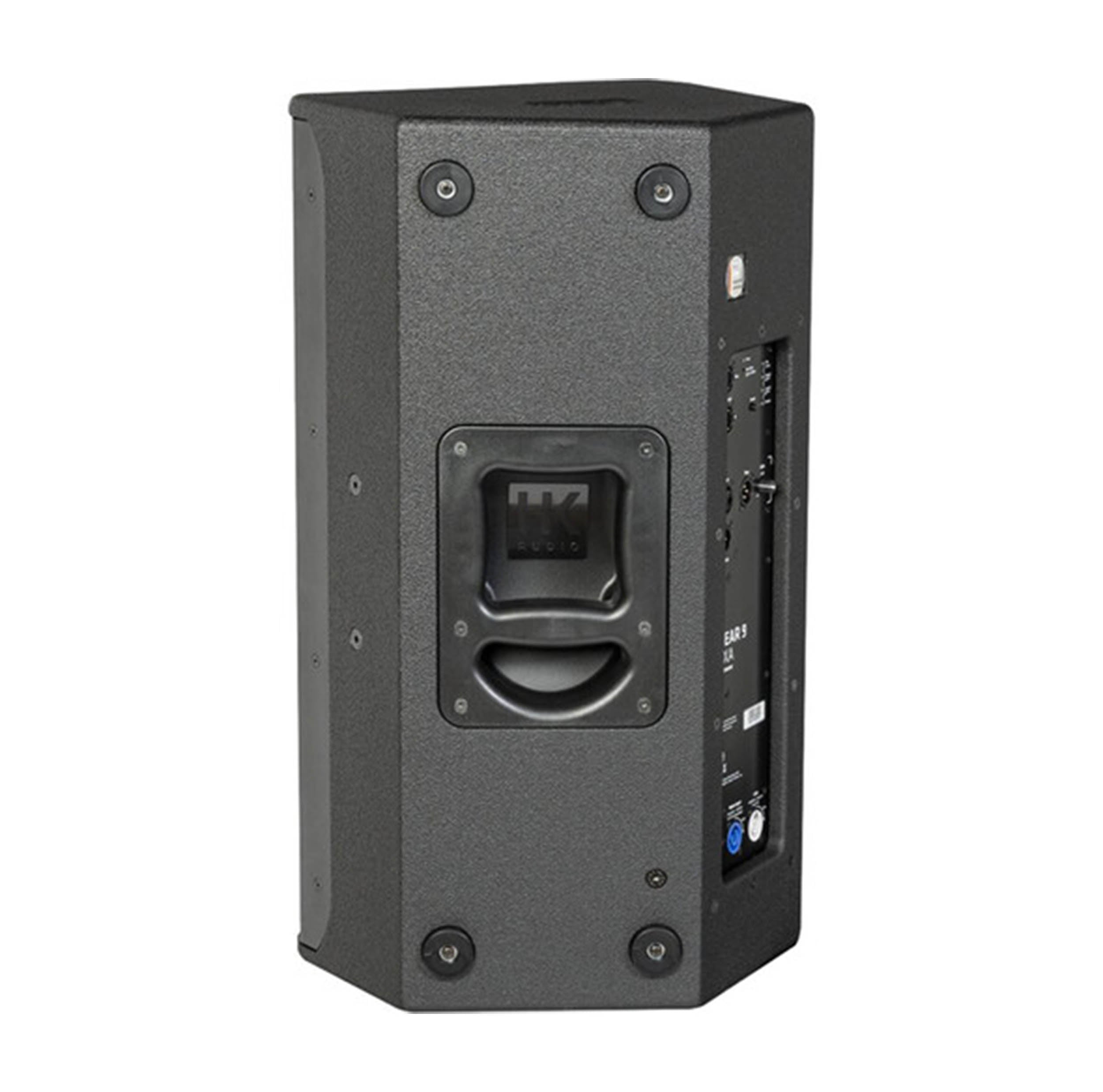

Handles

1 x Top

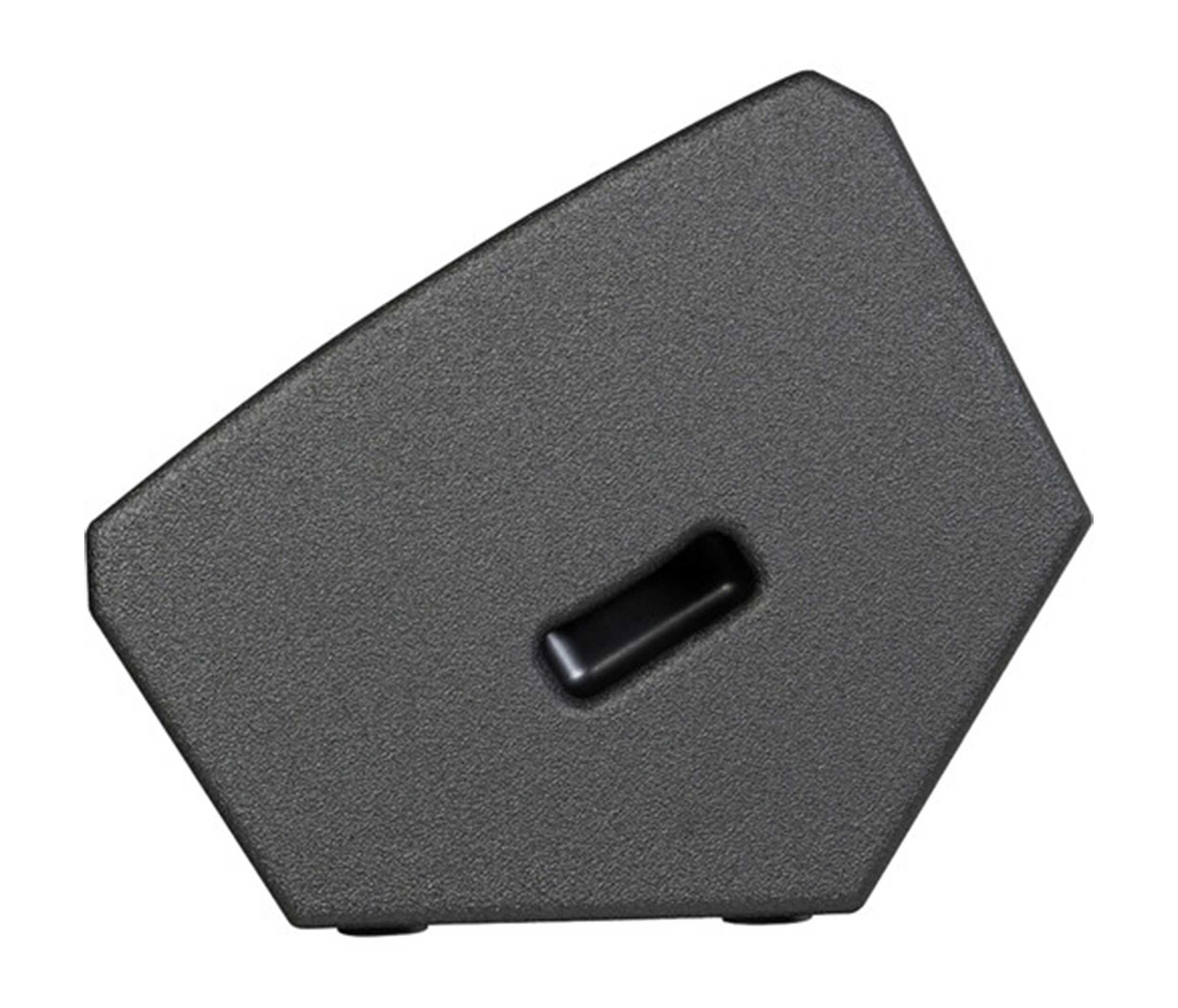

1 x Side

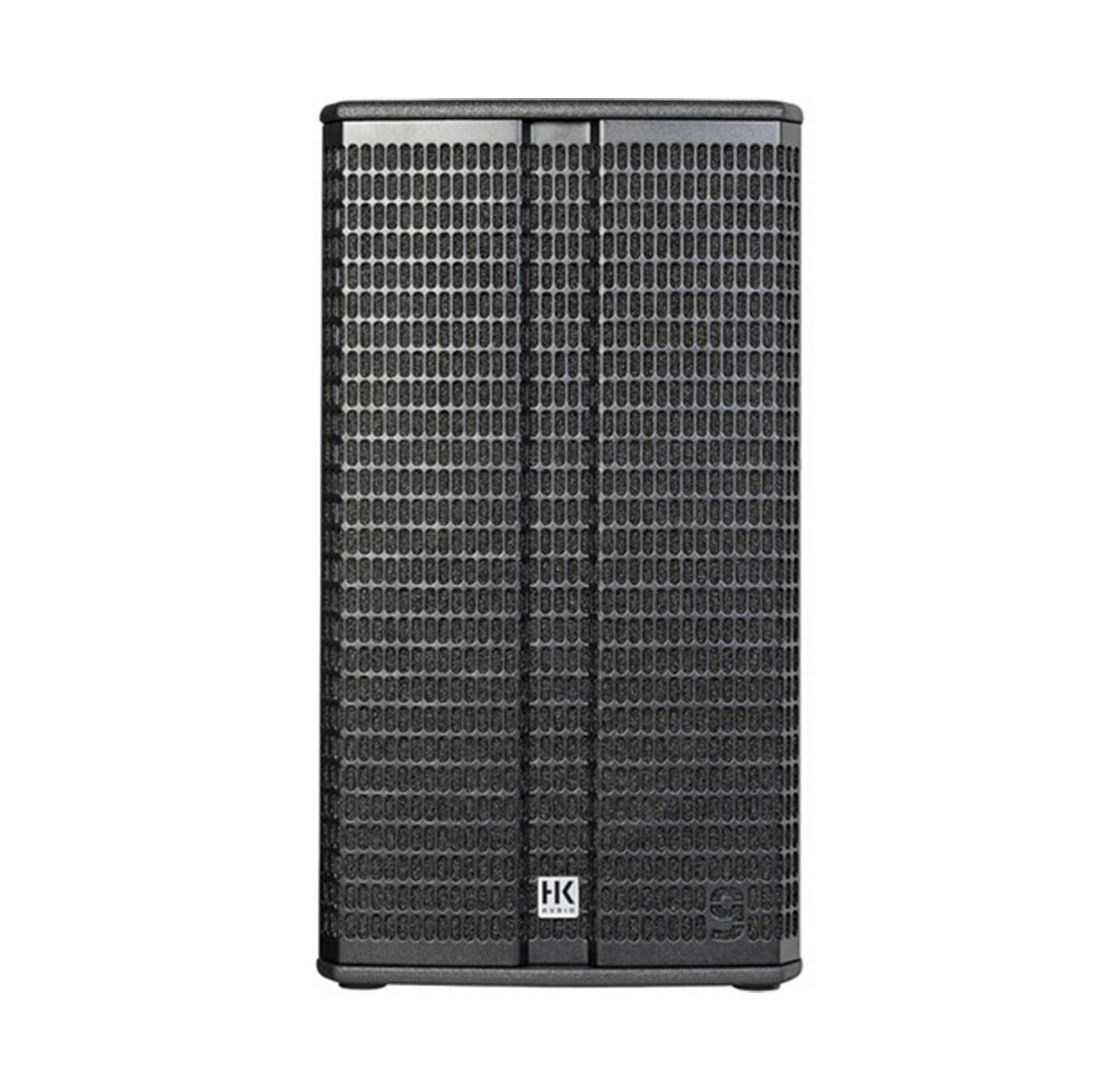

Construction Material: Metal Grille, Wood

Dimensions: 17.4 x 15.6 x 28.4"

Weight: 42 lbs
