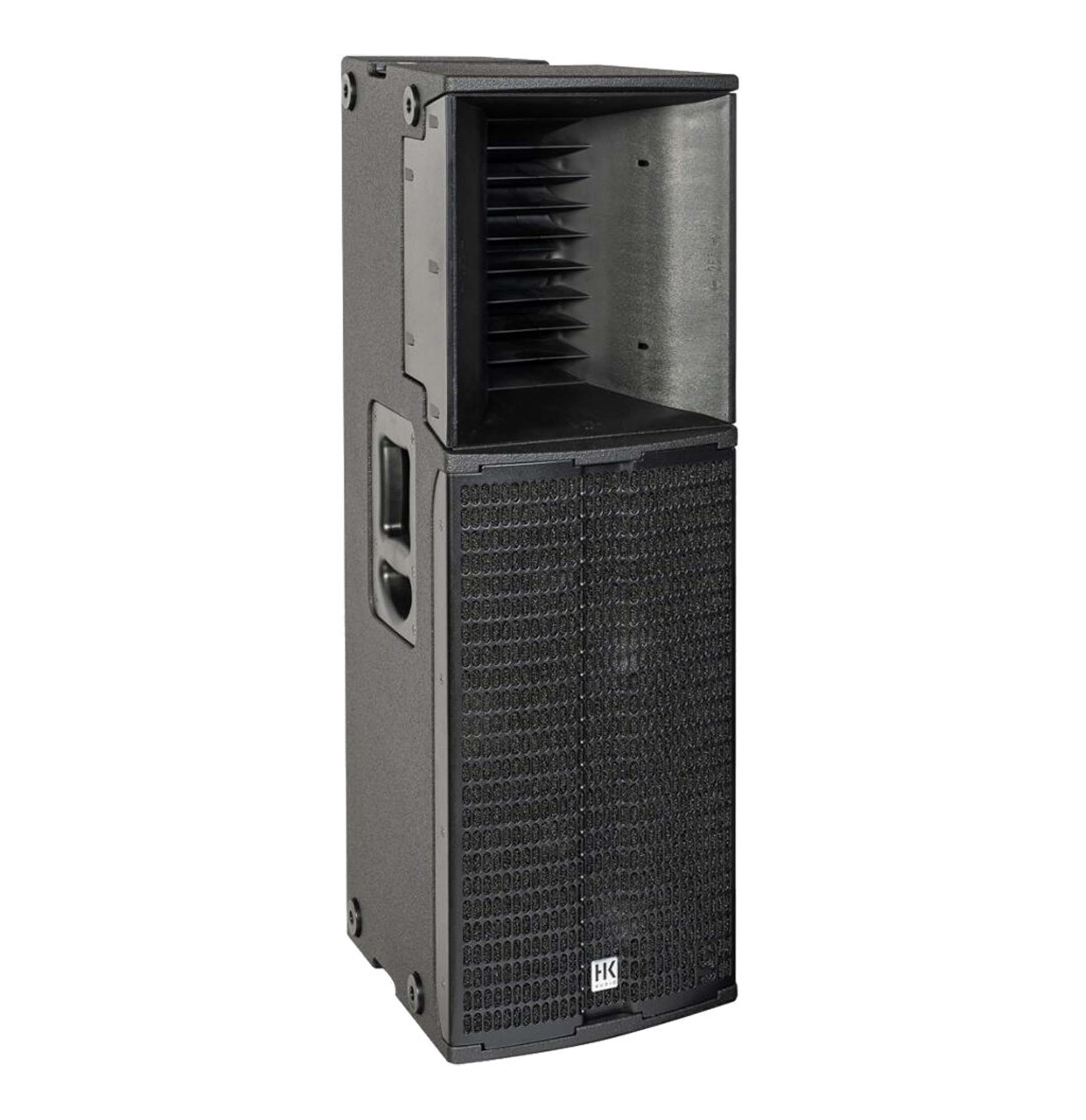

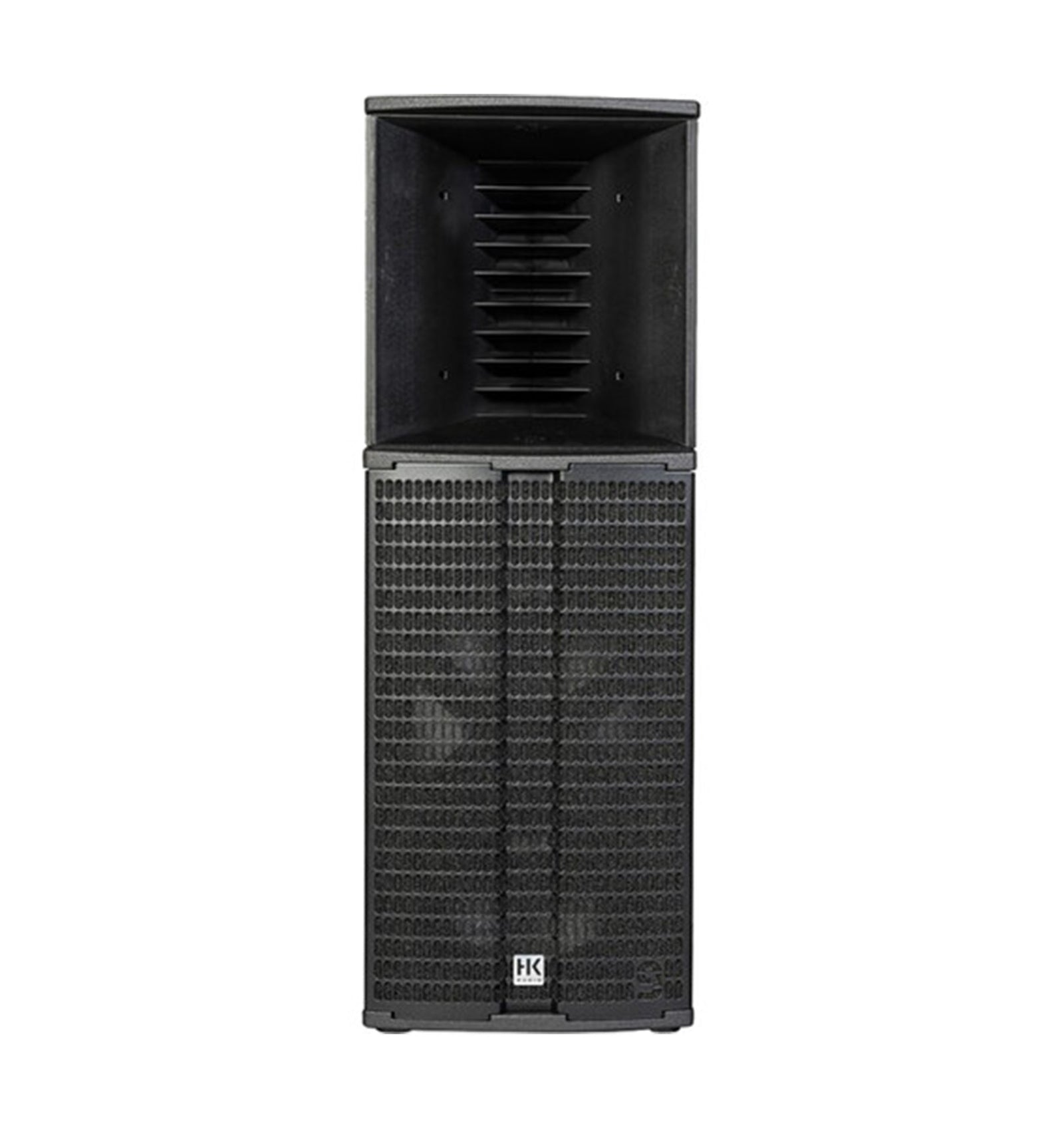

HK Audio L9-210LTA, 2-Way Dual Powered Loudspeaker 1000W - 10 Inch

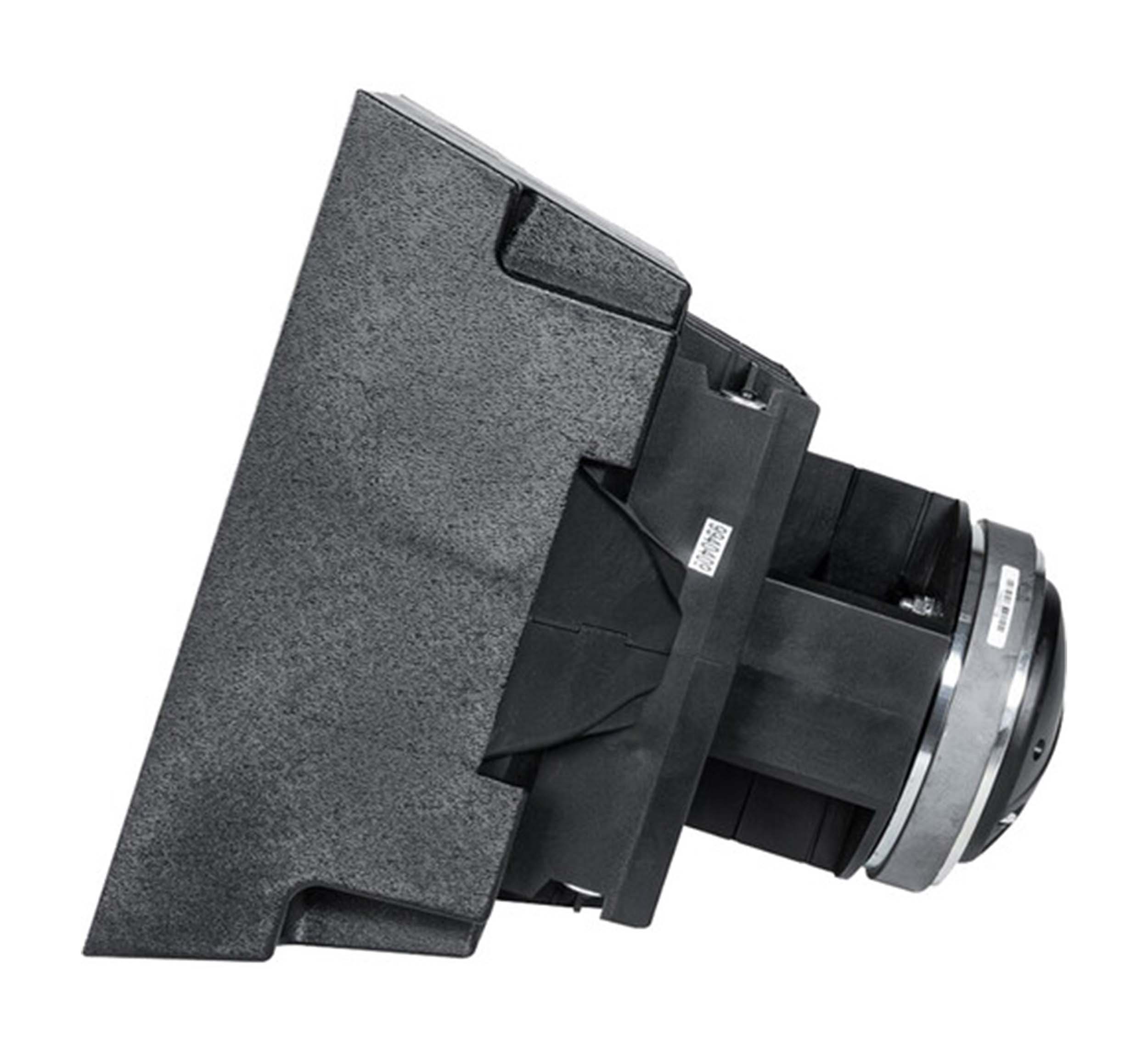

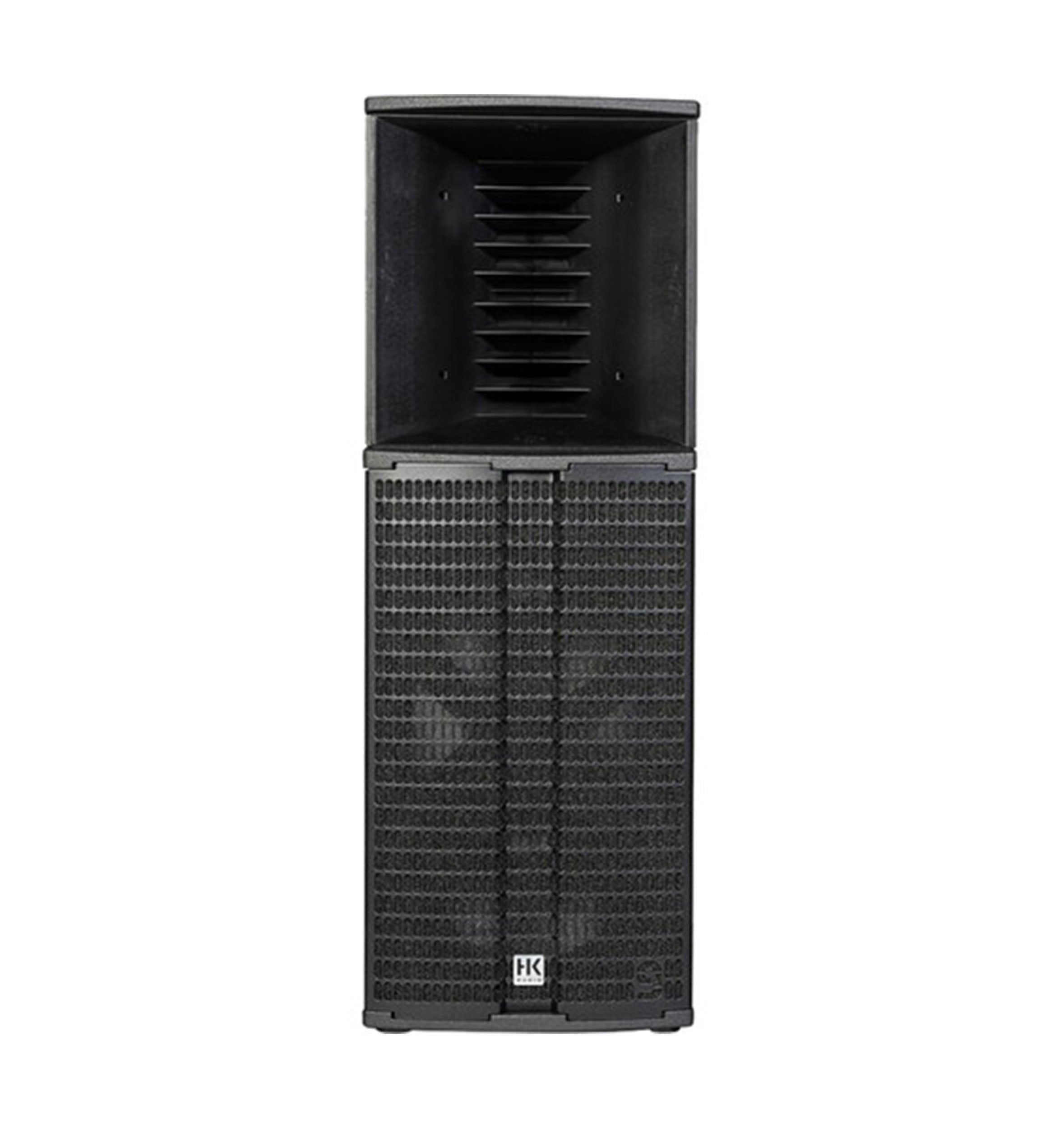

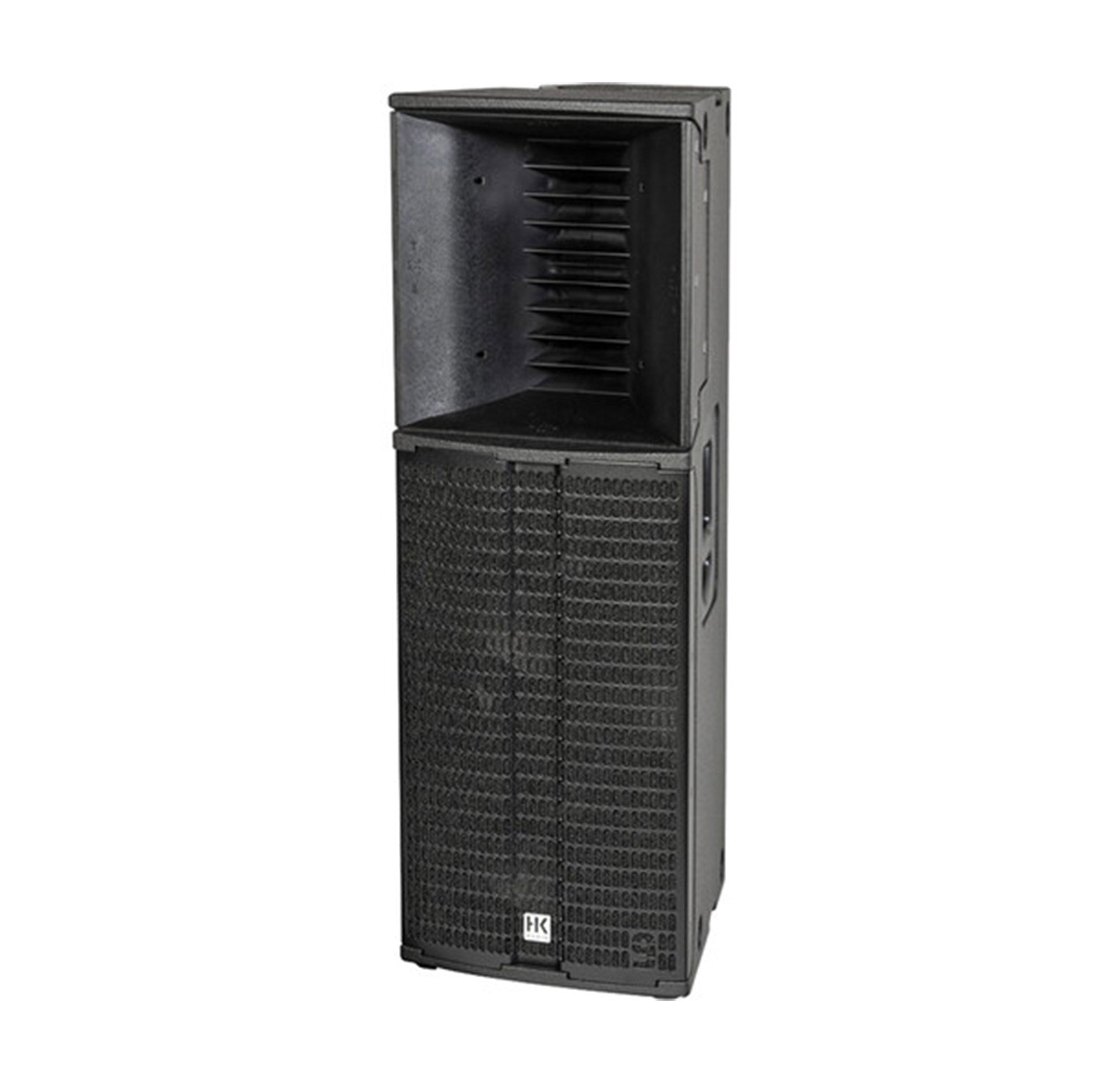

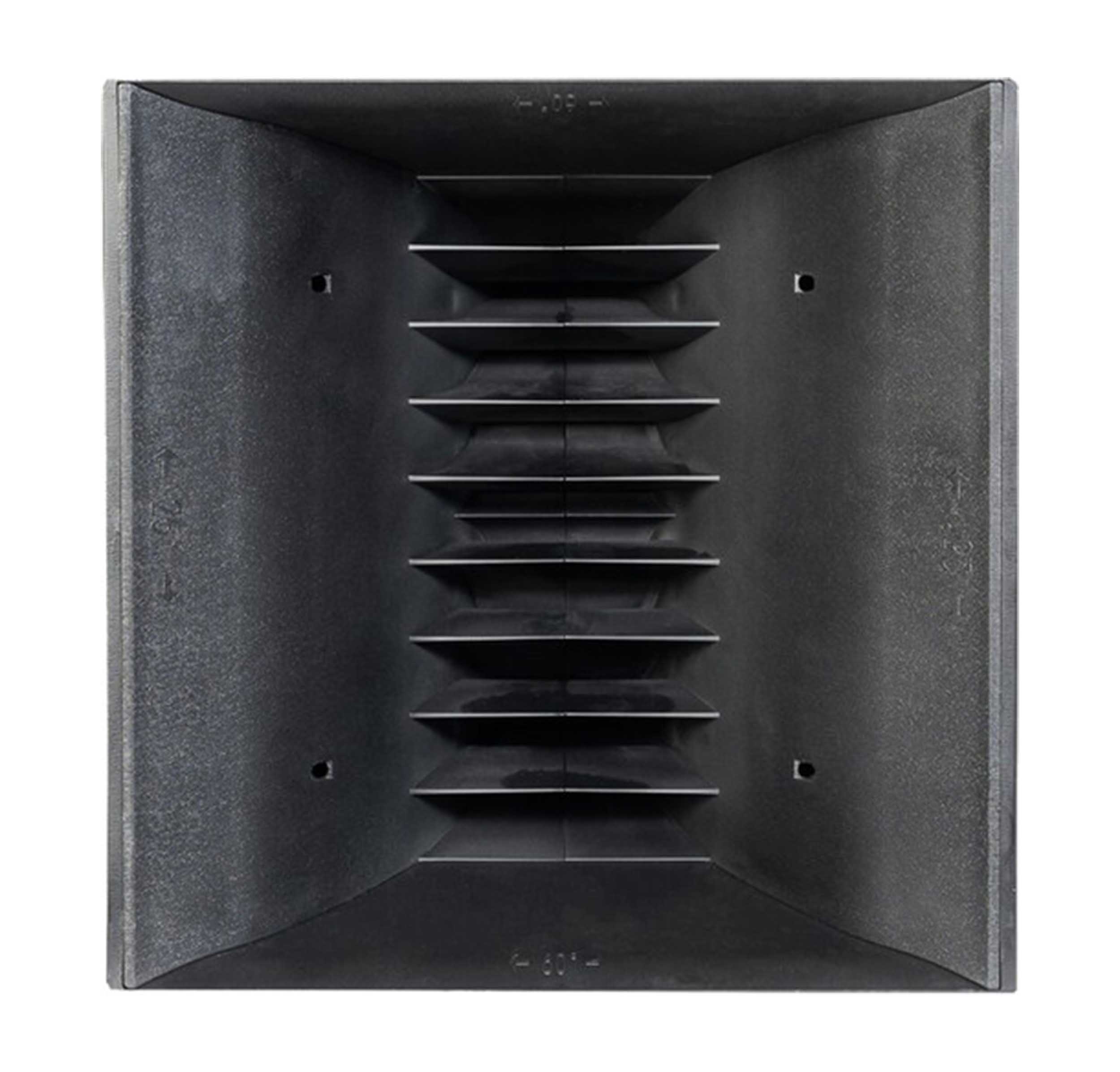

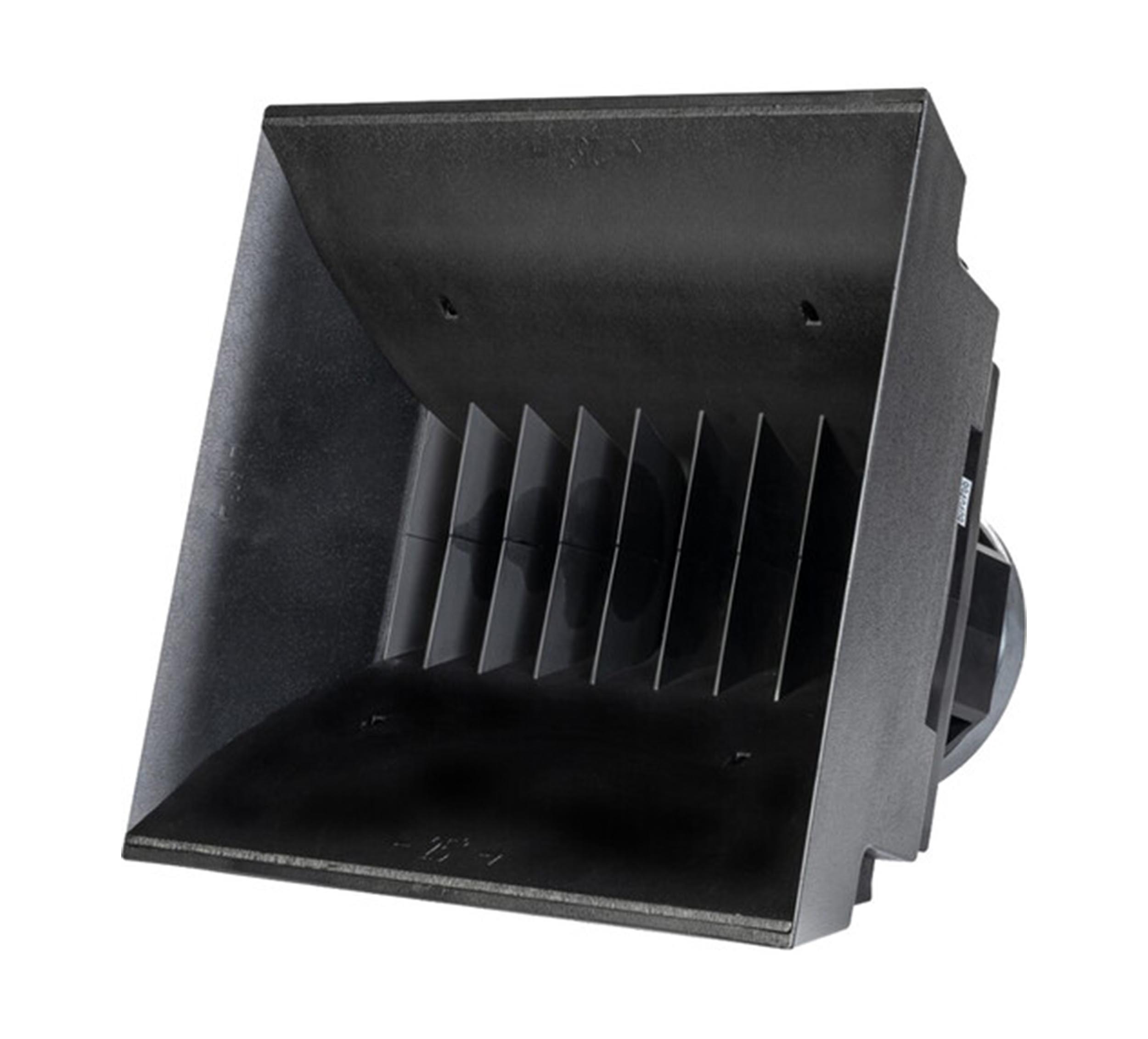

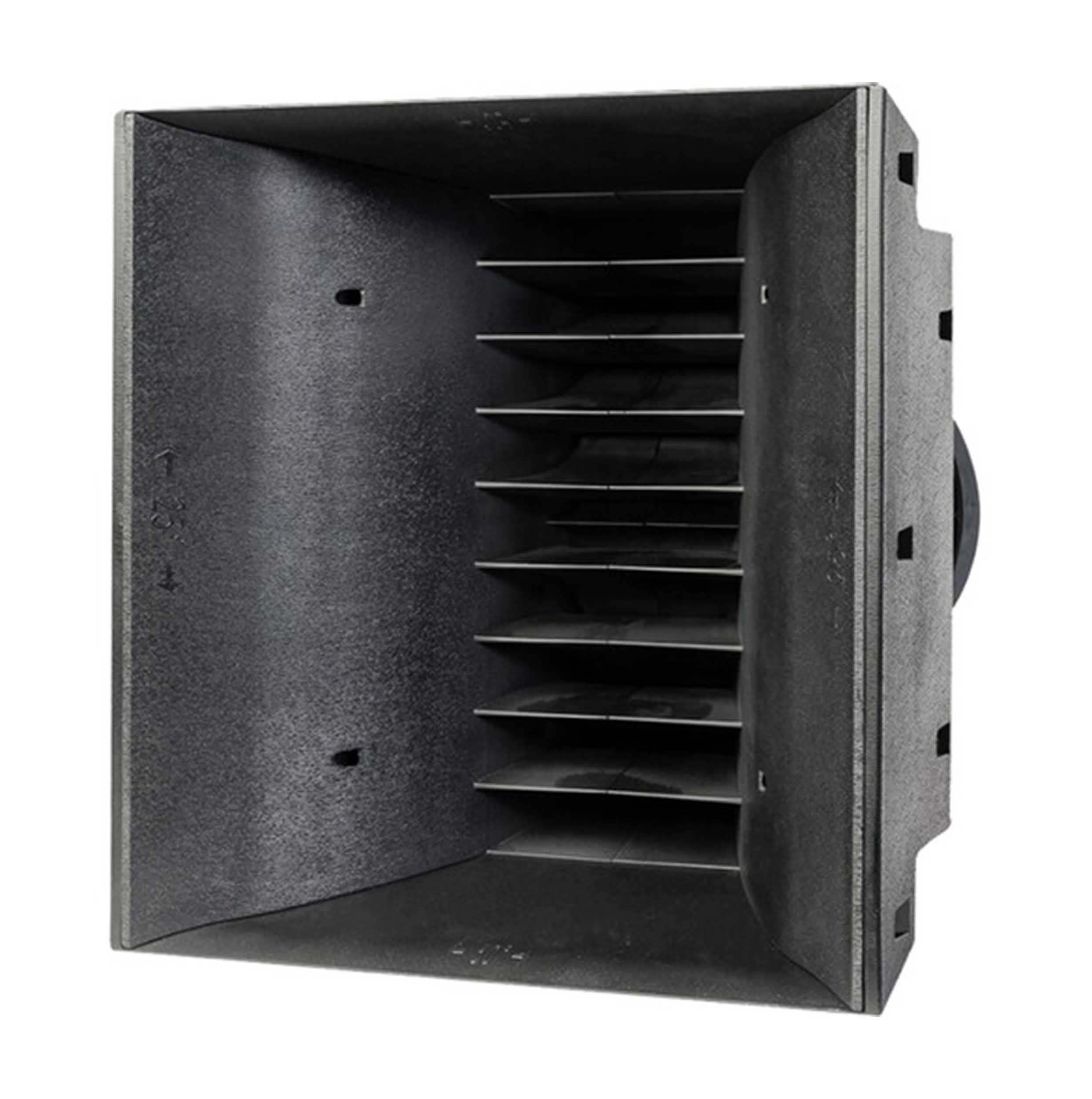

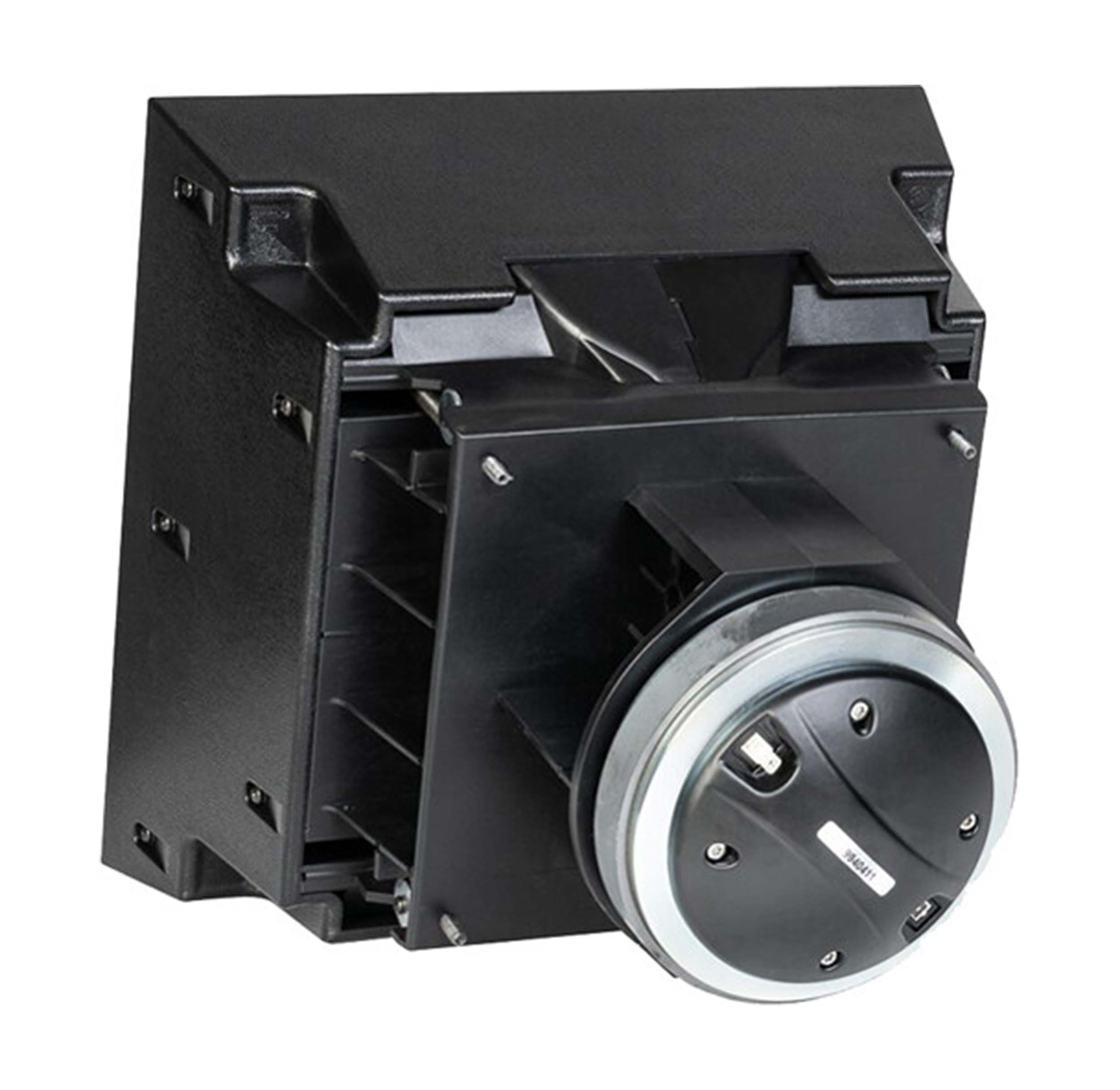

The HK Audio L9-210LTA 1000W 2-Way 10-Inch Dual Powered Loudspeaker - Black is a high-performance loudspeaker that is designed for use in demanding applications. It features a rotating 60 x 25° horn with a powerful 1.4" HF driver and two vertically arranged 10" woofers. The HF driver is directed by a carefully calculated multicell waveguide, which achieves remarkably high efficiency.

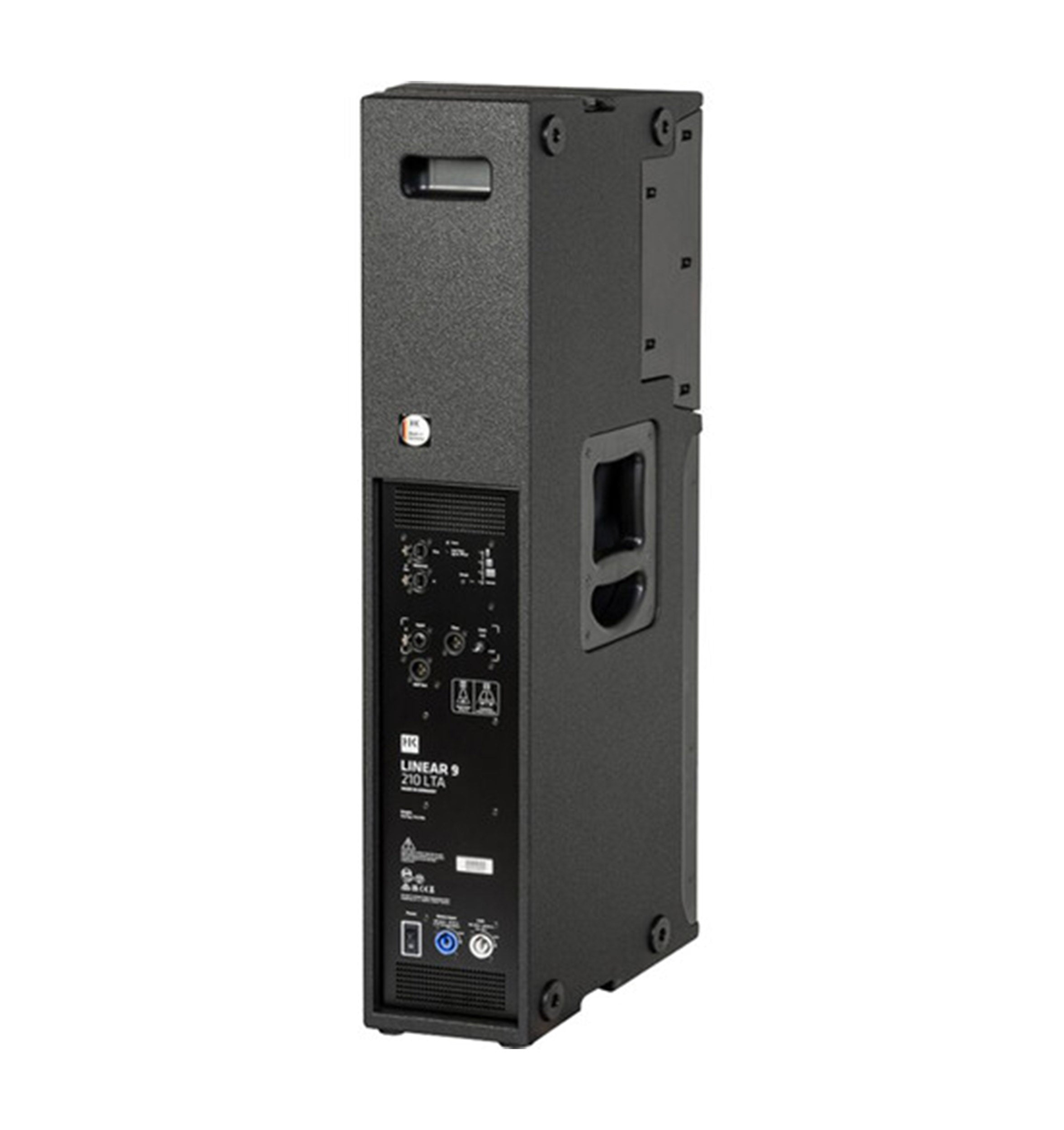

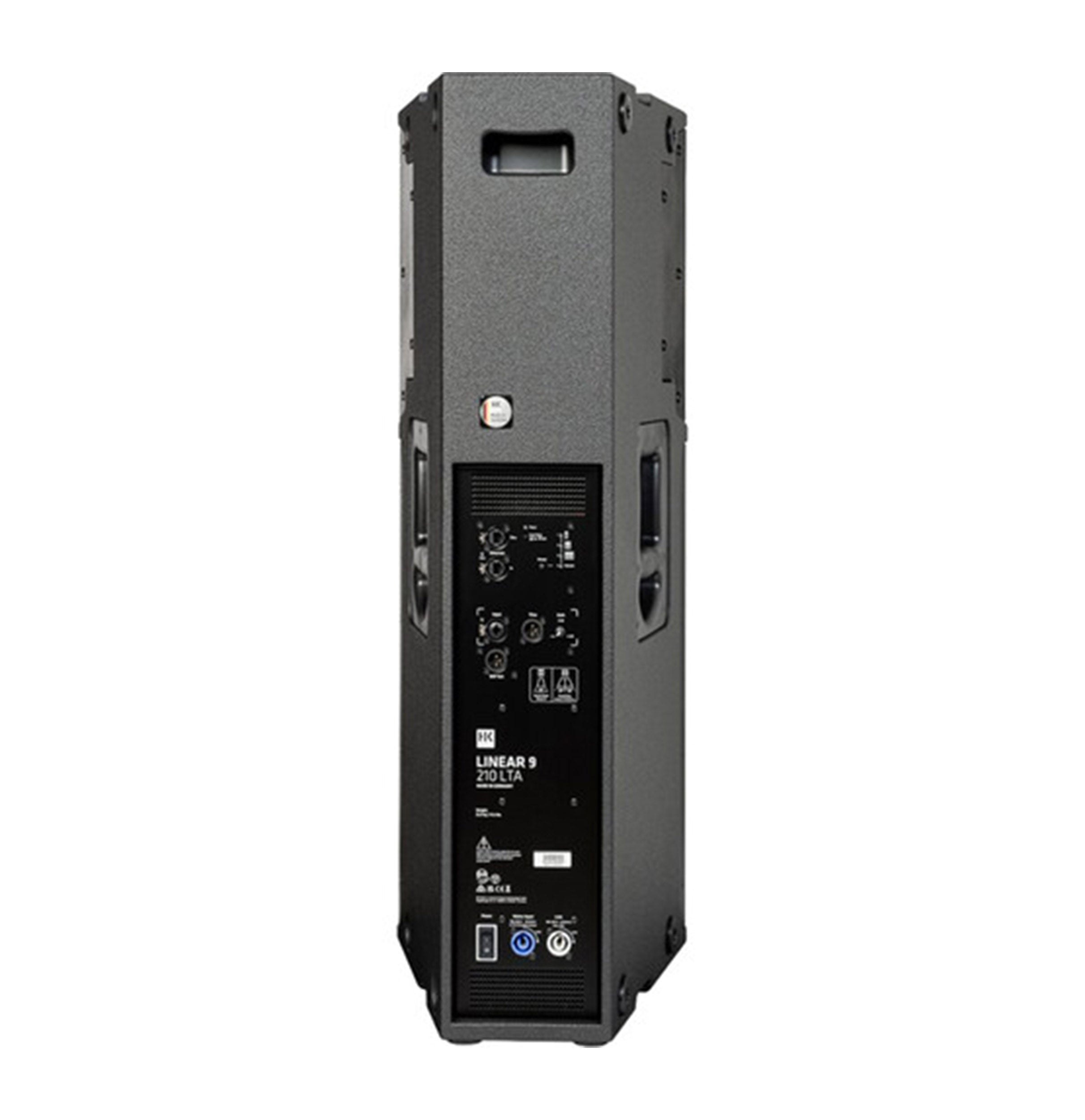

The rear panel of the LINEAR 9 210 LTA features a pair of RJ45 network ports that connect to the internal speaker DSP as well as four factory presets. For I/O, the speaker features a combo XLR-1/4" input and XLR output. A DSP XLR output provides a networked DSP-controlled channel for non-network speakers.

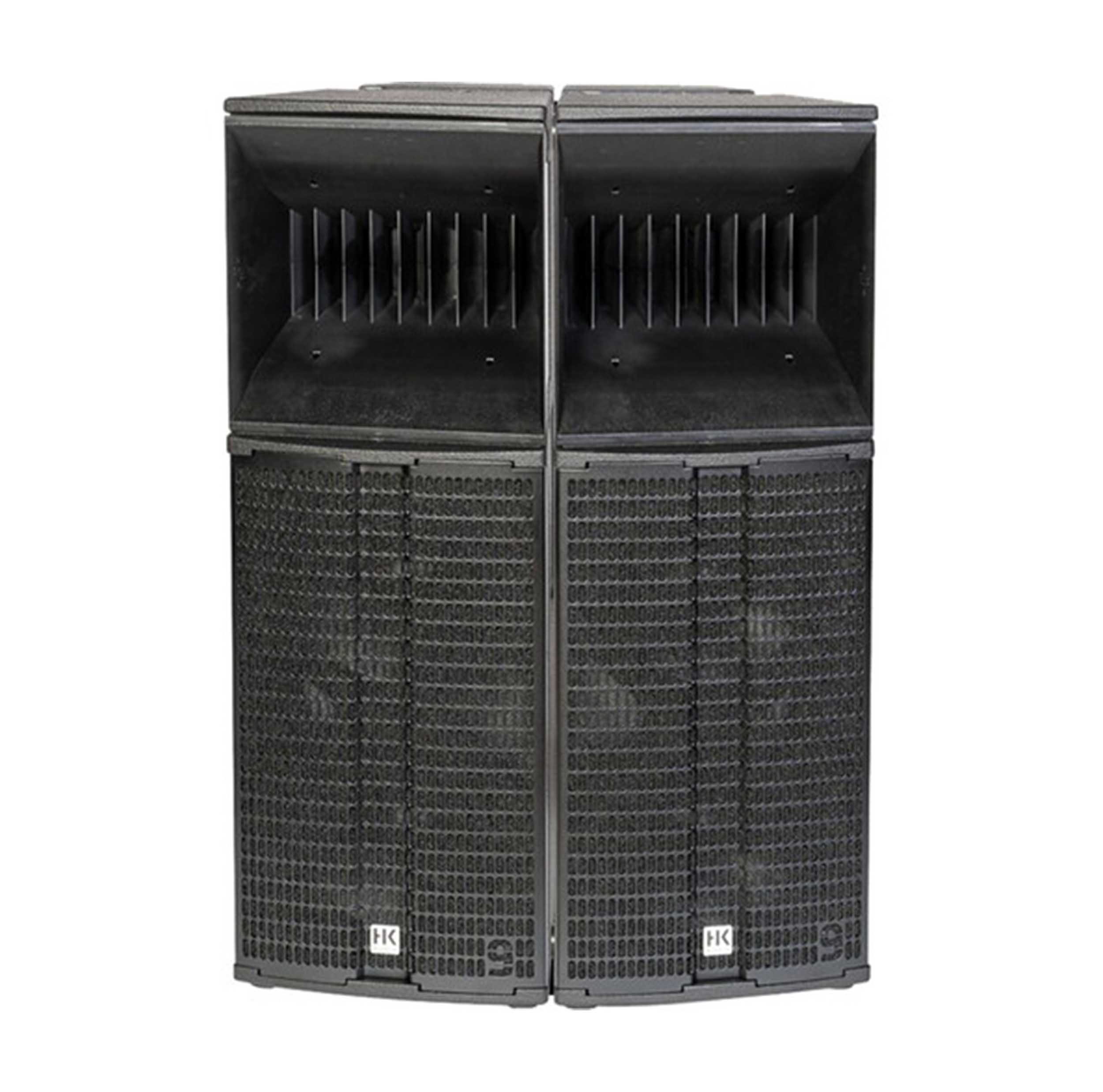

The LINEAR 9 210 LTA is particularly impressive in applications where the sound requirements demand the creation of a horizontal cluster or straightforward flying capabilities. The speaker's rotating horn allows it to be deployed in a variety of configurations, and its network port makes it easy to control and manage remotely.

Product Specifications:

Configuration:  Active 2-Way

Enclosure Type: Bass-Reflex Loudspeaker

Total Power Capacity

1000 W RMS

2000 W Program

4000 W Peak

HF Driver: 1 x 1.4" / 3.6 cm Rotatable Horn

LF Driver: 2 x 10" / 254 mm Woofer

Frequency Range: 84 Hz to 20 kHz -10 dB

HF Driver: 1 x 1.4" / 3.6 cm Rotatable Horn

HF Voice Coil: 2.5" / 6.3 cm

MF Driver: None

LF Driver: 2 x 10" / 254 mm Woofer

LF Voice Coil: 2.5" / 63.5 mm

Frequency Range: 84 Hz to 20 kHz -10 dB

Frequency Response: 105 Hz to 19 kHz ±3 dB

Maximum SPL: 142 dB (Half-Space)

Coverage Angle: 60° H x 25° V

Max Input Level: +20 dB

Gain Range: -12 dB to +6 dB

Protections: Signal Limiter

Mounting: Pole Socket (Dual Angle, Bottom)

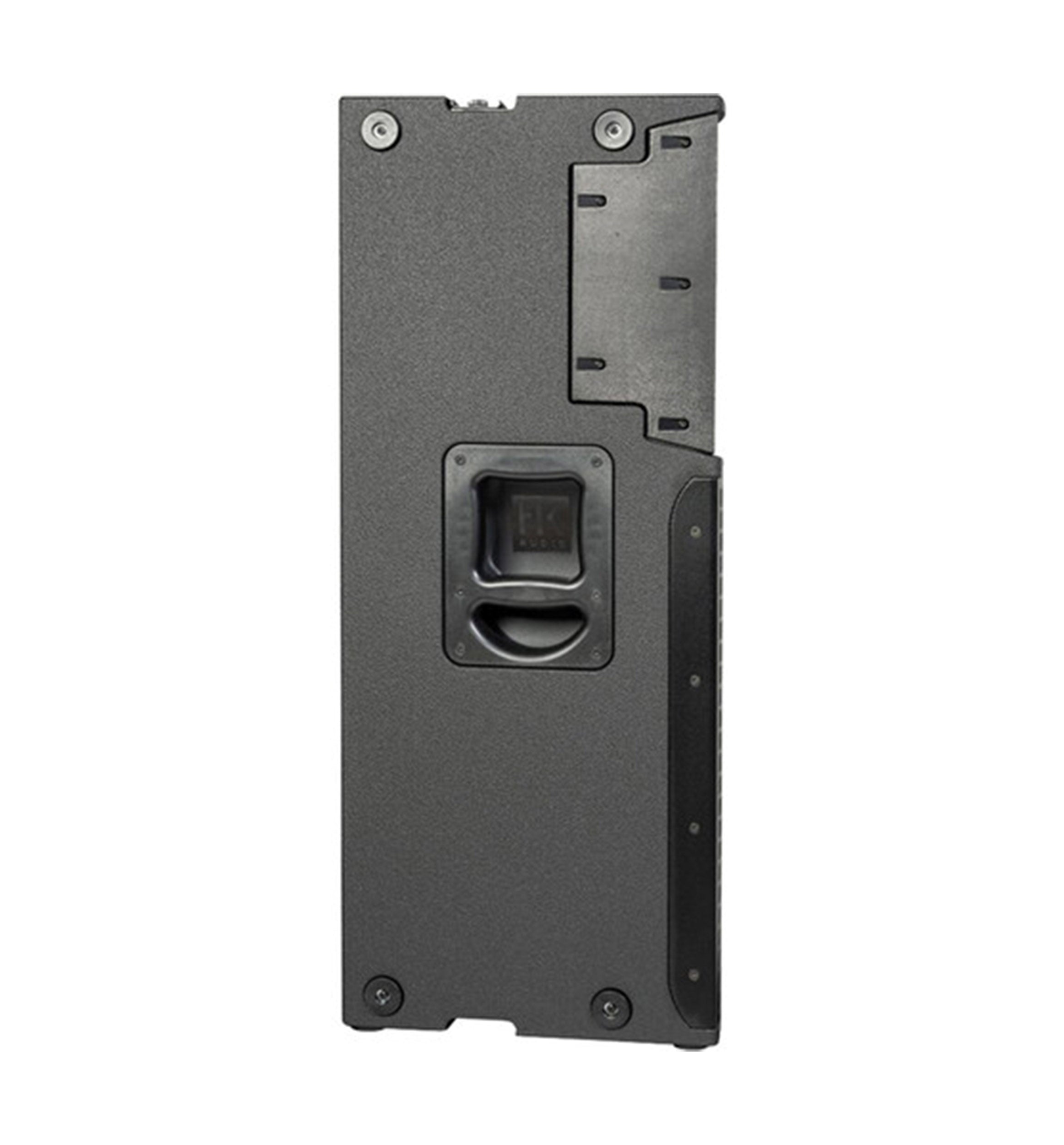

Handles: 1 x Each Side

Construction Material: Metal Grille, Wood

Dimensions: 13.4 x 37.8 x 15.4"

Weight: 72.8 lbs
