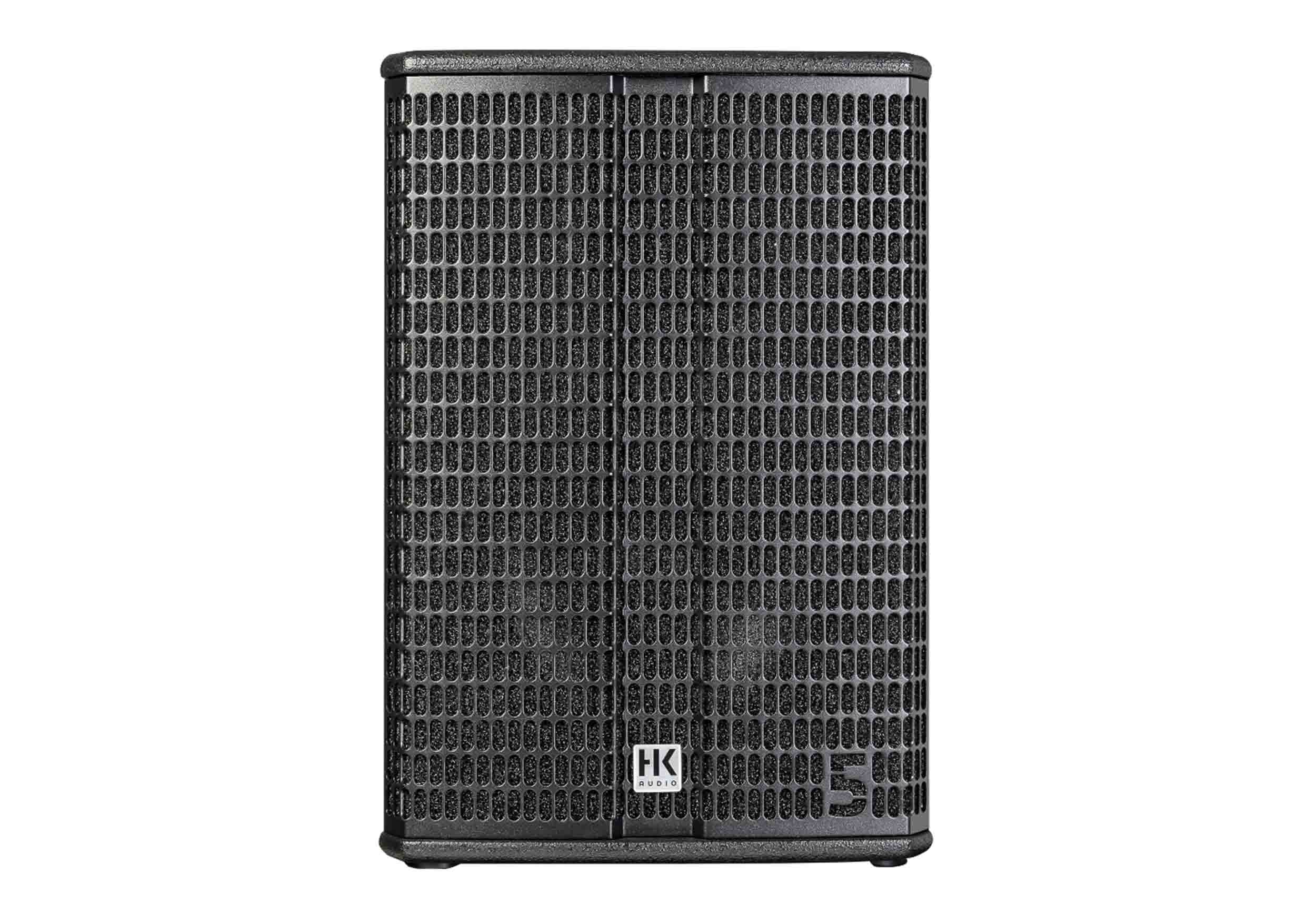

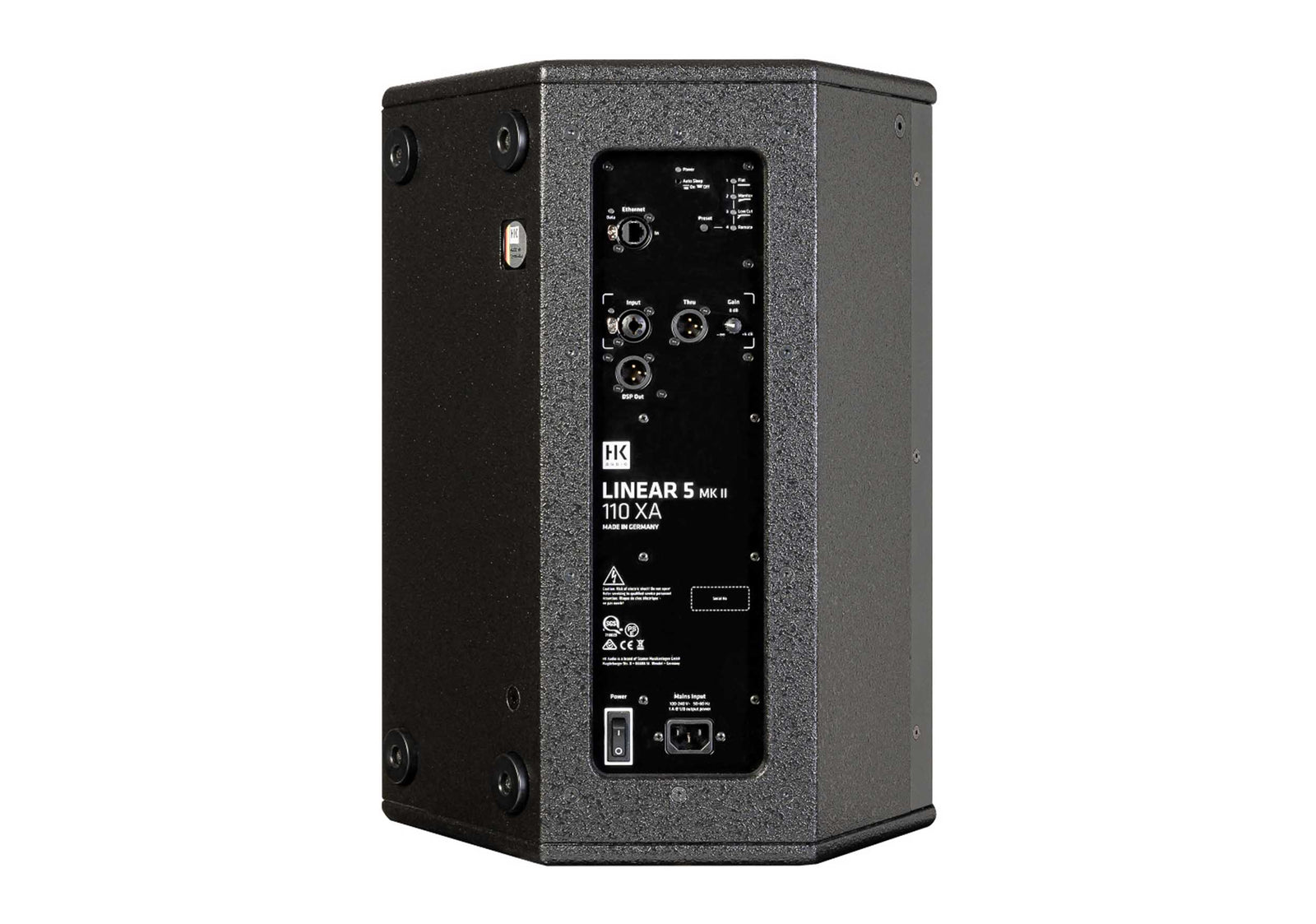

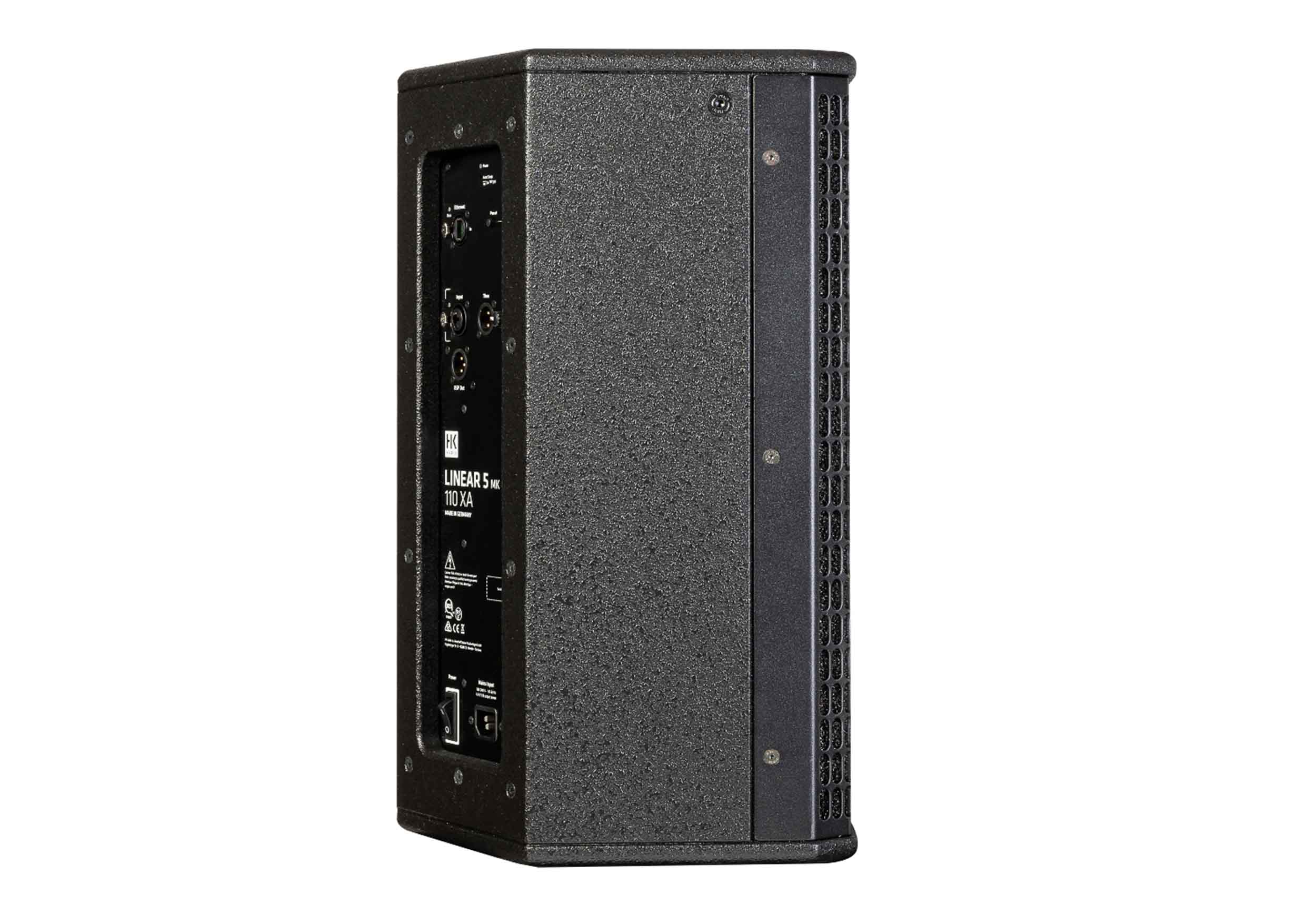

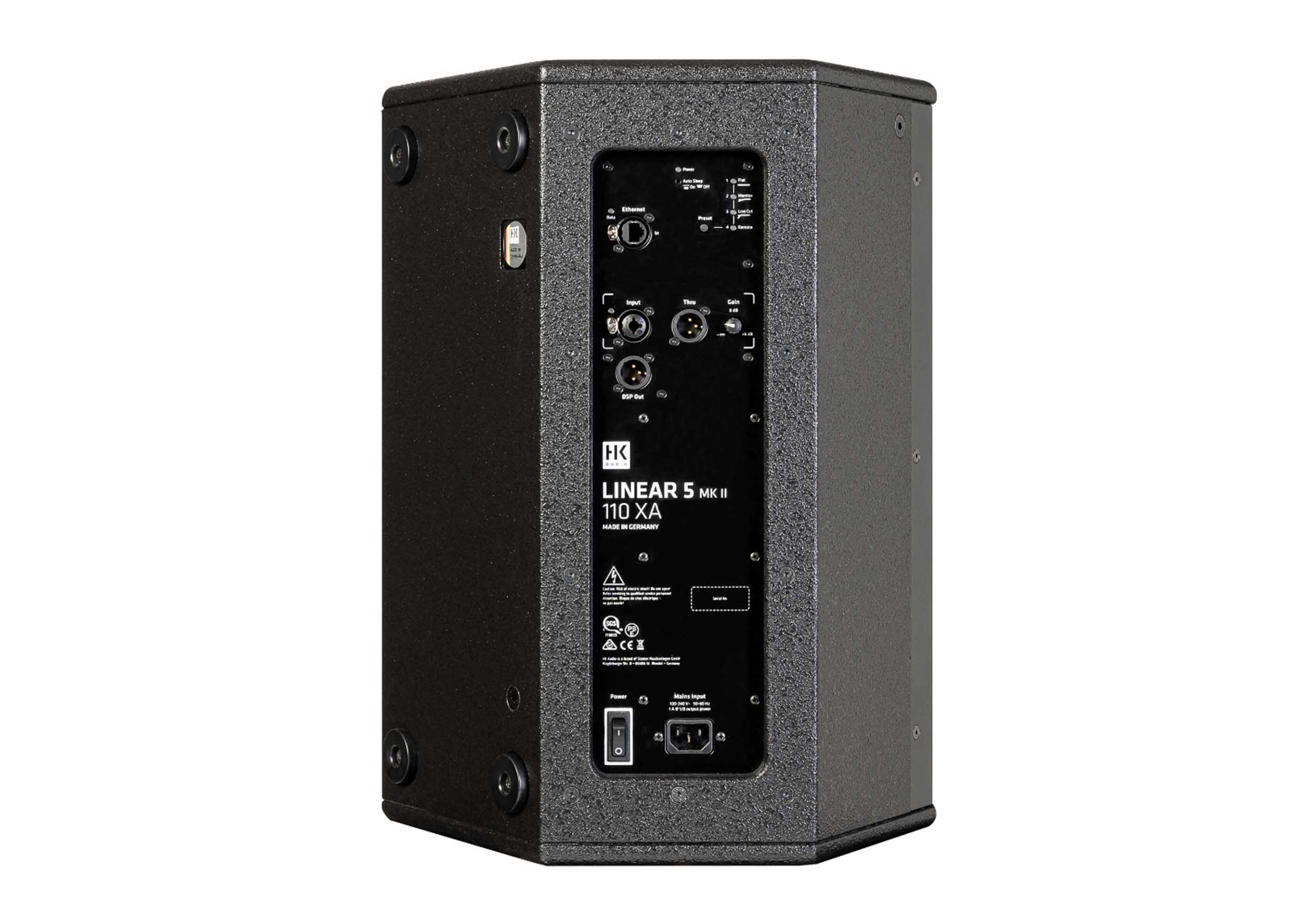

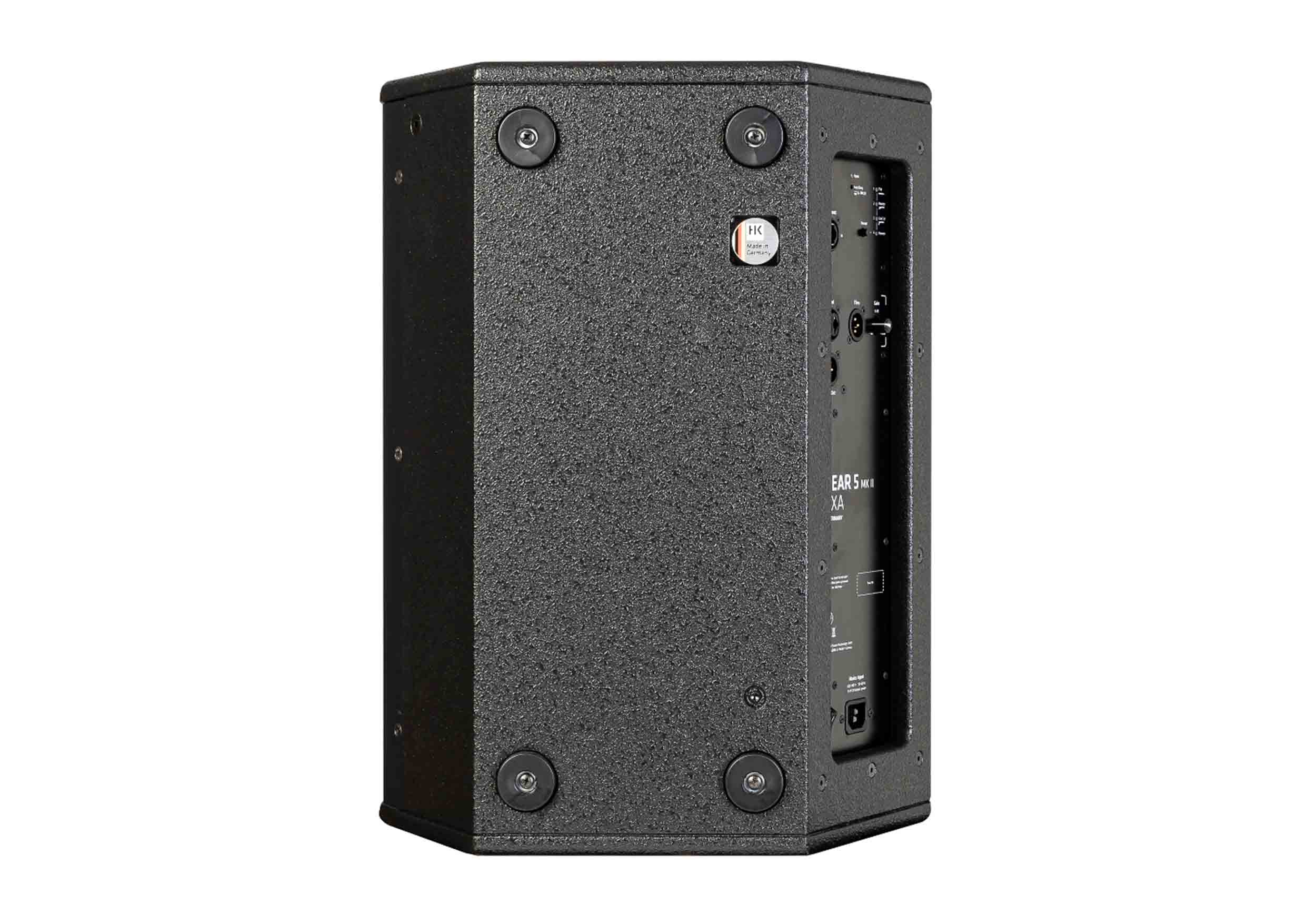

HK Audio LINEAR-5-MK2-110-XA-U, Bi-Amped Powered Speaker with DSP, FIR Crossover, and Rotatable Horn - 10 Inch

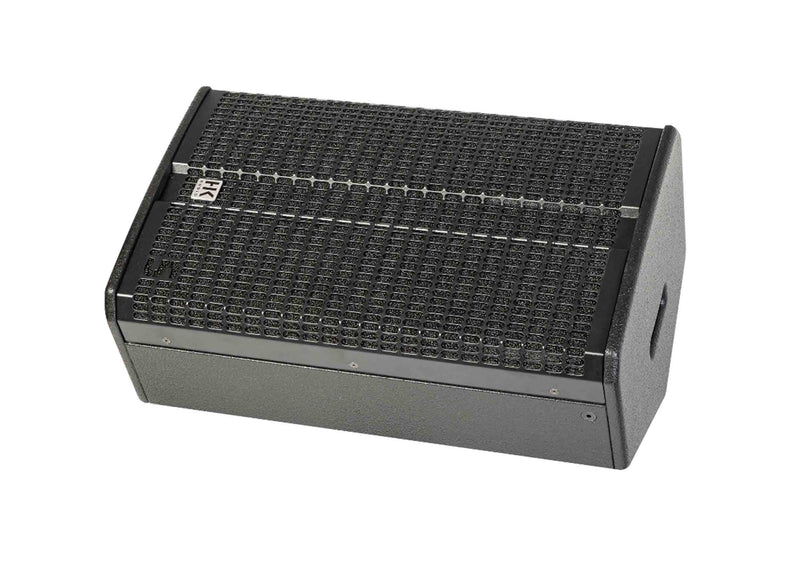

The HK Audio LINEAR 5 MK II 110 XA is a compact, flexible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80° x 60°, it covers an enormously wide range of system configurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages – even without turning the horn. In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories. The sturdy birch multiplex hybrid enclosure makes the LINEAR 5 MK II 110 XA a strong partner for bands and sound technicians – either as a transverse stage monitor or as a powerful system mid/high unit together with the LINEAR 5 MK II subwoofers.

Product Specifications:

Max. SPL (10% THD): 127 dB half space (70 Hz – 12 kHz averaged)

Max. SPL Peak (10% THD): 135 dB half space*

Frequency Response (±3 dB): 74 Hz – 12 kHz

Frequency Response (-10 dB): 68 Hz – 19 kHz

Amplifier Output (RMS/Peak): 600 W / 1,200 W

Amplifier Type: Class D, bi-amped

Drivers:

Woofer (Low/Mid): 1 x 10", 2" voice coil

HF Driver: 1", 1.4" voice coil

Horn Characteristics: 80° x 60° CD horn, rotatable

Crossover & DSP:

Active Crossover Frequency: 2.1 kHz, FIR X-over with 72 dB/oct.

DSP Functions:

Fully parametric 10-band EQ with variable filter characteristics

High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Filter Presets: Flat, Monitor, Low Cut, Remote

System Latency: Less than 2 ms

Maximum Input Level: 20 dBu

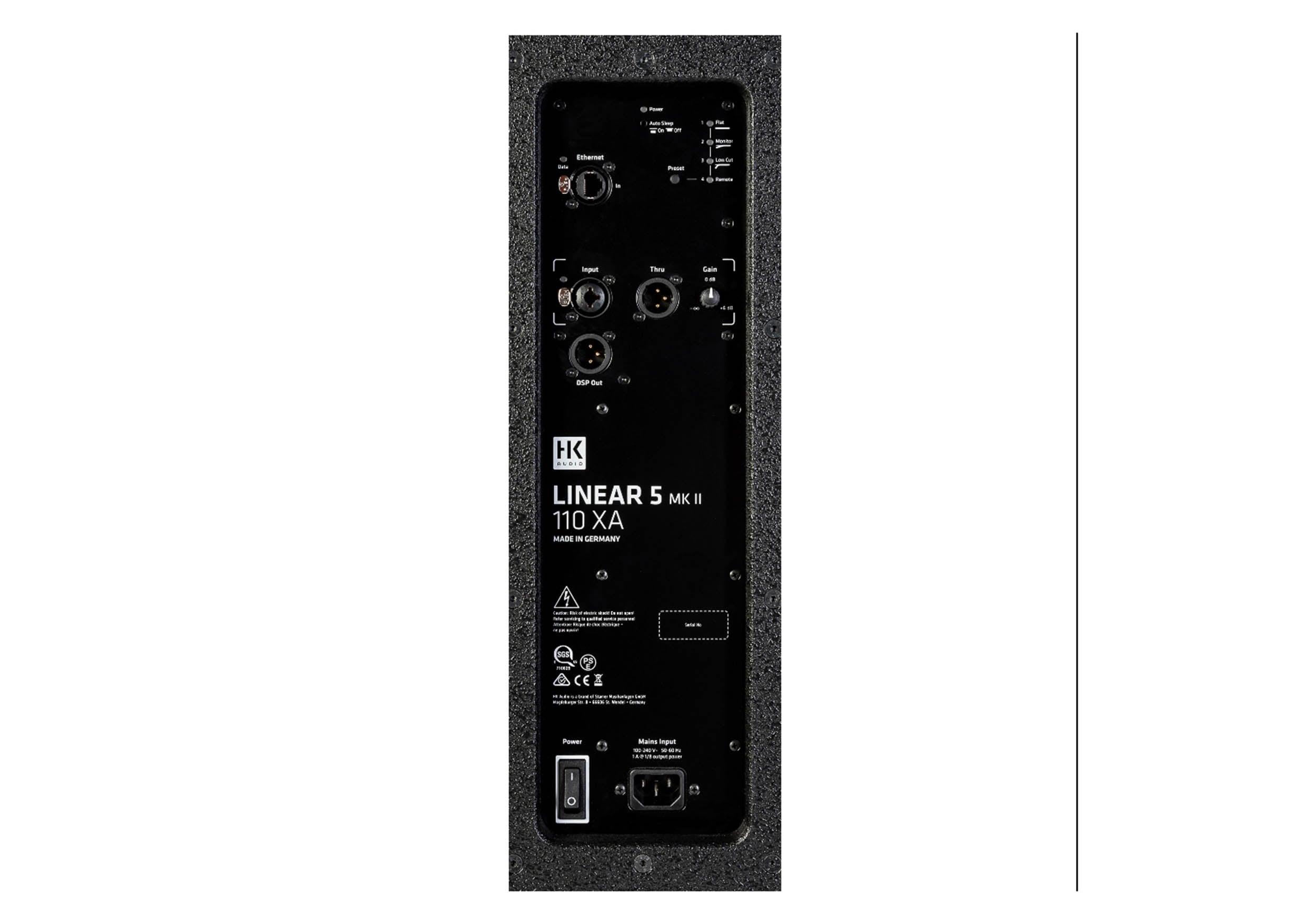

Analog Inputs: 1 x XLR combo balanced

Analog Thru: 1 x XLR balanced

DSP Out: 1 x XLR balanced

Network Port: EtherCON RJ45, 1 x In

Mains Connection: 1x IEC connector with V-Lock securing system, 100-240 V

Power Consumption: 1 A / 100–240 V nominal (per EN 62368-1)

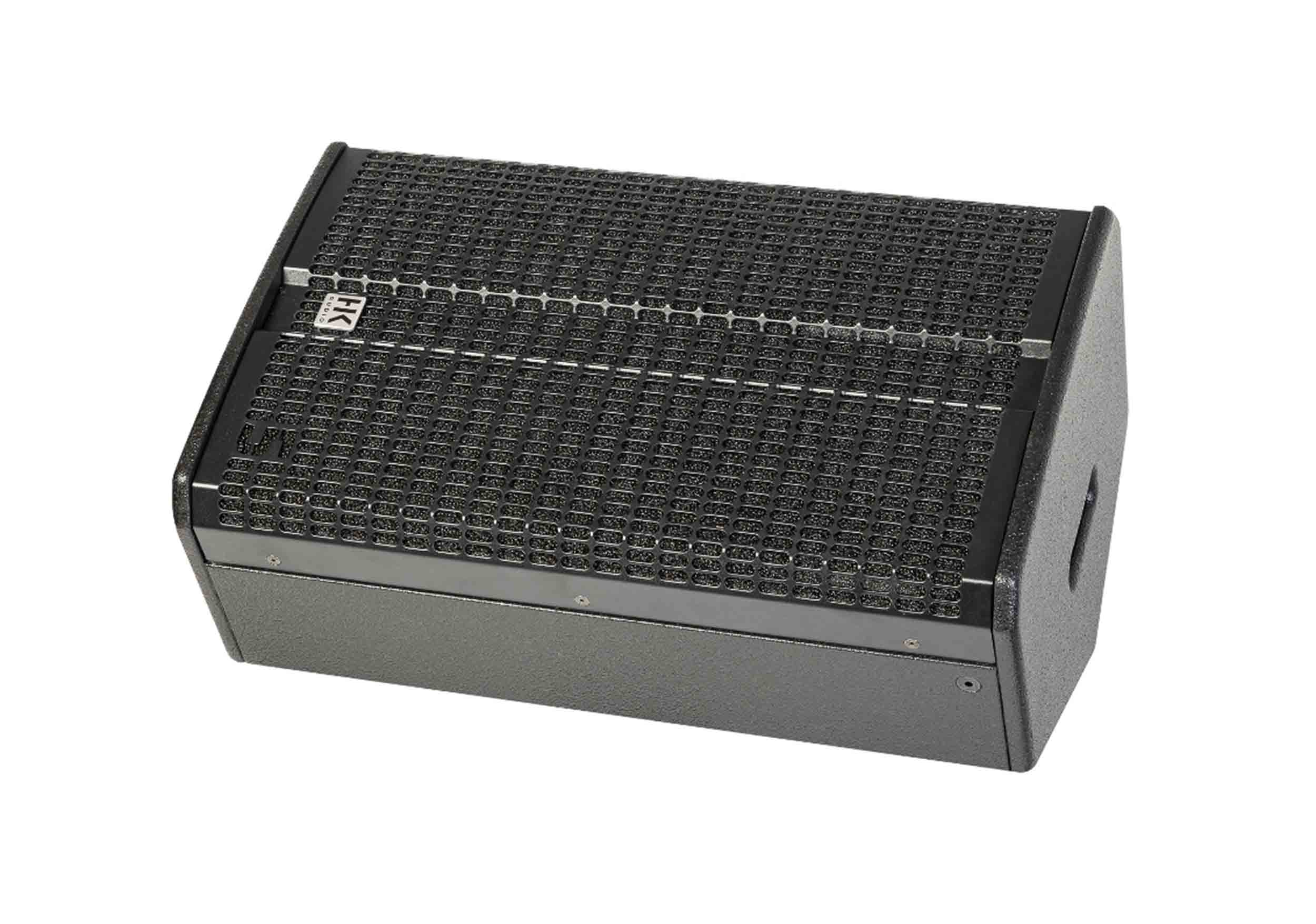

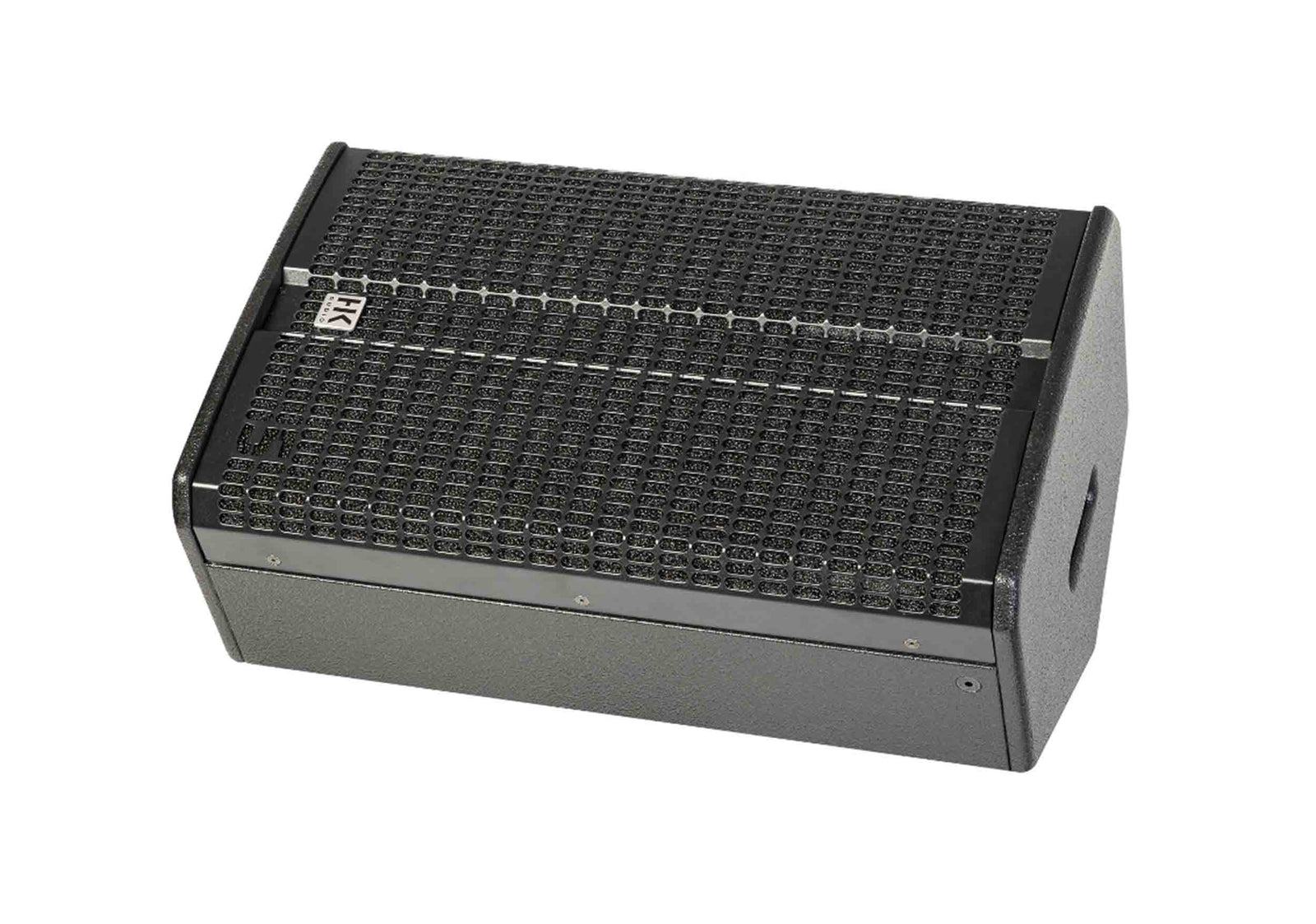

Set-Up Angle (Monitor Mode): 31°

Pole Mount: DuoTilt 3°/7°

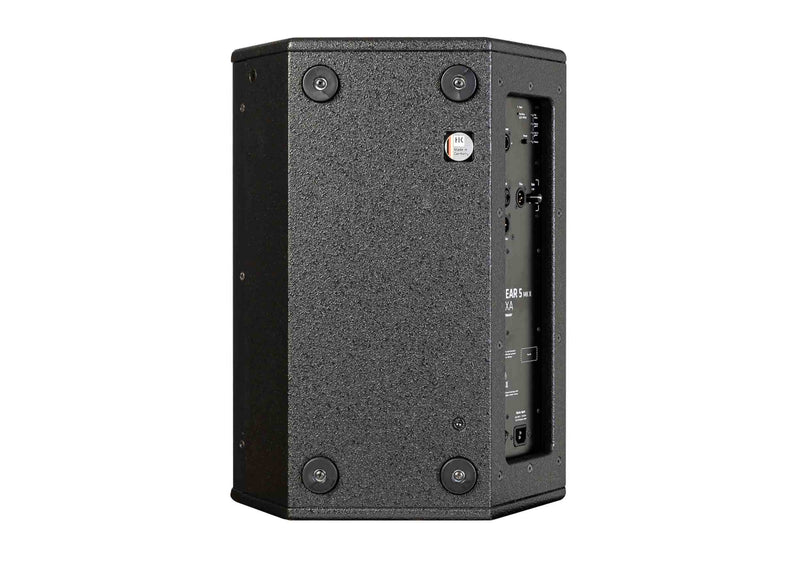

Rigging Points: 3x M8 (AP-8)

Carrying Handles: 1 x SingleGrip

Housing Material: Hybrid (birch multiplex/MDF)

Surface Finish: Black acrylic enamel

Front Grille: 2 mm metal grille backed with black acoustic foam

Shipping Weight: 36 lbs

Shipping Dimensions: 22" x 16" x 14"
