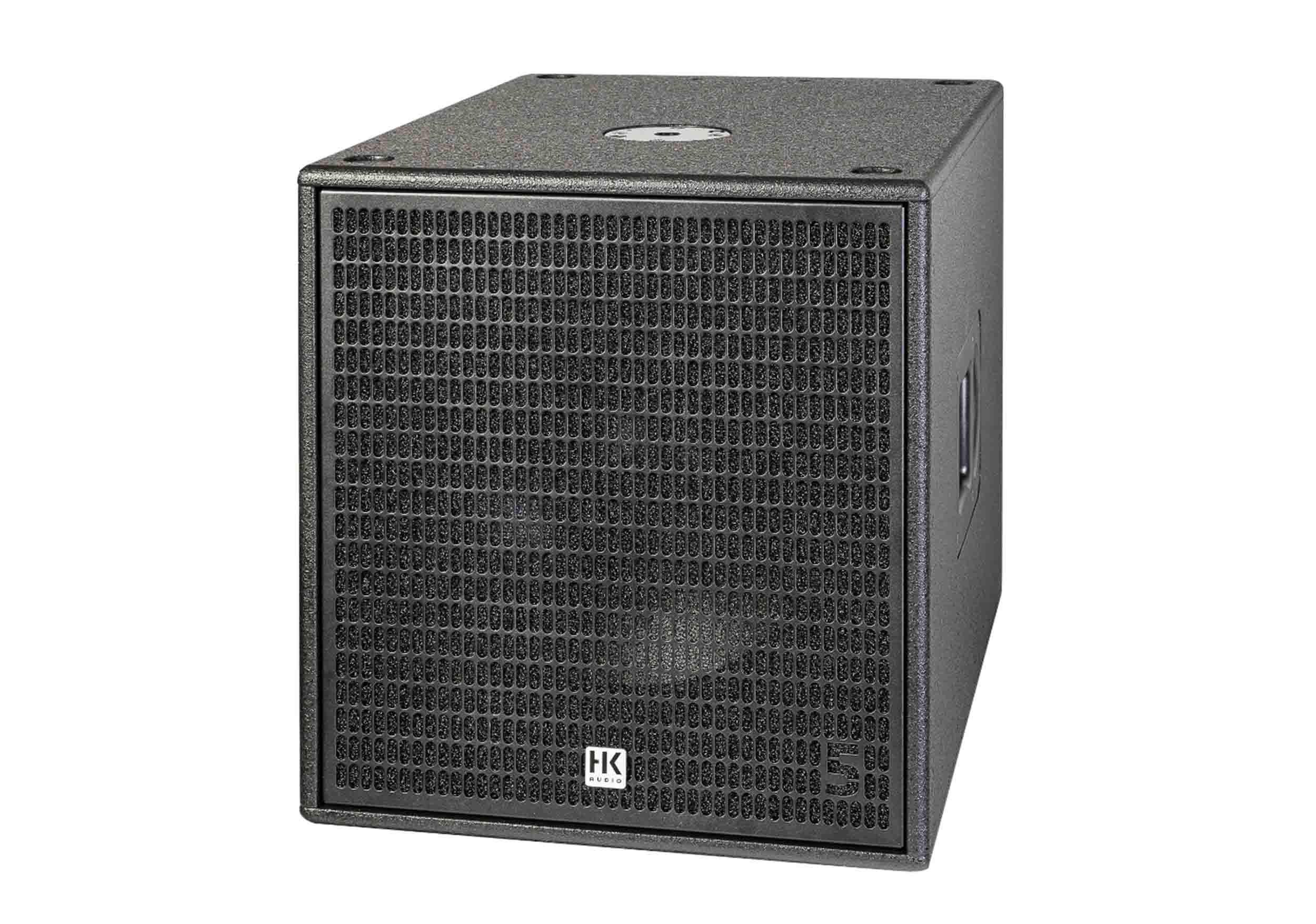

HK Audio LINEAR-5-MK2-115-FA, 15" Active Subwoofer - 1200 Watt

The HK Audio LINEAR 5 MK II 115 Sub A bass reflex subwoofer with 15" driver and 3" voice coil is a compact and flexible solution for LINEAR 5 MK II systems with its space-saving dimensions and uncompromising performance with punchy, defined bass reproduction down to the lowest of the lows. The stereo preamp makes configuring 2.1 setups straightforward and convenient. A remote-controllable high-performance DSP with integrated, directly selectable presets, such as the Cardioid 1:1 vertical and Cardioid 1:1 horizontal setting, give users an enormously expanded scope for system configuration at any time. The DSP Out can transmit the processed signal from the subwoofer to a non-network-compatible speaker. Cardioid setups can be implemented easily and without measurement technology: simply set up, select a preset, and you’re done! With its power output optimally matched to the LINEAR 5 MK II series and its birch multiplex hybrid enclosure, the LINEAR 5 MK II 115 Sub A is a powerful and robust partner for bands, DJs and sound technicians.

Product Specifications:

Max SPL: 127 dB @ 10% THD (42 Hz – 100 Hz avg.), Peak 130 dB @ 10% THD

Frequency Response: ±3 dB: 44 Hz – X-over, -10 dB: 40 Hz – X-over

Power Output: 600 W RMS / 1,200 W Peak, Class D amplifier

Woofer: 1 x 15" with 3" voice coil

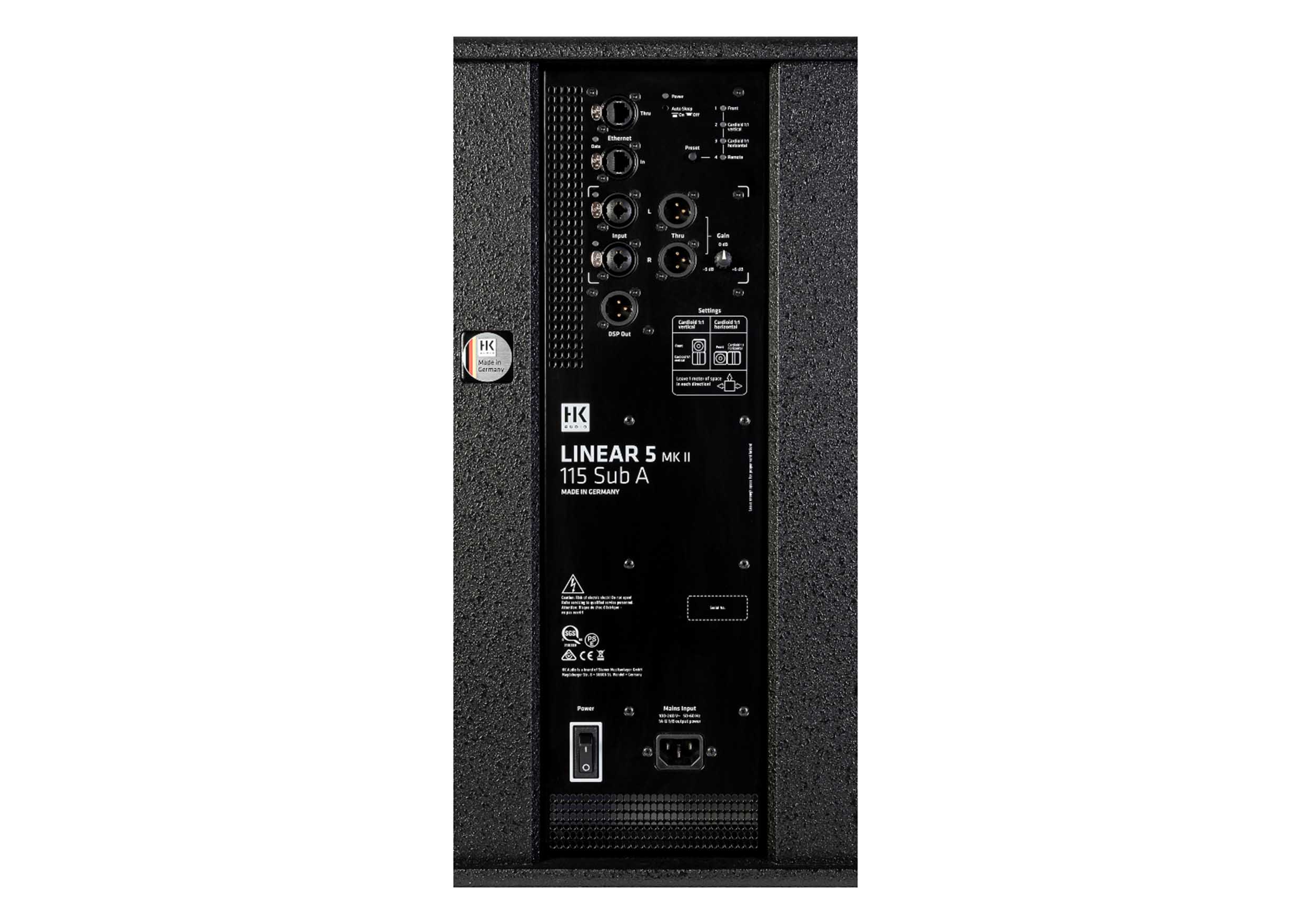

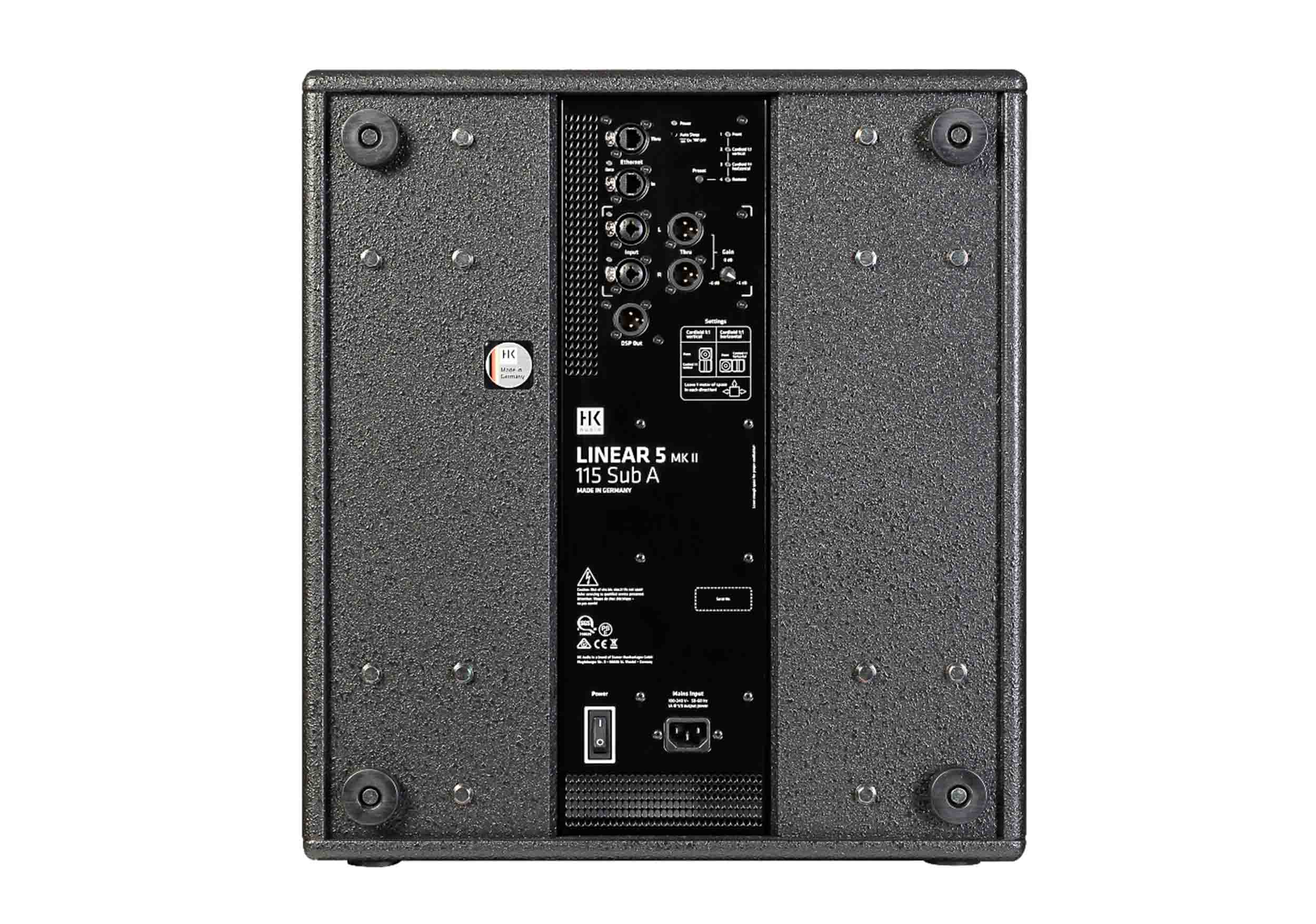

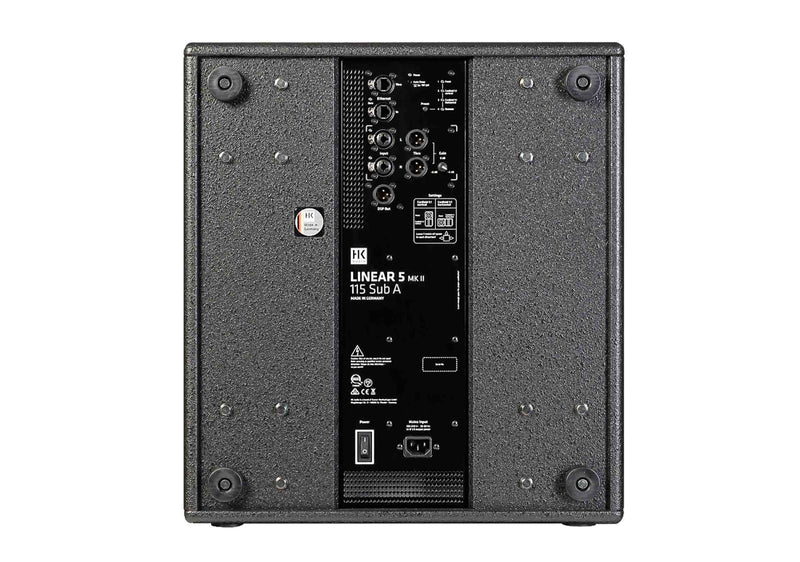

Inputs/Outputs: 2 x XLR combo balanced, 2 x XLR thru, 1 x XLR DSP out

Network Port: EtherCON RJ45 (In/Thru)

DSP: 10-band EQ, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote

Control Software: DSP CONTROL (Windows, Mac OS)

Performance: 48 kHz sample rate, <2 ms system latency

Power: IEC with V-Lock, 100-240 V, 1 A nominal (EN 62368-1)

Build: Hybrid birch multiplex/MDF housing, black acrylic enamel finish

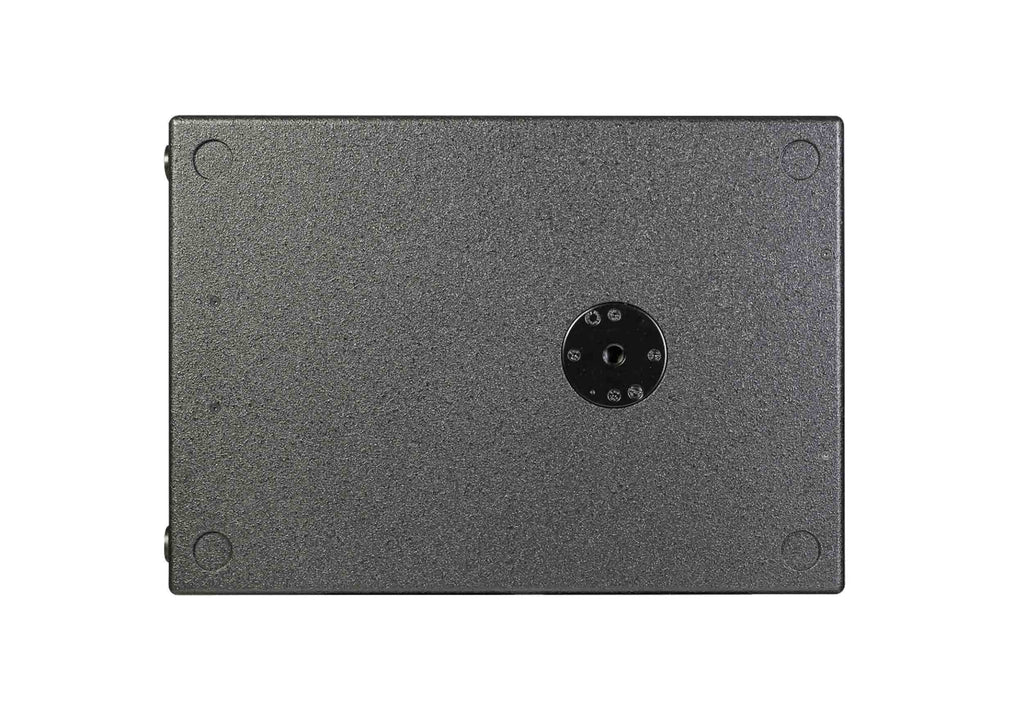

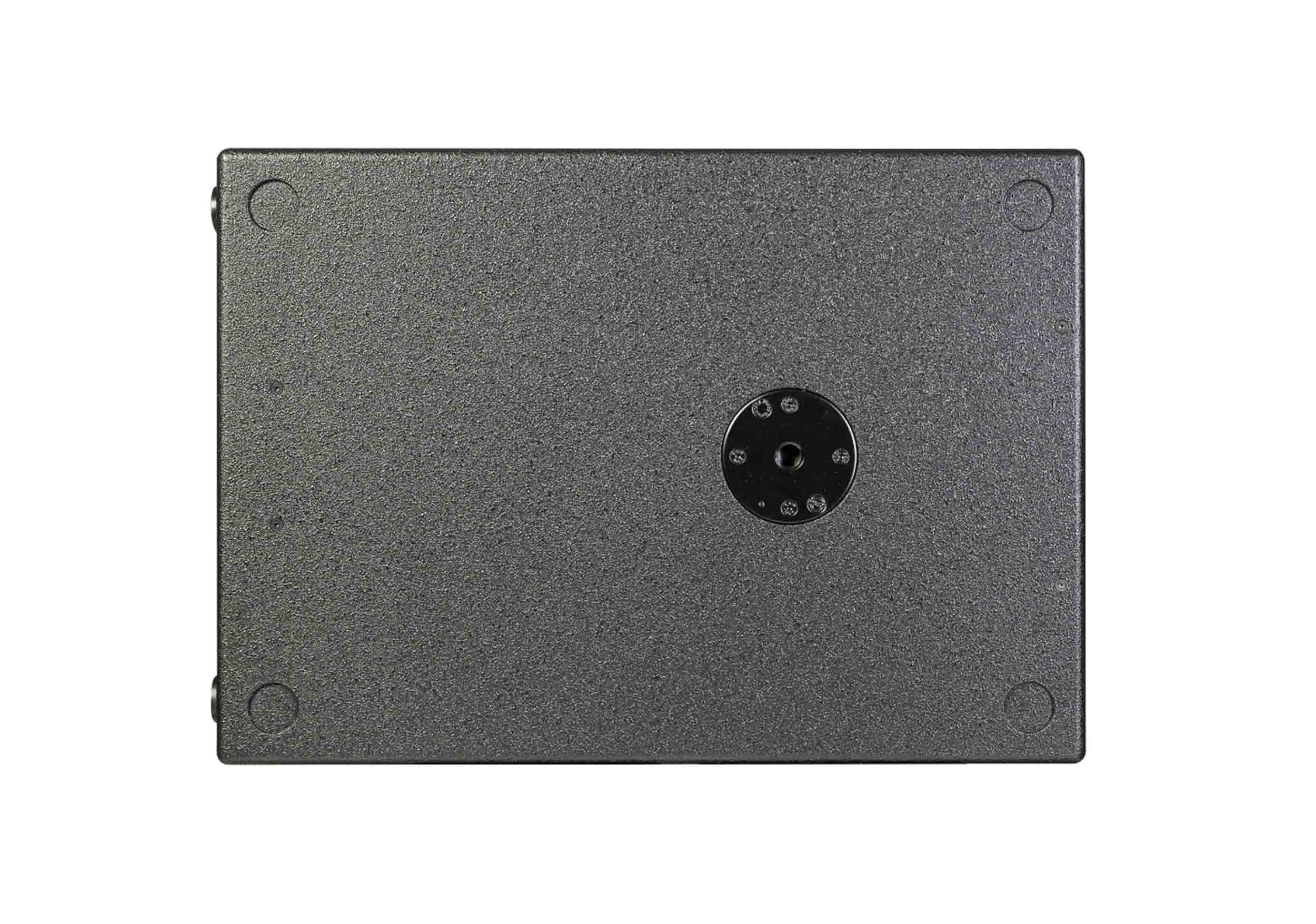

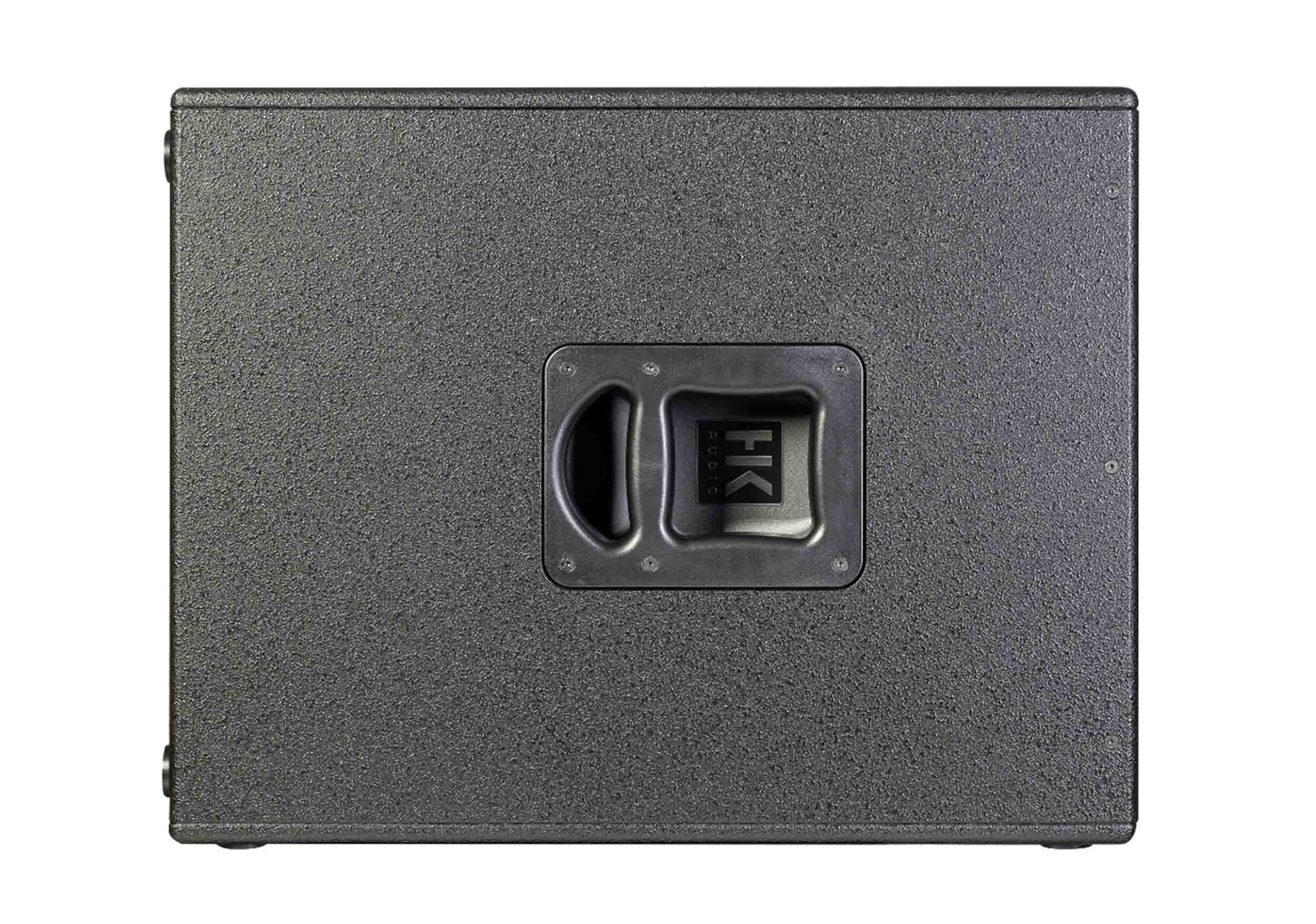

Mounting: M20 pole mount, 2 x MultiGrip handles

Grille: 2 mm metal with black acoustic foam backing

Dimensions: 48 x 53.5 x 67.5 cm (18-57/64" x 21-1/16" x 26-37/64")

Weight: 32.9 kg (72.53 lbs)
