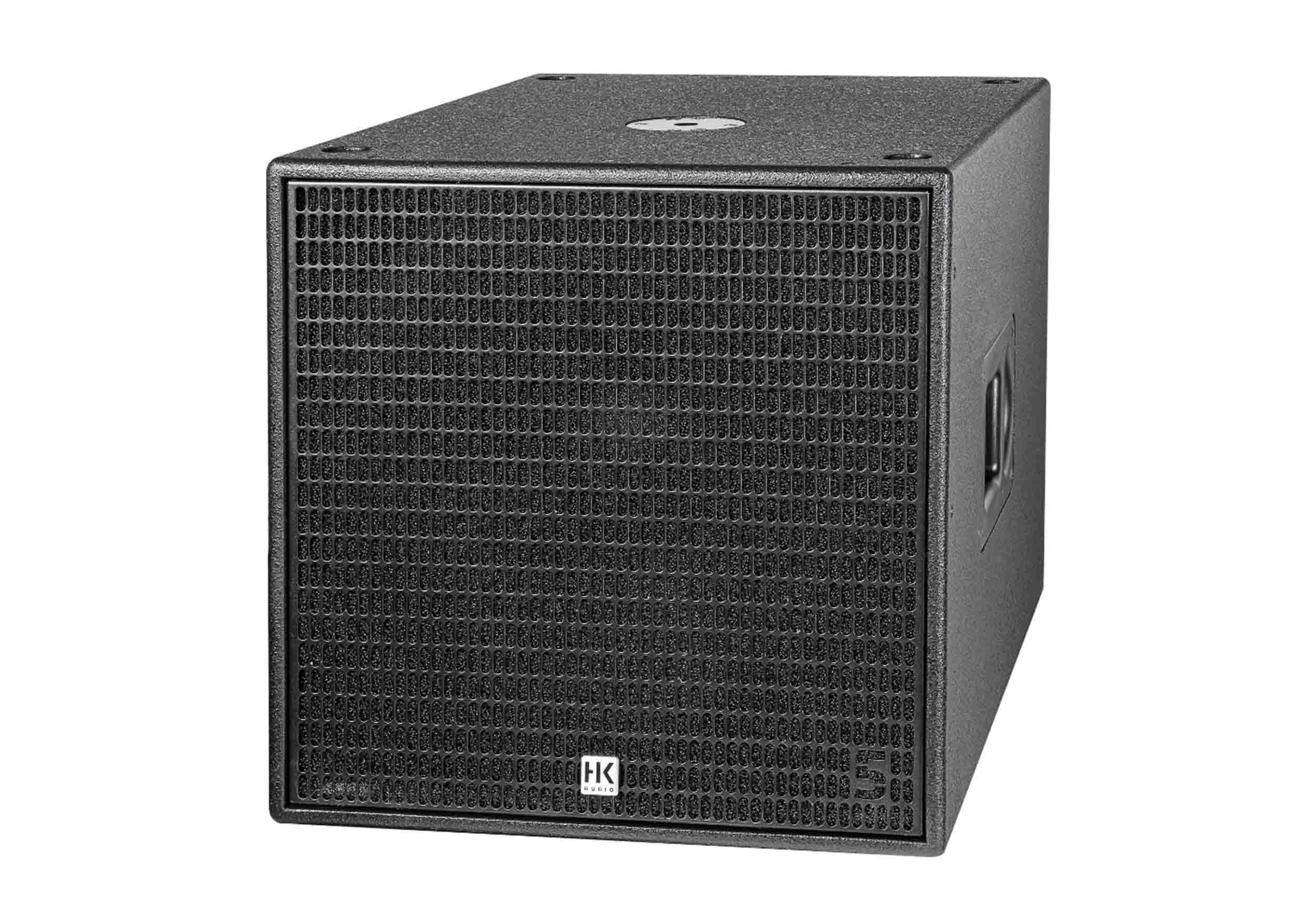

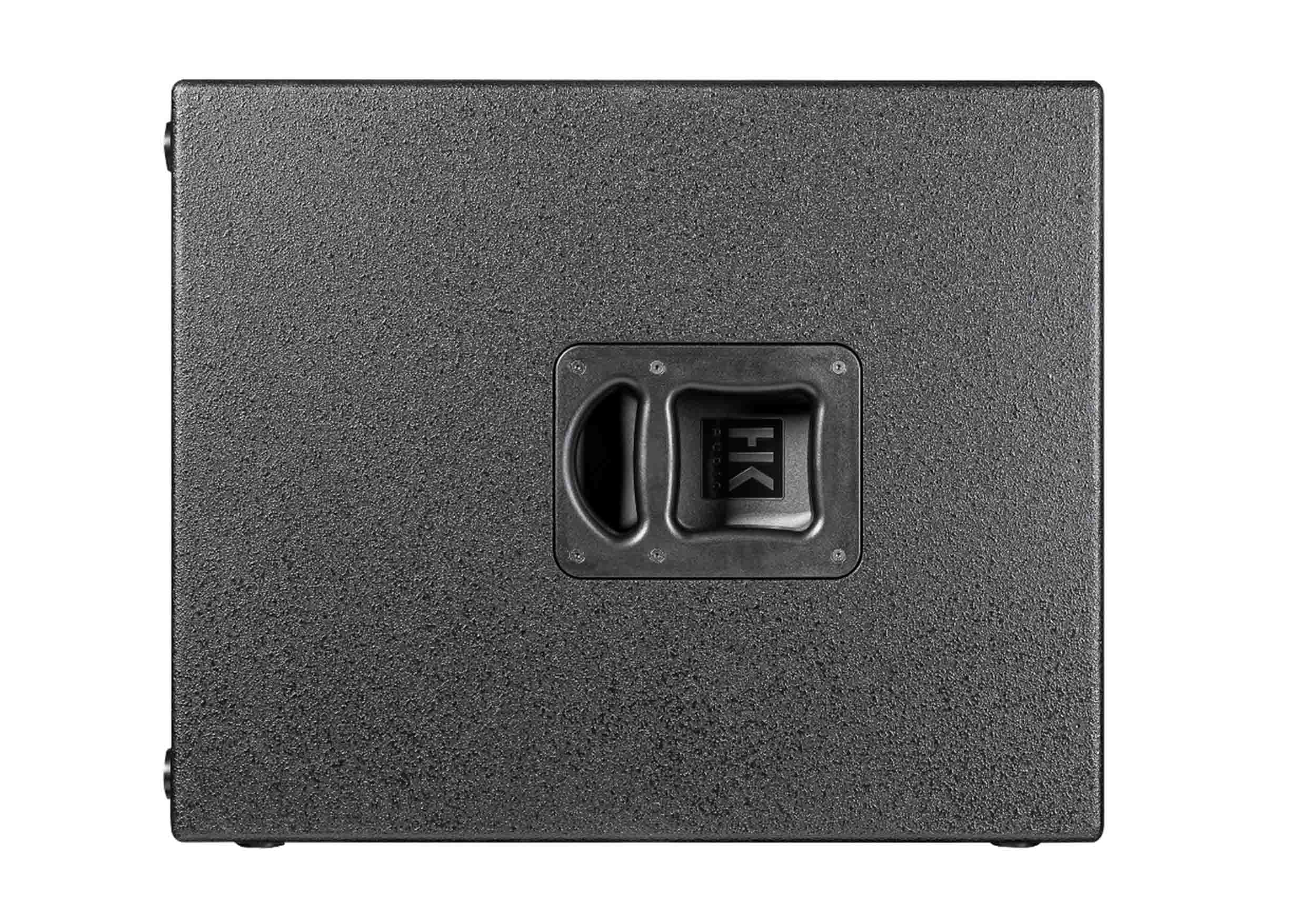

HK Audio LINEAR-5-MK2-118-SUB-A, 2000W Active Subwoofer - 18 Inch

The HK Audio LINEAR 5 MK II 118 Sub A bass reflex subwoofer with 18" driver and 4" voice coil is the most powerful solution for LINEAR 5 MK II systems with its uncompromising performance and dry, defined bass reproduction down to the lowest of the lows. A remote-controllable high-performance DSP with integrated, directly selectable presets, such as the Cardioid 1:1 vertical and Cardioid 1:1 horizontal setting, give users an enormously expanded scope for system configuration at any time. The DSP Out can transmit the processed signal from the subwoofer to a non-network-compatible speaker. Cardioid setups can be implemented easily and without measurement technology: simply set up, select a preset, and you’re done! The stereo preamp makes configuring 2.1 setups straightforward and convenient. With more power, a deeper frequency response and a solid birch multiplex enclosure, the LINEAR 5 MK II 118 Sub A is a powerful and robust partner for bands, DJs and sound technicians.

Product Specifications:

Max SPL: 129 dB @ 10% THD (42 Hz - 100 Hz avg.), Peak 131 dB @ 10% THD

Frequency Response: ±3 dB: 42 Hz - X-over, -10 dB: 38 Hz - X-over

Power Output: 1,000 W RMS / 2,000 W Peak, Class D amplifier

Driver: 1 x 18" woofer with 4" voice coil

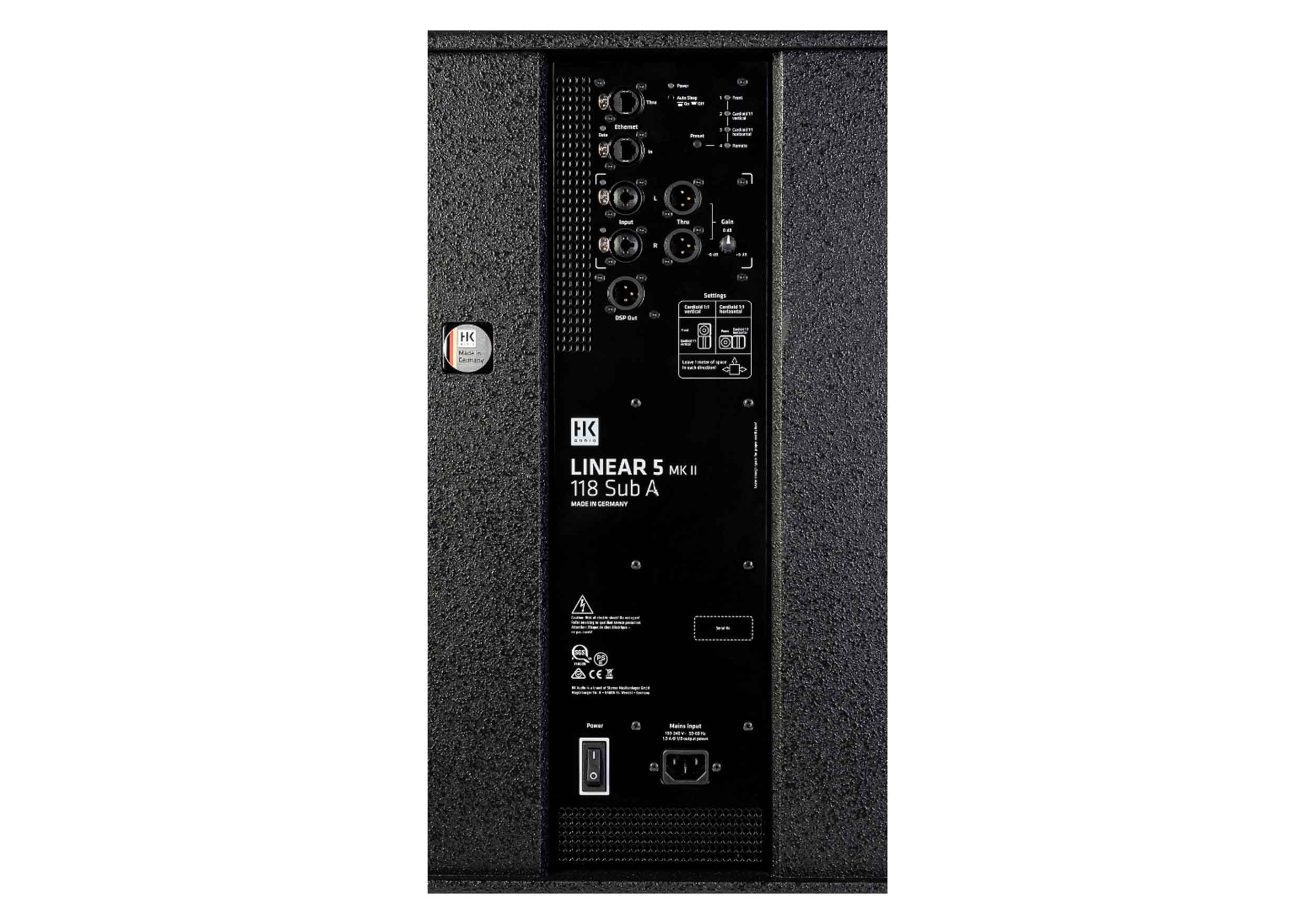

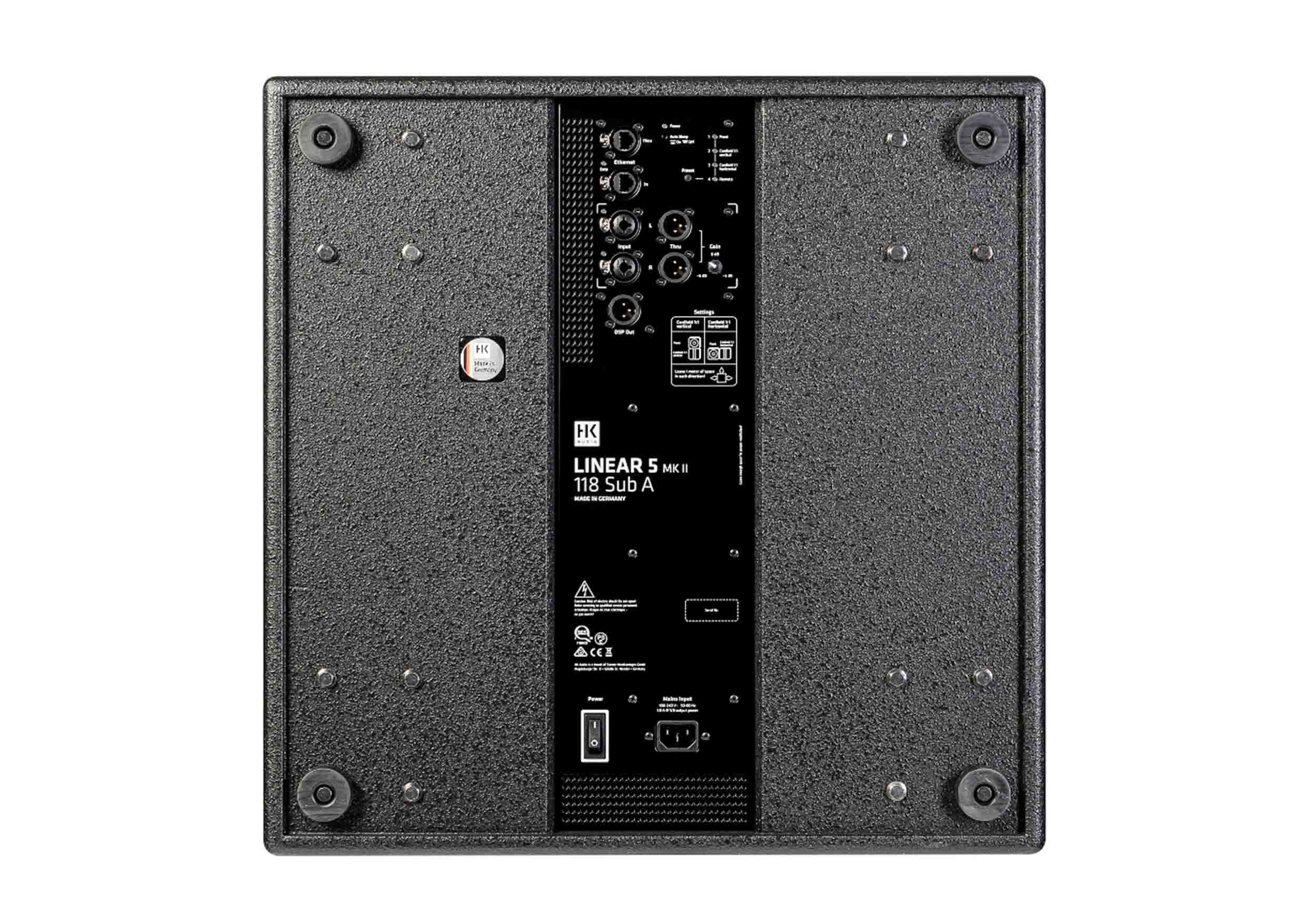

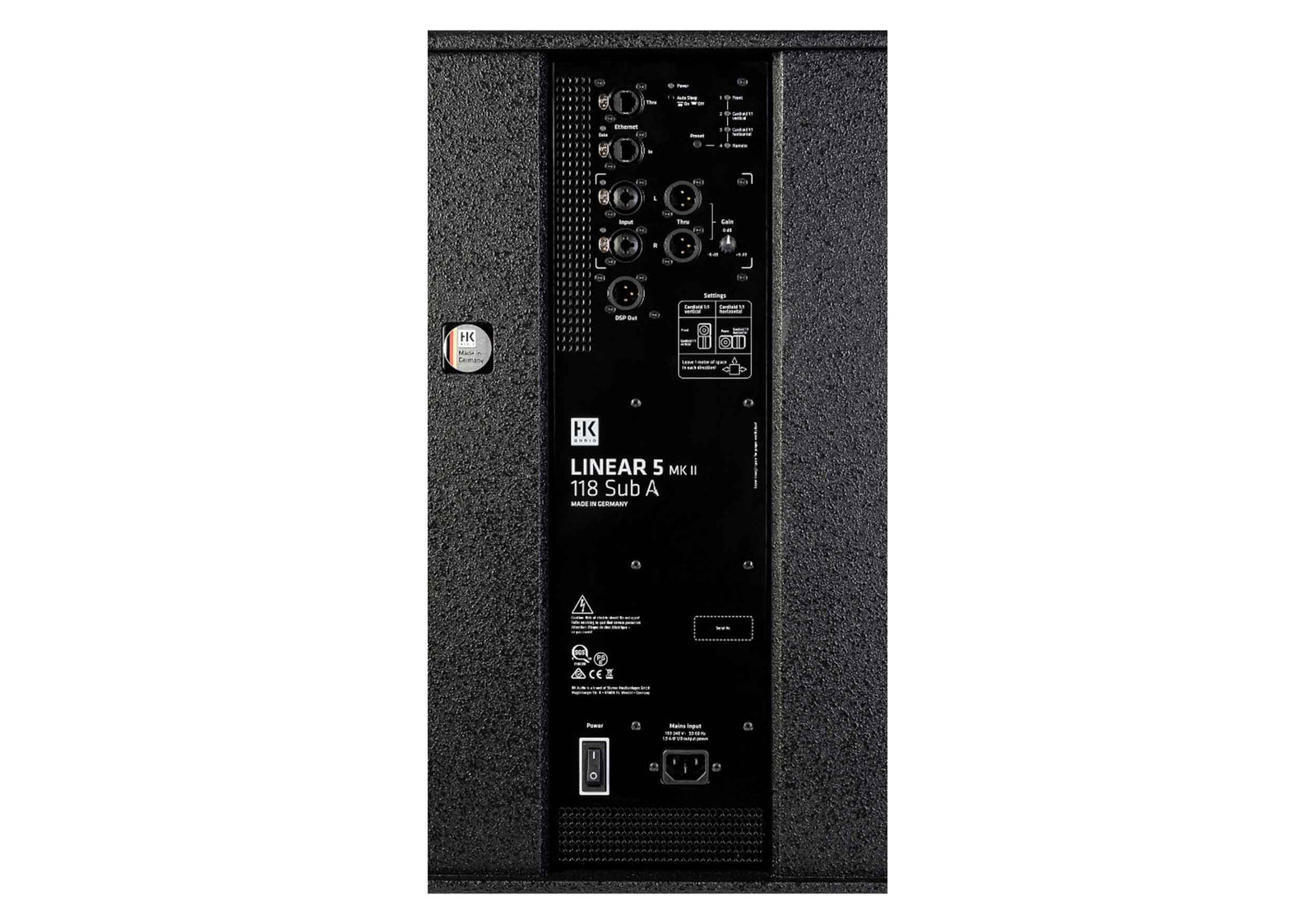

Inputs/Outputs: 2 x XLR combo balanced inputs, 2 x XLR thru, 1 x XLR DSP out

Network Port: EtherCON RJ45 (1 x In, 1 x Thru)

DSP: 10-band EQ, low-pass filter, polarity, delay, limiter, mute

Presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote

Control Software: DSP CONTROL (Windows, Mac OS)

Performance: 48 kHz sample rate, <2 ms latency

Power: IEC with V-Lock, 100-240 V, 1.9 A nominal (EN 62368-1)

Design: Birch multiplex housing, black acrylic enamel finish

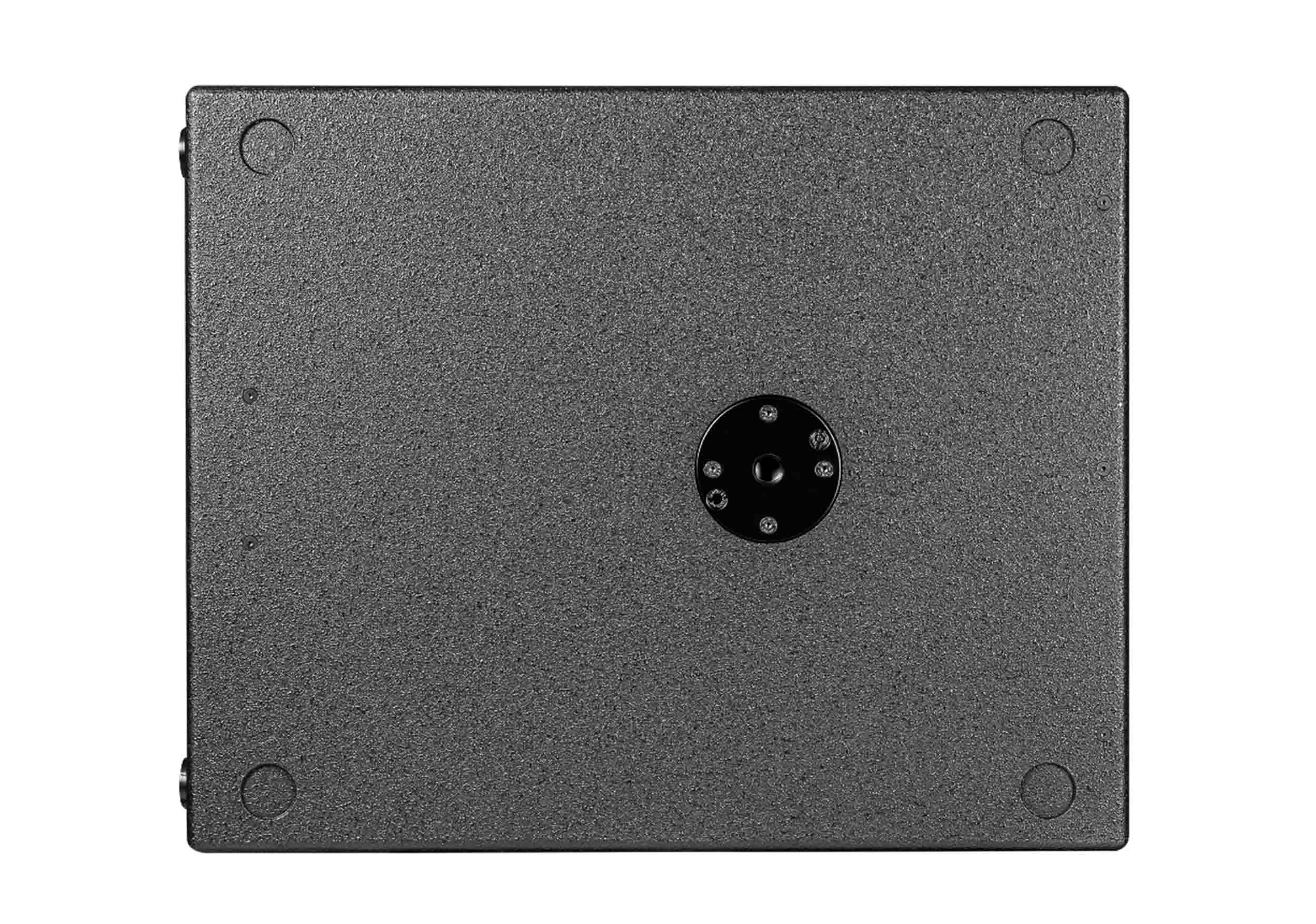

Mounting: M20 pole mount

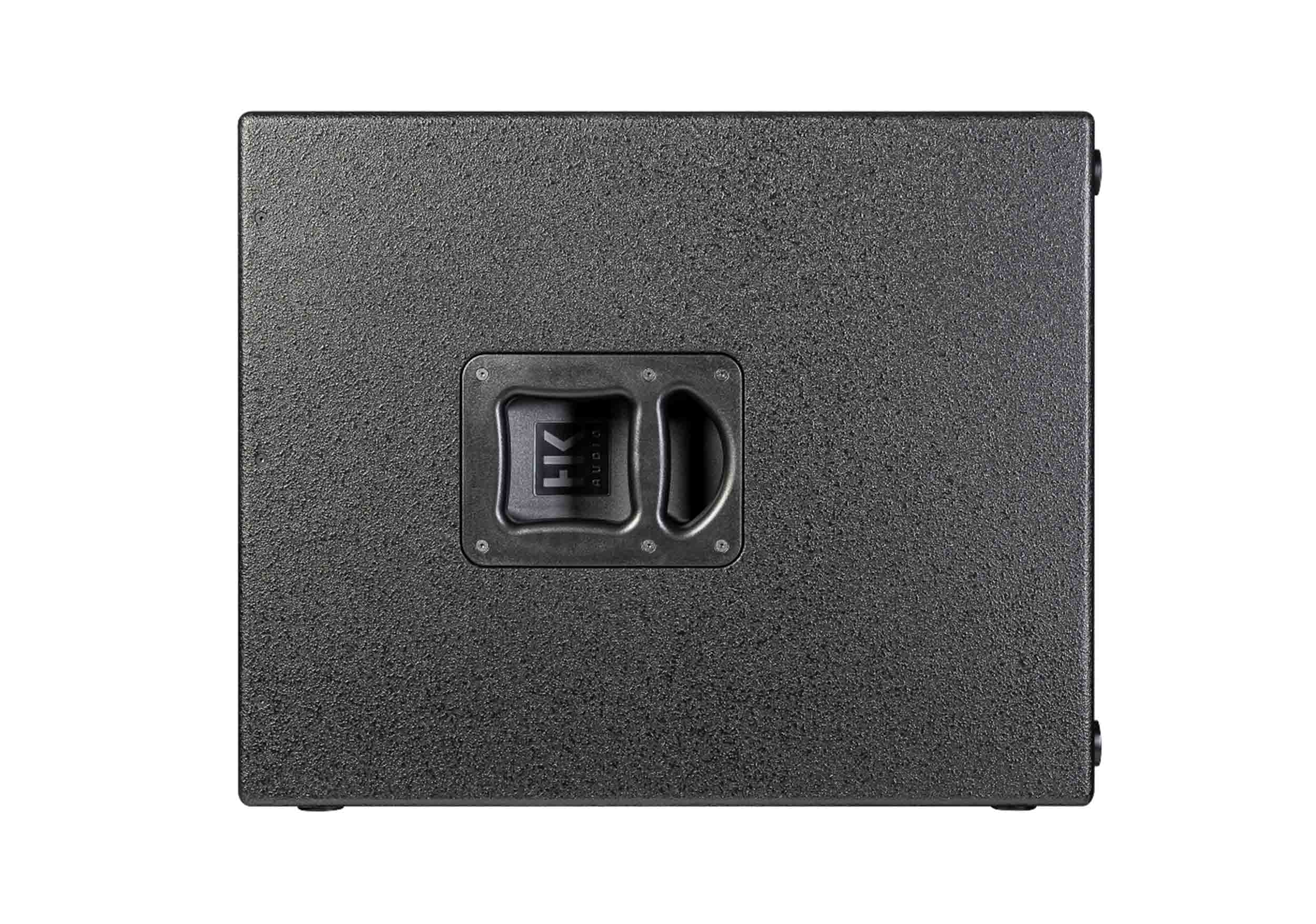

Handles: 2 x MultiGrip

Grille: 2 mm metal with black acoustic foam backing

Dimensions: 21.65" W x 22.05" H x 26.97" D

Weight: 91.71 lbs
