Description

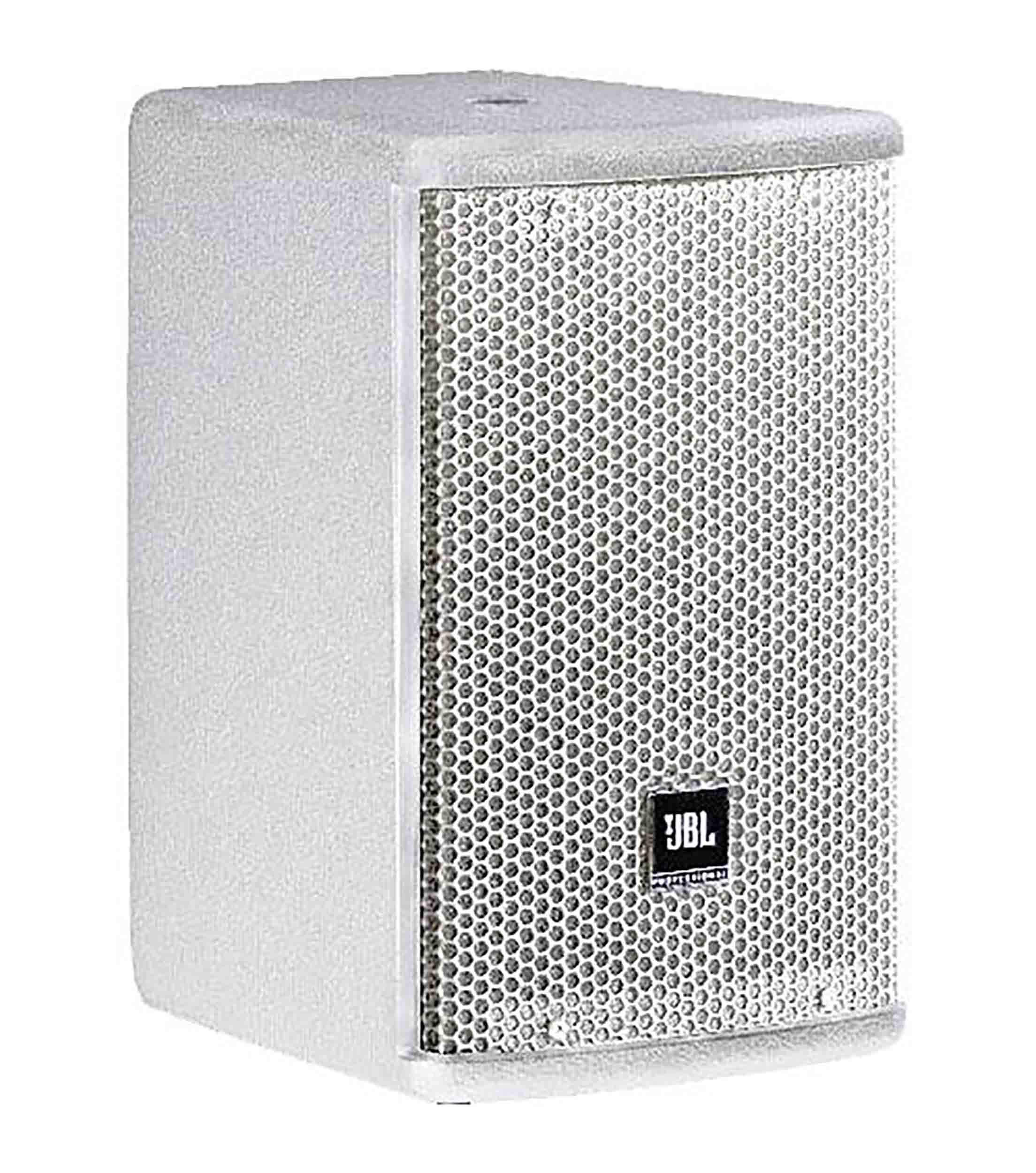

The JBL AC15-WH is a 2-way loudspeaker with 5.25" LF drivers. This speaker has broad dispersion angles, making them easy to set up appropriately in performing arts facilities, auditoriums, houses of worship, clubs, and entertainment venues. The speakers can each handle up to 300W of program power and have 90 x 90° bandwidth. Each speaker has dual Neutrik NL4 connectors plus screw terminals, making them simple to add to your system. The AC15 B has attachment points for the optional U-bracket.
Product Specification:
Frequency Range (-10dB): 80 Hz -20 kHz
Frequency Response (±3 dB): 90 Hz -18 kHz
System Power Rating: 225 W (AES rated)
150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
Impedance: 16 ohms
Coverage Pattern: 90° x 90°
Dimensions (H x W x D): 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
Weight (each): 4.7 kg (10.5 lb)
Crossover Modes: Passive
Maximum SPL (1m): 108 dB
System Sensitivity (1w @ 1m): 86 dB SPL
Nominal Section Impedances: 16 ohms
LF Driver: 1 x JBL 225J, 135 mm (5.25 in) SFG driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance: 16 Ohms
HF Driver: 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
Enclosure: 12 mm exterior grade multi-ply hardwood plywood
Environmental: Mil-Std 810; IPx3 per IEC529
