Description

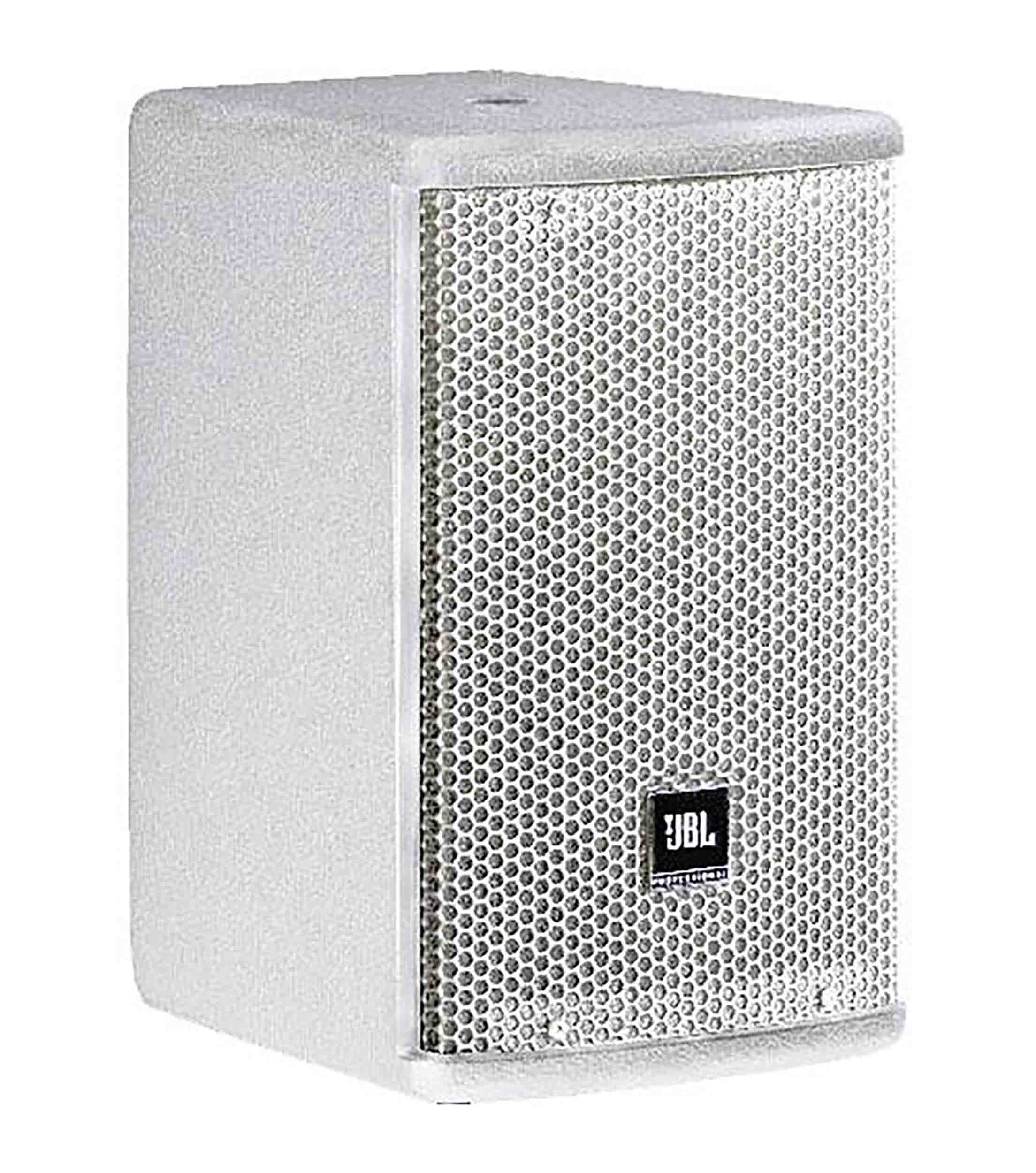

The JBL AC16-WH is a 2-Way loudspeaker with a 6.5" LF driver. These speakers have broad dispersion angles making them easy to set up appropriately in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 400W of program power and has 90x90° bandwidth. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC16 B has attachment points for the optional U-bracket or Omni Mount.
Product Specification:
Frequency Range (-10dB): 55 Hz -20 kHz
Frequency Response (±3 dB): 65 Hz -18 kHz
System Power Rating: 250 W (AES rated)
160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)
Nominal Impedance: 16 Ohms
Coverage Pattern: 90° x 90°
Dimensions (H x W x D): 381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)
Weight (each): 7.2 kg (15.8 lb)
Crossover Modes: Passive
Maximum SPL (1m): 110 dB
System Sensitivity (1w @ 1m): 90 dB SPL
LF Driver: 1 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil
Nominal LF Driver Impedance: 16 Ohms
HF Driver: 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
