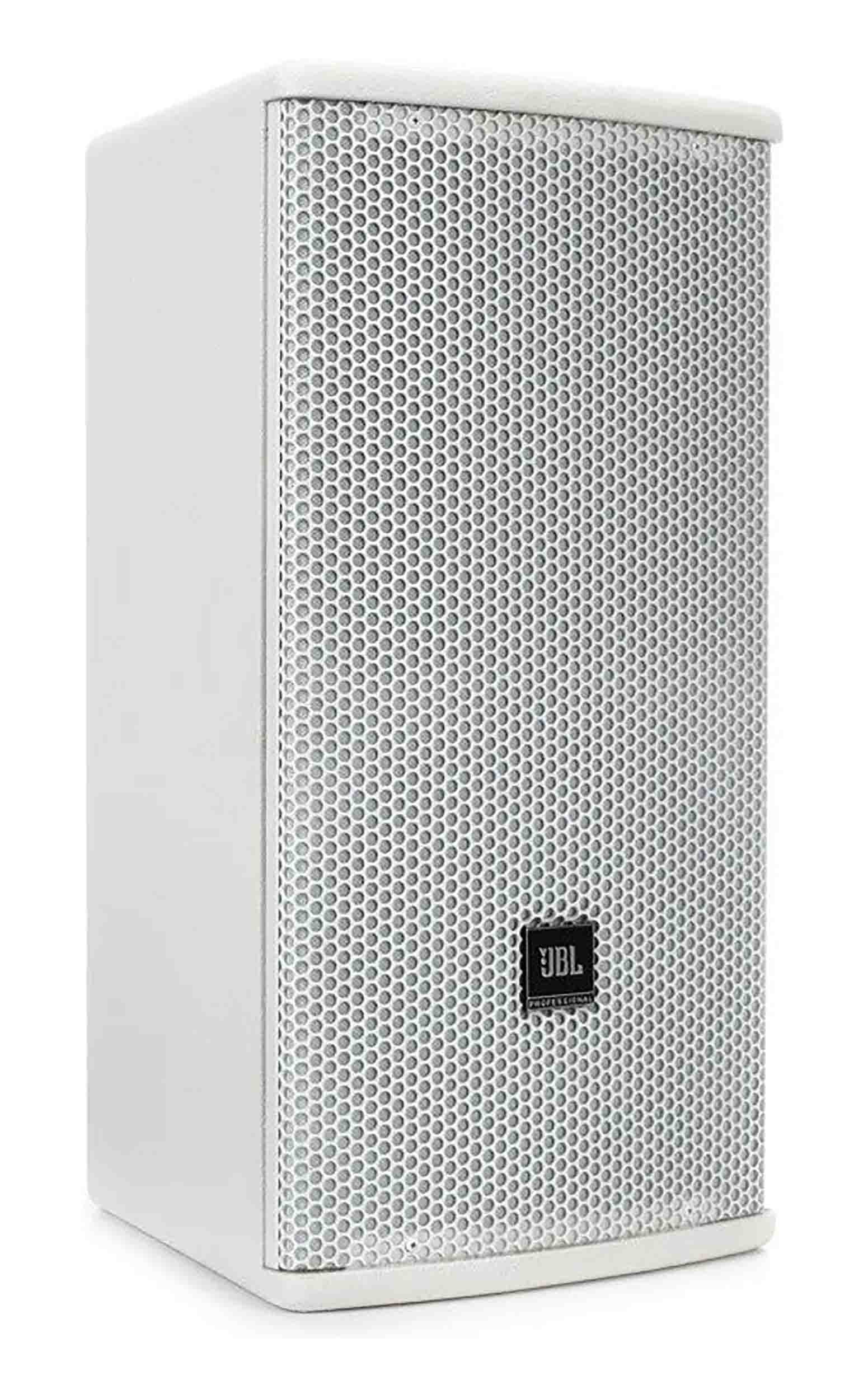

Description
The JBL AC18/95-WH is a 2-Way loudspeaker with a 8" LF driver ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 500W of program power and has a 1" HF driver with field rotatable 90 x 50° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/95 B has attachment points for the optional U-bracket or OmniMount.
Product Specification:
Frequency Range (-10dB): 52 Hz - 20 kHz
Frequency Response (±3 dB): 63 Hz – 19 kHz
System Power Rating: 250W Cont. Pink Noise 500W Program1000W Peak
Impedance: 8 ohms
Coverage Pattern: /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D): 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
Net Weight (each): 12.8 kg (28.2 lb)
Crossover Modes: Passive
Maximum SPL (1m): 117 dB
System Sensitivity (1w @ 1m): 93 dB SPL
LF Driver: 1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance: 8 Ohms
HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX
