Description

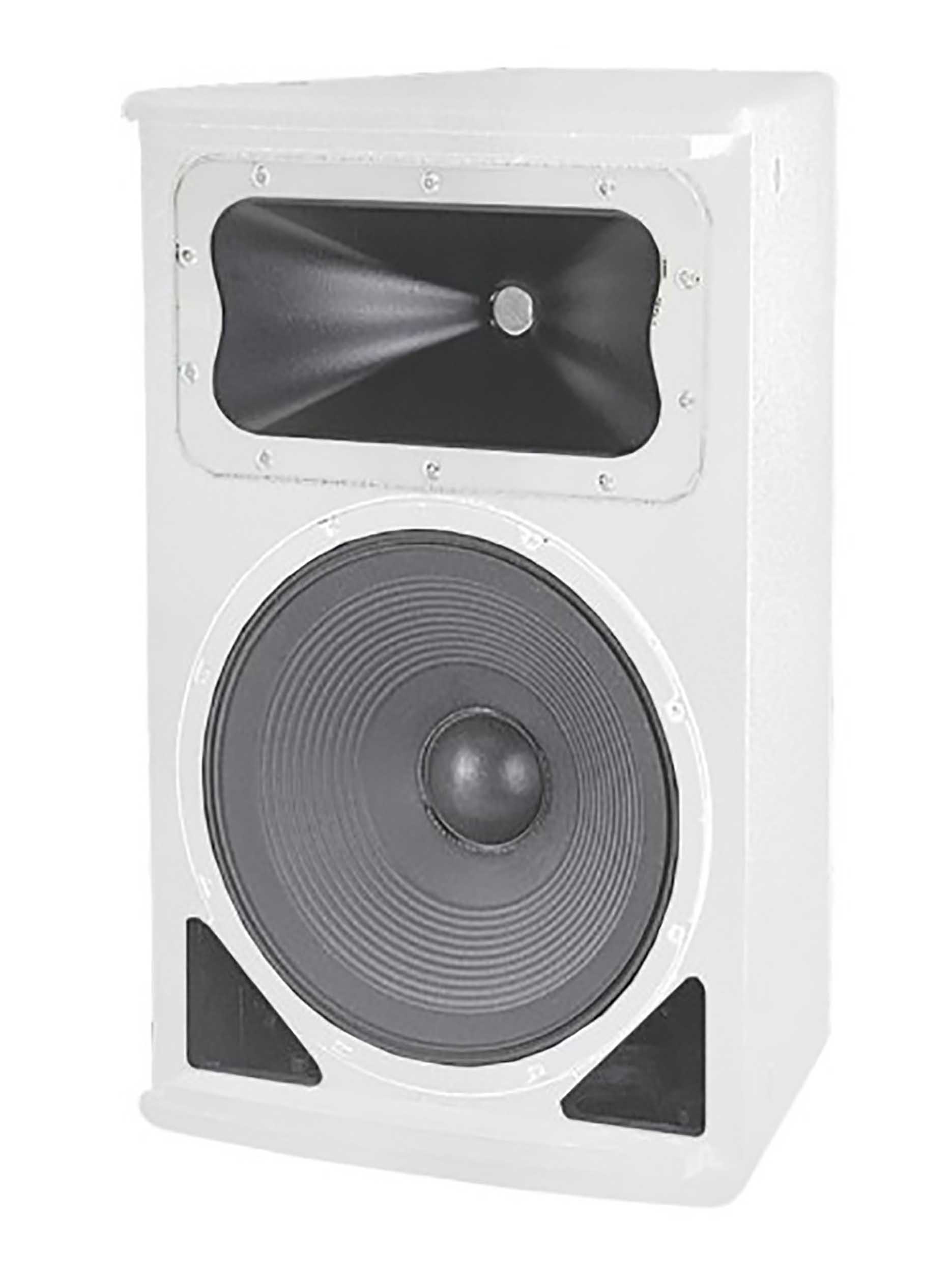

The JBL AC2212/95-WH is a compact 2-way full range loudspeaker system comprised of one 300 mm (12") low frequency driver and one 38 mm (1.5") exit / 25 mm (1") voice-coil compression driver. The PT Progressive Transition waveguide provides 90° by 50° coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. An optional U-bracket, as well as pre-engineered array bracketry, is available for easy installation. Four threaded inserts located on back of the enclosure allow attachment of an Omnimount or similar mounting bracket.
Product Specifications:
Frequency Range: 50 Hz - 19 kHz (-10 dB)
Frequency Response: 55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern: /64: 60°x 40°/95: 90°x 50°/00: 100°x 100°
Directivity Factor (Q): 7.1
Directivity Index (DI): 8.5 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Slopes: 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
System Power Rating: Passive mode: 250 W (1000 W peak), 100 hrs
System Sensitivity: Passive mode: 95 dB SPL (1W @ 1m)
