Description

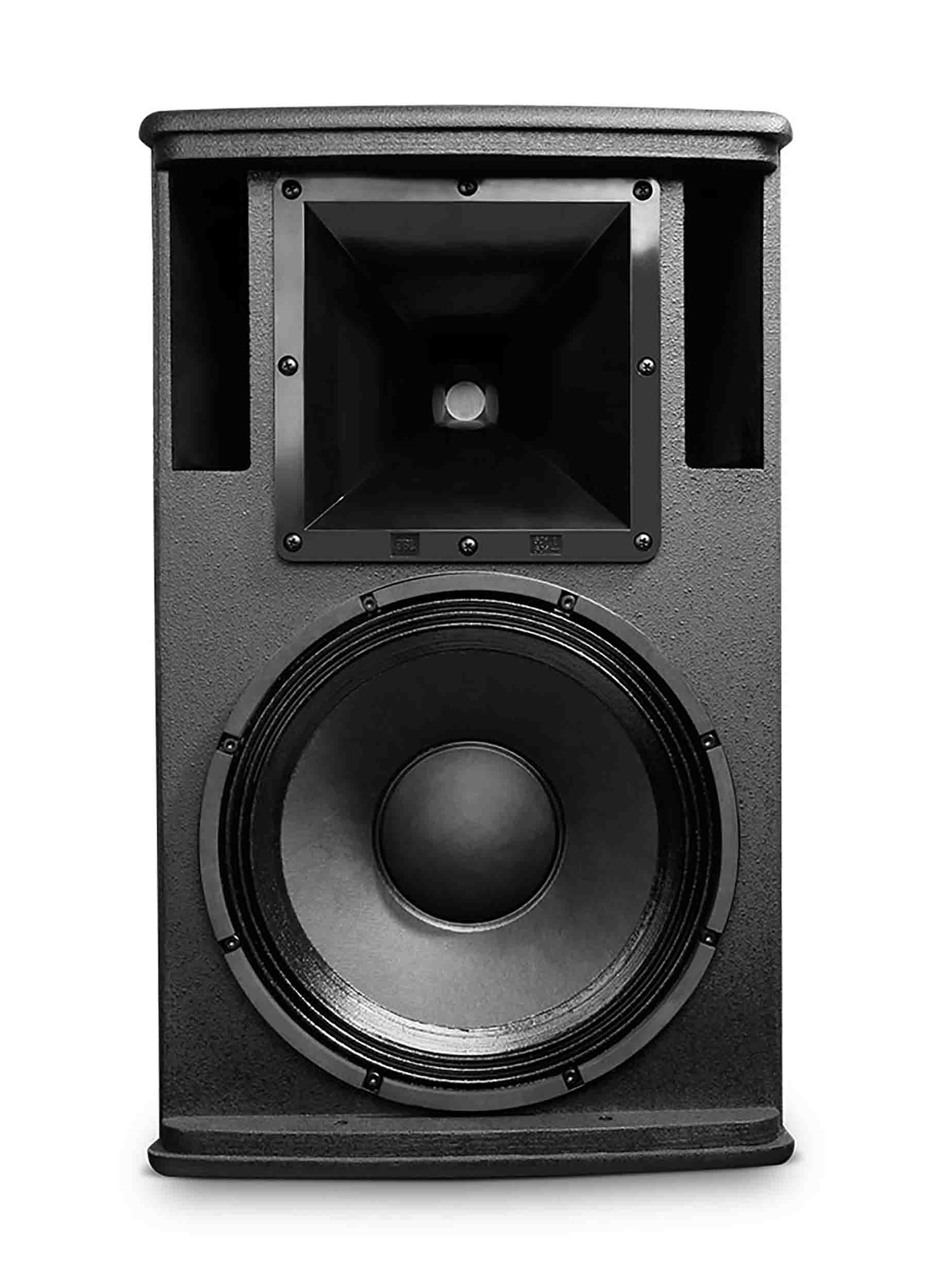

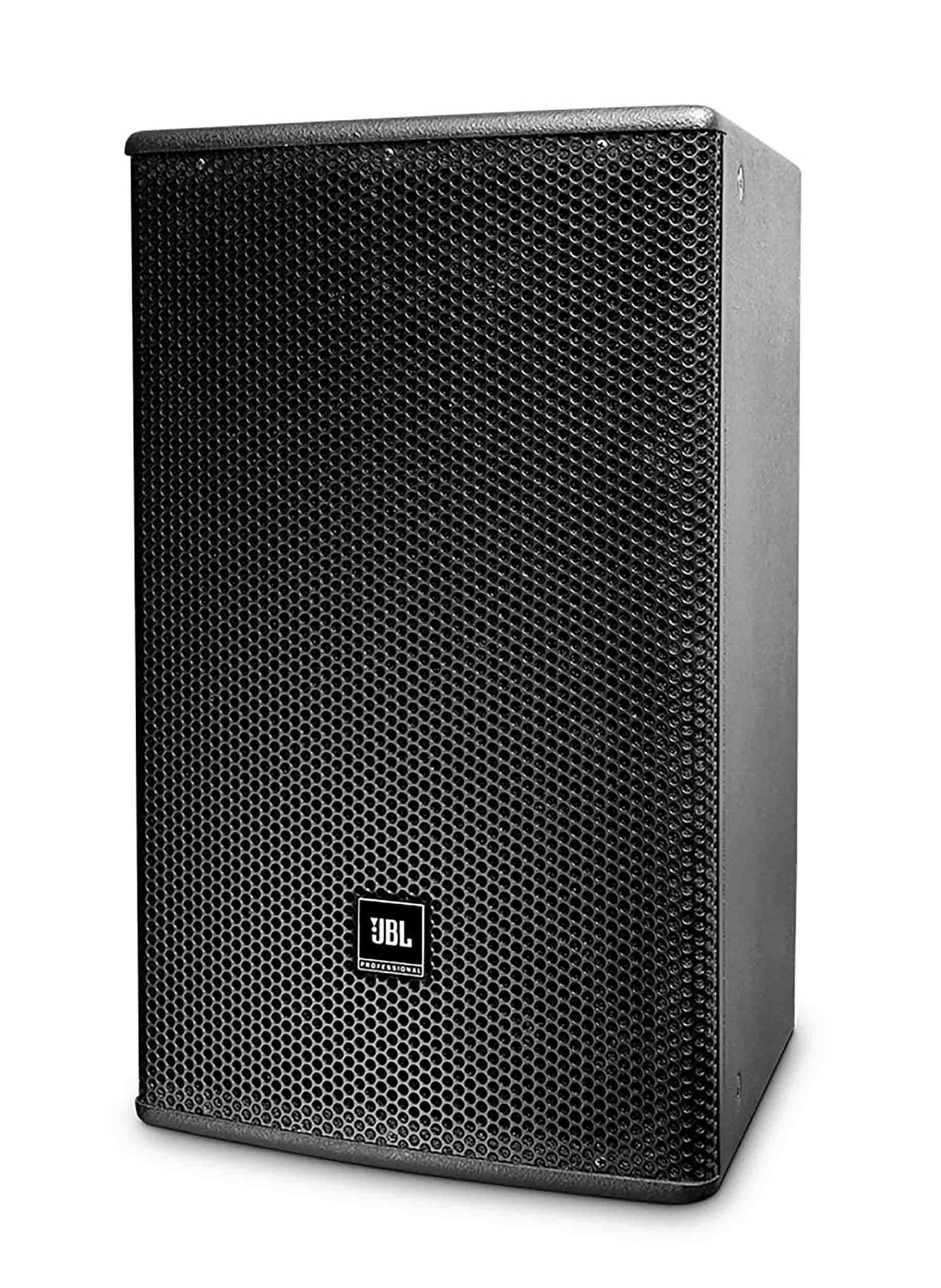

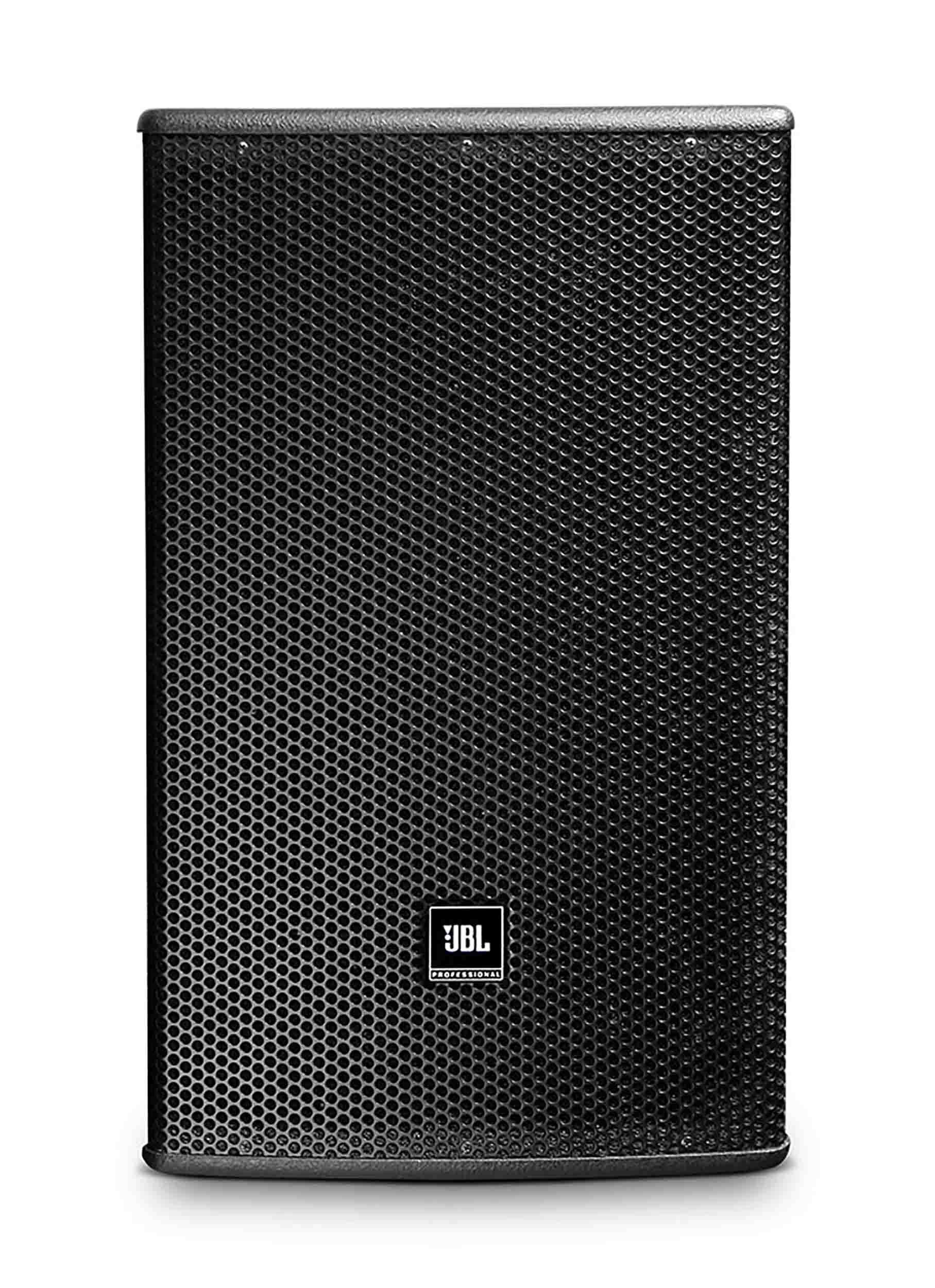

The JBL AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Product Specification:
Frequency Range (-10dB):63 Hz - 20 kHz
Frequency Response (±3 dB):80 Hz - 18 kHz
System Sensitivity (1w @ 1m):97 dB
Nominal Impedance:8 ohms
Maximum SPL (1m):121 dB (127 dB peak)
Coverage Pattern:60° x 60° (H x V)
Crossover:1.5 kHz
LF Driver:1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
HF Driver:1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input Connector:Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure:15 mm multi-ply hardwood plywood
Grille:Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

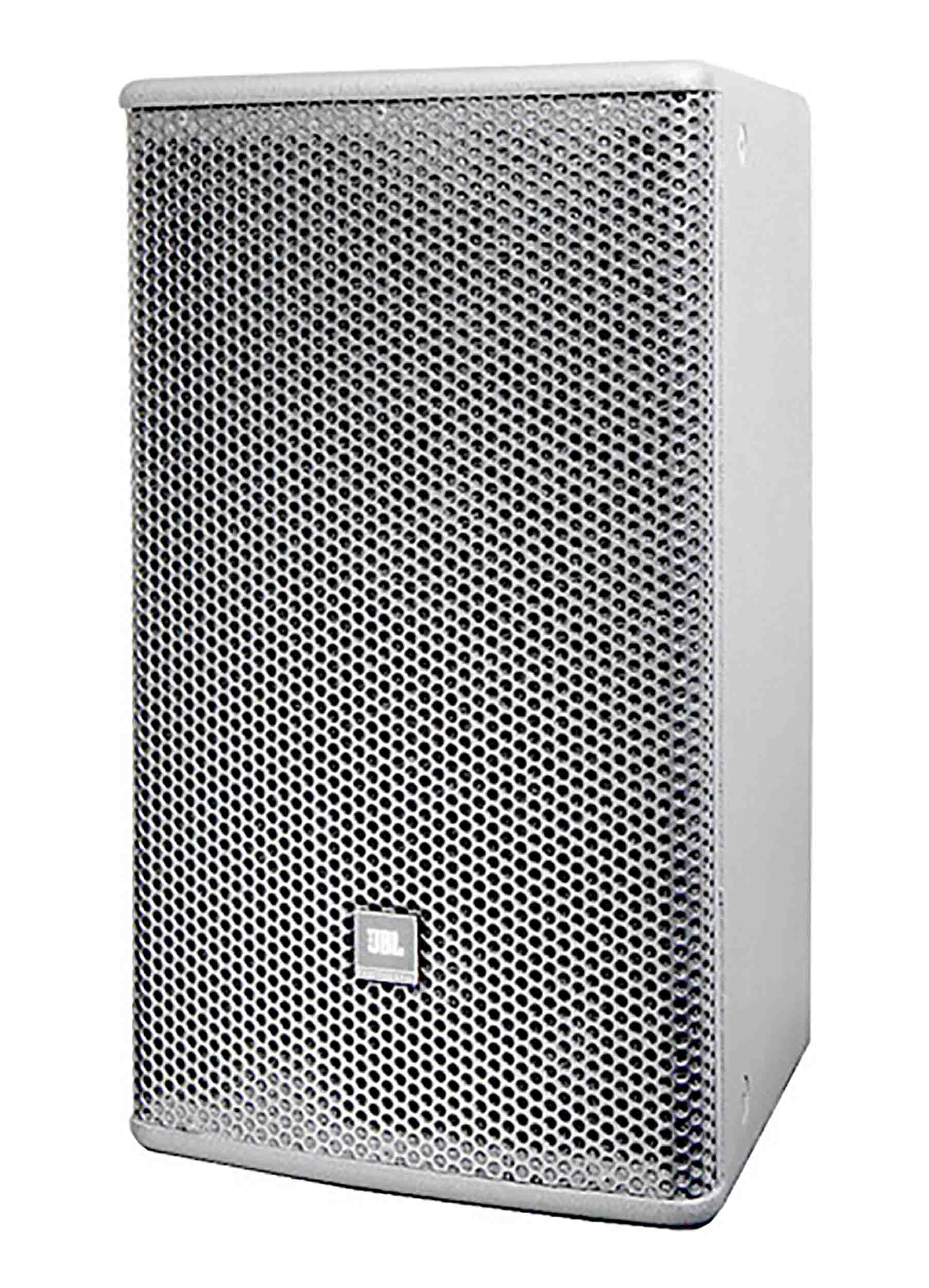

Finish:Textured black paint finish. White (-WH) available.
Dimensions (H x W x D):600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
Net Weight:17.4 kg (38.3lbs)
Crossover Modes:Passive
Nominal LF Driver Impedance:8 ohms
Nominal HF Driver Impedance:8 ohms
