Description

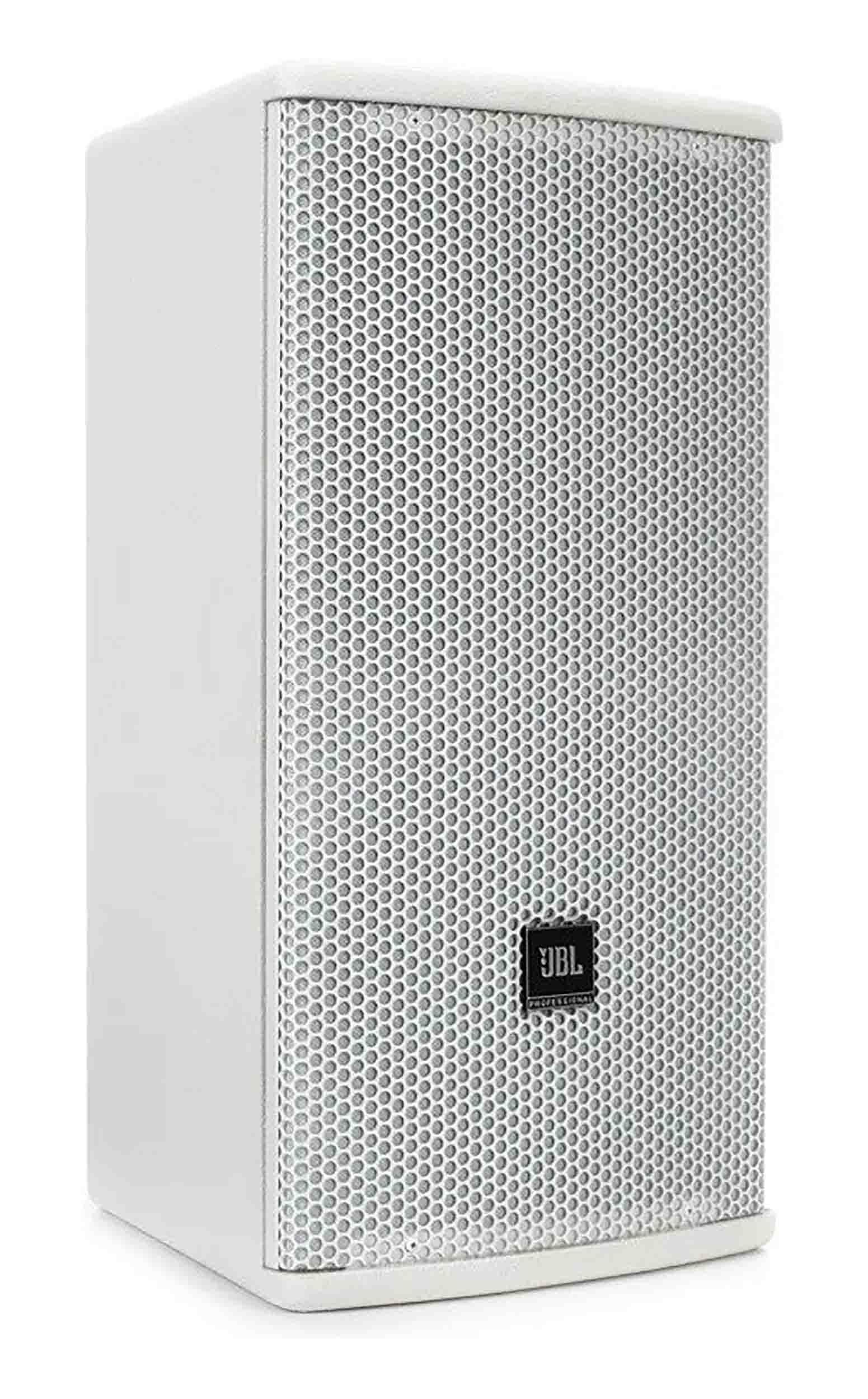

The JBL AC28/26-WH is a 2-Way loudspeaker with dual 8" LF drivers ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 750W of program power and has a 1" HF driver with field rotatable 120 x 60° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC28/26 B has attachment points for the optional U-bracket or OmniMount.
Product Specification:
Frequency Range (-10dB): 53 Hz - 20 kHz
Frequency Response (±3 dB): 65 Hz – 20 kHz
Impedance: 8 ohms
Coverage Pattern: /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
Net Weight (each): 18.6 kg (40.9 lb)
Crossover Modes: Passive
Maximum SPL (1m): 120 dB
System Sensitivity (1w @ 1m): 94 dB SPL
LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance: 8 Ohms
HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
