Description

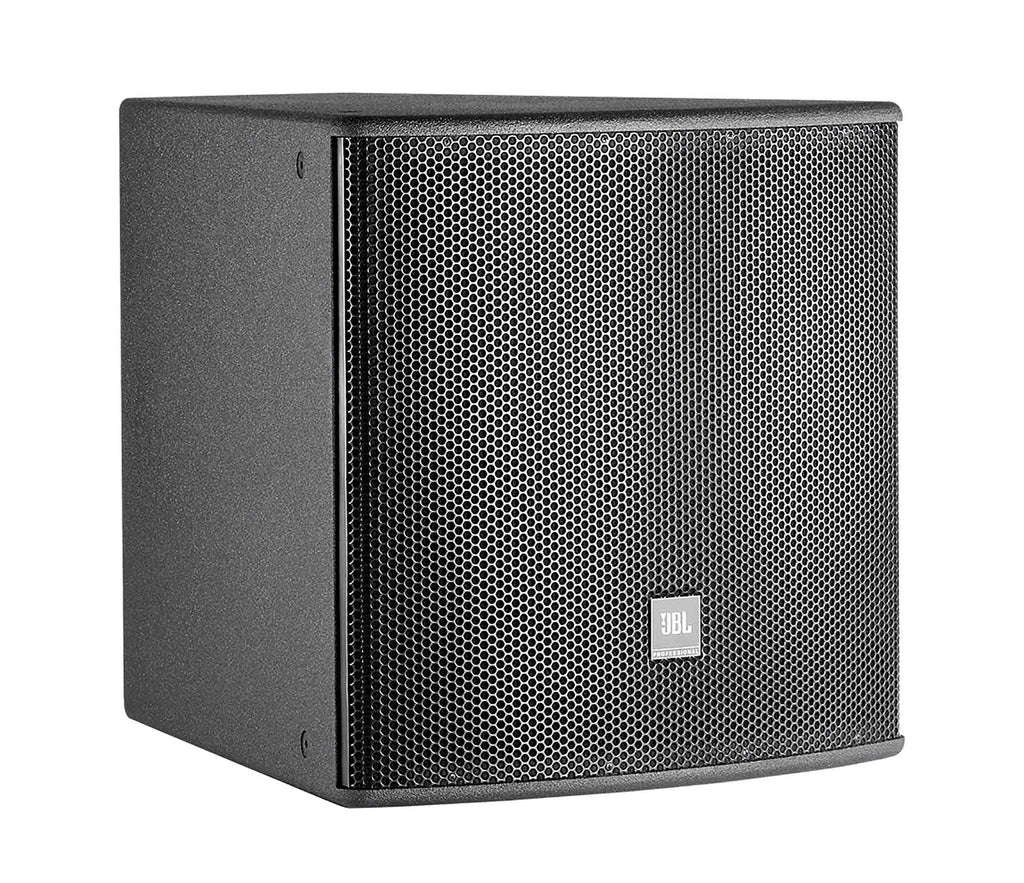

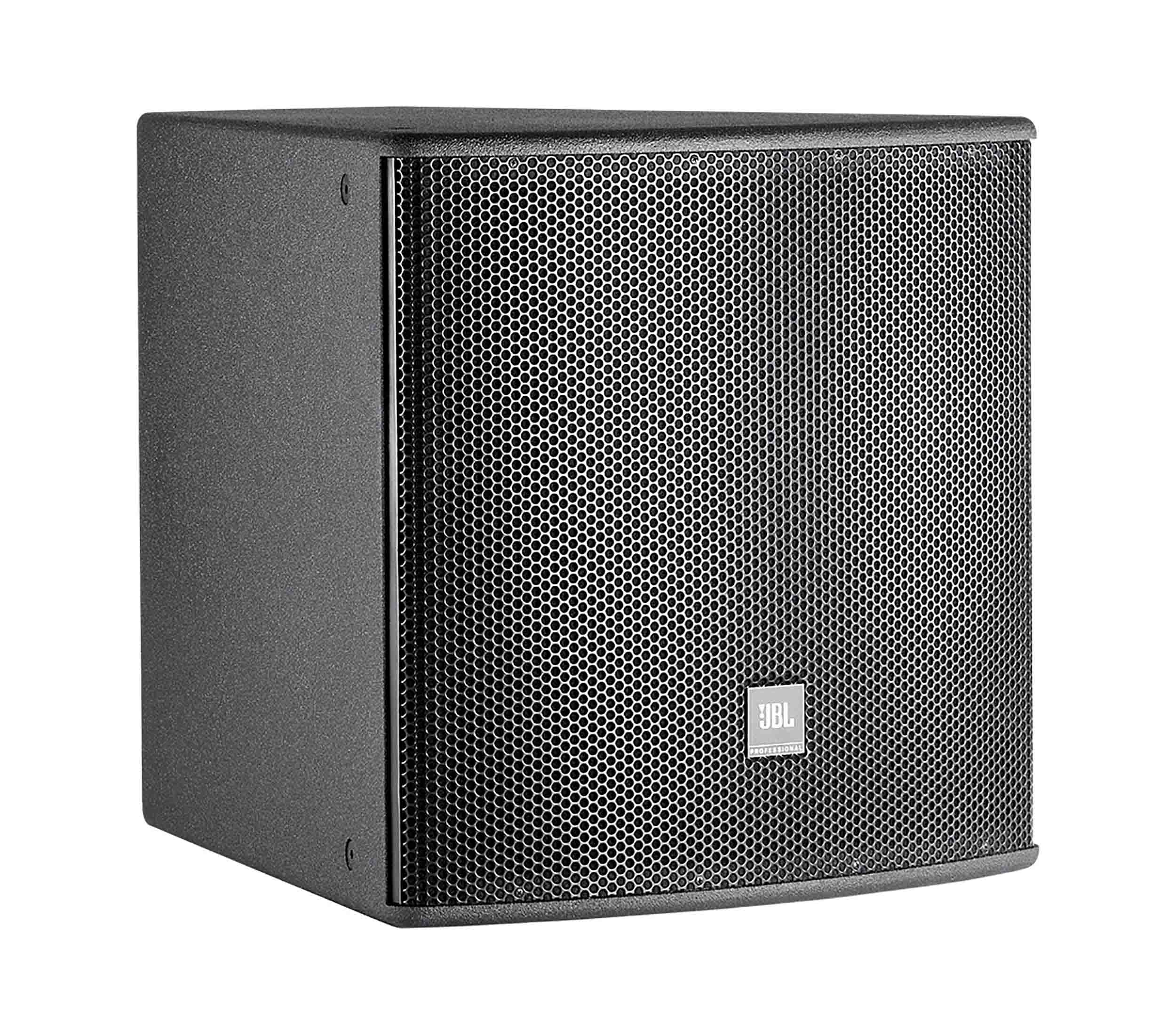

The JBL AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.
Product Specifications:
Frequency Range (-10dB): 40 Hz – 4.2 kHz
Frequency Response (±3 dB): 47 Hz - 3.0 kHz
Transducer Power Rating (AES): 1000 W (4000 W peak), 2 hrs
System Power Rating: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m): 50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity (1w @ 1m): 50 Hz – 125 Hz: 97 dB125 Hz – 800 Hz: 97 dB
Nominal Impedance: 8 ohms

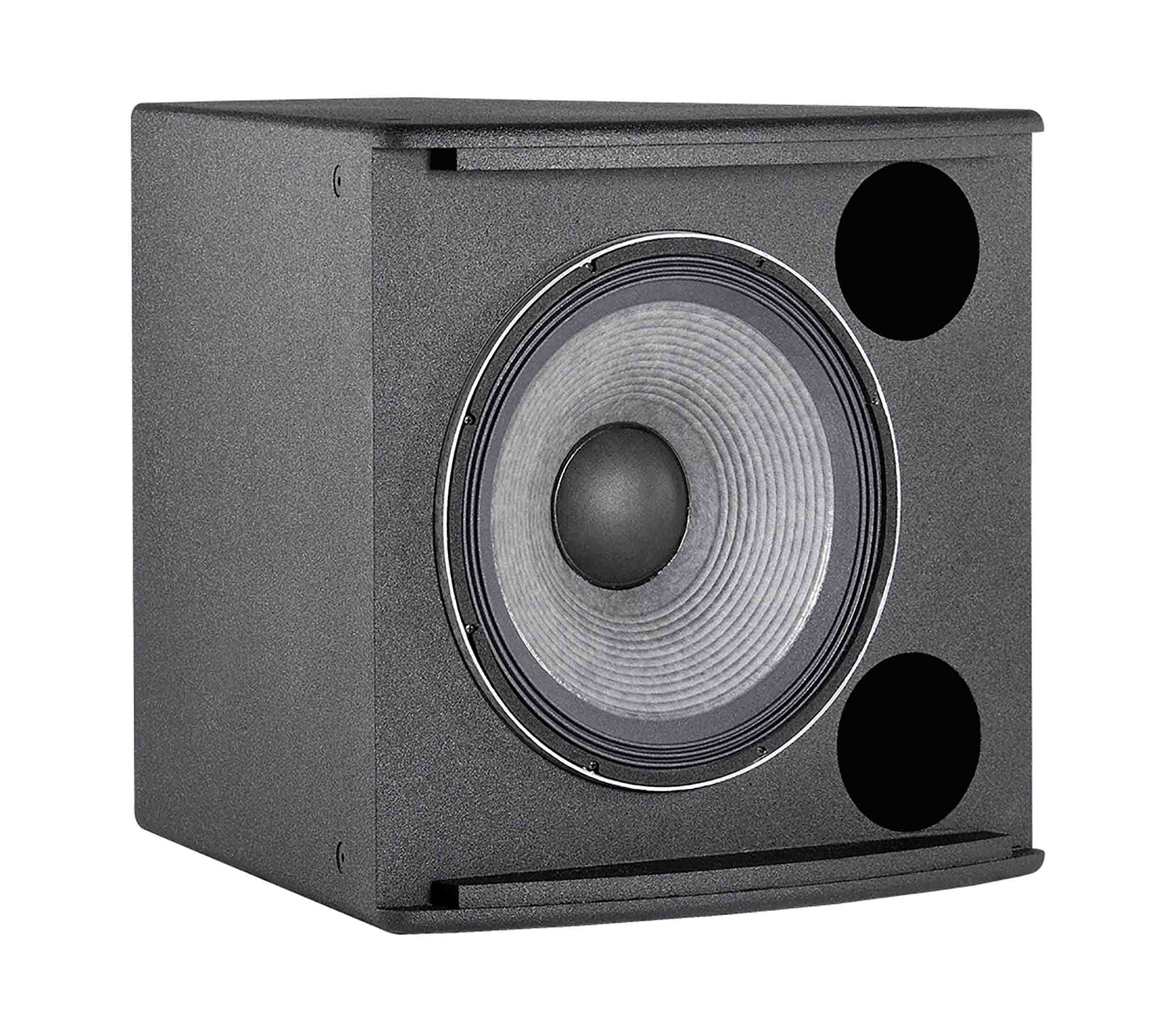

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex finish.
Grille: Powder coated 14 gauge perforated steel.
Environmental: Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D): 548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)
Weight: 25.9 kg (57 lb)
Nominal LF Driver Impedance: 8 ohms
