Description

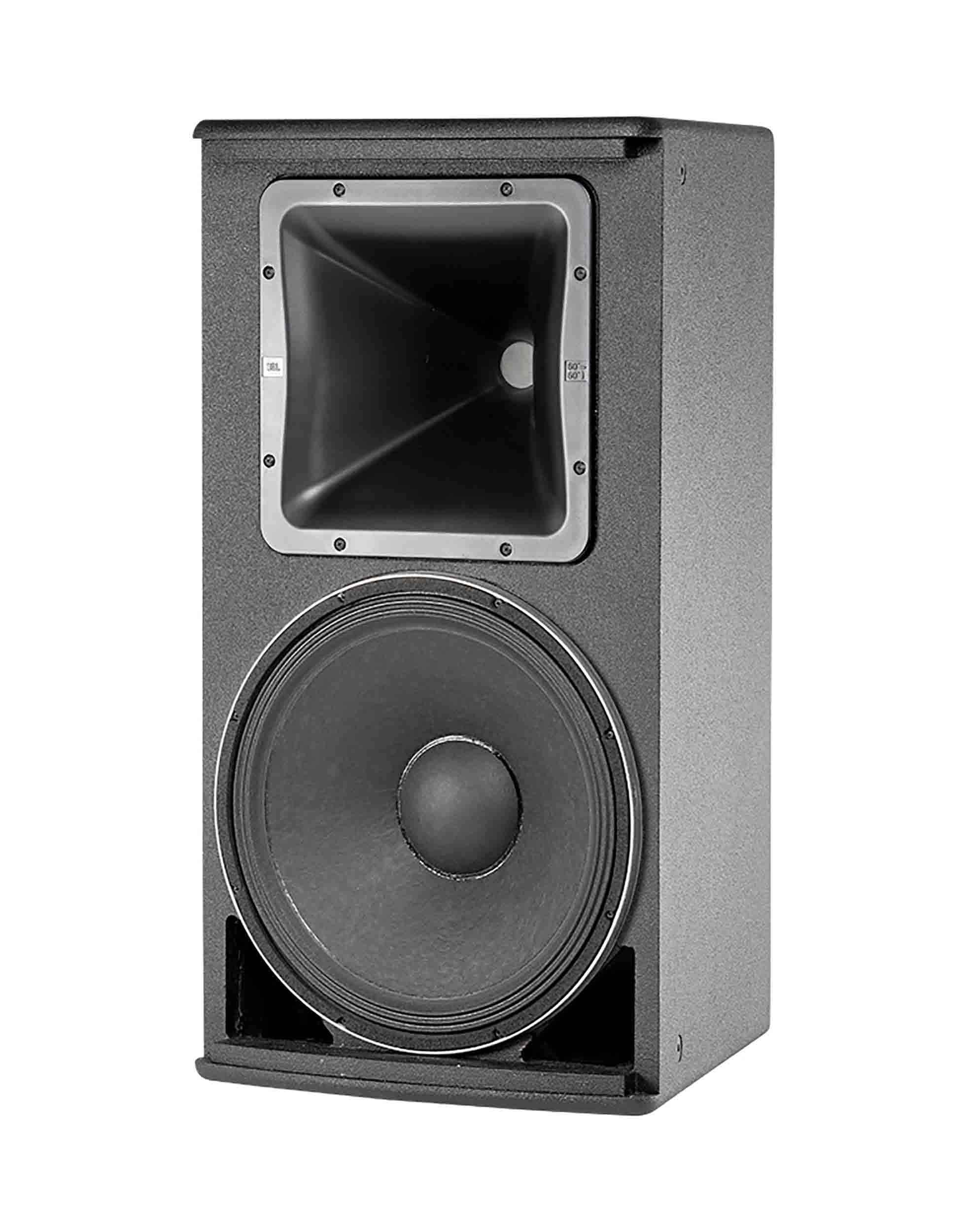

The JBL AM5215/26 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Product Specifications:
Frequency Range (-10dB): 35 Hz - 20 kHz
Frequency Response (±3 dB): 41 Hz – 18 kHz
Coverage Pattern: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°
Directivity Factor (Q): 14.5
Directivity Index (DI): 11.6 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Frequency: 2 kHz
System Power Rating: Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL (1m): Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.
System Sensitivity (1w @ 1m): Passive mode: 98 dB SPL
LF Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m, within operational band): 99 dB SPL
HF Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Sensitivity: 115 dB SPL
Waveguide: PT-H66HF-1
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex finish.

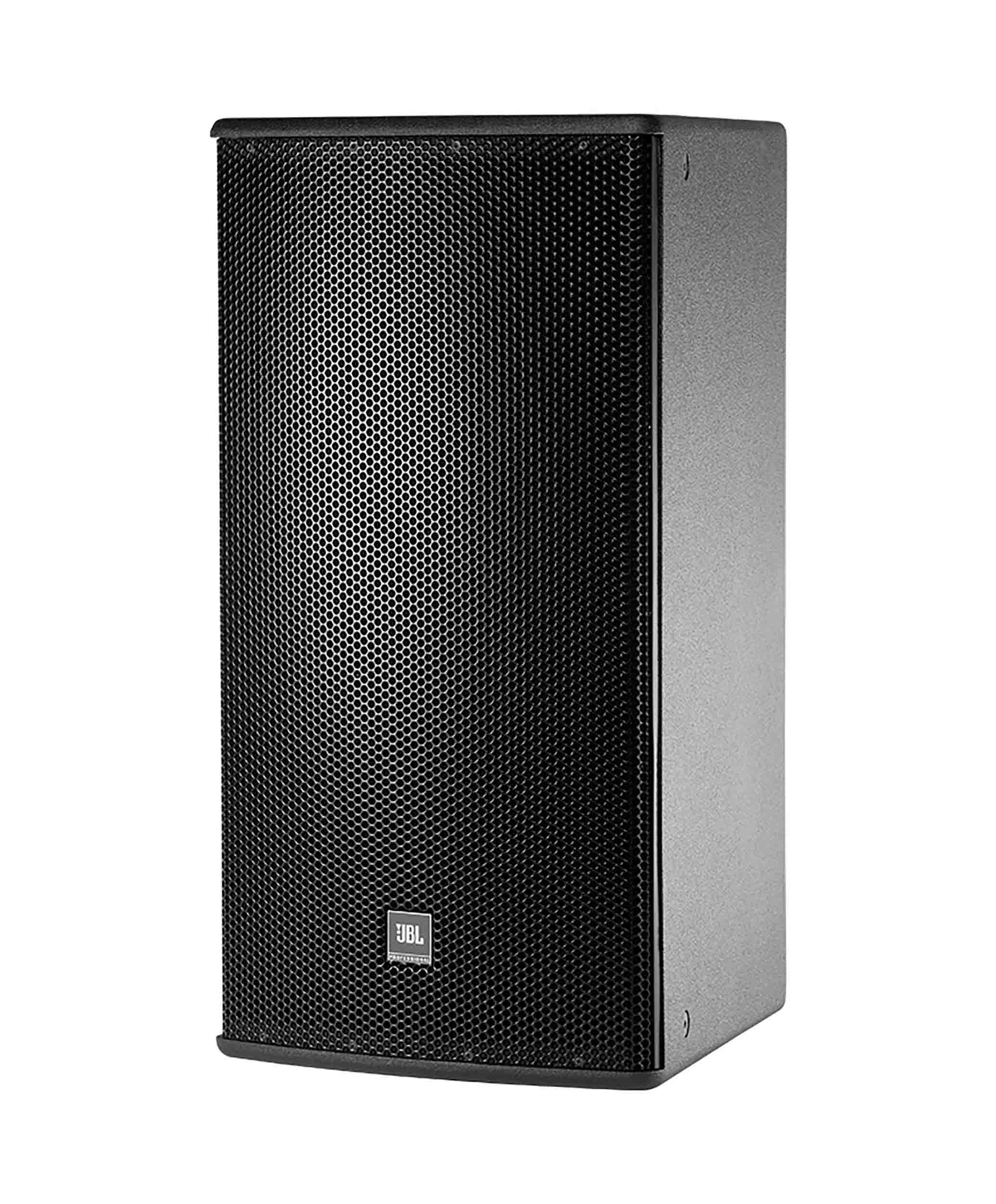

Grille: Powder coated 14 gauge perforated steel.
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)
Weight: 25.0 kg (55 lb)
Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
System Power Rating: Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
