Description

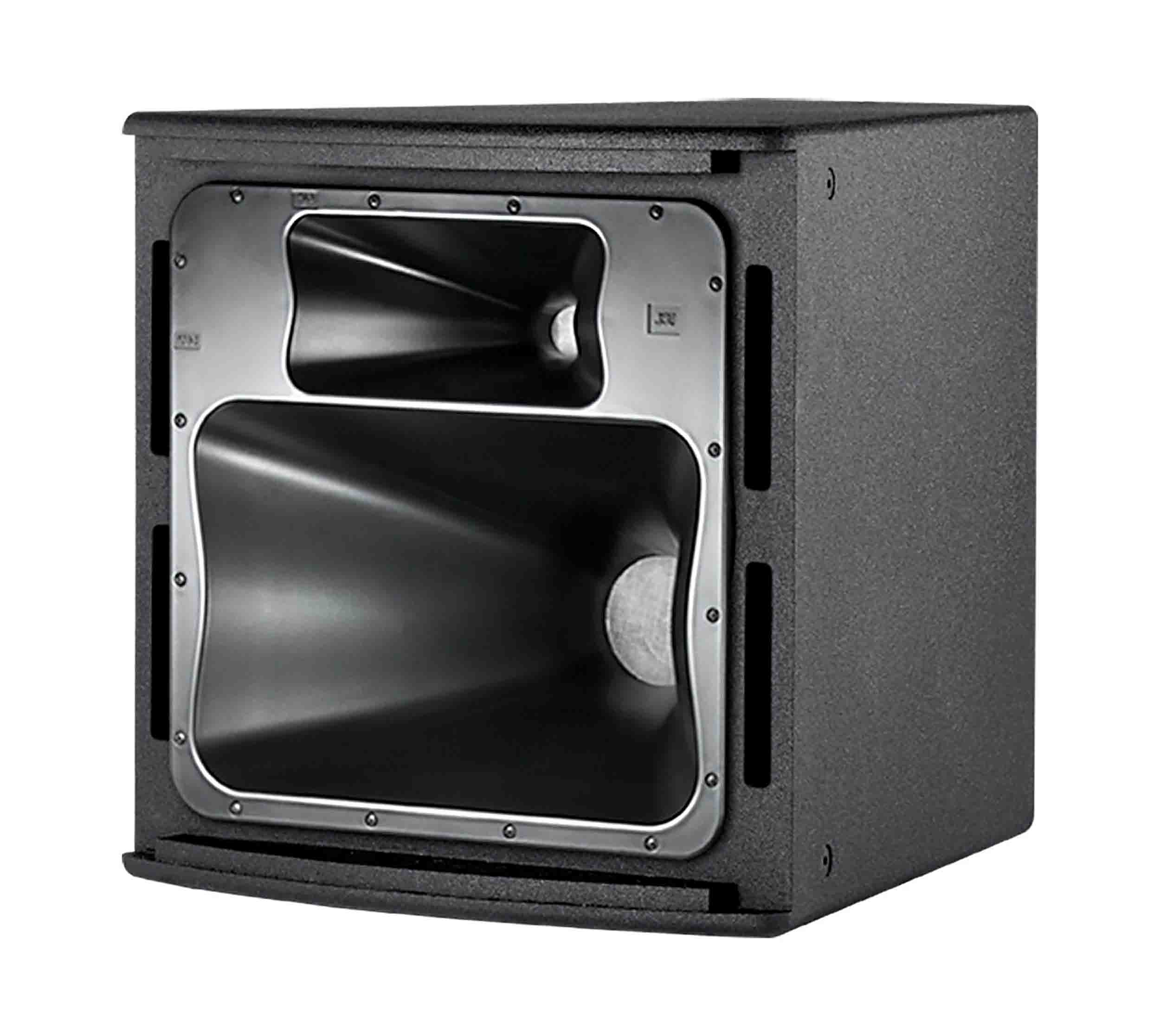

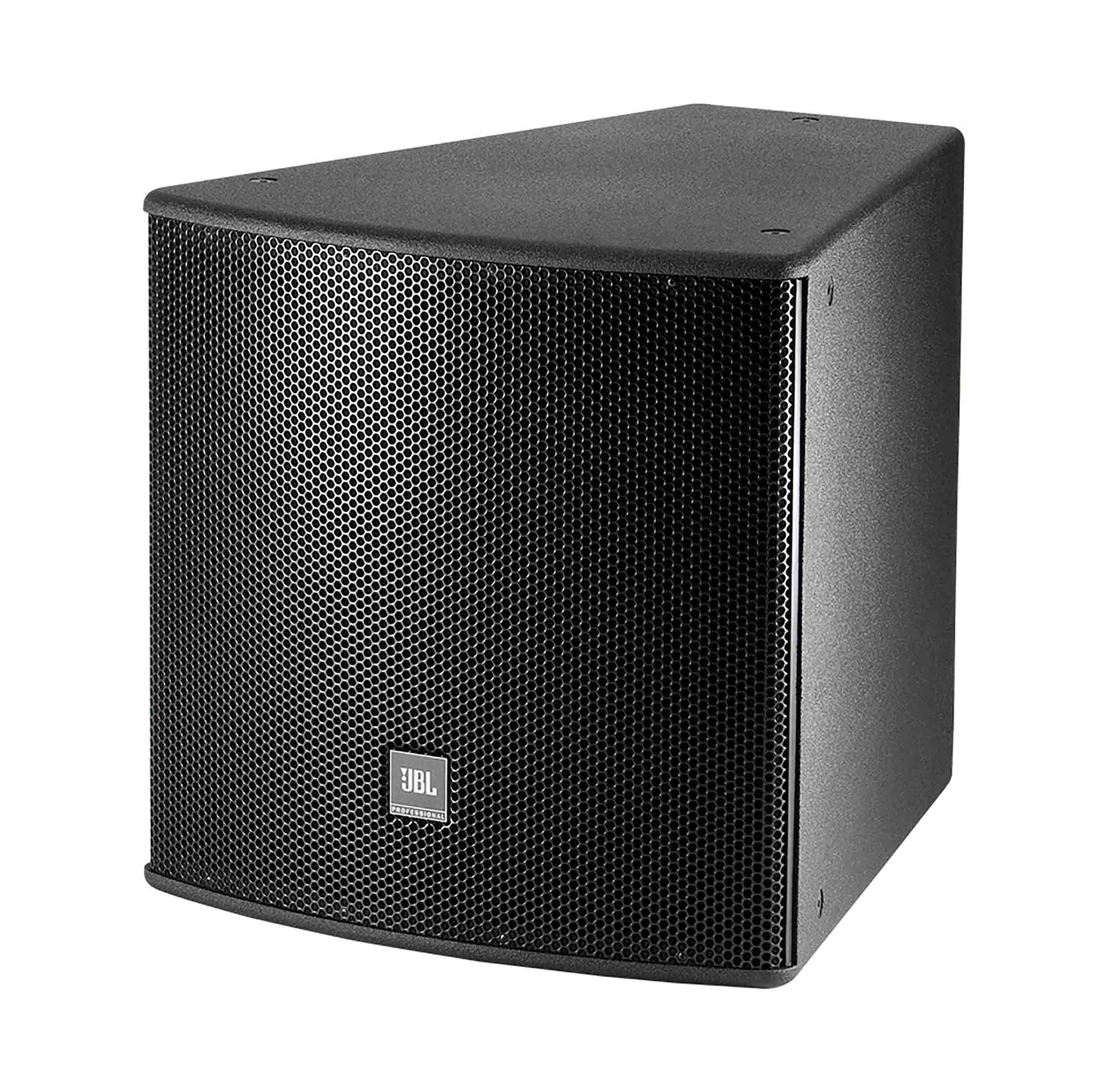

The JBL AM7200/64 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances array ability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Product Specifications:
Frequency Range (-10dB): 260 Hz – 20 kHz
Frequency Response (±3 dB): 330 Hz – 18 kHz
Coverage Pattern: /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
Crossover Modes: Bi-amp/Passive switchable
Crossover Frequency: 2.3 kHz
Transducer Power Rating (AES): MF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating: MF/HF: 200 W (800 W peak), 100 hrs
System Sensitivity (1w @ 1m): Passive mode: 108 dB SPL
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m) (Midrange): 108 dB SPL
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)(High Frequency): 115 dB SPL
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish: Black DuraFlex finish.
Grille: Powder coated 14 gauge perforated steel.
Environmental: Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D): 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
Weight: 27.2 kg (60 lb)
