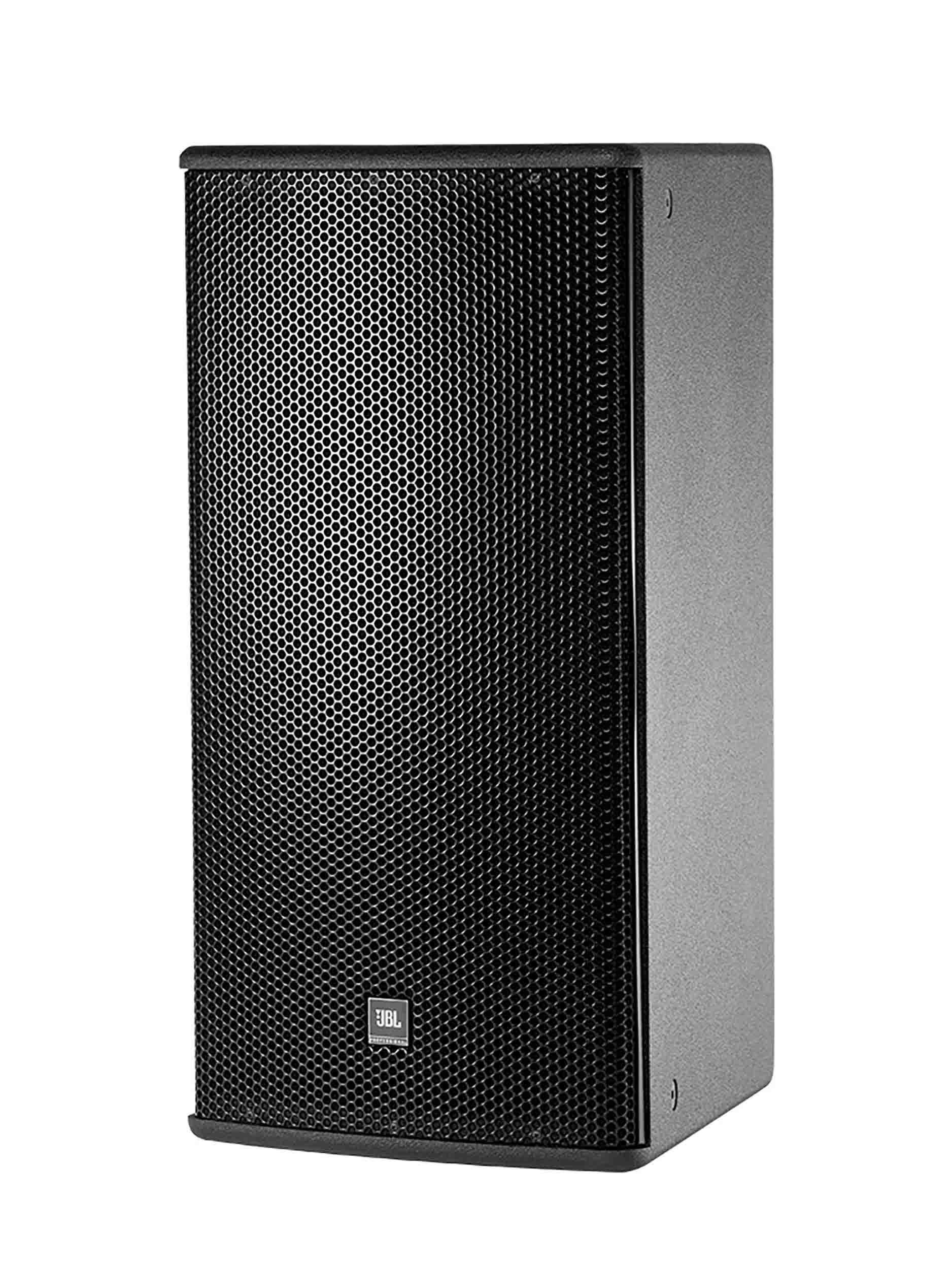

JBL AM7212/26 2-Way Speaker 12" LF Rotatable Horn Black

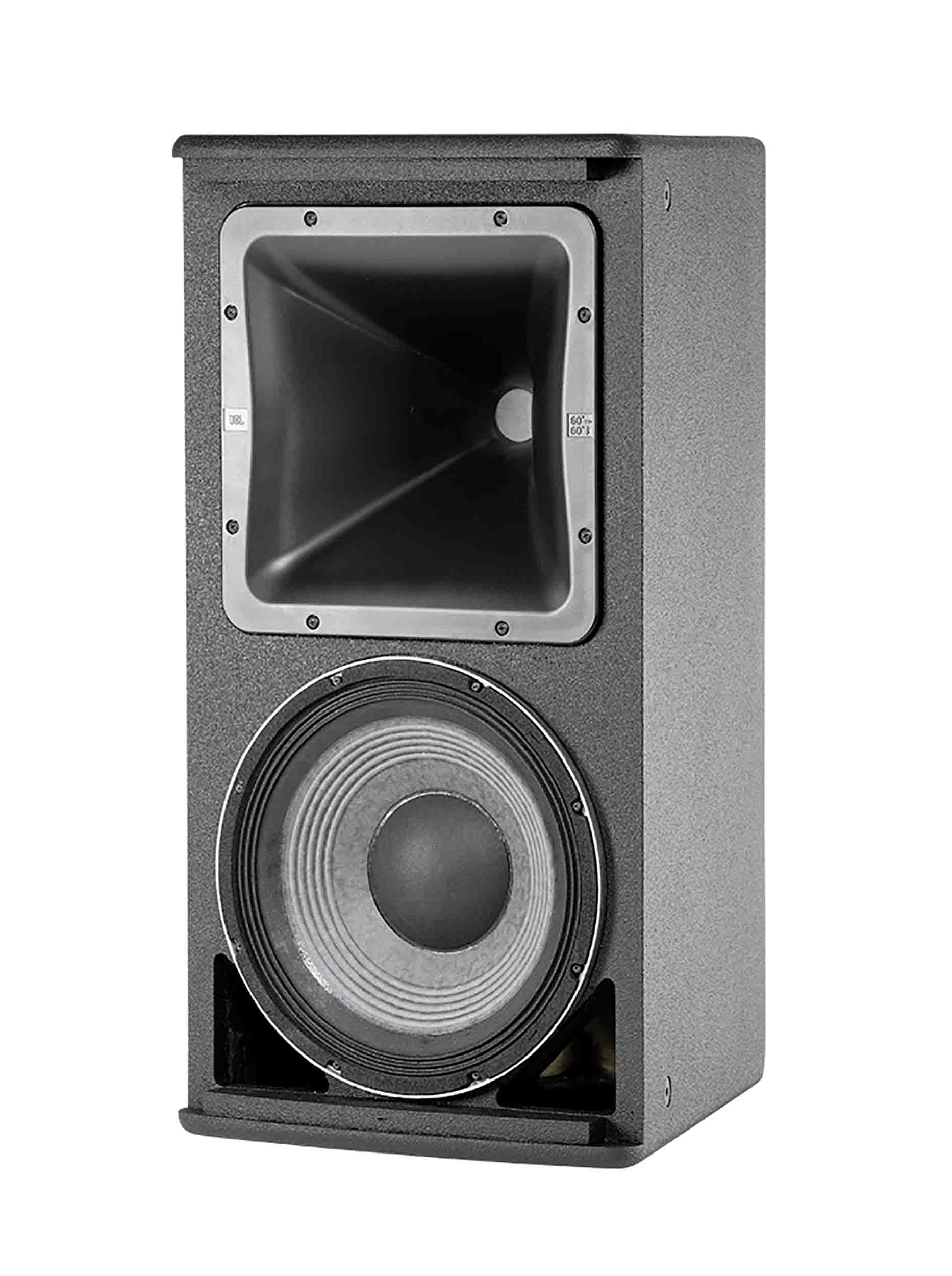

The JBL AM7212/26 2-Way 12" Loudspeaker System from JBL is a high-power, lightweight, 2-way, full range loudspeaker. It is comprised of the JBL Differential Drive, dual voice coil and dual magnetic gap 2262H (12") low frequency driver, and 2432H high frequency 1.5" exit, 3" voice-coil compression driver. The large format Progressive Transition (PT) waveguide provides a 120 x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability.

The enclosure is constructed of multi-ply birch coated in JBL's Dura Flex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

Product Specifications:

Frequency Range (-10dB): 36 Hz - 20 kHz

Frequency Response (±3 dB): 42 Hz - 18 kHz

Coverage: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°

LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

System Type: 12" Two - Way, High Power, Full - Range

Dimensions (H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)

Weight: 23.1 kg (51 lb)

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover Frequency: 1.8 kHz

Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs

System Sensitivity (1w @ 1m): Passive mode: 95 dB SPL

Nominal Impedance: 8 ohms

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Environmental: Mil-Std 810; IP-x3 per IEC529.
