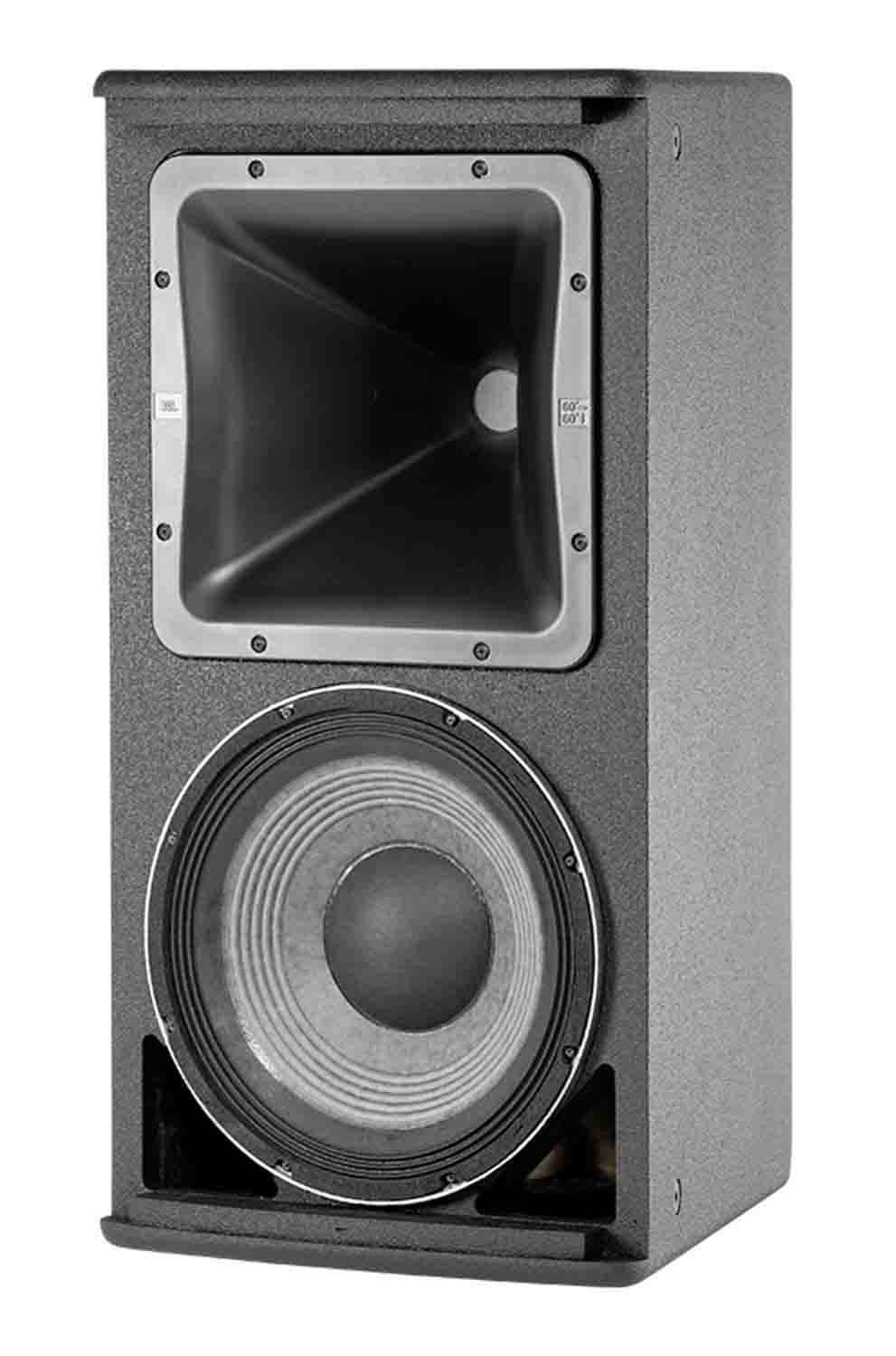

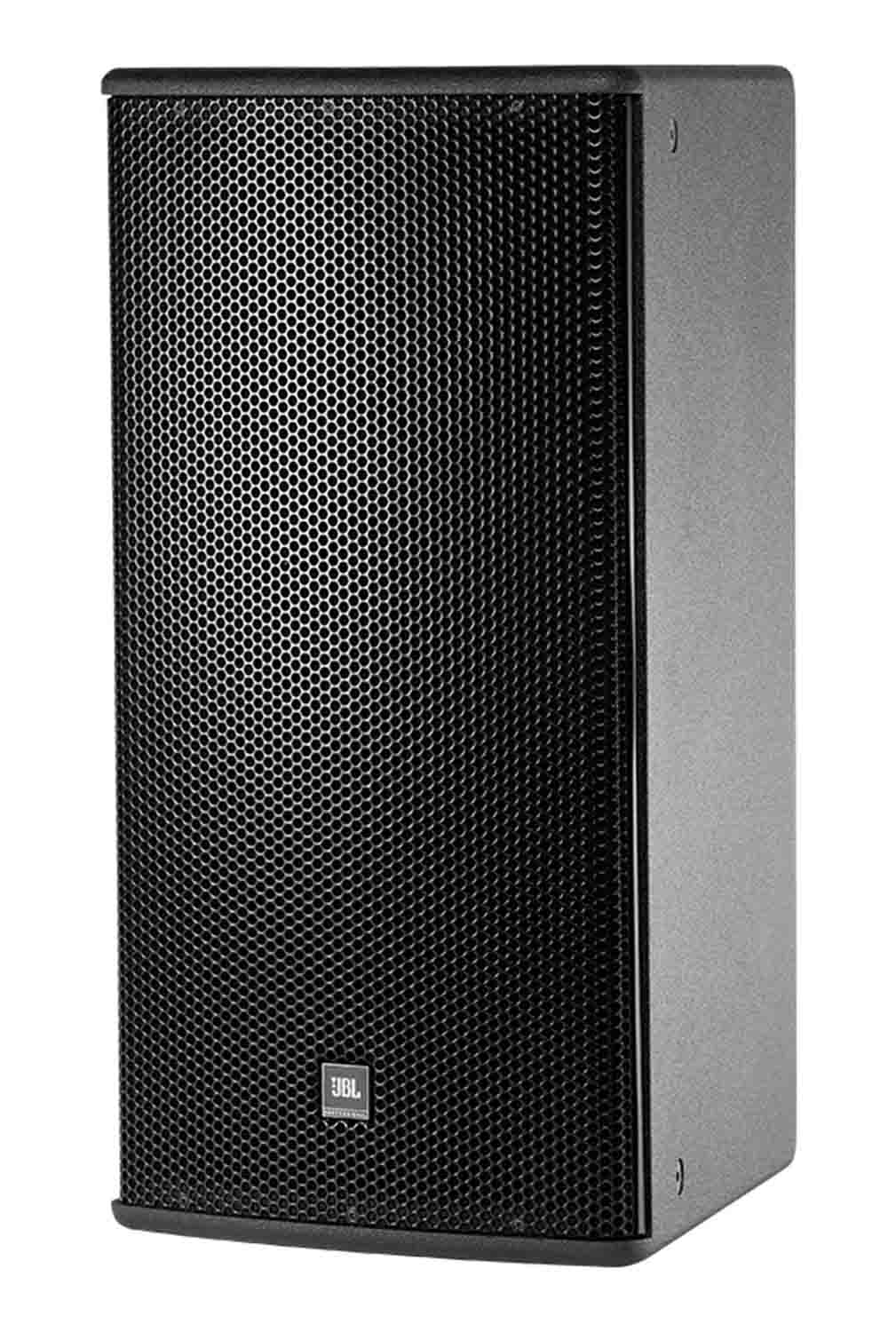

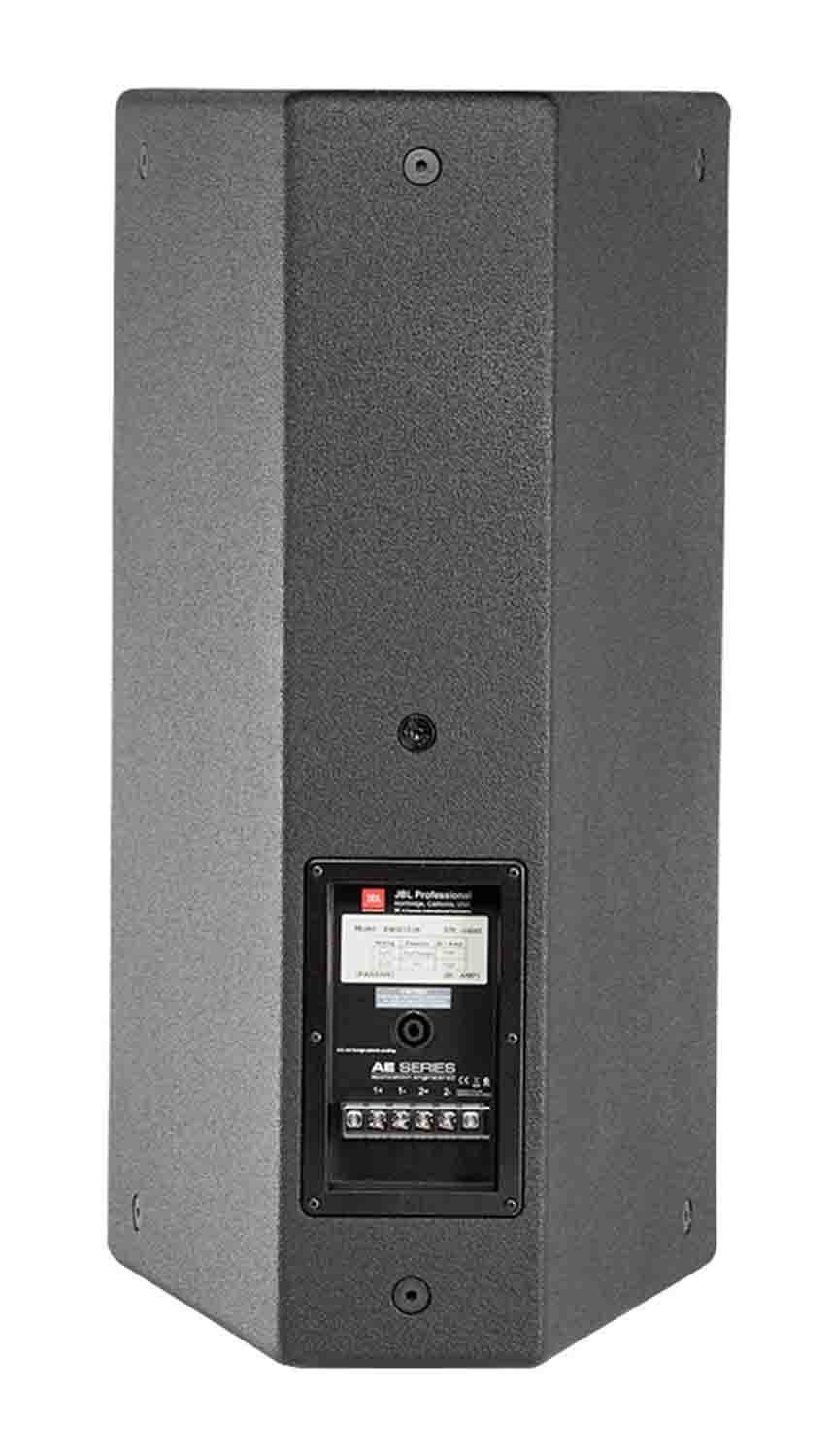

The JBL AM7212/66 is a High Power 2-Way Loudspeaker with 1 x 12" LF and Rotatable Horn is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Product Specifications:
Frequency Range (-10dB): 36 Hz - 20 kHz
Frequency Response (±3 dB): 42 Hz - 20 kHz
Coverage: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type: 12" Two - Way, High Power, Full - Range
Dimensions (H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)
Net Weight (each): 23.1 kg (51 lb)
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Frequency: 1.8 kHz
System Power Rating: Passive mode: 600 W (2400 W peak), 100 hr
Maximum SPL (1m): Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL
Nominal Impedance: 8 ohms
