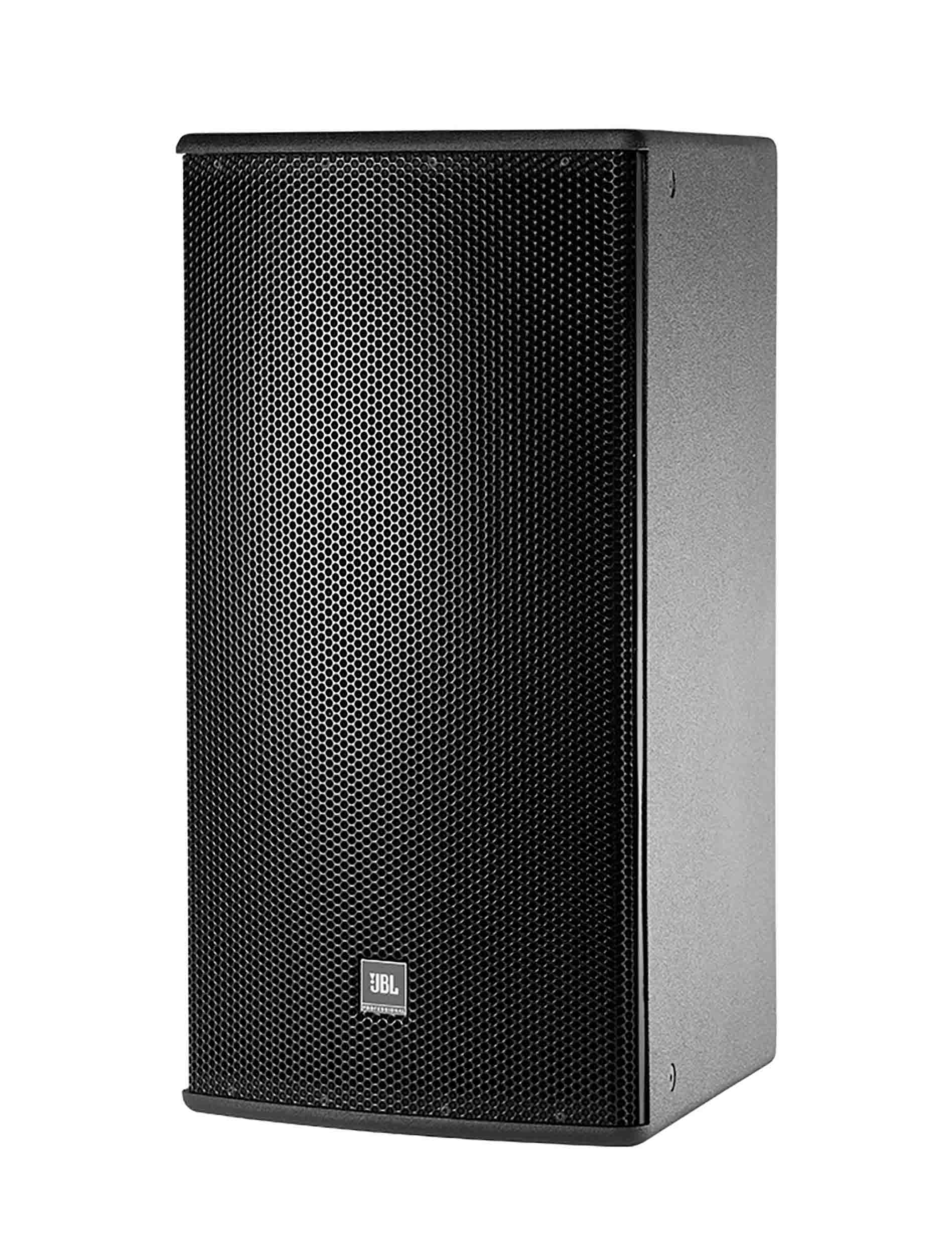

JBL AM7215/26 2-Way Speaker 15" LF Rotatable Horn Black

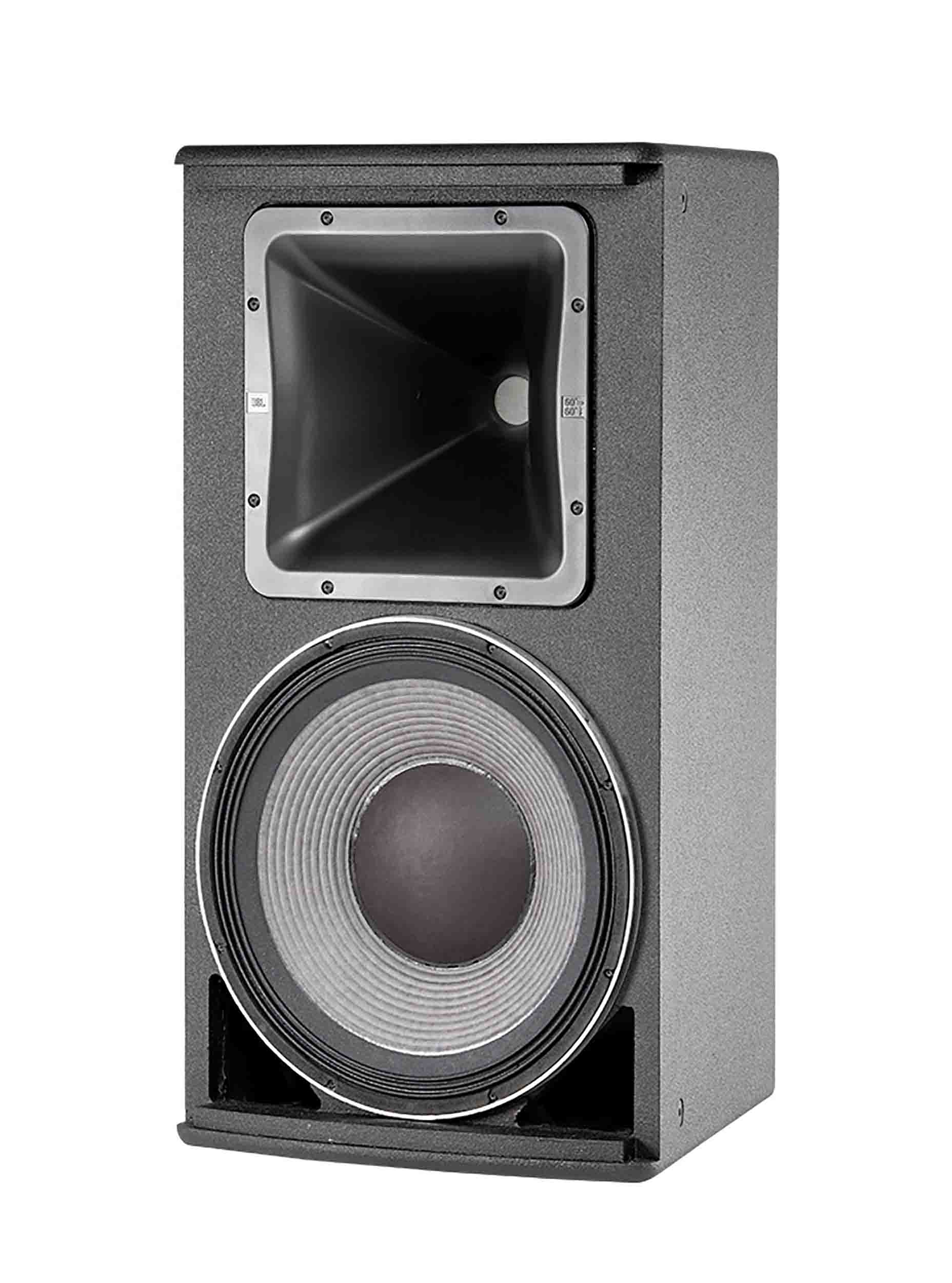

The JBL AM7215/26 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Product Specifications:

Frequency Range (-10dB): 34 Hz - 20 kHz

Frequency Response (±3 dB): 40 Hz - 18 kHz

Coverage: /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

System Type: 15" Two - Way, High Power, Full - Range

Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)

Weight: 27.2 kg (60 lb)

Crossover Modes: Bi-amp/Passive switchable

Passive Crossover Frequency: 1.8 kHz

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs

System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL

Nominal Impedance: 8 ohms

System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)

Nominal LF Driver Impedance: 8 ohms

Nominal HF Driver Impedance: 8 ohms

Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

Environmental: Mil-Std 810; IP-x3 per IEC529.
