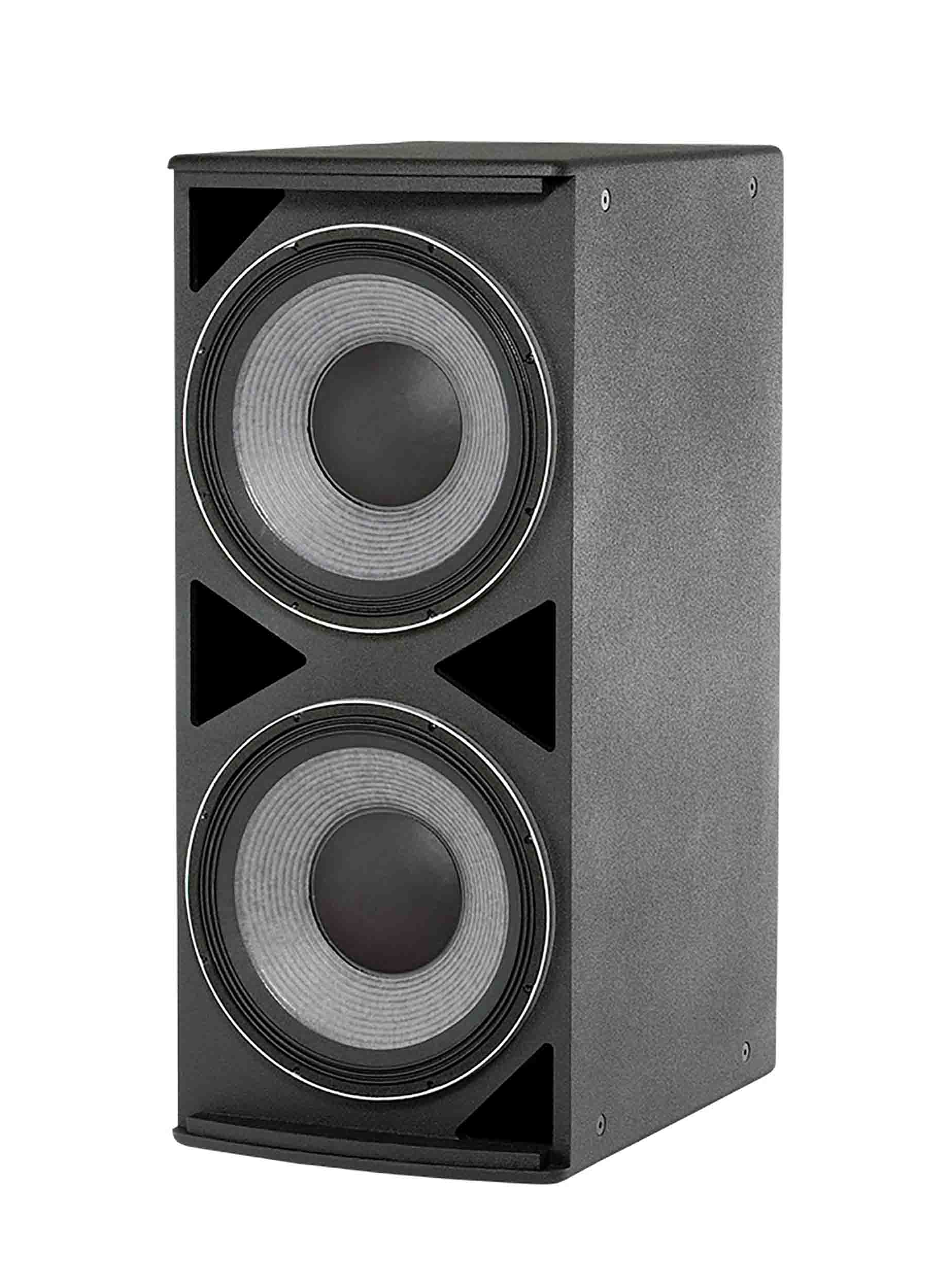

JBL ASB6125, High Power Dual 15" Subwoofer

The JBL ASB6125 is a professional-quality passive subwoofer that provides strong, reliable bass performance for a variety of applications. The wooden cabinet houses a pair of 15" Differential Drive dual voice coil drivers with large neodymium magnets for a long performance life. The subwoofer can operate in parallel or discrete input modes for excellent versatility. The 14-gauge steel grille is lined with acoustically transparent foam to protect the driver. The subwoofer has a 1600W (6400W Peak) power rating and has a large vent area to provide high output with low distortion. The enclosure has 16 threaded M10 attachment points to provide versatile mounting options.

Product Specifications:

Frequency Range (-10dB): 32 Hz - 1 kHz

Frequency Response (±3 dB): 38 Hz - 1 kHz

Transducer Power Rating (AES): 1600 W (6400 W peak), 2 hrs

Input Modes: Drivers Parallel / Drivers Discrete

System Power Rating: 1350 W (5400 W peak), 100 hrs.

Maximum SPL (1m): 35 Hz - 400 Hz: 132 dB-SPL cont avg (138 dB peak)

System Sensitivity: 35 Hz - 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m

Nominal Impedance: 4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode

Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood

Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware

Finish: Black Dura Flex finish

Grille: Powder coated 14-gauge perforated steel, with acoustically transparent black foam backing.

Environmental: Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D): 965 x 419 x 597 mm (38.0 x 16.5 x 23.5 in)

Weight: 36.7 kg (81.0 lb.)

Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers
