JBL AW295-BK 2-Way All Weather Speaker 12" LF Rotatable Horn Black

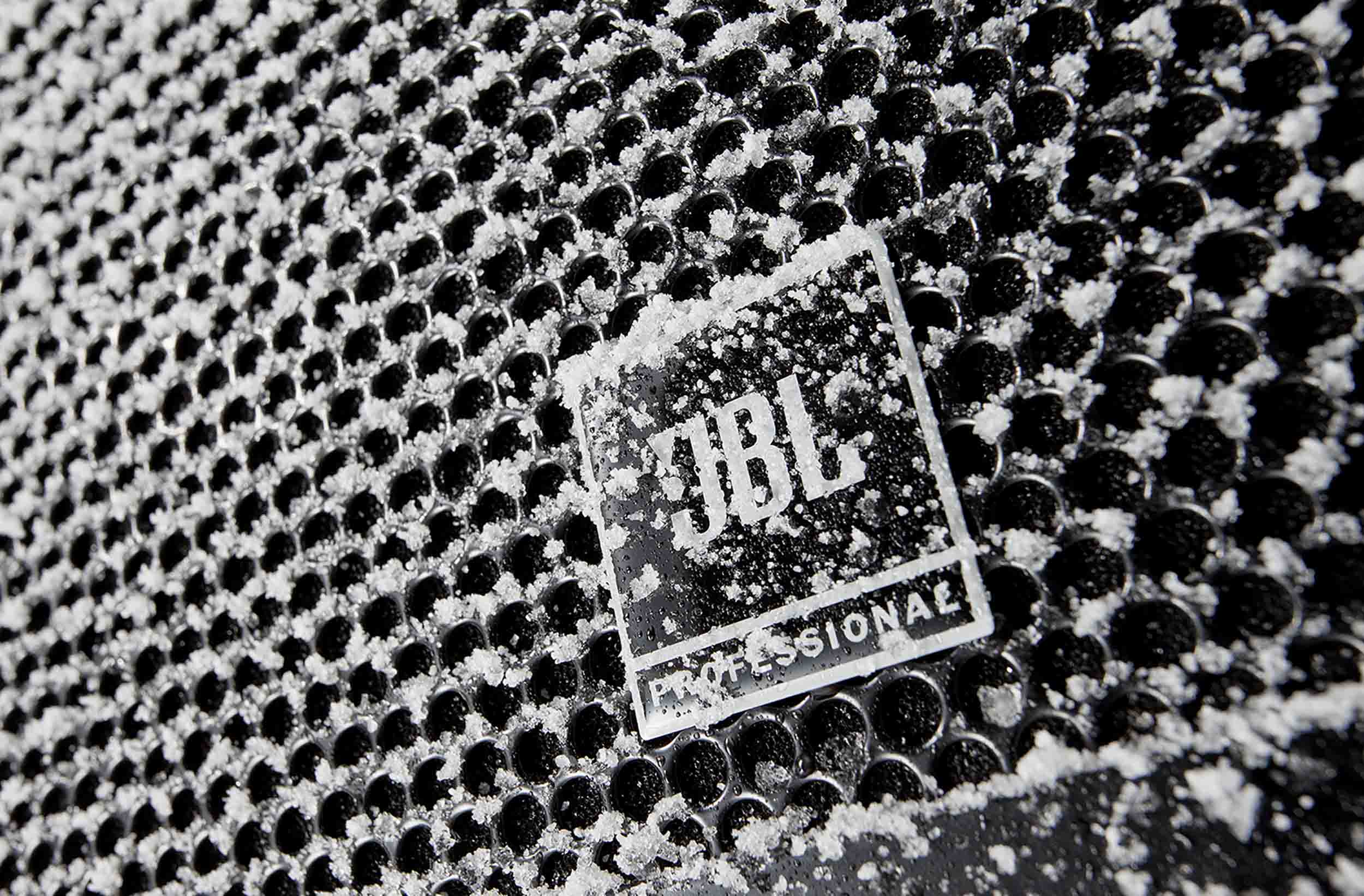

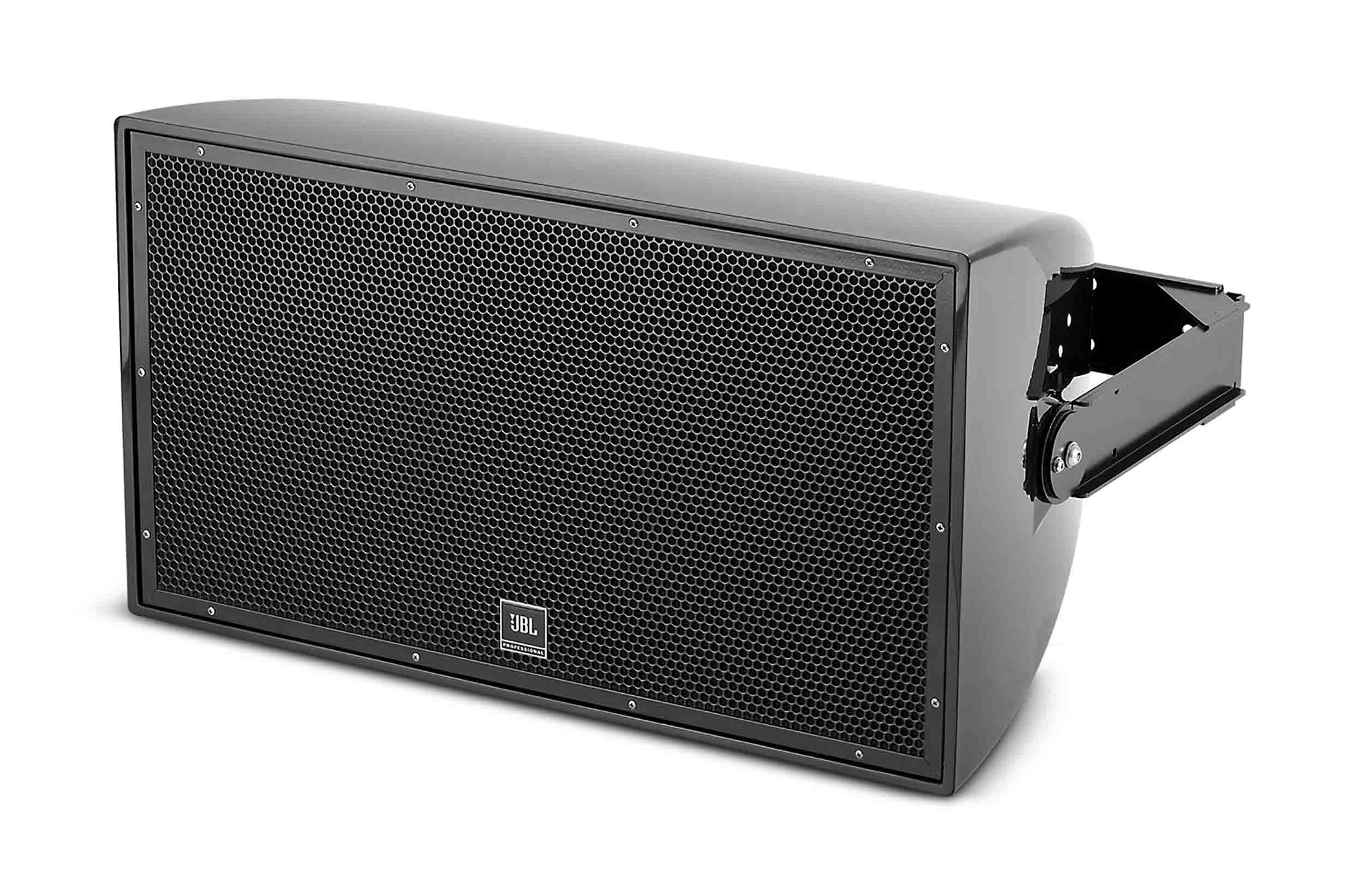

The JBL AW295-BK is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Product Specification:

Frequency Range (-10dB): 43 Hz – 20 kHz

Frequency Response (±3 dB): 53 Hz – 18 kHz

Coverage Pattern: 90° x 50°, rotatable waveguide

Directivity Factor (Q): 12.6

Directivity Index (DI): 11 dB

Crossover Frequency: 1.3 kHz

System Power Rating: 500 W (2000 W peak), 100 hrs

Maximum SPL (1m): 126 dB-SPL cont avg (132 dB peak)

System Sensitivity (1w @ 1m): 98 dB SPL

Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W

LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with (3 in) dual voice coil

Nominal LF Driver Impedance: 8 ohms

LFD Sensitivity (1W @ 1m, within operational band): 96 dB SPL

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Nominal HF Driver Impedance: 8 ohms

HFD Sensitivity (1W @ 1m): 113 dB SPL

Waveguide: PT-H95HF-1

Enclosure: Hand-Laminated Fiberglass, Black

Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Environmental: IP55C per IEC529

Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)

Net Weight (each): 25.2 kg (55.5 lb)
