JBL AW295-LS 2-Way All Weather Speaker- Gray Speaker 12" LF EN 54-24

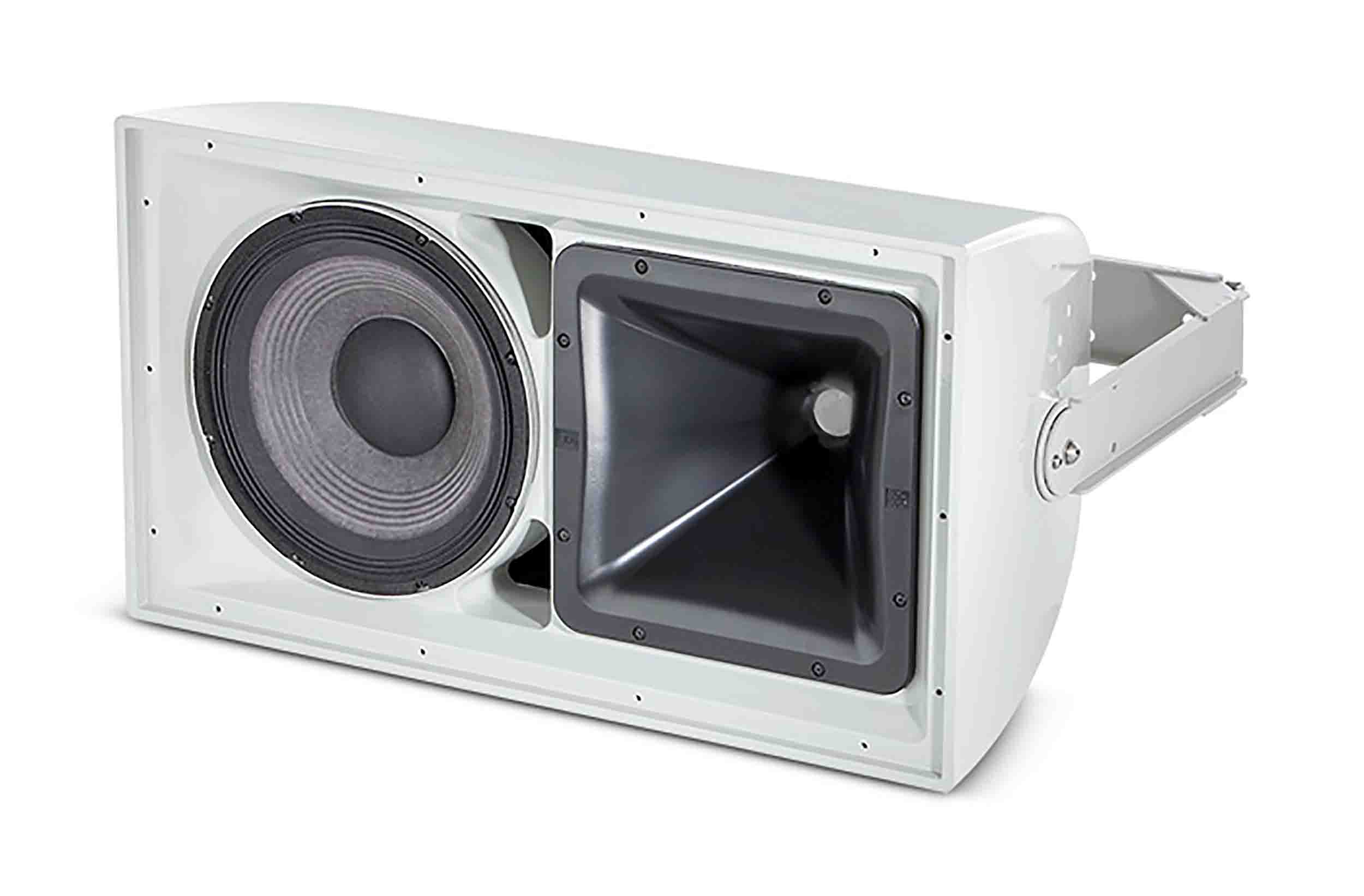

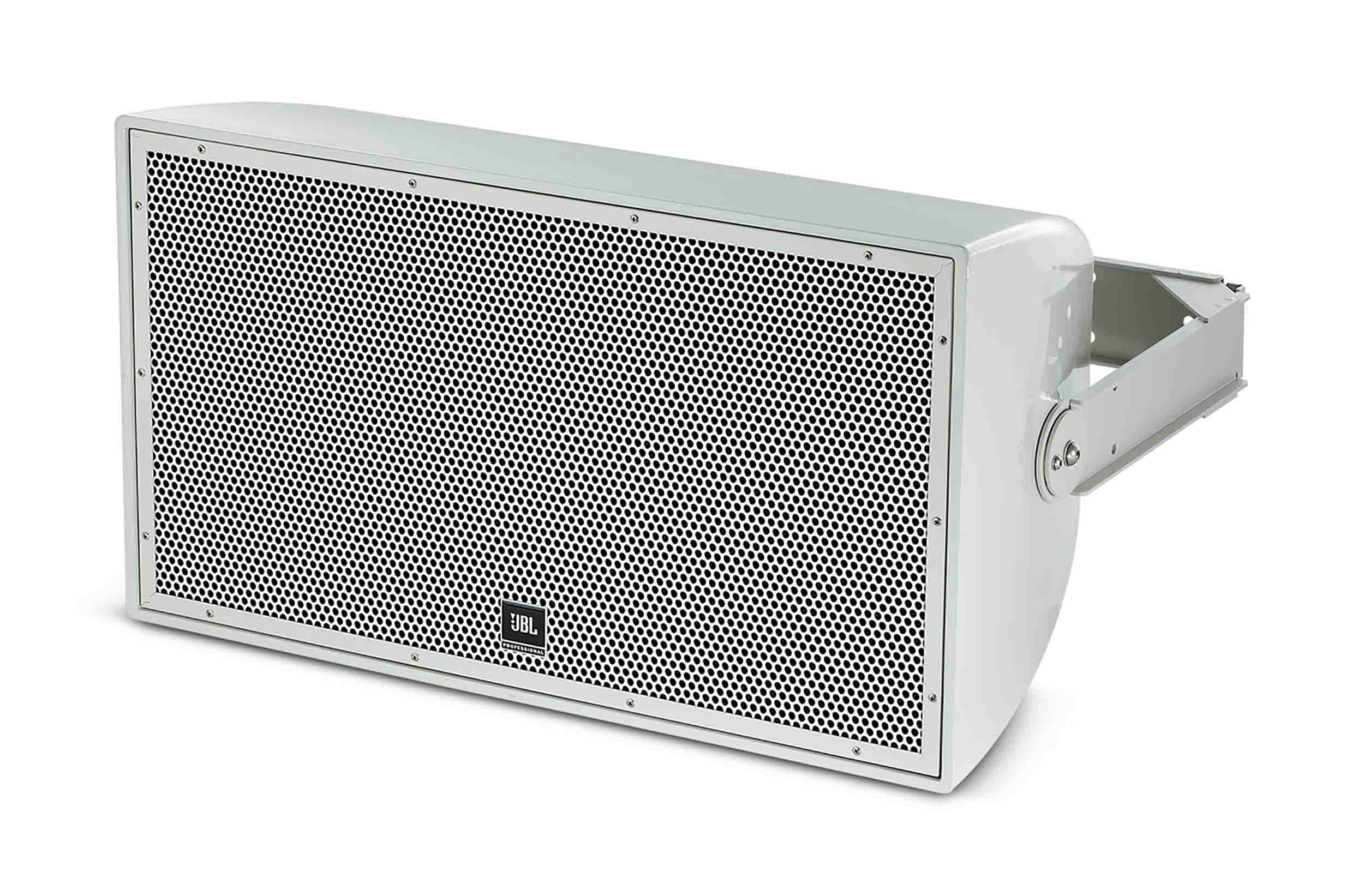

The JBL AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.

Product Specification:

Frequency Range (-10dB): 74 Hz – 20 kHz

Frequency Response (±3 dB): 106 Hz – 18 kHz

Coverage Pattern: 90° x 50°, rotatable waveguide

Directivity Factor (Q): 12.6

Directivity Index (DI): 11 dB

Crossover Frequency: 1.3 kHz

System Power Rating: 400 W (1600 W peak), 100 hrs

Maximum SPL (1m): 125 dB-SPL cont avg (131 dB peak)

Maximum SPL (@ 4m): 111.92 dB

System Sensitivity (1w @ 1m): 98 dB SPL

Sensitivity (1W @ 4m): 85.9 dB SPL

Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W

LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil

Nominal Impedance: 8 ohms

Sensitivity (1W @ 1m, within operational band): 96 dB SPL

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity: 113 dB SPL

Waveguide: PT-H95HF-1

Enclosure: Hand-Laminated Fiberglass, gray gelcoat

Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Environmental: IP55C per IEC529

Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)

Weight : 25.2 kg (55.5 lb)
