Description

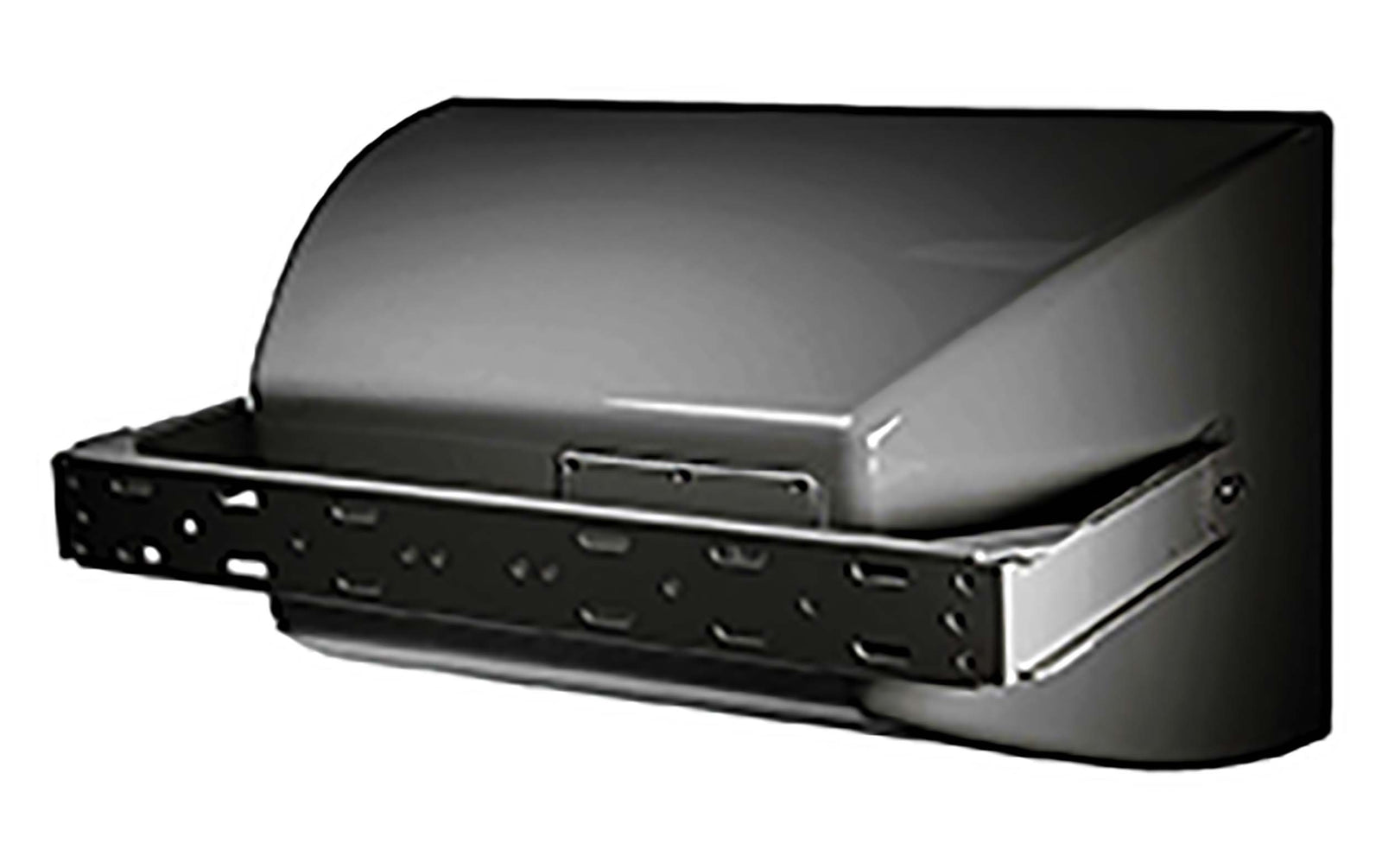

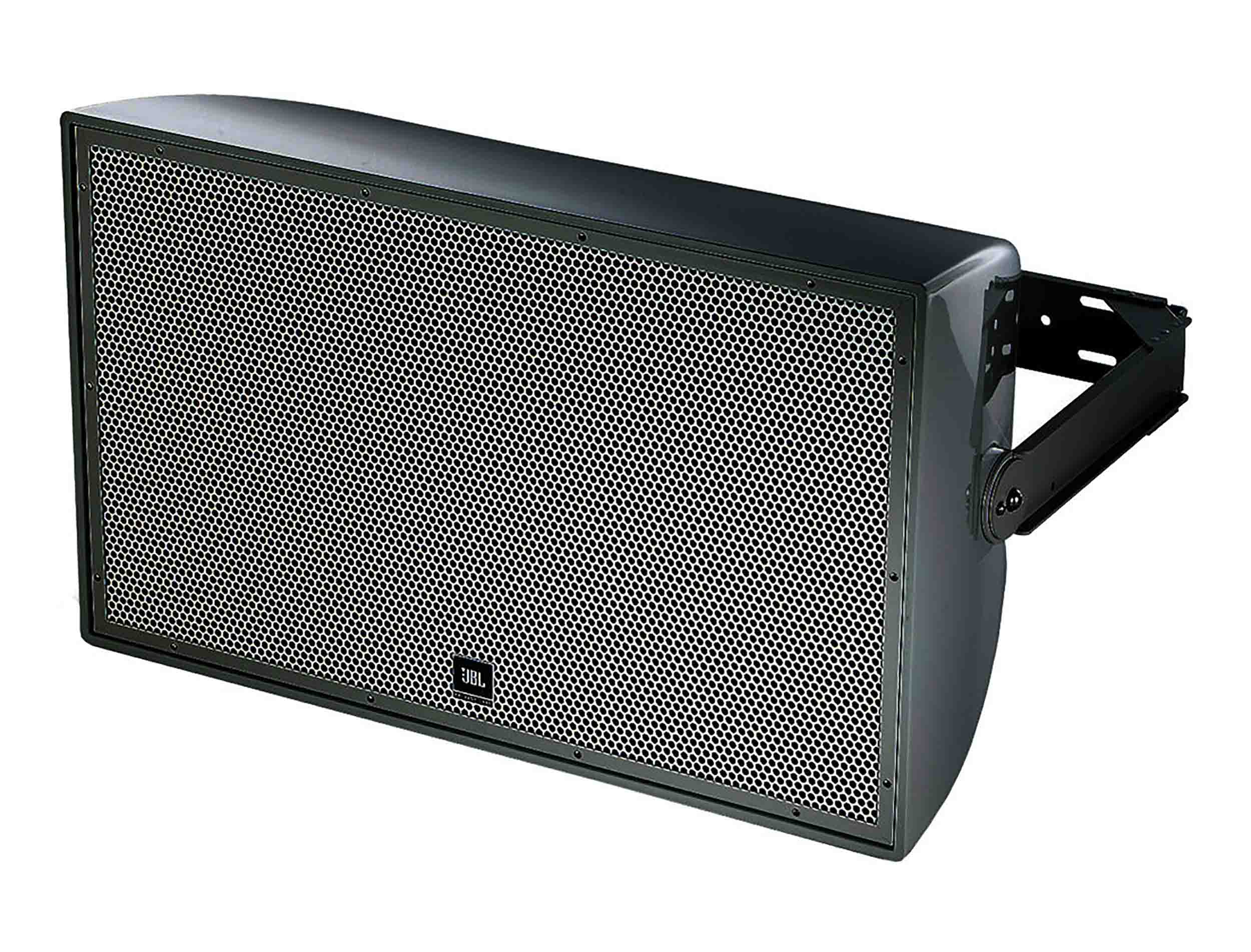

The JBL AW526-BK is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless-steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Product Specification:
Frequency Range (-10dB): 35 Hz – 20 kHz
Frequency Response (±3 dB): 55 Hz – 17 kHz
Coverage Pattern: 120° x 60°, rotatable waveguide
Directivity Factor (Q): 7.9
Directivity Index (DI): 9 dB
Crossover Frequency: 1.1 kHz
System Power Rating: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m): 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1w @ 1m): 100 dB
Transformer Taps: 70V: 400W, 200W, 100W100V: 400W, 200W
LF Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil
Nominal LF Driver Impedance: 8 ohms
LFD Sensitivity (1W @ 1m, within operational band): 98 dB SPL
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal HF Driver Impedance: 8 ohms
HFD Sensitivity (1W @ 1m): 113 dB SPL
Waveguide: PT-H126HF-1
Enclosure: Hand-Laminated Fiberglass, Black.
Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Environmental: IP55C per IEC529
Dimensions (H x W x D in horizontal cabinet orientation): 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
Weight : 28.3 kg (62.5 lb)
