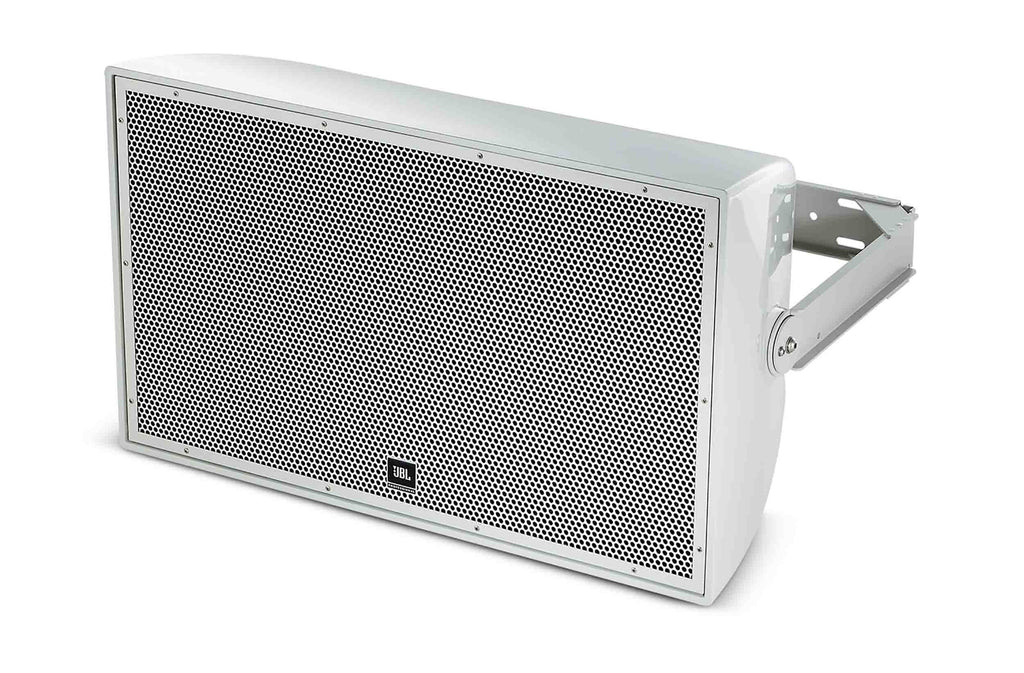

JBL AW566-LS, High Power 2-Way All Weather Loudspeaker with 1 x 15" LF / EN 54-24 - Gray

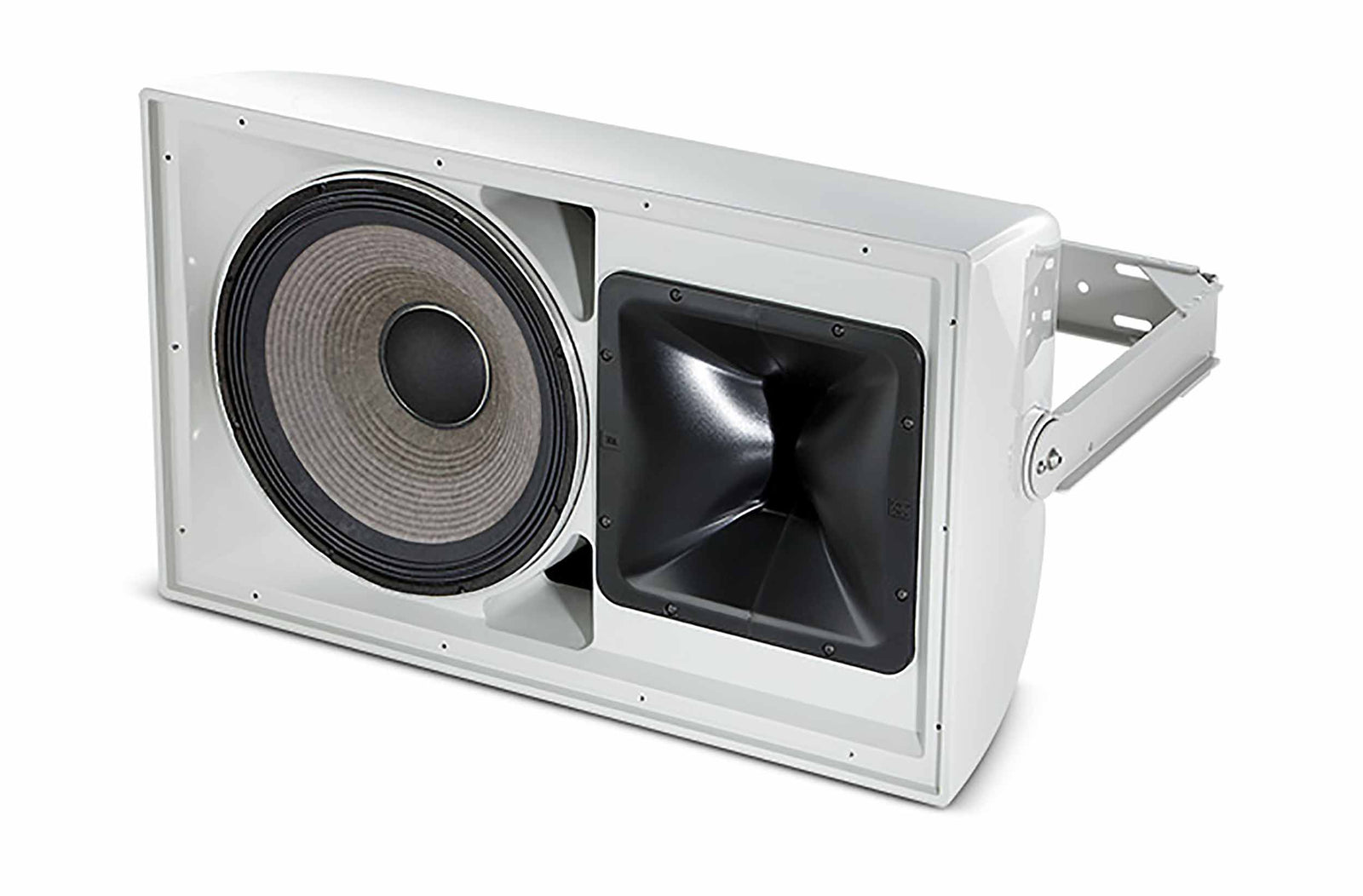

The JBL AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications.

Product Specification:

Frequency Range (-10dB): 42 Hz – 20 kHz

Frequency Response (±3 dB): 89 Hz – 18 kHz

Coverage Pattern: 60° x 60°, rotatable waveguide

Directivity Factor (Q): 15.8

Directivity Index (DI): 12 dB

Crossover Frequency: 1.1 kHz

System Power Rating: 400 W (1600 W peak), 100 hrs

Maximum SPL (1m): 127 dB-SPL cont avg (133 dB peak)

Maximum SPL (@ 4m): 114.24 dB

System Sensitivity (1w @ 1m): 100 dB SPL

Sensitivity (1W @ 4m): 89.6 dB SPL

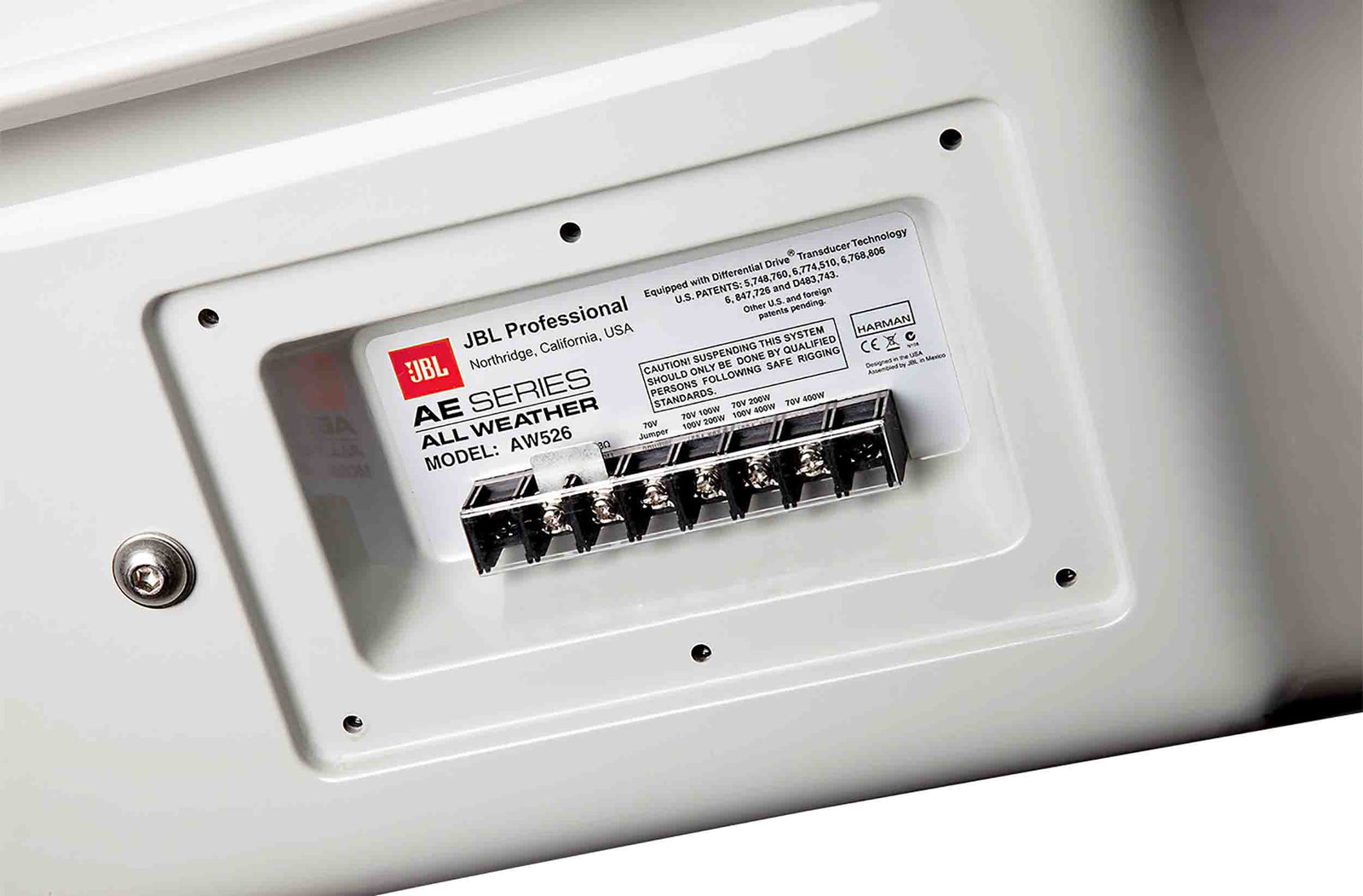

Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil

Nominal Impedance: 8 ohms

Sensitivity (1W @ 1m, within operational band): 98 dB SPL

HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity: 113 dB SPL

Waveguide: PT-H66HF-1

Enclosure: Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C)

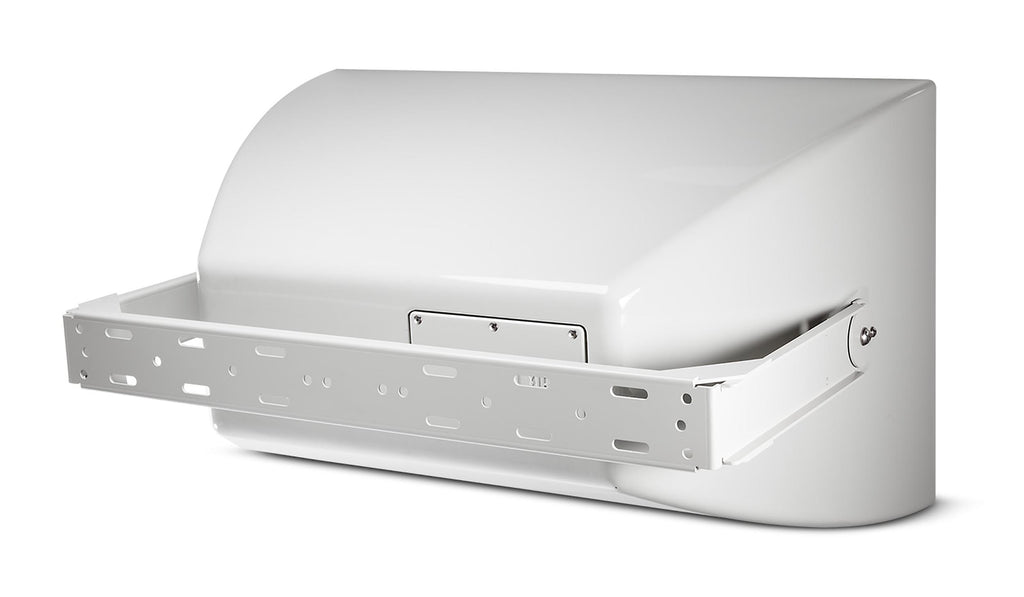

Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Environmental: IP55C per IEC 529

Dimensions (H x W x D in horizontal cabinet orientation): 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)

Weight : 28.3 kg (62.5 lb)
