JBL AWC62-BK All-Weather Compact Two-Way Coaxial Speaker w/ 6.5" LF

The JBL AWC62-BK is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Product Specifications:

Frequency Range (-10dB): 70 Hz – 18 kHz

Frequency Response (±3 dB): 100 Hz – 16 kHz

Coverage Pattern: 110º x 110º

Directivity Factor (Q): 7.2 (1 k – 16 kHz)

Directivity Index (DI): 7.9 dB (1 k – 16 kHz)

System Power Rating: 175 W 2 hrs. 120 W 100 hrs (IEC rated)

Sensitivity (2.83V @ 1m): 92 dB (Ave. 100 Hz – 18 kHz)

Maximum SPL (1m): Direct 8Ω: 114 dB (peaks of 120 dB)120 W Tap: 112 dB

Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF

Nominal Impedance: 8 ohms

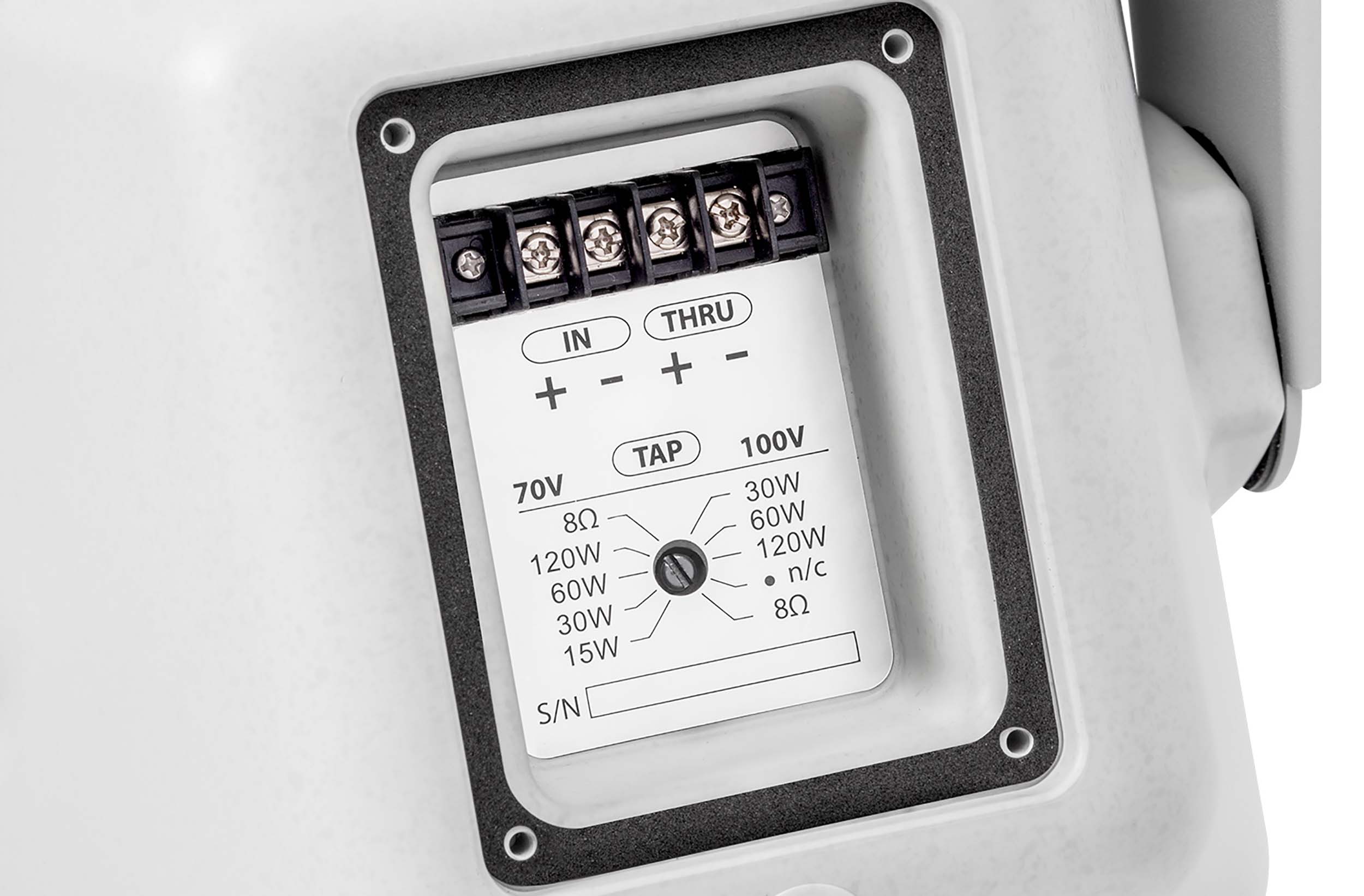

Transformer Taps: 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W

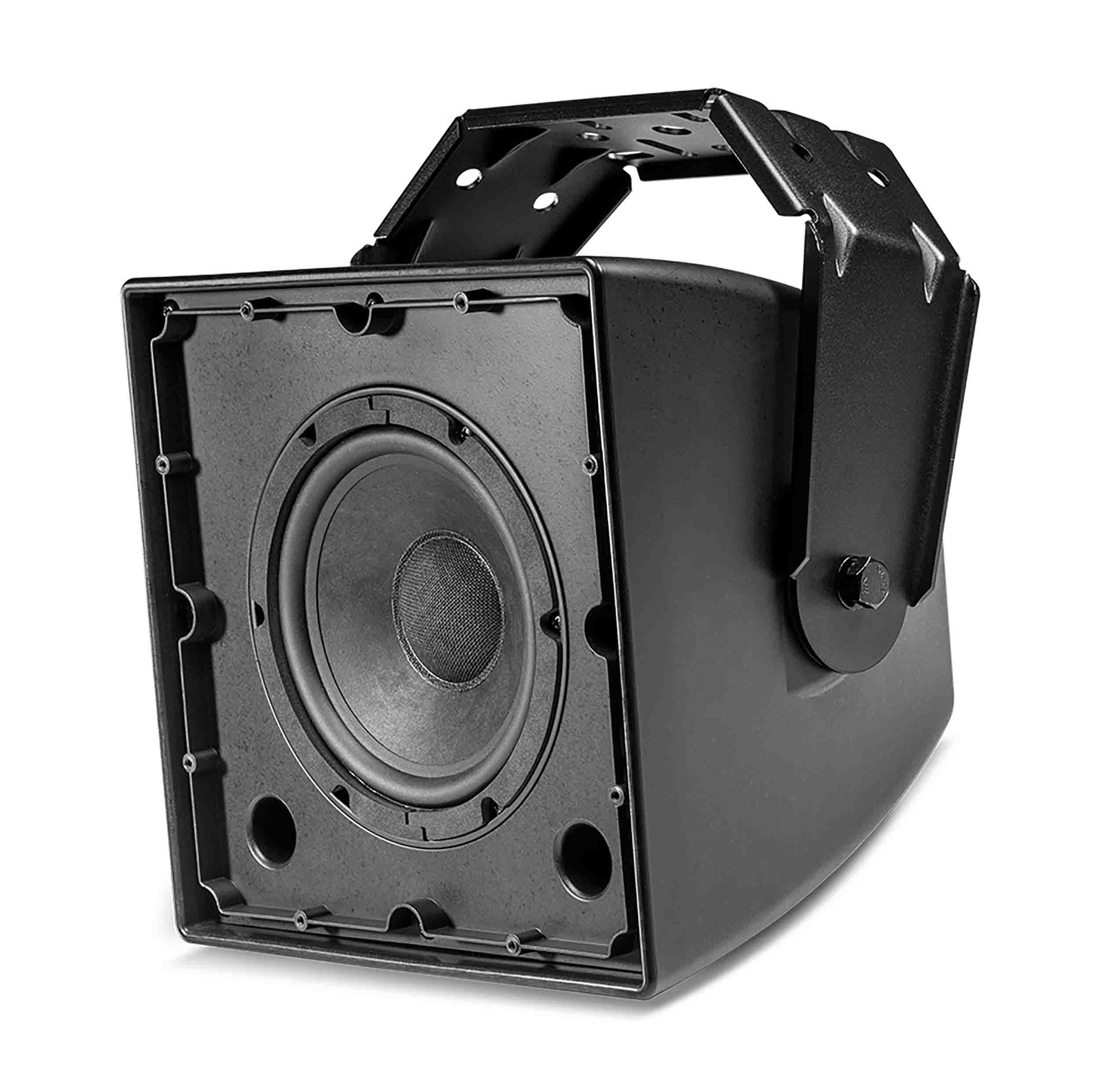

LF Driver: Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.

HF Driver: 25 mm (1 in) diaphragm and voice coil diameter

HF Driver Protection: Minimum audibility SonicGuard HF overload protection

Enclosure: ABS with Glass enclosure

Attachment: Two M10 (fine-thread) points for included U-bracket.

Colors: Black (-BK)

Net Weight (each): 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket

Shipping Weight: 8.8 kg (19.5 lb)

Crossover Modes: Passive

System Sensitivity (1w @ 1m): 92 dB (Ave. 100 Hz – 18 kHz
