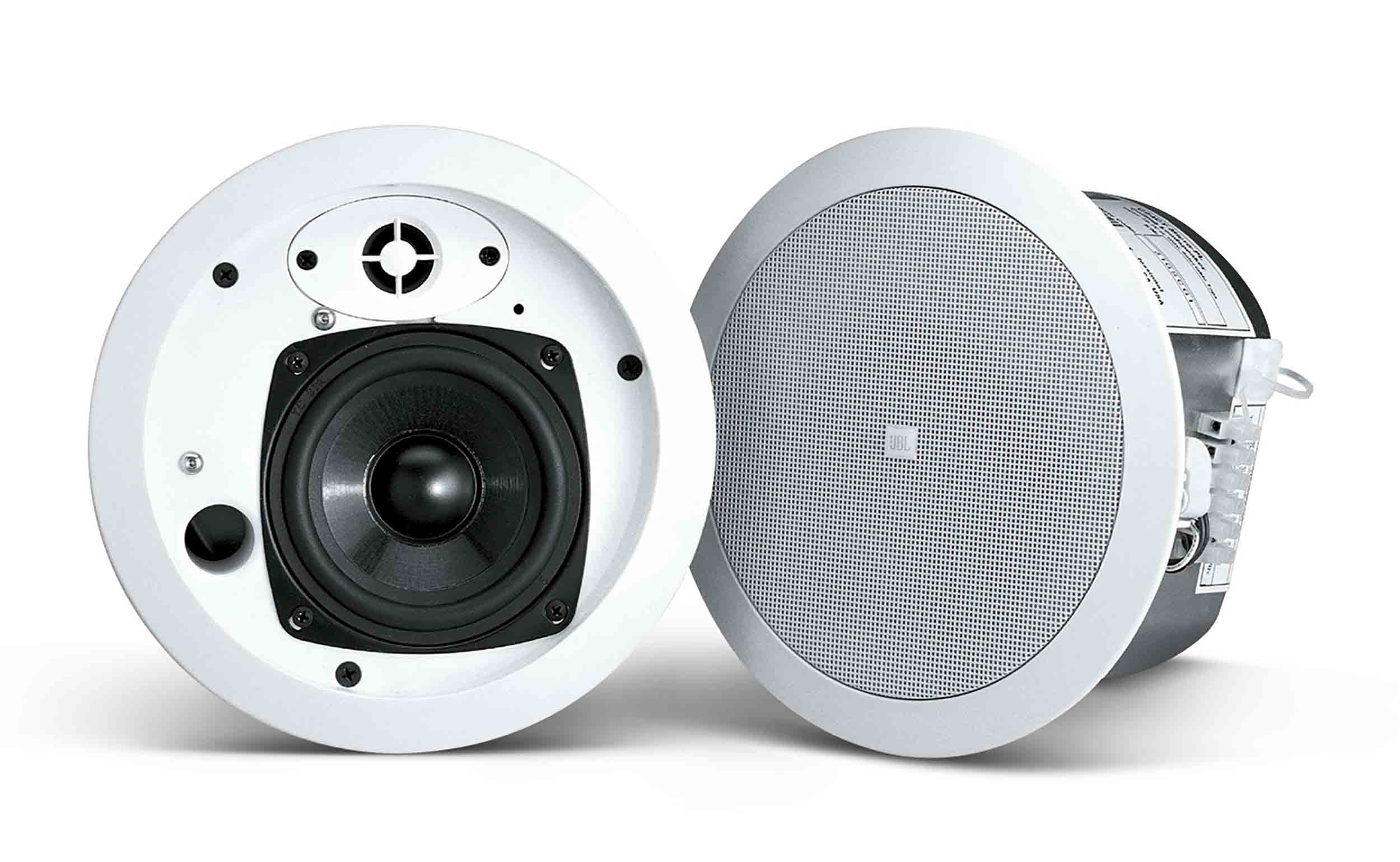

JBL C24CT MICROPLUS, Background Music Ceiling Loudspeaker - Pair

The JBL Control 24CT MicroPlus Pair includes two compact in-ceiling loudspeakers designed to deliver high-quality background music and music-plus-paging performance. Each speaker features a 4.5-inch injection molded graphite woofer with a butyl rubber surround, providing smooth and reliable low-frequency reproduction. Used together, the pair provides balanced audio coverage for commercial spaces, offices, retail environments, hospitality areas, and other distributed sound applications.

Each Control 24CT MicroPlus combines its IMG woofer with a 0.5-inch polycarbonate tweeter for extended high-frequency response up to 25 kHz. The advanced crossover network uses a 3rd order low-pass and 3rd order high-pass design to help maintain smooth tonal balance and even coverage. With 150° conical dispersion and 85 dB sensitivity, the two-speaker configuration can provide broad and consistent background music coverage throughout a larger listening area.

The pair features integrated 25W multi-tap transformers with selectable 70V and 100V power taps, allowing the speakers to be matched to different distributed audio system requirements. Their shallow 4.1-inch installation depth helps accommodate ceiling spaces where clearance is limited. Both speakers include a grille, backcan, and tile rails, providing the essential hardware needed for a clean and efficient professional ceiling installation.

Product Specifications:

Product Type: Compact In-Ceiling Background Music Loudspeaker Pair

Quantity: 2 Loudspeakers

Application: Background Music and Music-Plus-Paging Systems

Frequency Range: 80 Hz to 25 kHz

Power Capacity: 30W Continuous Program; 15W Continuous Pink Noise per Speaker

Transformer Type: 25W Multi-Tap Transformer per Speaker

Transformer Taps, 70V: 25W, 12W, 6W per Speaker

Transformer Taps, 100V: 25W, 12W per Speaker

Nominal Sensitivity: 85 dB SPL at 1 m

Coverage Angle: 150° Conical per Speaker

Maximum SPL: 99 dB at 1 m, 25W Tap

Crossover Frequency: 3.5 kHz

Crossover Type: 3rd Order Low-Pass and 3rd Order High-Pass with Conjugate

Low-Frequency Driver: 115 mm, 4.5" IMG Woofer per Speaker

Woofer Cone Material: Injection Molded Graphite

Woofer Surround: Butyl Rubber

Woofer Voice Coil: 24 mm, 1"

High-Frequency Driver: 12 mm, 0.5" Polycarbonate Tweeter per Speaker

Enclosure Type: In-Ceiling with Integrated Backcan

Installation Depth: 4.1" from Back of Baffle

System Configuration: 70V/100V Distributed Audio

Pair Configuration: 2 Matching Control 24CT MicroPlus Loudspeakers

Intended Use: Commercial Background Music and Paging
