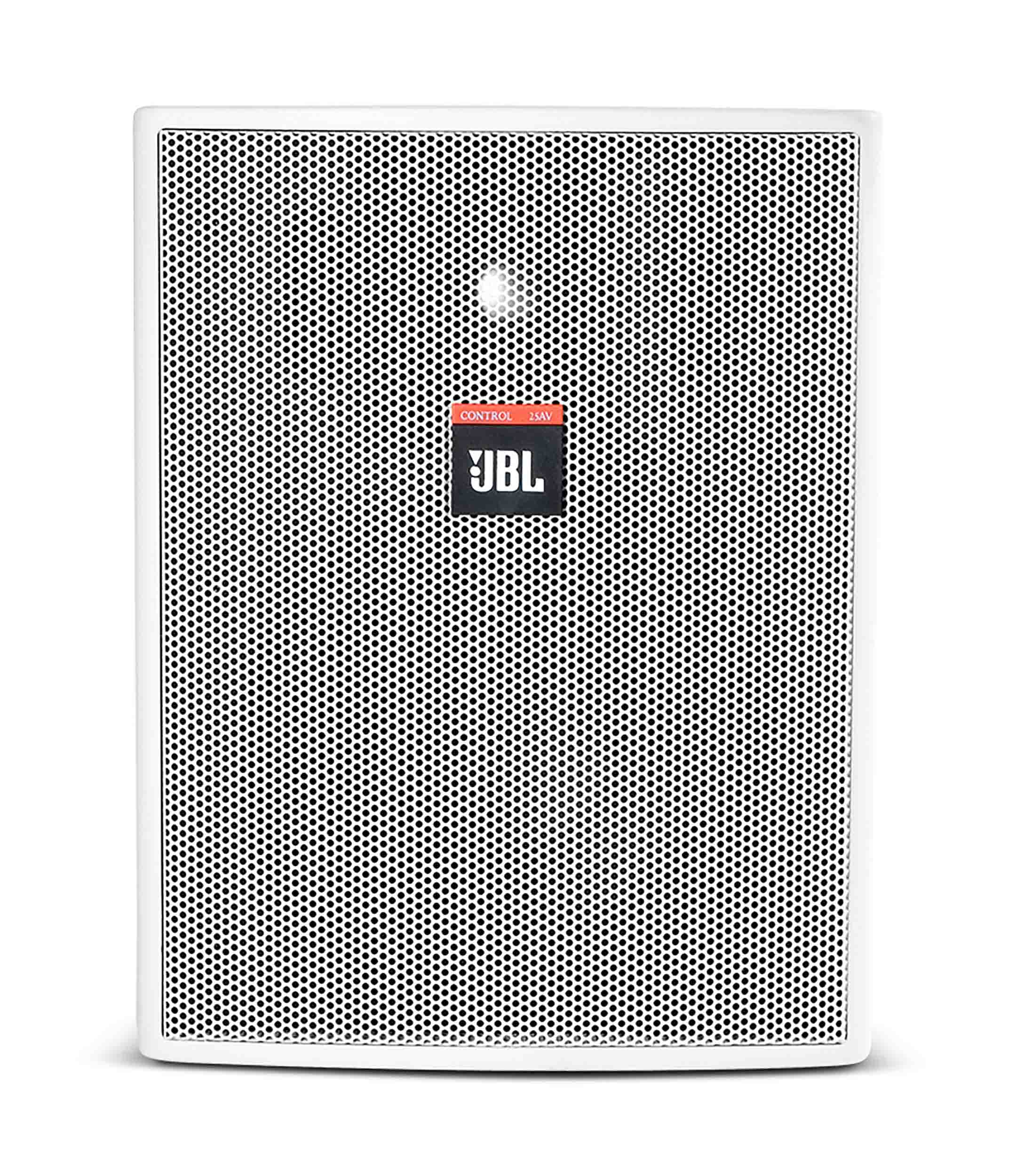

JBL C25AV-LS-WH, Monitor for Fire Alarm/Communication Systems in White - Pair

The JBL Control 25AV-LS-WH Pair is a compact two-way loudspeaker system designed for high-quality background and foreground audio in life safety applications. Each speaker combines a 5.25-inch polypropylene-coated woofer with JBL WeatherEdge surround technology and a 0.75-inch titanium-coated PEI horn-loaded tweeter. Its deep cabinet, high-power components, and optimized crossover network provide extremely smooth high-fidelity performance while maintaining consistent sound throughout the listening area. The pair is UL 1480 UUMW listed and EN54-24 certified for use in fire alarm and emergency communication systems.

Each C25AV-LS-WH features a low-saturation 60W transformer for flexible 70V and 100V distributed speaker-line installations, while the 8-ohm bypass position provides similar high-fidelity performance for low-impedance operation. Transformer taps include 60W, 30W, 15W, and 7.5W at 70V, while the system supports 200W continuous program power and 100W continuous pink-noise power in 8-ohm bypass mode. SonicGuard overload protection helps protect the loudspeaker against excessive input levels, while the 110° horizontal by 85° vertical coverage pattern provides broad and controlled sound distribution.

Built for demanding indoor and outdoor installations, the Control 25AV-LS uses an ABS enclosure with UL94-5VA-rated materials and an aluminum grille finished with polyester powder coating. The woofer's polypropylene-coated cone and WeatherEdge butyl rubber surround help protect critical transducer components, while the titanium-reinforced tweeter diaphragm provides durability and endurance. An InvisiBall aimable wall-mounting system simplifies installation and provides theft deterrence, while sealed MTC-PC2 terminal covers and rust-resistant input terminals enhance protection in challenging environments. The pair exceeds MilSpec 810 environmental requirements and features an IEC 529 IP-X5 splashproof rating.

Product Specifications:

Product Type: Two-Way Indoor/Outdoor Life Safety Loudspeaker Pair in White

Quantity: 2 Loudspeakers

Frequency Range: 90 Hz to 20 kHz, -10 dB

Color: White

Power Rating: 200W Continuous Program, 100W Continuous Pink Noise at 8 Ohm Bypass

Transformer Power: 60W at 60W Tap Setting

Nominal Sensitivity: 88 dB, 1W/1m, 1 kHz to 10 kHz Average at 8 Ohm Bypass

EN54-24 Sensitivity: 76 dB, 1W/4m, 100 Hz to 10 kHz Average at 8 Ohm Bypass

Coverage Angle: 110° Horizontal x 85° Vertical, 1 kHz to 16 kHz Average

Directivity Index: 6.5 dB, 500 Hz to 4 kHz

Maximum SPL: 107 dB Average, 113 dB Peak at 1m in 8 Ohm Bypass; 92 dB Average at 4m at 60W Tap

Impedance: 8 Ohms in Bypass Position 5; 667 Ohms Tap 1, 333 Ohms Tap 2, 166 Ohms Tap 3, 82 Ohms Tap 4

LF Driver: 130 mm, 5.25" Polypropylene-Coated Paper Cone with WeatherEdge Surround

LF Voice Coil: 25 mm, 1" Voice Coil on Kapton Former

HF Driver: 20 mm, 0.75" Titanium-Coated PEI Horn-Loaded Tweeter

Crossover Network: Complex Network Optimized for Smooth High-Fidelity Performance

Overload Protection: SonicGuard Full-Range Overload Protection

Input Connectors: Captive Screw-Down Terminals with Zinc-Plated Copper Base and Nickel-Plated Screws/Washers

Enclosure Material: ABS, UL94-5VA Rated

Grille: Aluminum with Polyester Powder Coating

Mounting System: InvisiBall Aimable Wall-Mounting System

Included Mounting Hardware: InvisiBall Mounting Base

Outdoor Capability: IEC 529 IP-X5 Splashproof; Exceeds MilSpec 810 for Humidity, Salt Spray, Temperature, and UV

Coverage Pattern at 0.5 kHz: 360° Horizontal x 360° Vertical

Coverage Pattern at 1 kHz: 148° Horizontal x 138° Vertical

Coverage Pattern at 2 kHz: 112° Horizontal x 103° Vertical

Coverage Pattern at 4 kHz: 122° Horizontal x 78° Vertical

Product Weight: 8.4 lbs. per piece

Product Dimensions (H x W x D): 9.3 x 7.4 x 6.3 in. per piece
