Description

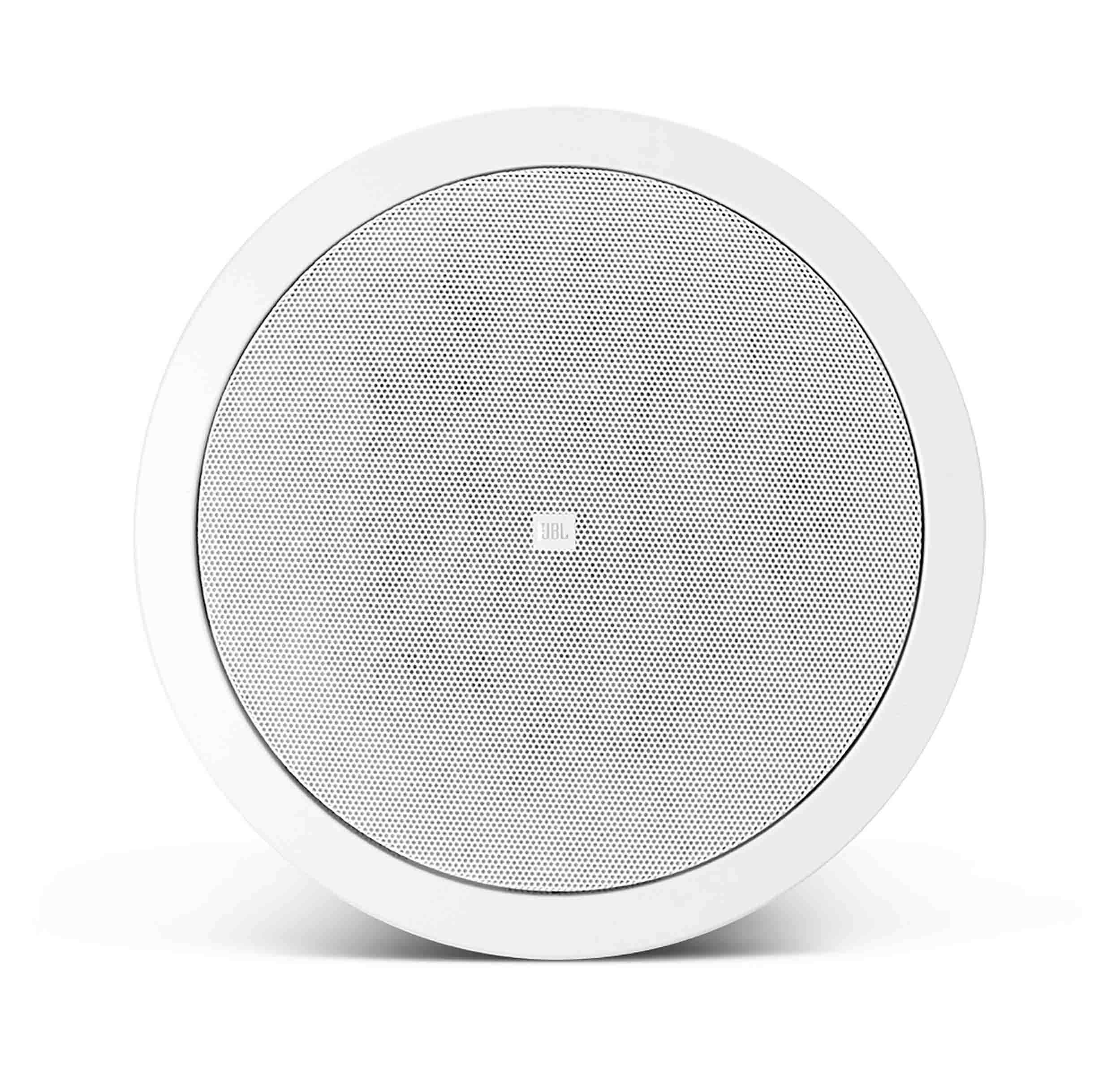

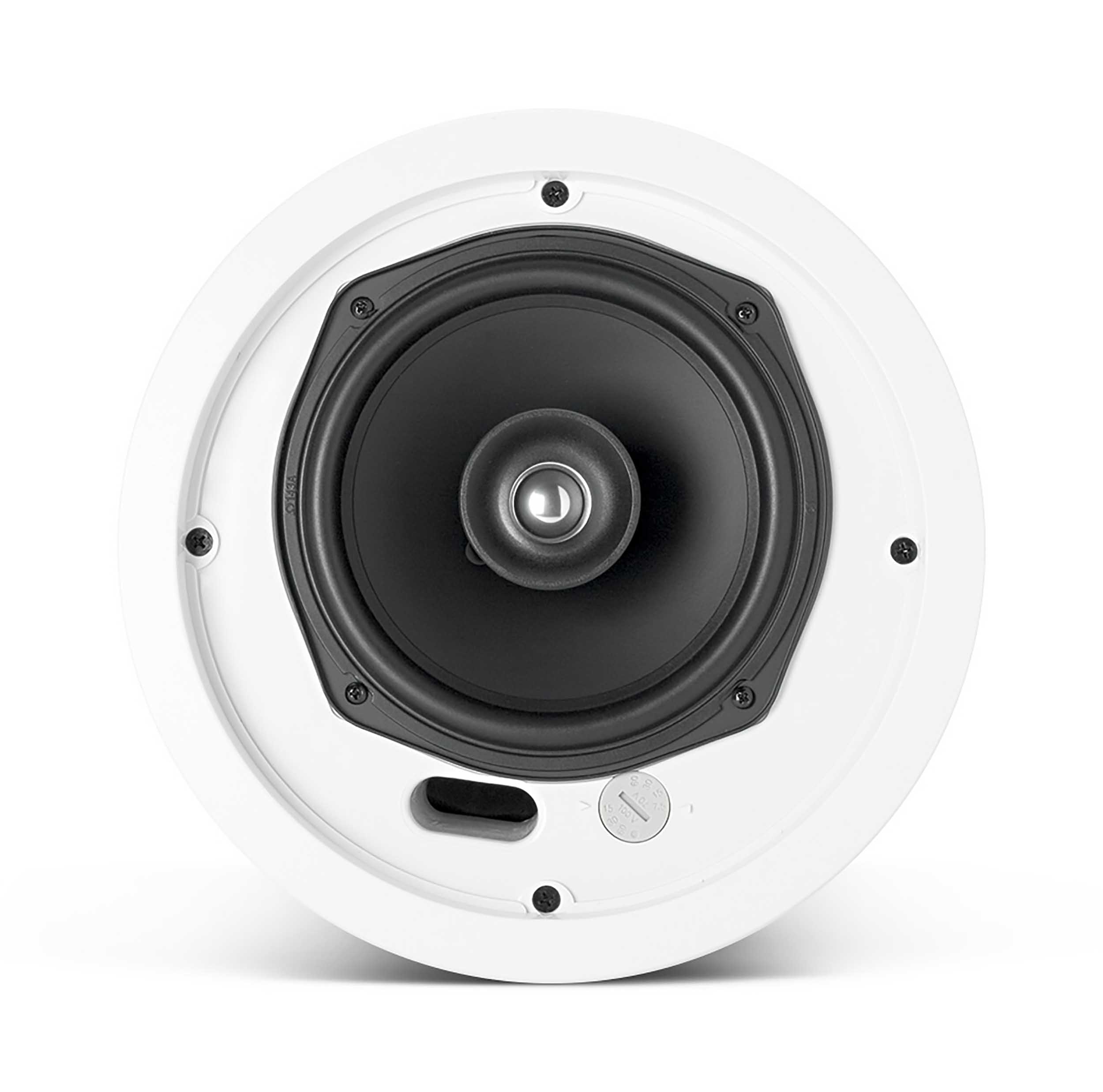

The JBL Control 26CT-LS Pair includes two compact ceiling loudspeakers designed to provide premium audio performance while meeting requirements for life safety applications. Each speaker features a coaxially mounted 165 mm, 6.5-inch woofer with a butyl rubber surround and a 19 mm, 0.75-inch titanium-coated diffraction-loaded tweeter. The combination delivers a wide 80 Hz to 20 kHz frequency response for clear background and foreground music reproduction.
Designed for high-performance commercial audio systems, the Control 26CT-LS provides 110° conical coverage, 89 dB sensitivity, and up to 107 dB maximum SPL at the top 70V/100V transformer tap. Its wide coverage and low-distortion design help provide consistent and intelligible audio throughout the listening area, making the pair suitable for demanding distributed sound installations.
The Control 26CT-LS is specifically UL1480 UUMW listed for use in fire alarm and emergency communication systems, providing an appropriate solution for life safety installations requiring compatible ceiling loudspeakers. Each speaker includes a 60W multi-tap transformer, formed-steel blind-mount backcan, fire-rated baffle, grille, and tile rails. The removable locking connector with screw-down terminals provides secure wiring, while the integrated backcan supports professional ceiling installation.
Product Specifications:
Product Type: Life Safety Coaxial In-Ceiling Loudspeaker Pair
Quantity: 2 Loudspeakers
Application: Background Music, Foreground Music, Fire Alarm, and Emergency Communication Systems
Frequency Range: 80 Hz to 20 kHz
Power Rating: 150W Continuous Program Power, 75W Continuous Pink Noise, 300W Peak per Speaker
Transformer Type: Multi-Tap 70V/100V Transformer
Transformer Taps at 70V: 60W, 30W, 15W, and 7.5W
Transformer Taps at 100V: 60W, 30W, and 15W
Coverage Angle: 110° Conical
Directivity Index (DI): 4.6 dB averaged 500 Hz to 4 kHz
Maximum SPL: 107 dB at 1 m, Top 70V/100V Tap
Sensitivity: 89 dB, 100 Hz to 10 kHz
LF Driver: 165 mm, 6.5" Woofer
LF Cone Surround: Butyl Rubber
HF Driver: 19 mm, 0.75" Titanium-Coated Diffraction-Loaded Tweeter
Input Connector: Removable Locking Connector with Screw-Down Terminals
Backcan: Formed Steel, Blind-Mount
Baffle/Rim: Medium-Impact Polystyrene
Baffle Flammability: UL94V-0 Fire Rated
Ceiling Cutout: 8.75" Diameter
Installation Depth: 7.5" from Front of Ceiling Tile to Back of Backcan
Plenum Usage: Yes, Suitable for Air-Handling Spaces
Life Safety Listing: UL1480 UUMW Listed
Safety Certifications: UL1480, UL2043, NFPA90, NFPA70
Signaling Speaker Listing: S7232/UL Listed
Transformer Certification: UL Registered per UL1876
Standards Compliance: IEC60849/EN60849
Color: White
Included Accessories: Grille, Backcan, Tile Rails
Pair Configuration: 2 Matching JBL Control 26CT-LS Loudspeak
