Description

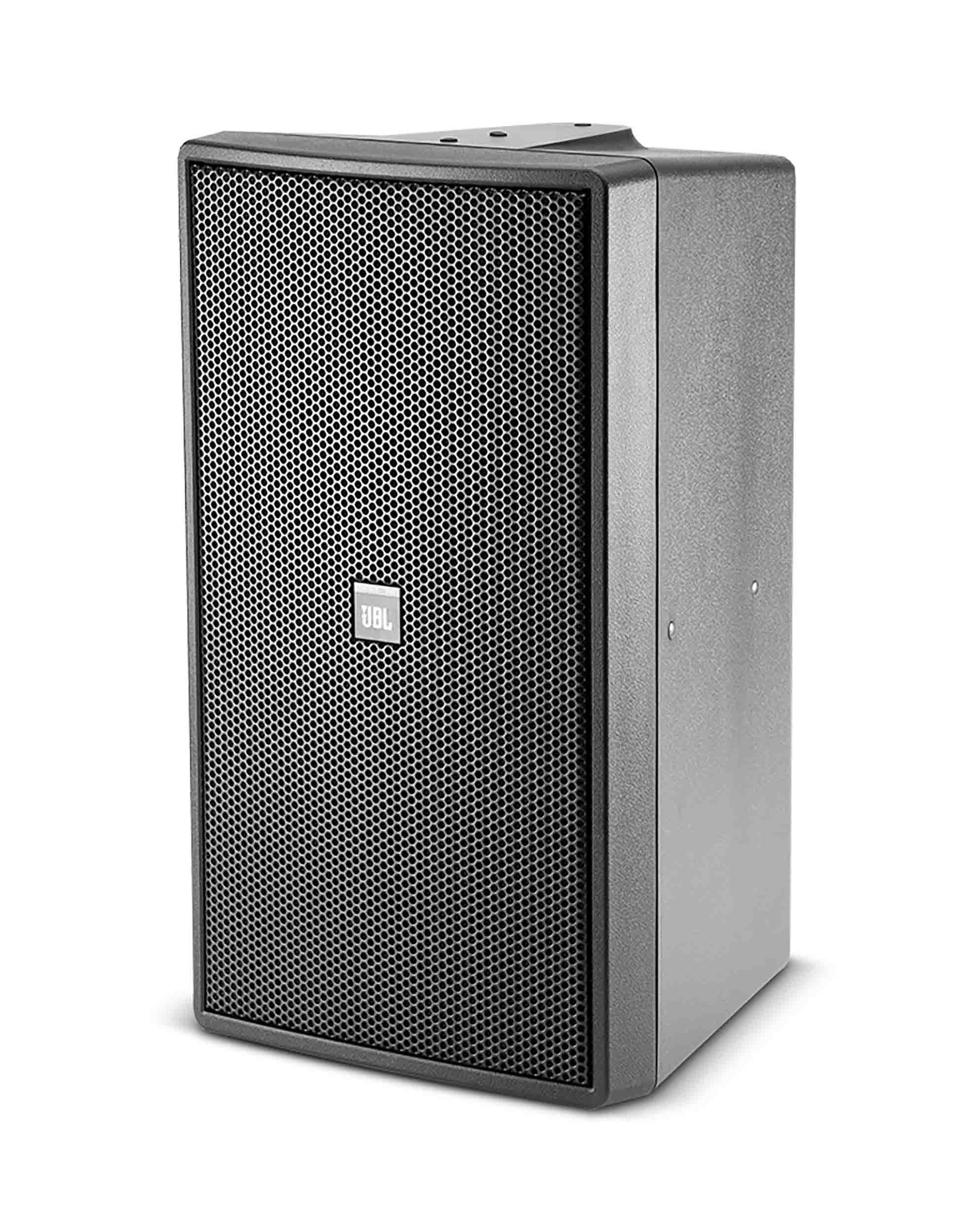

The JBL Control C29AV-1 is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation.
Product Specifications:
Frequency Range: 37 Hz –18 kHz (-10 dB)
Power Capacity: 300 W Continuous Program Power; 150 W Continuous Pink Noise
Transformer Taps: 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal
Frequency Response: 45 Hz – 18 kHz ( ± 3 dB)
Maximum SPL (1m): Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity: 90 dB (2.83V / 1m)
Coverage Angle: 110°H x 85°V, Rotatable
Directivity Factor (Q): 7.2 dB, averaged 500 Hz to 16 kHz
Directivity Index (DI): 8.6 dB, averaged 500 Hz to 16 kHz
Impedance: 8 ohms
Minimum Impedance: 6.3 ohms @ 230 Hz
Enclosure: High impact polystyrene
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Safety Agency: Transformer is listed per UL1876
Colors: Black
Dimensions (H x W x D): 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
Net Weight (each): 12.2 kg (26.8 lb.)
Shipping Weight (ea): 14.0 kg (30.8 lb.)
Optional Accessories: MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
Mounting Hardware: InvisiBall aimable wall-mounting system included. Optional U-bracket.
