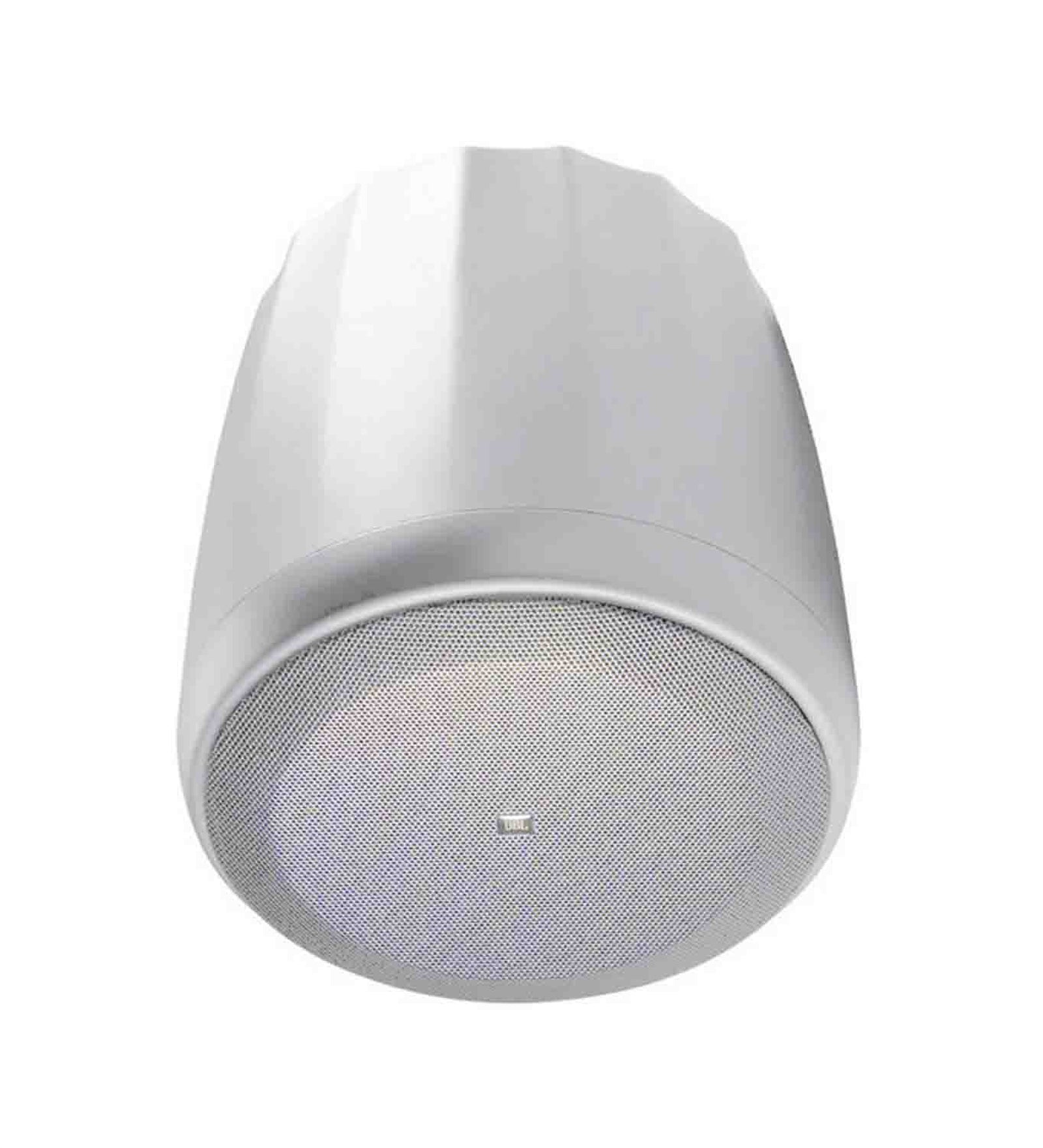

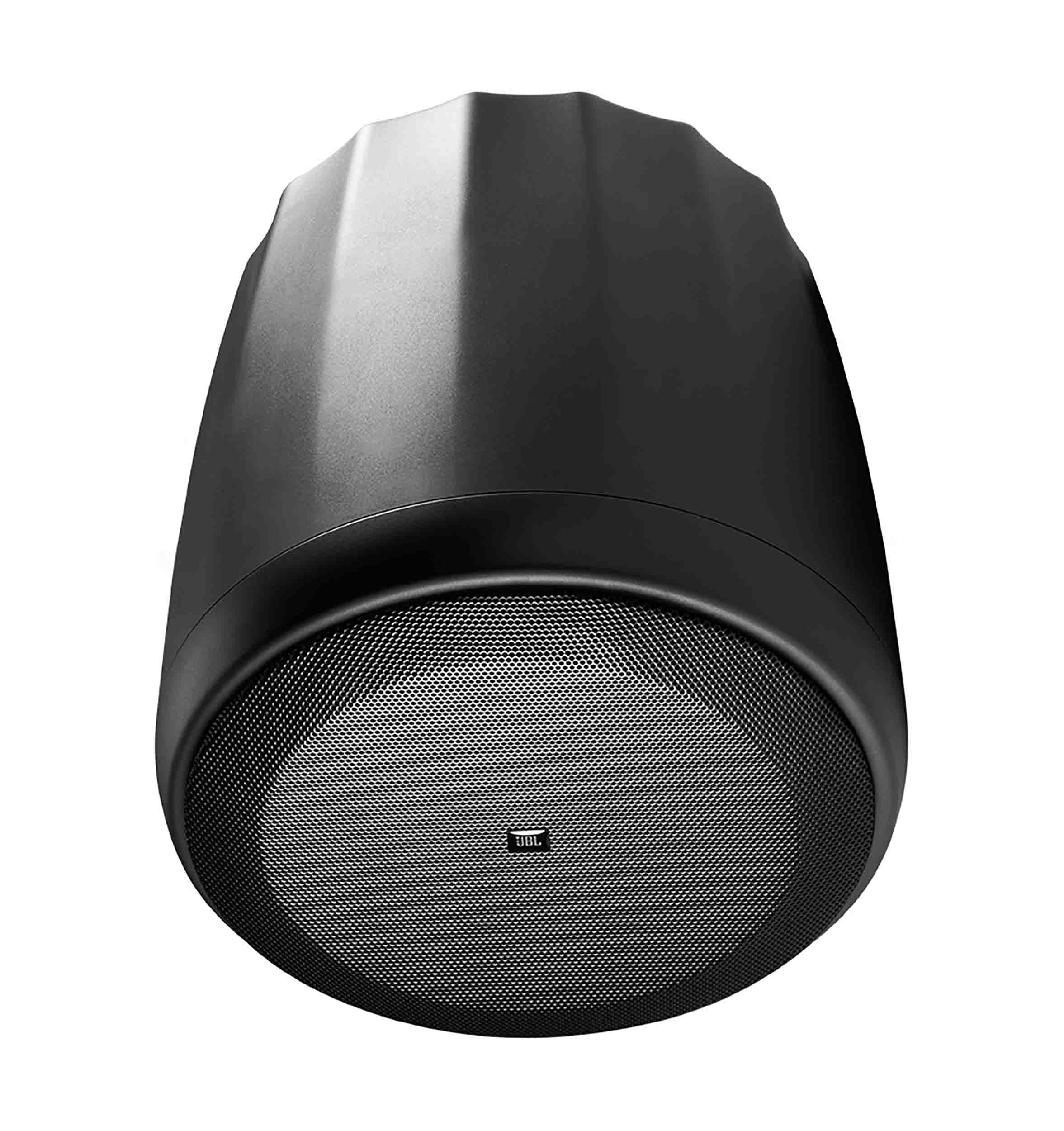

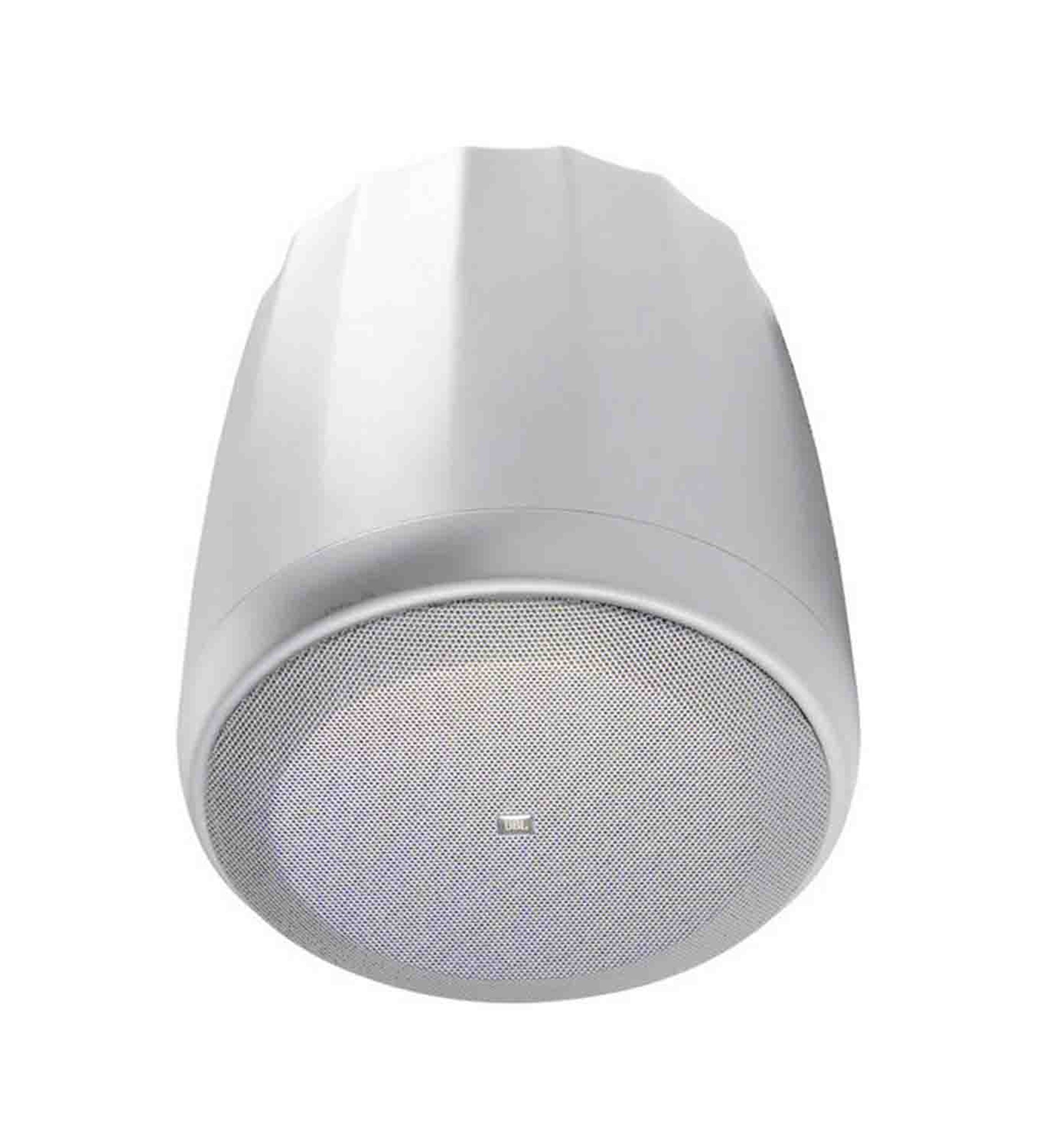

JBL C60PS/T, Hanging Pendant Subwoofer with Passive Crossover - Pair

The JBL Control 60PS/T Pair provides powerful bass extension and high-impact low-frequency performance for high-fidelity foreground and background music systems. Each subwoofer features a 200 mm 8-inch long-excursion driver with a polypropylene-coated paper cone and butyl rubber surround for tight, well-damped bass and long-term reliability. The 50 mm 2-inch high-temperature copper voice coil and low-mass fiberglass resin former provide responsive bass transients and dependable operation under high-power, high-duty-cycle conditions. The pendant design makes the pair suitable for restaurants, retail stores, music cafés, health clubs, theme bars, leisure venues, and other commercial environments.

Each Control 60PS/T provides 150W direct 8-ohm operation and supports 70V/100V distributed audio systems through its built-in transformer. The permanently engaged low-pass filter is used for standalone operation, while the Loop Out connection allows additional speakers to be connected in parallel before the low-pass filter. The integrated passive crossover supports configurations with either two or four compatible low-impedance satellite speakers, with suggested models including the Control 62P pendant, Control 52 surface-mount, and Control 42C in-ceiling loudspeakers. This flexible system architecture makes the pair suitable for complete distributed audio installations.

Each subwoofer features a high-impact polystyrene enclosure with a zinc-plated steel grille, powder-coat finish, and removable foam backing for painting. Environmental protection exceeds Mil Spec 810 requirements for humidity, salt spray, temperature, and UV exposure, while IP44 capability provides splash resistance. Two identical 15-foot galvanized steel suspension cable systems are included with each speaker, providing main and safety suspension with adjustable Gripple cable fasteners. The Control 60PS/T Pair combines powerful bass reproduction, flexible system integration, secure pendant suspension, and durable construction for professional commercial sound applications.

Product Specifications:

Product Type: Pendant Subwoofer Loudspeaker Pair

Quantity: 2 Subwoofers

Application: Foreground and Background Music Systems

Color: Black or White

Frequency Range: 42 Hz to 350 Hz, -10 dB

Frequency Response: 55 Hz to 125 Hz, ±3 dB

Power Rating: 300W Continuous Program, 150W Continuous Pink Noise, 100 Hours

Nominal Sensitivity: 88 dB, 2.83V/1m

Maximum SPL: 107 dB Average, 113 dB Peak at 1m

Impedance: 8 Ohms

Transformer Taps: 110W, 55W, 30W, 15W at 70V/100V

Transformer Insertion Loss: 0.98 dB at 15W, 0.99 dB at 30W, 0.94 dB at 55W, 1.10 dB at 110W

Low-Pass Filter: Built-In, Permanently Engaged

Loop Output: Parallel with Input, Pre Low-Pass Filter

Satellite Configuration: Supports 2 or 4 Satellite Speakers

Satellite Outputs: High-Passed

Compatible Satellite Speakers: Control 62P, Control 52, Control 42C

Driver: 200 mm, 8" Polypropylene-Coated Paper Cone

Driver Surround: Butyl Rubber

Voice Coil: 50 mm, 2" High-Temperature Copper

Voice Coil Former: Vented Fiberglass Resin

Enclosure Material: High-Impact Polystyrene

Grille: Zinc-Plated Steel with Powder-Coat Finish

Environmental Protection: Mil Spec 810, IP44 Splash-Proof Capability

Input Connectors: Six Removable Locking 2-Pin Connectors per Speaker

Connector Functions: Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4

Maximum Wire Size: 12 AWG, 2.5 mm²

Suspension System: Two 15 ft Galvanized Steel Cable Systems per Speaker

Cable Safe Working Load: 99 lbs., 45 kg

Safety Certifications: UL1480, UL1876, IEC60849/EN60849, UL1598, UL2239, TUV, CSA

Product Weight: 16.7 lbs. per piece

Product Dimensions (H x W x D): 13.1" Diameter x 13.6" Height to Cabinet Top; 14.5" Height to Suspension Bracket per piece
