JBL C64P/T-WH, Compact Full-Range Pendant Loudspeaker in White - Pair

The JBL Control 64P/T-WH Pair is a compact full-range pendant loudspeaker system designed for rooms with open architecture ceilings and other applications where a discreet suspended speaker is preferred. Each speaker features a 100 mm 4-inch polypropylene-coated paper driver with a cloth surround and 20 mm 0.8-inch copper voice coil for reliable full-range sound reproduction. The pendant form factor provides an effective solution for restaurants, retail stores, hospitality venues, leisure spaces, and other commercial environments where conventional ceiling or wall mounting is not practical.

Each Control 64P/T-WH provides 100W continuous program power and supports direct 8-ohm operation as well as 70V/100V distributed audio through its built-in transformer. Transformer taps include 30W, 15W, 7.5W, and 3.7W at 70V, with 30W, 15W, and 7.5W options at 100V. Its 120° conical coverage, 88 dB nominal sensitivity, and 105 dB continuous maximum SPL provide broad and dependable audio distribution. The compact design makes the pair suitable for background music, paging, and general-purpose full-range commercial sound applications.

Each speaker features a high-impact polystyrene enclosure with a zinc-plated steel grille, powder-coat finish, and removable foam backing for painting. Environmental protection exceeds Mil Spec 810 requirements for humidity, salt spray, temperature, and UV exposure, while IP44 capability provides splash-proof protection. Two 15-foot high-tensile galvanized steel suspension cable systems are included with each speaker for main and safety suspension, with adjustable Gripple cable fasteners for flexible installation height. The JBL Control 64P/T Pair combines compact styling, flexible system integration, broad coverage, and secure suspension for professional distributed audio installations.

Product Specifications:

Product Type: Full-Range Pendant Loudspeaker Pair

Quantity: 2 Loudspeakers

Application: Open-Architecture Ceiling and Distributed Audio Systems

Color:  White

Frequency Range: 65 Hz to 15 kHz, -10 dB

Power Rating: 100W Continuous Program, 50W Continuous Pink Noise, 200W Peak, 40W Continuous Pink Noise 100 Hours, 160W Peak

Maximum Input Voltage: 18.2V RMS, 36.4V Peak

Nominal Sensitivity: 88 dB

Coverage Angle: 120° Conical

Directivity Factor: Q 6.2

Directivity Index: 7.3 dB, Averaged 1 kHz to 16 kHz

Maximum SPL: 105 dB Continuous Pink Noise, 111 dB Peak at 1m

Impedance: 8 Ohms

Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W; 100V: 30W, 15W, 7.5W

Transformer Insertion Loss: 0.94 dB at 3.7W, 0.89 dB at 7.5W, 0.83 dB at 15W, 0.94 dB at 30W

Driver: 100 mm, 4" Polypropylene-Coated Paper

Driver Surround: Cloth

Voice Coil: 20 mm, 0.8" Copper

Enclosure Material: High-Impact Polystyrene

Grille: Zinc-Plated Steel with Powder-Coat Finish

Outdoor Capability: Mil Spec 810, IP44 Splash-Proof Capability

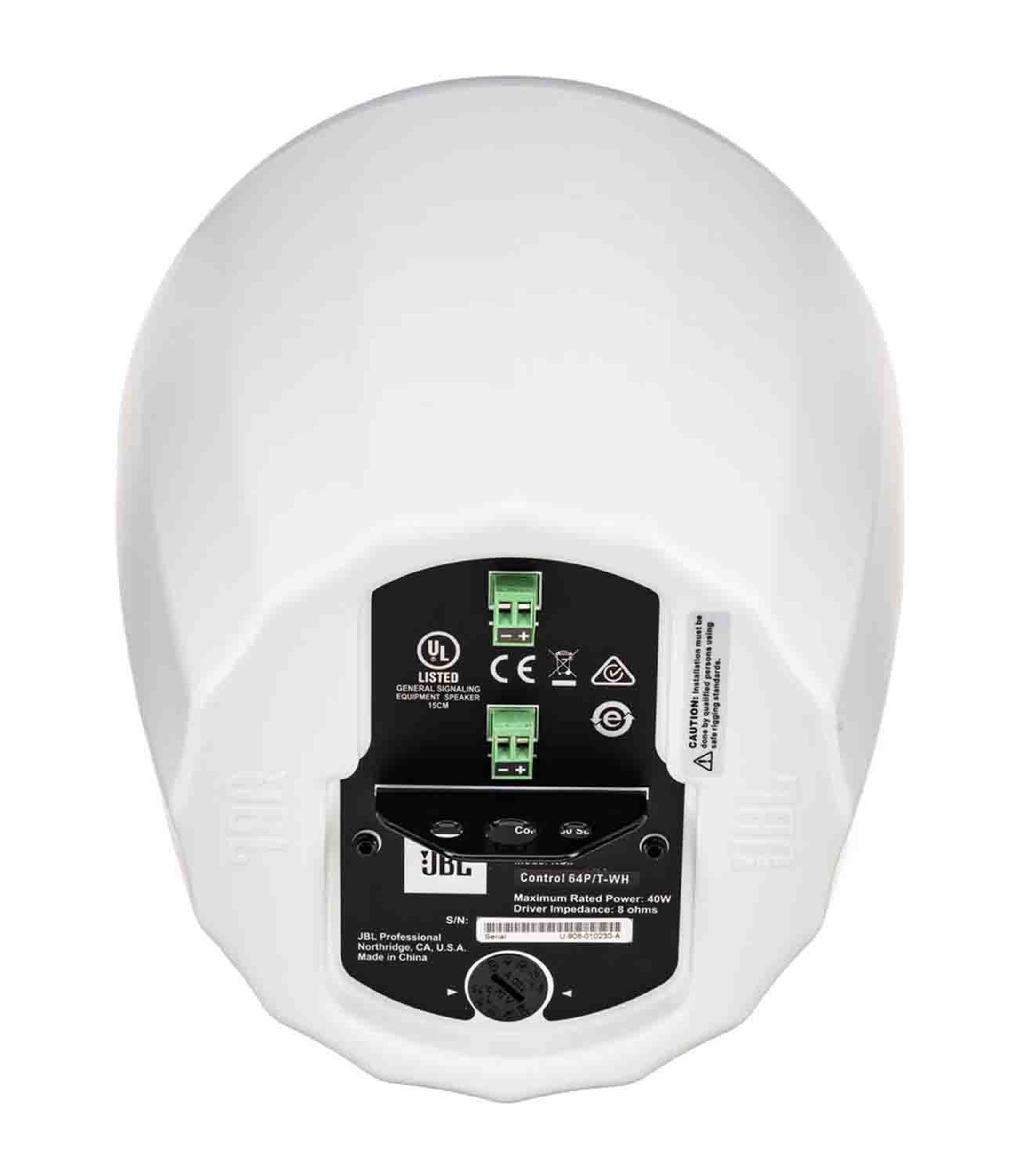

Input Connectors: Two Removable Locking 2-Pin Euroblock Connectors per Speaker

Connector Configuration: Input and Loop-Thru, Paralleled

Maximum Wire Size: 12 AWG, 2.5 mm²

Product Weight: 5.2 lbs. per piece

Product Dimensions (H x W x D): 9.3" Diameter x 10.2" Height to Cabinet Top; 11.0" Height to Suspension Bracket per piece
