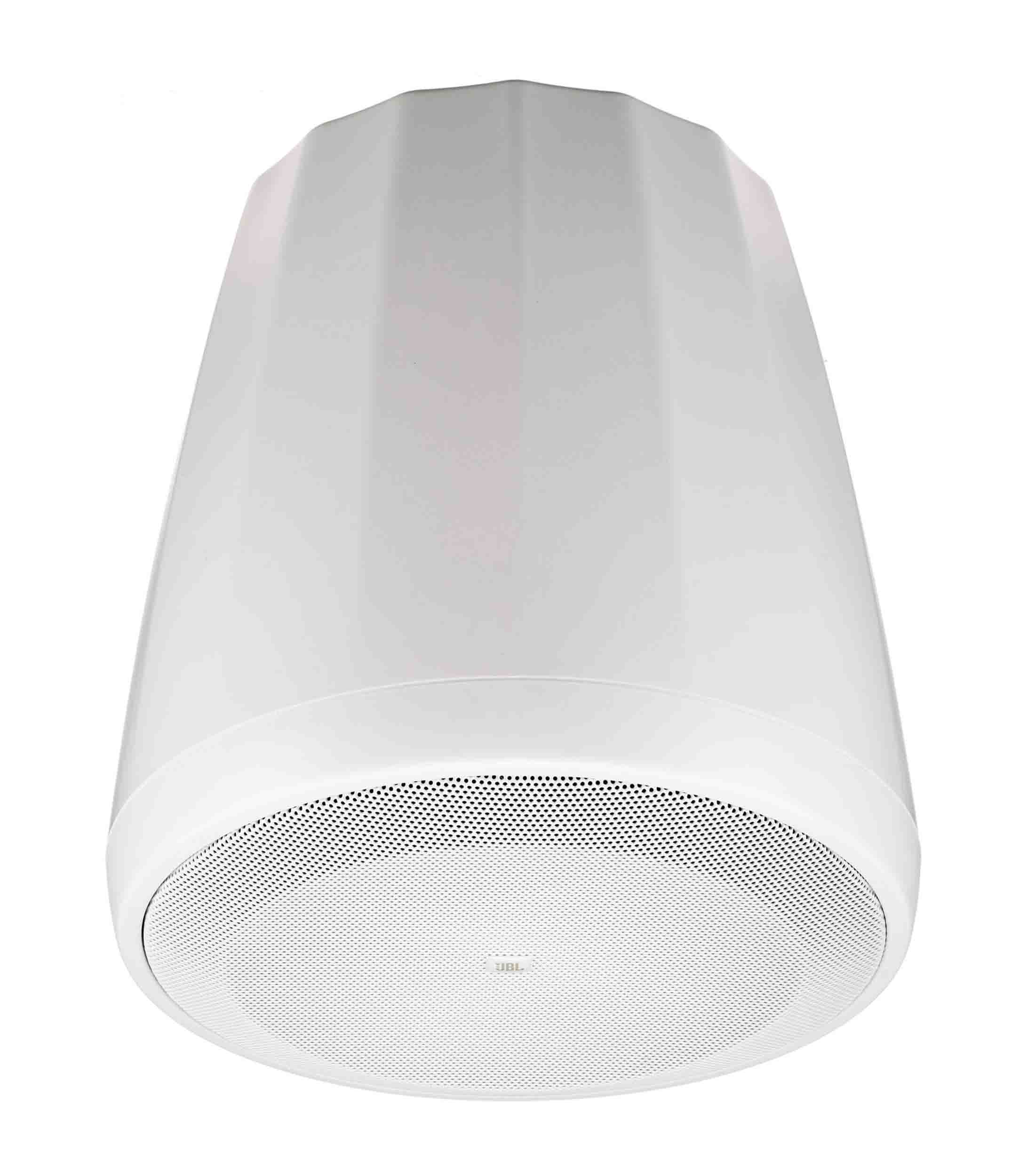

JBL C65P/T-WH, Compact Full-Range Pendant Loudspeaker in White - Pair

The JBL Control 65P/T-WH Pair is a compact full-range pendant loudspeaker system designed for open-architecture ceilings and other applications where a suspended speaker is preferred. Each speaker incorporates JBL's Radiation Boundary Integrator technology to provide consistent, wide coverage throughout the listening space. Its 130 mm 5.25-inch low-frequency driver uses a polypropylene-coated paper cone with a pure butyl rubber surround, while a 20 mm 0.75-inch textile soft-dome tweeter provides detailed high-frequency reproduction. The compact pendant form factor makes the pair suitable for restaurants, retail spaces, hospitality venues, leisure environments, and other commercial installations.

Each Control 65P/T-WH provides 75W continuous pink-noise power and 150W continuous program power, with 300W peak capability. The 8-ohm design also supports 70V/100V distributed audio through its built-in multi-tap transformer, with 60W, 30W, 15W, and 7.5W taps at 70V and 60W, 30W, and 15W taps at 100V. Its 120° conical coverage, 86 dB sensitivity, and 105 dB continuous maximum SPL provide broad and dependable sound distribution. The speakers can be integrated into distributed audio systems where high-fidelity full-range reproduction and discreet installation are important.

Each speaker features a high-impact polystyrene enclosure with a zinc-plated steel grille, powder-coat finish, and removable foam backing for painting. Environmental protection exceeds Mil Spec 810 requirements for humidity, salt spray, temperature, and UV exposure, while IP44 capability provides splash-proof protection. Two 15-foot high-tensile galvanized steel suspension cable systems are included with each speaker, providing main and safety suspension with adjustable Gripple cable fasteners. The JBL Control 65P/T Pair combines RBI technology, high-fidelity two-way reproduction, flexible transformer operation, and secure pendant suspension for professional commercial sound installations.

Product Specifications:

Product Type: Full-Range Pendant Loudspeaker Pair

Quantity: 2 Loudspeakers

Color:  White

Application: Open-Architecture Ceiling and Distributed Audio Systems

Technology: RBI Radiation Boundary Integrator

Frequency Range: 55 Hz to 20 kHz, -10 dB

Frequency Response: 78 Hz to 18 kHz, ±3 dB

Power Rating: 75W Continuous Pink Noise, 300W Peak, 150W Continuous Program

Nominal Sensitivity: 86 dB

Coverage Angle: 120° Conical

Directivity Factor: Q 5.3

Directivity Index: 7.2 dB

Maximum SPL: 105 dB Continuous Pink Noise, 111 dB Peak at 1m

Impedance: 8 Ohms

Transformer Taps: 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W

Transformer Insertion Loss: 0.5 dB at 7.5W, 0.5 dB at 15W, 0.6 dB at 30W, 0.7 dB at 60W

Low-Frequency Driver: 130 mm, 5.25" Polypropylene-Coated Paper

LF Driver Surround: Pure Butyl Rubber

LF Voice Coil: 25 mm, 1" Copper

LF Voice Coil Former: Vented Fiberglass Resin

High-Frequency Driver: 20 mm, 0.75" Textile Soft-Dome

HF Magnet: Neodymium

HF Cooling: Ferro-Fluid

HF Voice Coil Former: Aluminum

Enclosure Material: High-Impact Polystyrene

Grille: Zinc-Plated Steel with Powder-Coat Finish

Outdoor Capability: Mil Spec 810, IP44 Splash-Proof Capability

Input Connectors: Two Removable Locking 2-Pin Euroblock Connectors per Speaker

Connector Configuration: Input and Loop-Thru, Paralleled

Maximum Wire Size: 12 AWG, 2.5 mm²

Suspension System: Two 15 ft Galvanized Steel Cable Systems per Speaker

Cable Diameter: 2 mm

Cable Safe Working Load: 99 lbs., 45 kg

Product Weight: 8 lbs. per piece

Product Dimensions (H x W x D): 9.3" Diameter x 10.2" Height to Cabinet Top; 11.0" Height to Suspension Bracket per piece
