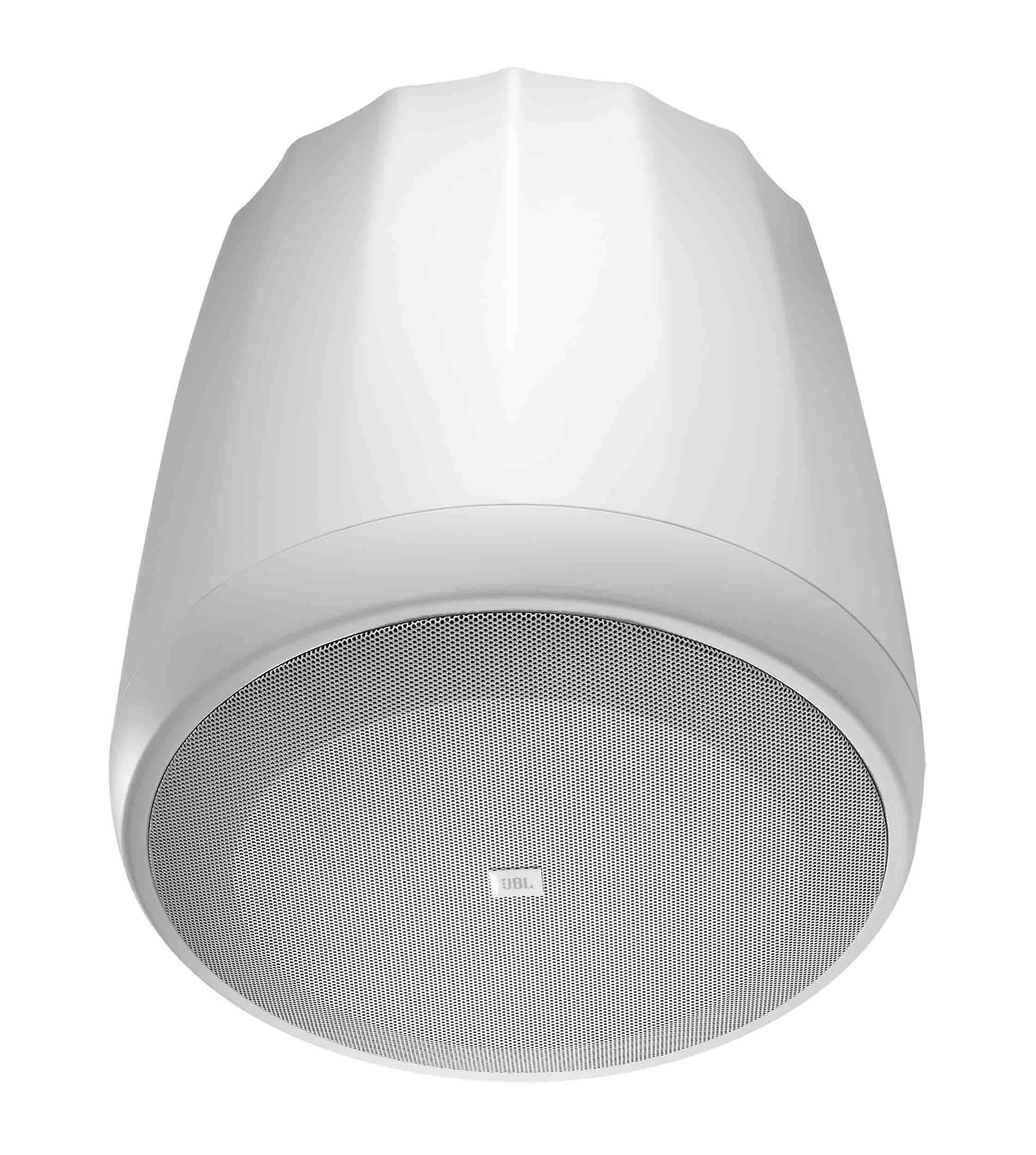

JBL C67P/T-WH, Extended Range Full Range Pendant Speaker in White - Pair

The JBL Control 67P/T-WH Pair is an extended-range full-range pendant loudspeaker system designed for high-fidelity music reproduction in commercial and distributed audio environments. Each speaker features JBL's RBI Radiation Boundary Integrator technology with a 120° conical coverage pattern for consistent sound distribution throughout the listening area. The large 165 mm 6.5-inch low-frequency driver uses a polypropylene-coated paper cone with a pure butyl rubber surround, while the 25 mm 1-inch textile soft-dome high-frequency driver provides detailed treble reproduction. The larger enclosure and high-power transducer provide extended bass response and make the pair suitable for restaurants, hospitality venues, retail spaces, leisure environments, and other open-architecture installations.

Each Control 67P/T-WH provides 75W continuous pink-noise power with 300W peak capability and 150W continuous program power. The 8-ohm design supports direct low-impedance operation as well as 70V/100V distributed audio through its built-in multi-tap transformer, with 60W, 30W, 15W, and 7.5W taps at 70V and 60W, 30W, and 15W taps at 100V. With 90 dB sensitivity, 120° conical coverage, and maximum SPL of 109 dB continuous pink noise and 115 dB peak, the speakers provide broad and dependable audio distribution. The combination of extended frequency response and controlled dispersion can help provide high-quality music and voice reproduction while allowing efficient speaker placement.

Each speaker features a high-impact polystyrene enclosure with a zinc-plated steel grille, powder-coat finish, and removable foam backing for painting. Environmental protection exceeds Mil Spec 810 requirements for humidity, salt spray, temperature, and UV exposure, while IP44 capability provides splash-proof protection. Two 15-foot high-tensile galvanized steel suspension cable systems are included with each speaker for main and safety suspension, with adjustable Gripple cable fasteners for flexible installation height. The JBL Control 67P/T-WH Pair combines extended-range performance, RBI technology, flexible transformer operation, broad coverage, and secure pendant suspension for professional commercial sound installations.

Product Specifications:

Product Type: Extended-Range Full-Range Pendant Loudspeaker Pair

Quantity: 2 Loudspeakers

Application: Distributed Audio, Commercial Sound, Open-Architecture Ceiling Installations

Technology: RBI Radiation Boundary Integrator

Color: White

Frequency Range: 58 Hz to 18 kHz, -10 dB

Frequency Response: 78 Hz to 16 kHz, ±3 dB

Power Rating: 75W Continuous Pink Noise, 300W Peak, 150W Continuous Program

Nominal Sensitivity: 90 dB

Coverage Angle: 120° Conical

Directivity Factor: Q 5.7

Directivity Index: 7.5 dB

Maximum SPL: 109 dB Continuous Pink Noise, 115 dB Peak at 1m

Impedance: 8 Ohms

Transformer Taps: 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W

Transformer Insertion Loss: 0.5 dB at 7.5W, 0.5 dB at 15W, 0.6 dB at 30W, 0.7 dB at 60W

Low-Frequency Driver: 165 mm, 6.5" Polypropylene-Coated Paper

LF Driver Surround: Pure Butyl Rubber

LF Voice Coil: 25 mm, 1" Copper

LF Voice Coil Former: Vented Fiberglass Resin

High-Frequency Driver: 25 mm, 1" Textile Soft-Dome

HF Magnet: Neodymium

HF Cooling: Ferro-Fluid

HF Voice Coil Former: Aluminum

Enclosure Material: High-Impact Polystyrene

Grille: Zinc-Plated Steel with Powder-Coat Finish, Removable Foam Backing

Outdoor Capability: Mil Spec 810, IP44 Splash-Proof Capability

Input Connectors: Two Removable Locking 2-Pin Euroblock Connectors per Speaker

Connector Configuration: Input and Loop-Thru, Paralleled

Maximum Wire Size: 12 AWG, 2.5 mm²

Terminal Covers: Rubber Covers Included

Suspension System: Two 15 ft Galvanized Steel Cable Systems per Speaker

Cable Diameter: 2 mm

Cable Safe Working Load: 99 lbs., 45 kg

Suspension Adjustment: Adjustable Gripple Cable Fasteners

Product Weight: 11.5 lbs. per piece

Product Dimensions (L x W x H): 13.1" x 13.1" x 13.8" per piece
