Description

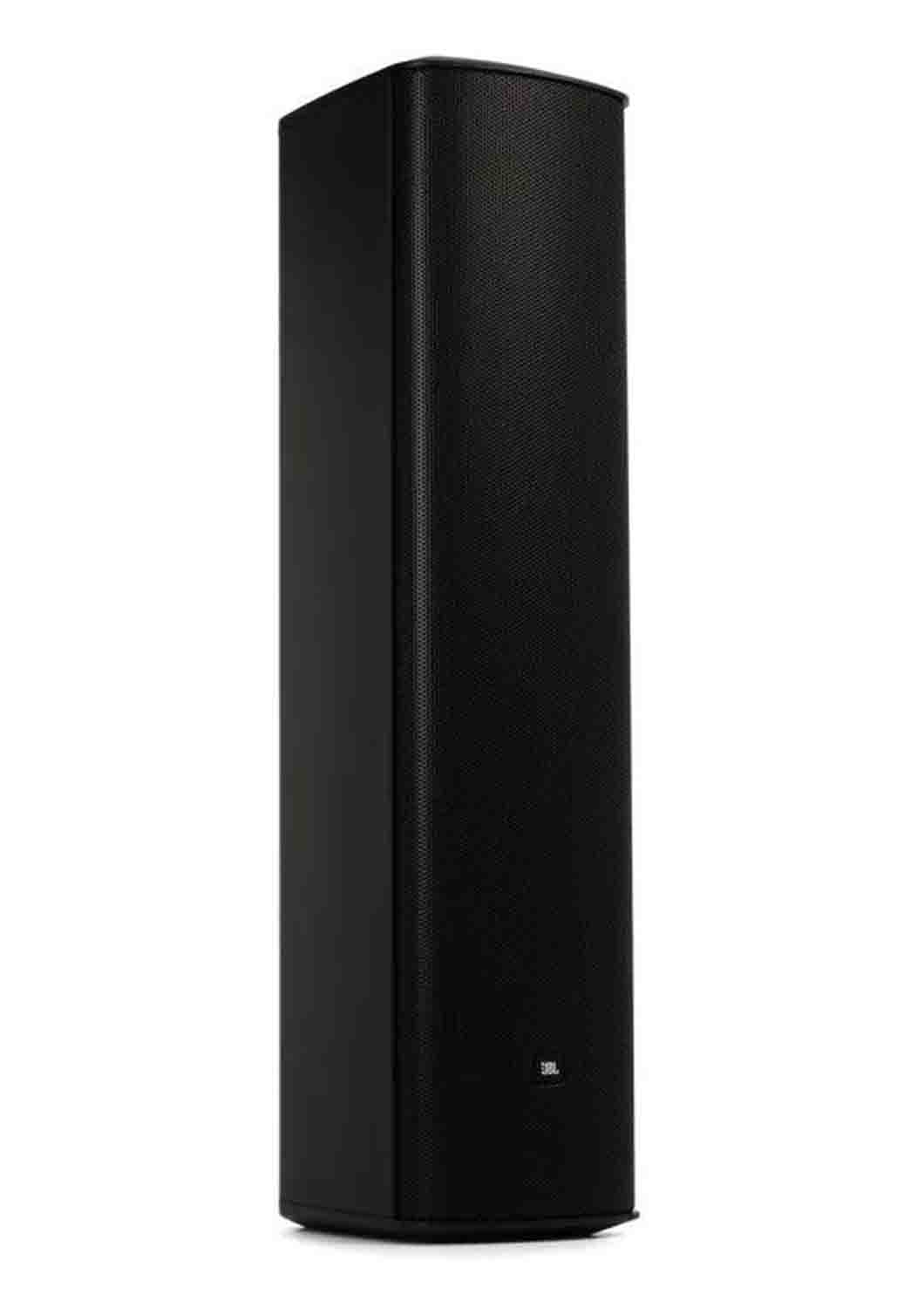

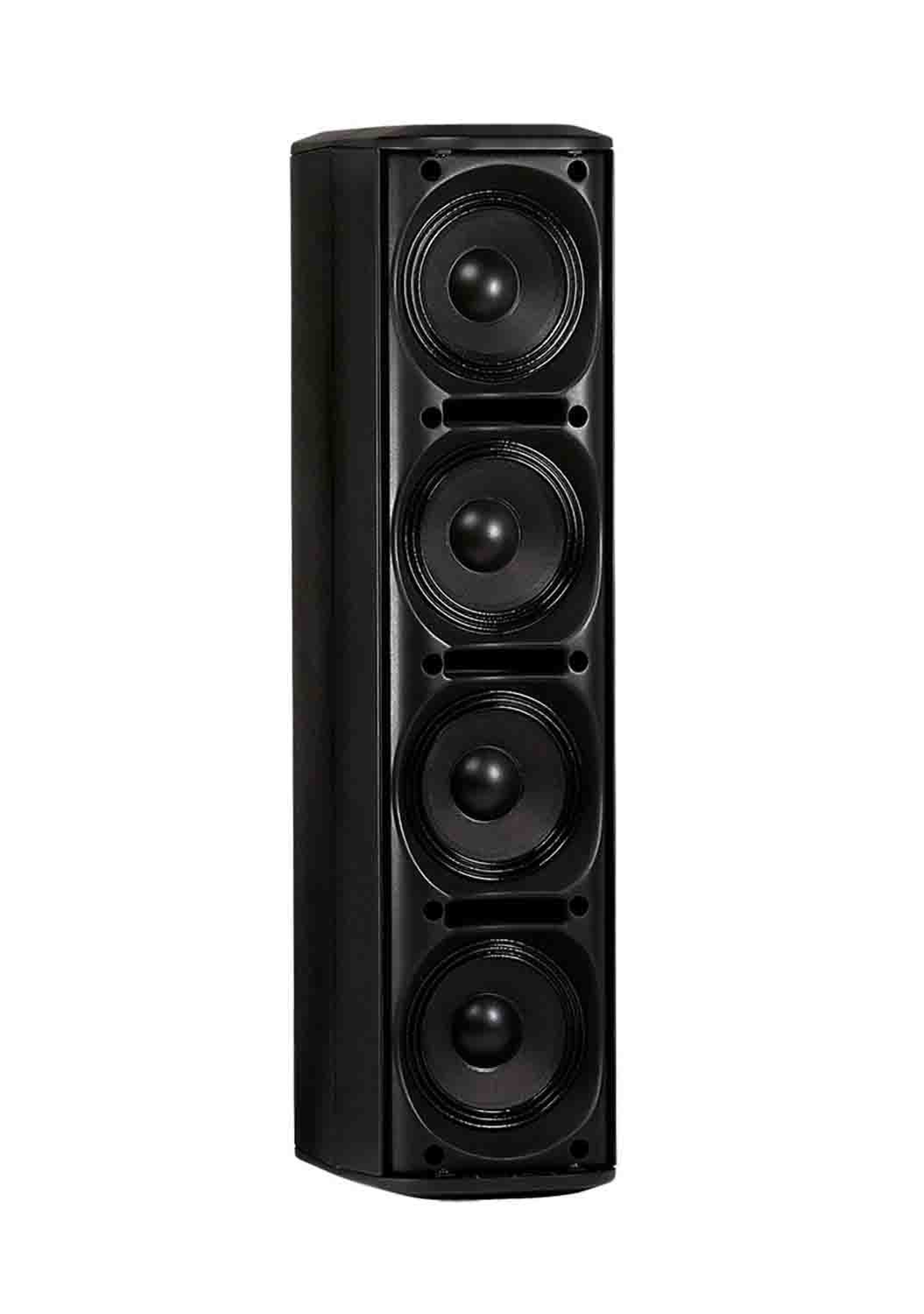

The JBL CBT 1000E is a Purpose-Designed Extension Loudspeaker for CBT 1000 Column Installation Speaker. The CBT 1000E cabinet contains six low-frequency drivers and a crossover network purposely designed for use in the CBT 1000 + 1000E system, in tough fiberglass reinforced ABS enclosure. The 1500W power handling and high sensitivity deliver powerful low-frequency output. The drivers have neodymium magnet motors with 50 mm (2 in) diameter voice coils. The magnet system provides maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 16 mm (0.62 mm) long coil provides higher linear drive and high-power handling in a compact driver. The drivers feature damped blended surrounds and coated sealed paper cones found in high per high-performance mat drivers. Drivers feature coated diaphragm materials to provide moisture, UV, and salt, resistance for outdoor capability. The thick heavy-duty aluminum grille allows for rust-free installation outdoors.
Applications
Combining superior sound quality, excellent pattern control, asymmetrical vertical coverage, continuously tapered horizontal dispersion, and compact. The design makes the CBT 1000+1000E System ideal for applications such as performance auditoriums, houses of worship, lecture halls, classrooms, cinema main speakers or very high-output surrounds, multipurpose spaces, A /V, transit centers, sports facilities, racetracks, theme parks, outdoor locations, and high-level fill applications among many others.
Product Specifications:
LF Driver Size: 6 x 6.5" Neodymium woofer
Power Rating: 1500W (2 hours), 1000W (100 hours)
Total Power: 4000W (100 hours)
Impedance: 8 ohms
Inputs: 1 x Dual Bare Wire terminals
Frequency Range: 38Hz-650Hz
Maximum Peak SPL: 124-130 dB SPL @ 1m (half-space, full space)
Horizontal Coverage Angle: 100-160 Degrees
Enclosure Material: Fiberglass reinforced ABS cabinet, powder-coated black 1050 aluminum grille
Mounting Options: 22 x M8 Fly Points (back, top, bottom), Wall Mount (hardware included)
Dimension (H x W x D): 40.2" x 9.9" x 11.6"
Weight: 44 lbs
