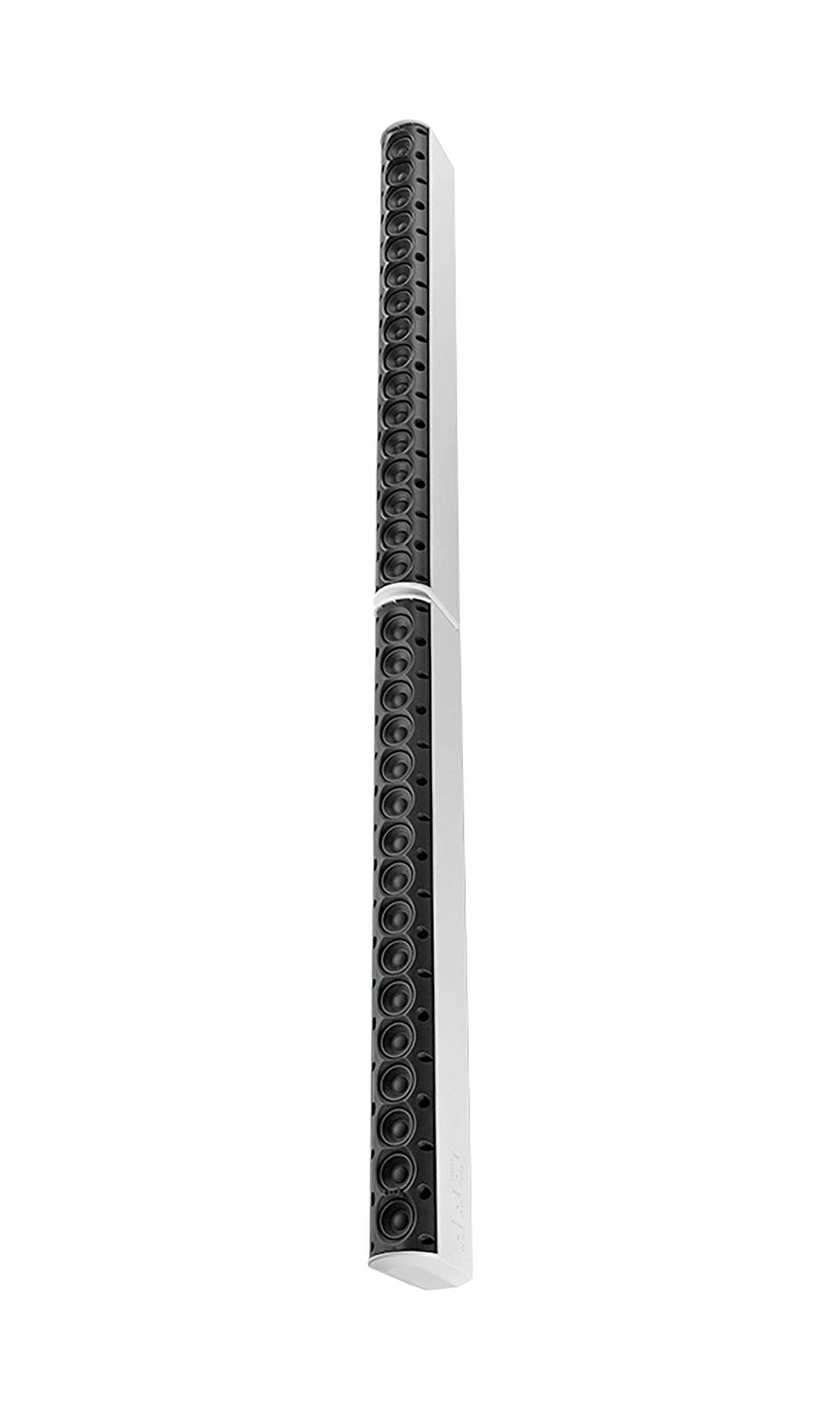

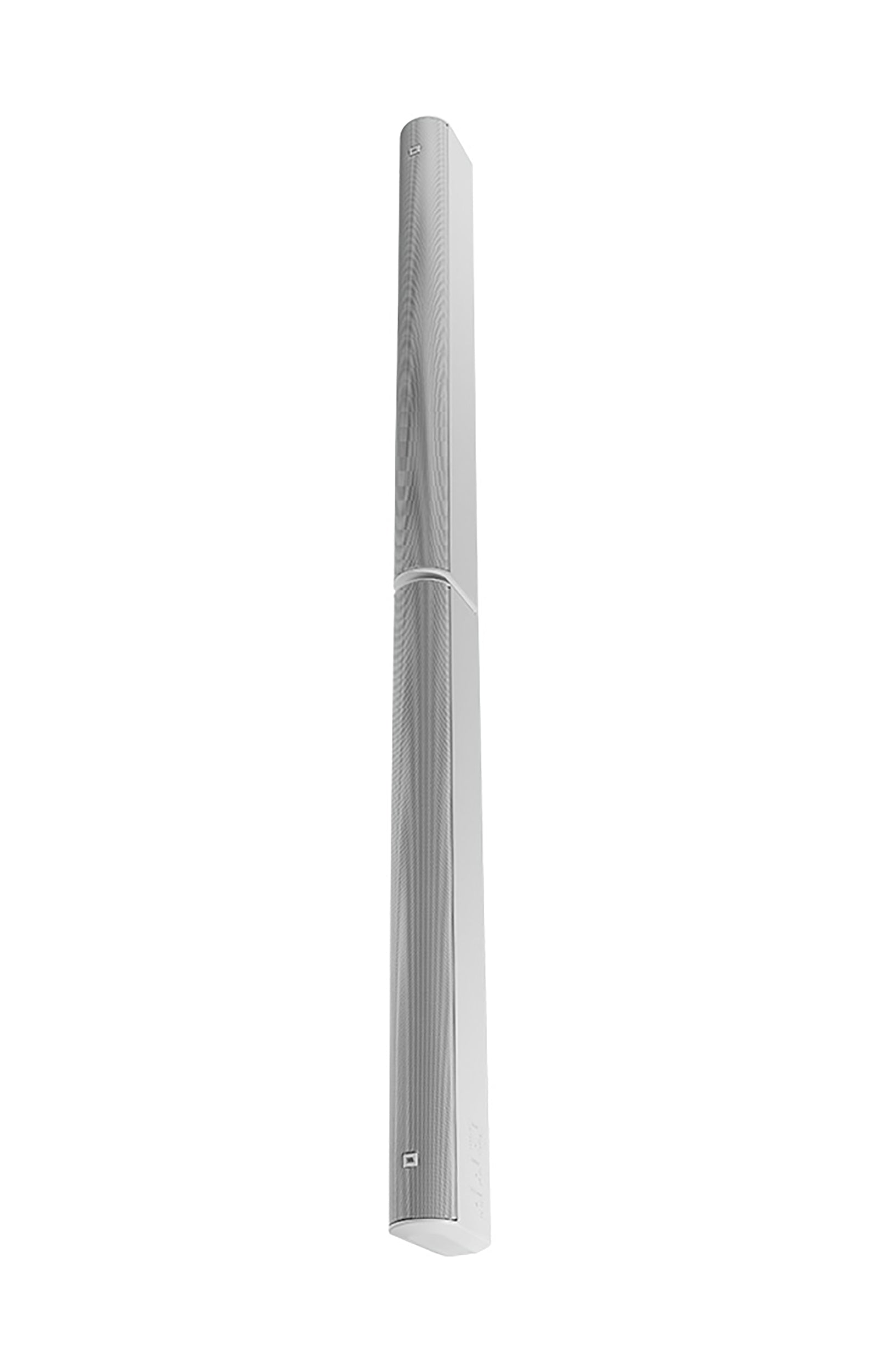

JBL CBT 200LA-1-WH Line Array Column Speaker w/ Thirty-Two 50 - White

The JBL CBT 200LA-1-WH, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and nonpowered column speakers.

Product Specifications:

Drivers: Thirty-two 50 mm (2 in) Full-Range Drivers

Frequency Range (-10dB): 80 Hz – 20 kHz

Frequency Response (±3 dB): 130 Hz – 18 kHz (narrow coverage, music mode setting)

Sensitivity - Narrow: 95 dB (2 kHz – 5 kHz)(music mode): 92 dB (150 Hz – 18 kHz)

Sensitivity - Broad: 93 dB (2 kHz – 5 kHz)(music mode): 90 dB (150 Hz– 18 kHz)

Impedance: 8Ω per half (top and bottom) for 4 ohms total (in thru mode).Min-Z for system = 2.9Ω.

Power Rating: 650W (2600W peak), 2 hrs400W (1600W peak) 100 hrs

Max SPL - Narrow: (speech mode): 123 dB cont ave (129 dB peak)(music mode): 120 dB cont ave (126 dB peak)

Max SPL - Broad: (speech mode): 121 dB cont ave (127 dB peak)(music mode): 118 dB cont ave (124 dB peak)

Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille

Color: White (-WH)

Insert Points: 28 M6 insert points on back panel.

Dimensions (H x W x D): 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in)

Net Weight: 14.6 kg (33 lb)

Included Accessories: Swivel (pan) / tilt wall bracket, Coupler plate
