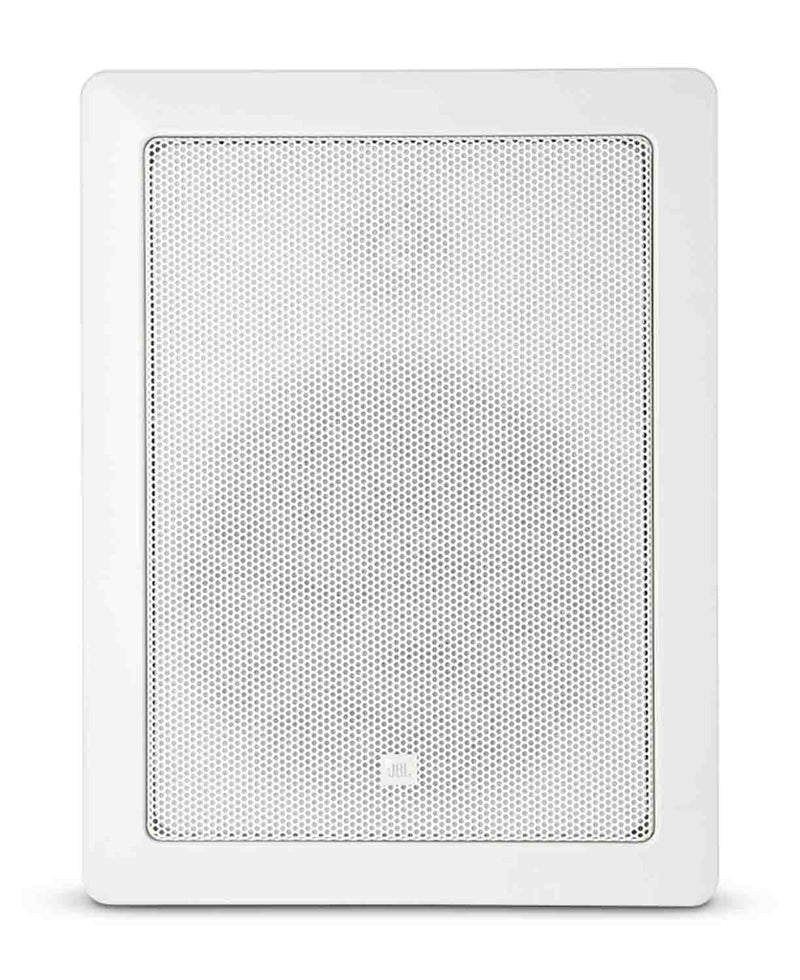

JBL CONTROL 126 W, 6.5" Premium In-Wall Loudspeaker - Pair

The JBL Control 126W Pair is a premium in-wall loudspeaker system designed for high-quality foreground music, critical listening, and professional commercial installations where strong performance with minimal visual impact is required. Each speaker features a 165 mm 6.5-inch polymer-coated aluminum-cone low-frequency driver with a pure butyl rubber surround for controlled and extended bass response. A 25 mm 1-inch pure-titanium dome high-frequency driver provides detailed high-frequency reproduction and is mounted on a low-diffraction swivel mechanism for flexible aiming. The pair delivers an extended frequency range of 38 Hz to 20 kHz, making it suitable for a wide variety of music and audio applications.

Each Control 126W provides 50W continuous pink-noise power handling, 100W continuous program power, and 200W peak power capability. Its 8-ohm impedance supports conventional low-impedance amplifier systems, while the 3rd-order 18 dB/octave crossover network provides controlled low-pass filtering to the woofer and high-pass filtering to the tweeter. With 88 dB sensitivity and a broad 180° horizontal by 160° vertical coverage pattern, the speakers provide consistent sound distribution across listening areas. An optimum air cavity of 20 to 40 liters behind each speaker helps support proper in-wall performance.

The Control 126W is designed for applications including boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround-sound locations, and other critical listening environments. The compact in-wall design measures 11.0" x 8.5" x 4.1", with a required cutout of 9.7" x 7.2" and support for wall thicknesses up to 1.25". A screw-down Euroblock-type input connector accepts wire sizes up to 14 AWG, while included cutout templates and paint shields simplify installation. Optional WB6 rough-in frames can be used for new-construction installations to wall studs, making the Control 126W Pair a flexible solution for discreet professional audio integration.

Product Specifications:

Product Type: Premium In-Wall Loudspeaker Pair

Quantity: 2 Loudspeakers

Application: Foreground Music, Boardrooms, Reception Areas, Airports, Convention Centers, Cruise Ships, Retail, Restaurants, Museums, and Critical Listening

Frequency Range: 38 Hz to 20 kHz, -10 dB

Power Rating: 50W Continuous Pink Noise, 100W Continuous Program, 200W Peak

Sensitivity: 88 dB SPL

Coverage Angle: 180° Horizontal x 160° Vertical

Nominal Impedance: 8 Ohms

Low-Frequency Driver: 165 mm, 6.5" Polymer-Coated Aluminum Cone

LF Driver Surround: Pure Butyl Rubber

High-Frequency Driver: 25 mm, 1" Pure-Titanium Dome

HF Mount: Low-Diffraction Swivel Mount

Tweeter Aimability: -10°

Crossover Network: 3rd Order, 18 dB/Octave Low Pass and High Pass

Input Connector: Screw-Down Euroblock-Type Connector

Maximum Wire Size: 14 AWG, 1.5 mm²

Optimum Air Cavity: 20 to 40 Liters, 0.7 to 1.4 Cubic Feet

Maximum Wall Thickness: 1.25"

Product Weight: 4.5 lbs. per piece

Product Dimensions (L x W x H): 11.0" x 8.5" x 4.1" per piece
