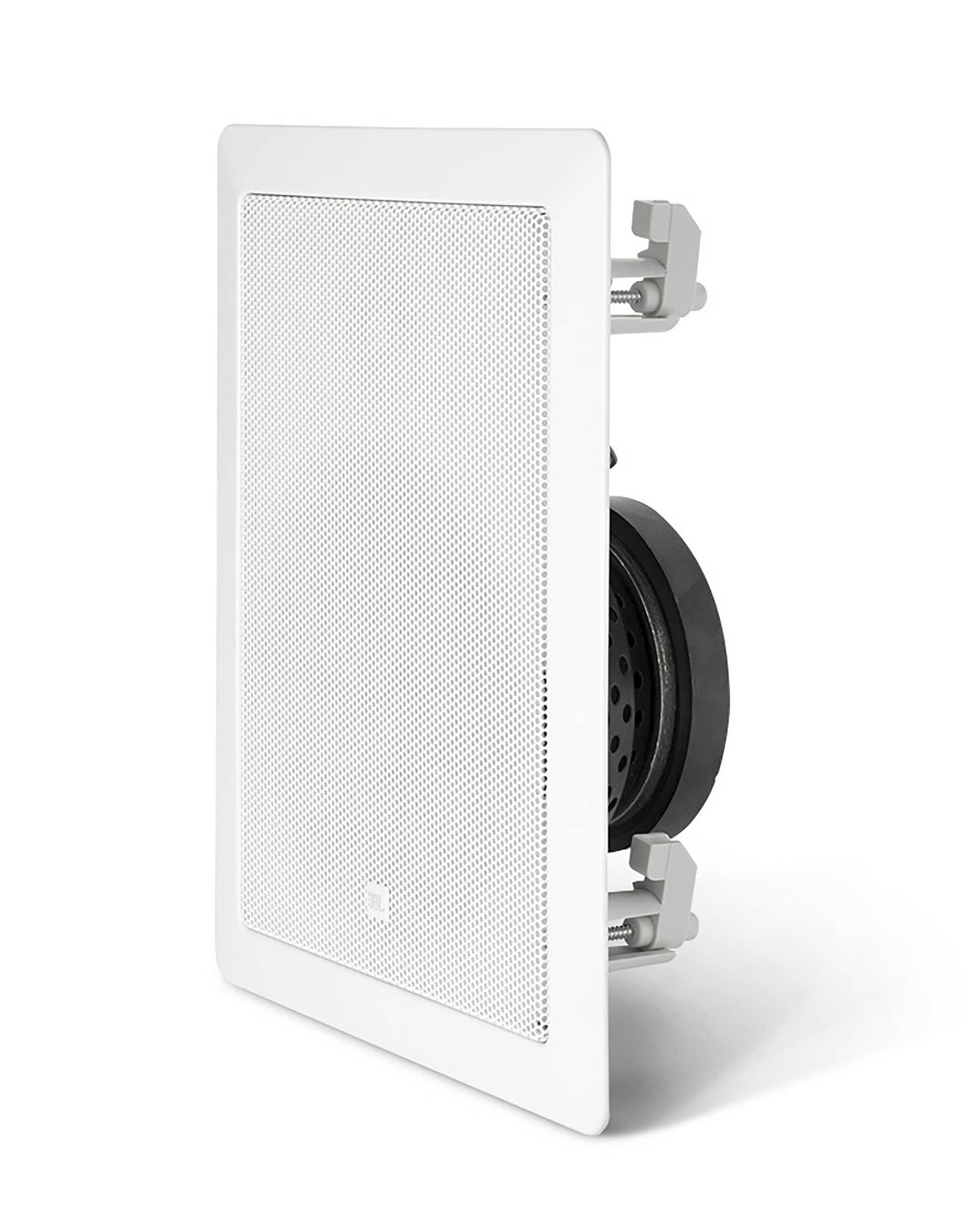

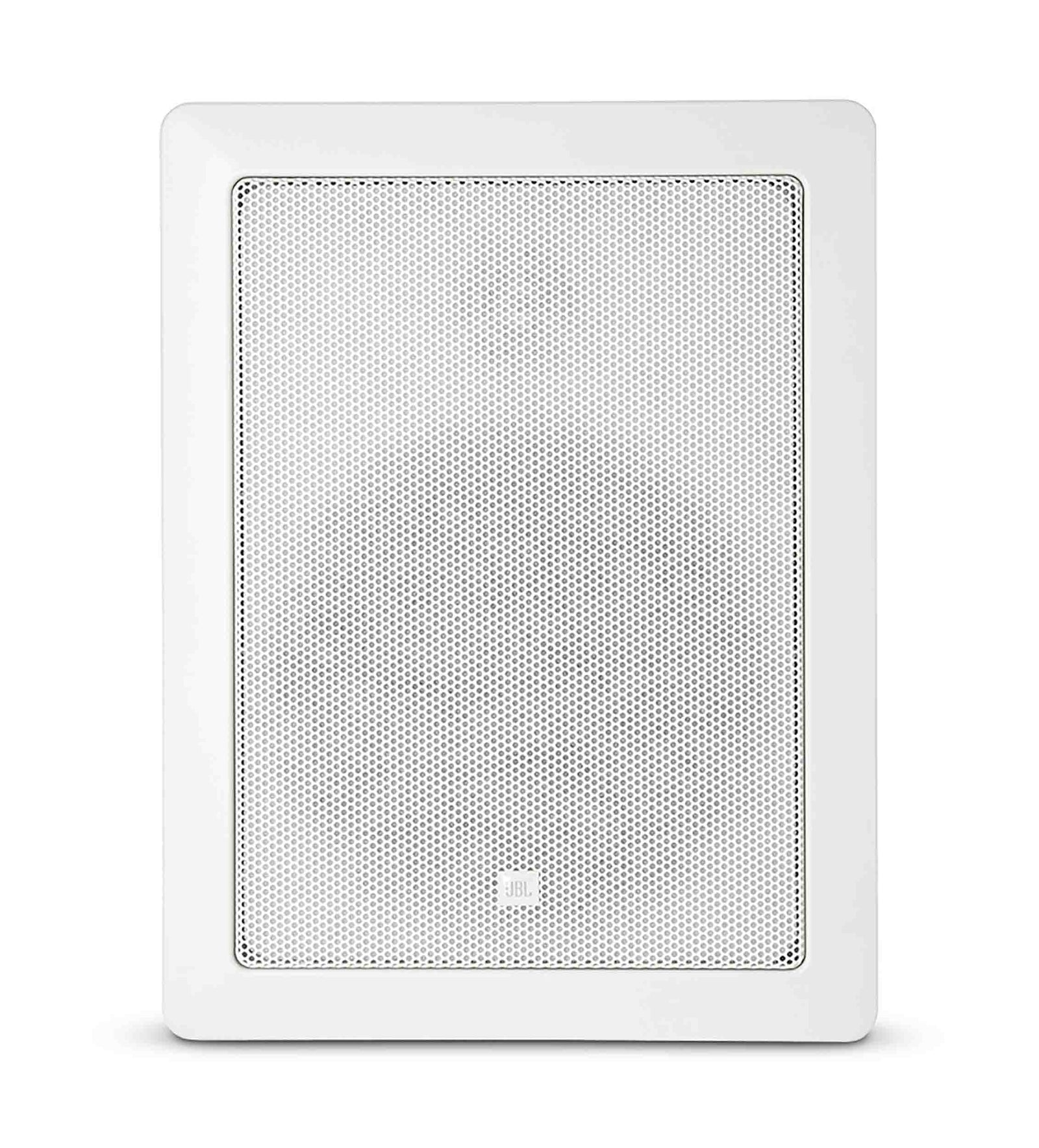

JBL CONTROL 126WT, 6.5" Two Way 100W In-Wall 70V/100V Installation Speakers in White - Pair

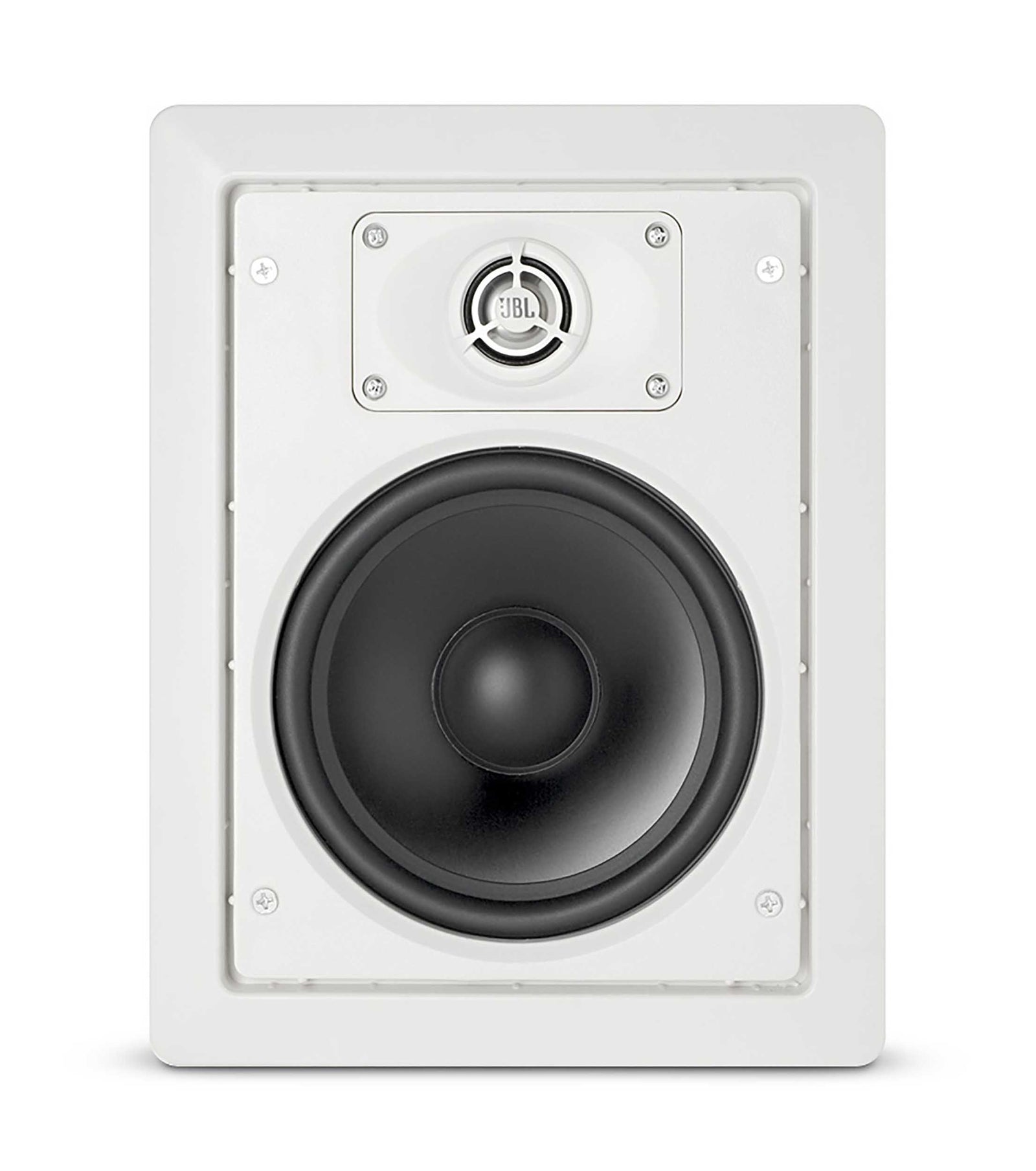

The JBL Control 126WT Pair is a premium in-wall loudspeaker system designed for foreground music, critical listening, and professional commercial installations where high-quality sound and minimal visual impact are important. Each speaker features a 165 mm 6.5-inch polymer-coated aluminum-cone woofer with a pure butyl rubber surround for controlled low-frequency reproduction. A 25 mm 1-inch pure-titanium dome tweeter is mounted on a low-diffraction swivel mechanism with -10° aimability, allowing the high-frequency response to be directed toward the listening area. The pair provides extended bandwidth from 38 Hz to 20 kHz for detailed full-range audio reproduction.

Each Control 126WT provides 50W continuous pink-noise power handling, 100W continuous program power, and 200W peak power capability. The 8-ohm loudspeaker incorporates a 70V transformer with selectable 30W, 15W, 7.5W, and 3.7W taps for flexible distributed-audio system design. With 88 dB SPL sensitivity and broad 180° horizontal by 160° vertical coverage, the speakers provide consistent sound distribution across a wide listening area. The 3rd-order 18 dB/octave crossover network applies high-slope filtering to both the woofer and tweeter for smooth and natural midrange reproduction.

The Control 126WT is suited for boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, and other critical listening environments. Each speaker measures 11.0" x 8.5" x 4.1" externally and requires a 9.7" x 7.2" wall cutout, with support for wall thicknesses up to 1.25". A screw-down Euroblock-type connector accepts wire sizes up to 14 AWG, while the included cutout template and paint shield simplify installation. The pair combines discreet in-wall integration, wide coverage, extended frequency response, flexible 70V operation, and high-quality component construction.

Product Specifications:

Product Type: Premium In-Wall Loudspeaker Pair

Quantity: 2 Loudspeakers

Application: Foreground Music, Boardrooms, Reception Areas, Airports, Convention Centers, Cruise Ships, Retail, Restaurants, Museums, Surround Locations, and Critical Listening

Frequency Range: 38 Hz to 20 kHz, -10 dB

Power Rating: 50W Continuous Pink Noise, 100W Continuous Program, 200W Peak

Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W

Sensitivity: 88 dB SPL

Coverage Angle: 180° Horizontal x 160° Vertical

Nominal Impedance: 8 Ohms

Low-Frequency Driver: 165 mm, 6.5" Polymer-Coated Aluminum Cone

LF Driver Surround: Pure Butyl Rubber

High-Frequency Driver: 25 mm, 1" Pure-Titanium Dome

HF Mount: Low-Diffraction Swivel Mount

Tweeter Aimability: -10°

Crossover Network: 3rd Order, 18 dB/Octave Low Pass to Woofer and High Pass to Tweeter

Input Connector: Screw-Down Euroblock-Type Connector

Maximum Wire Size: 14 AWG, 1.5 mm²

Optimum Air Cavity: 20 to 40 Liters, 0.7 to 1.4 Cubic Feet

Maximum Wall Thickness: 1.25"

Installation to Wall Studs

Product Weight: 5.9 lbs. per piece

Product Dimensions (L x W x H): 11.0" x 8.5" x 4.1" per piece
