Description

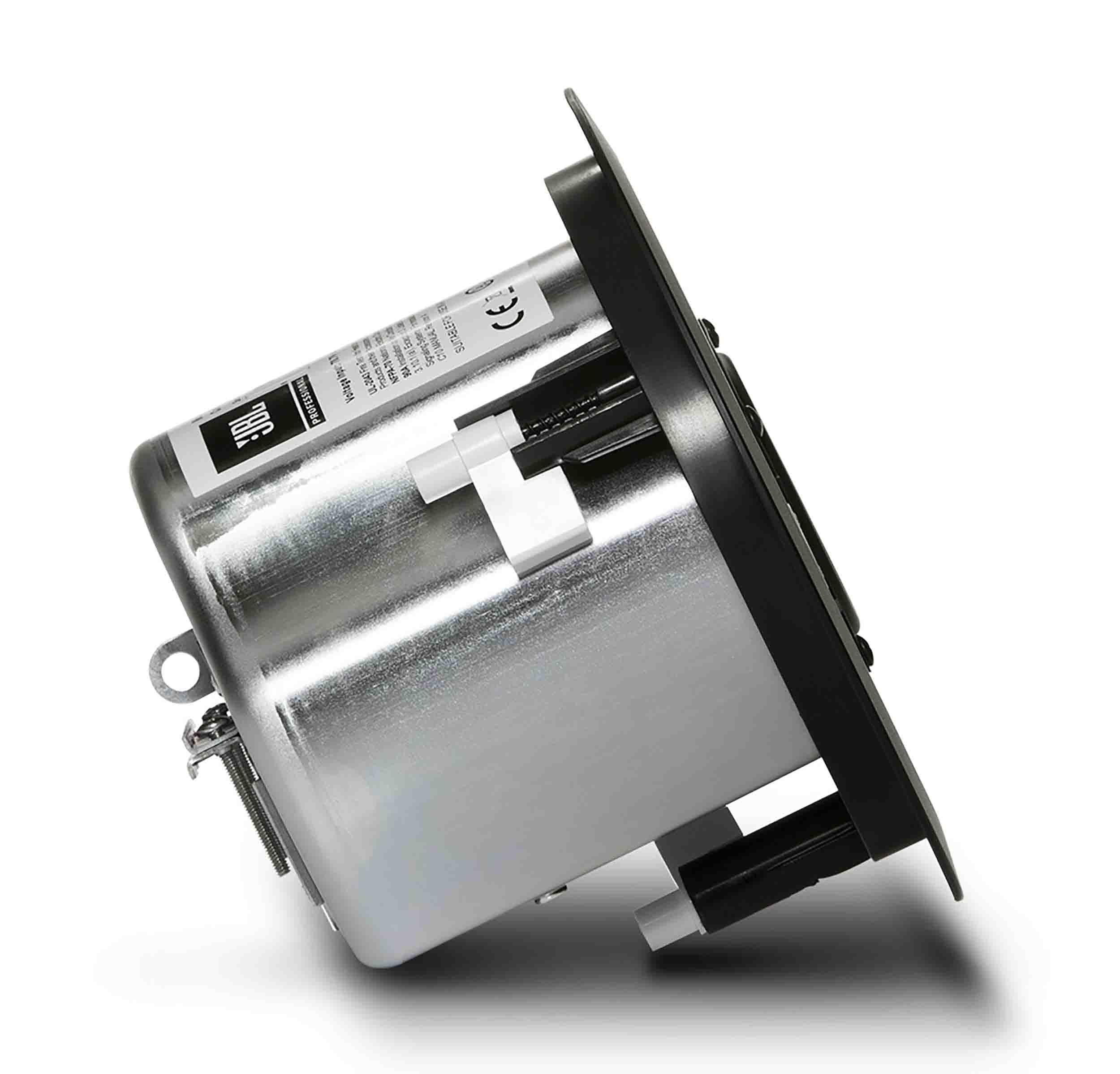

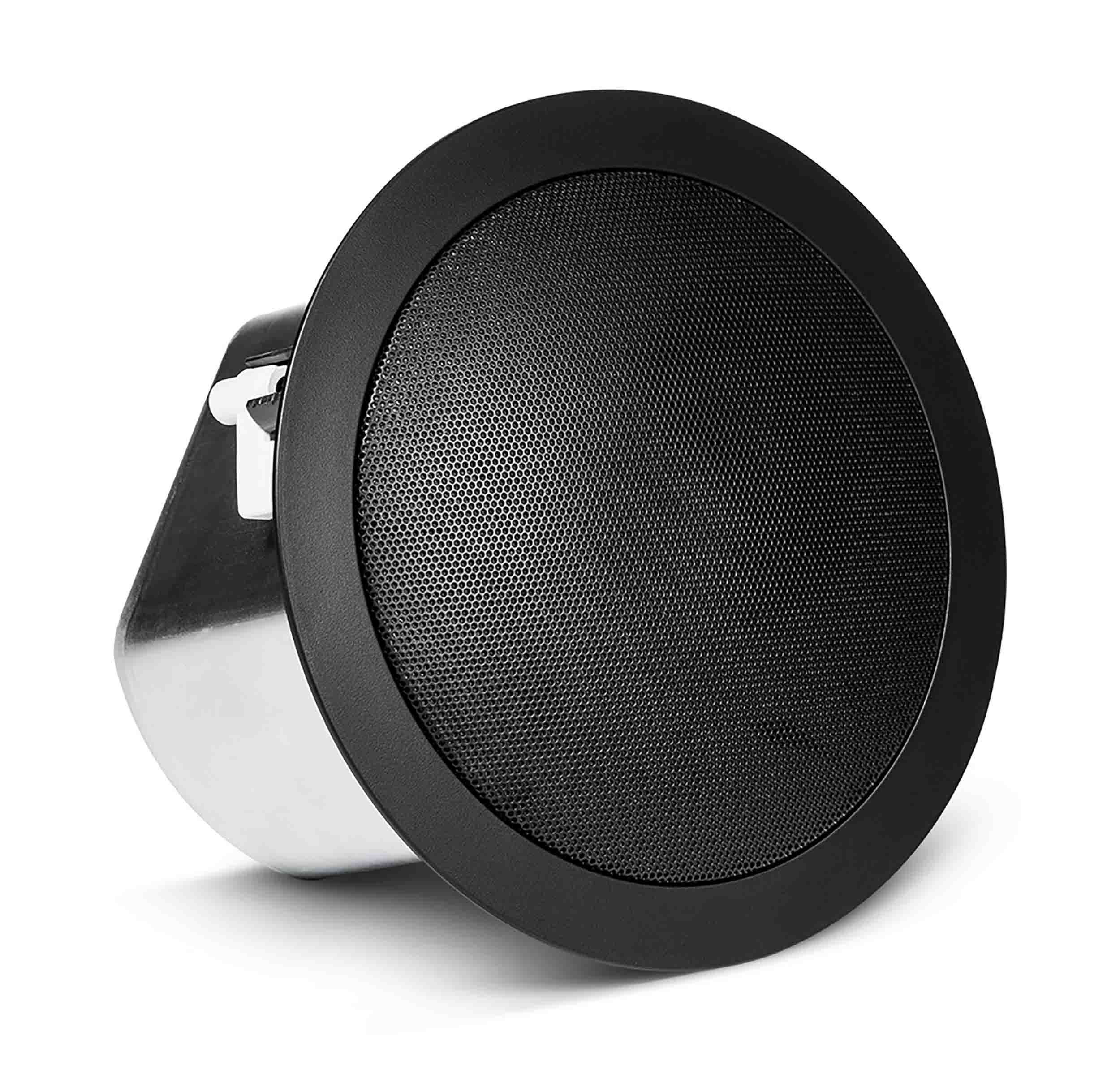

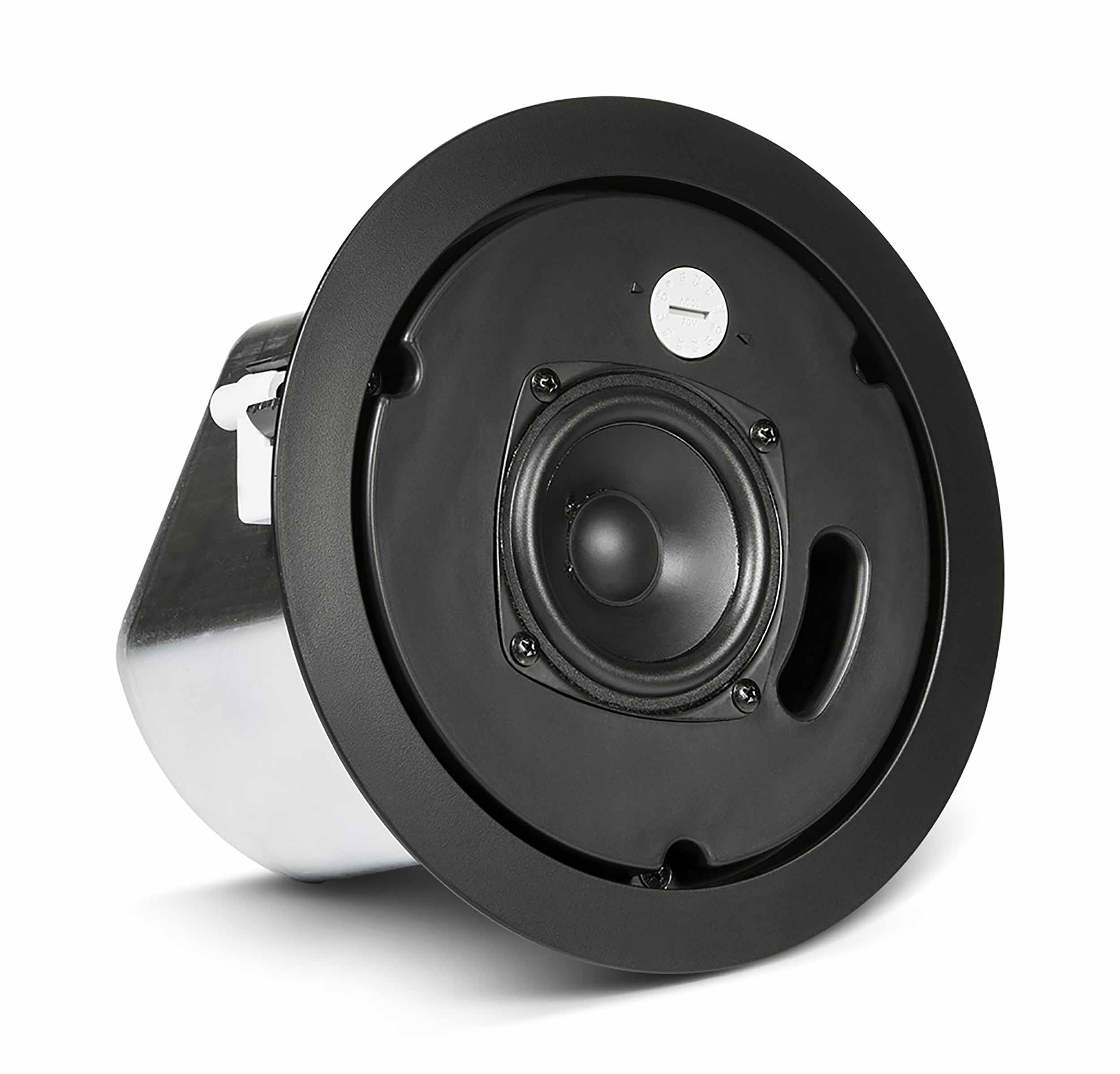

The JBL CONTROL 12C/T-BK, Professional Series 3" 40W Passive Ceiling Loudspeaker - White is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a pre-attached blind-mount backcan for quick and easy installation.
Product Specifications:
Color: Black
Frequency Range (-10dB): 68 Hz – 17 kHz
Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB): 95 Hz – 15 kHz
Sensitivity: 84 dB (1kHz - 16 kHz)
Coverage Angle: 130° conical
Directivity Factor (Q): 9.8
Directivity Index (DI): 7.4 dB
Maximum SPL (1m):
97 dB (low-impedance, 103 dB peak)
96 dB (top 70V/100V tap)
Impedance: 8 ohms (in direct/bypass 8Ω setting)
Input Connectors:
Removable locking 4-pin connector with screw-down terminals.
Max wire size 12 AWG (2.5 mm2)
Connector Wiring:
Pin 1 = + In
Pin 2 = - In
Pin 3 = + Loop Thru
Pin 4 = - Loop Thru
Materials:
ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Zinc-plated steel backcan.
Dimensions: 196 mm diameter x 138 mm depth from back of baffle
Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)
Safety Seismic Attachment: One point, top surface
Weight: 1.6 kg (3.5 lbs., one speaker)
Backcan: formed steel (included "blind-mount")
Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
Shipping Weight: 15 lbs.
Shipping Dimensions: 27 x 10 x 10
