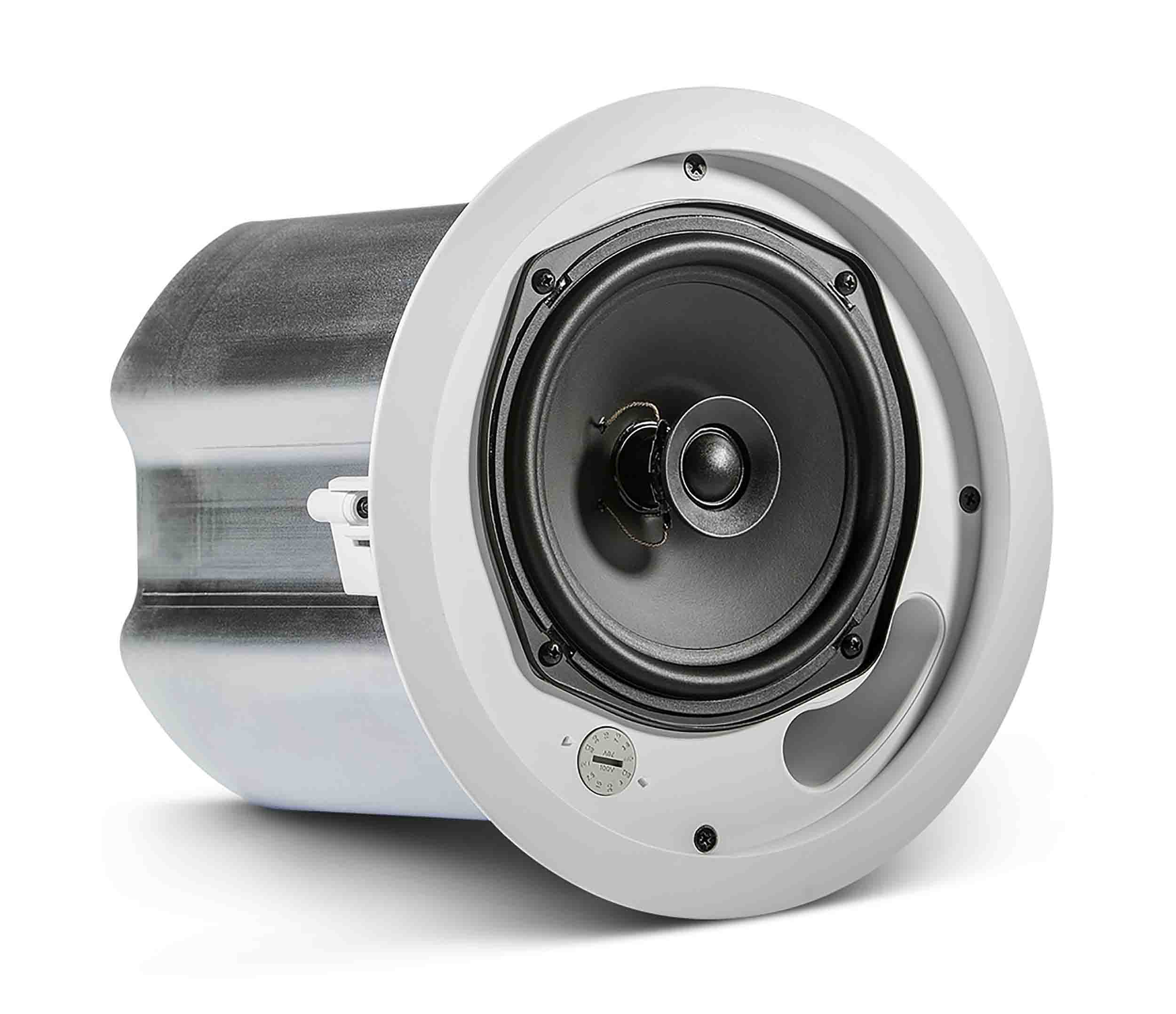

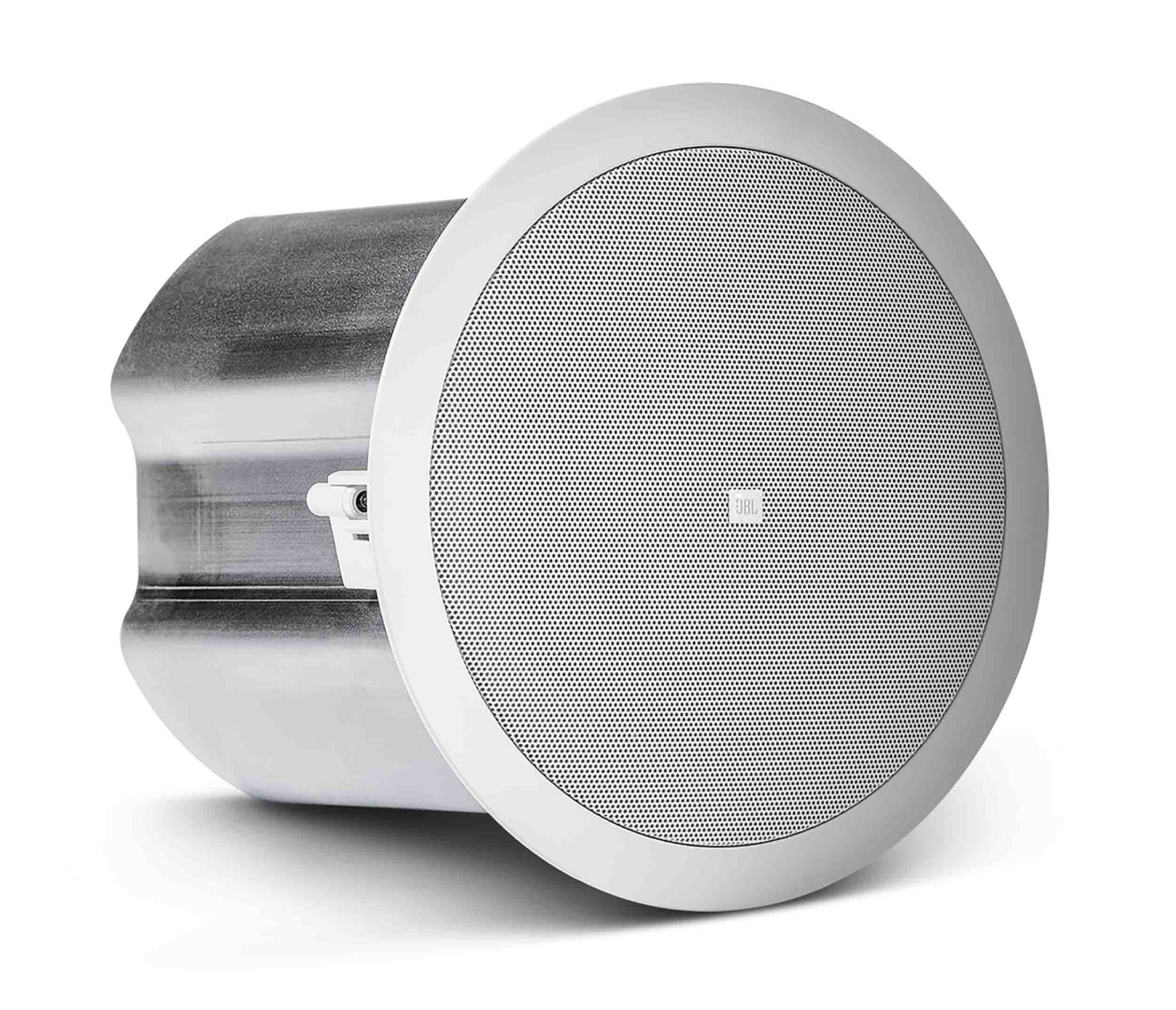

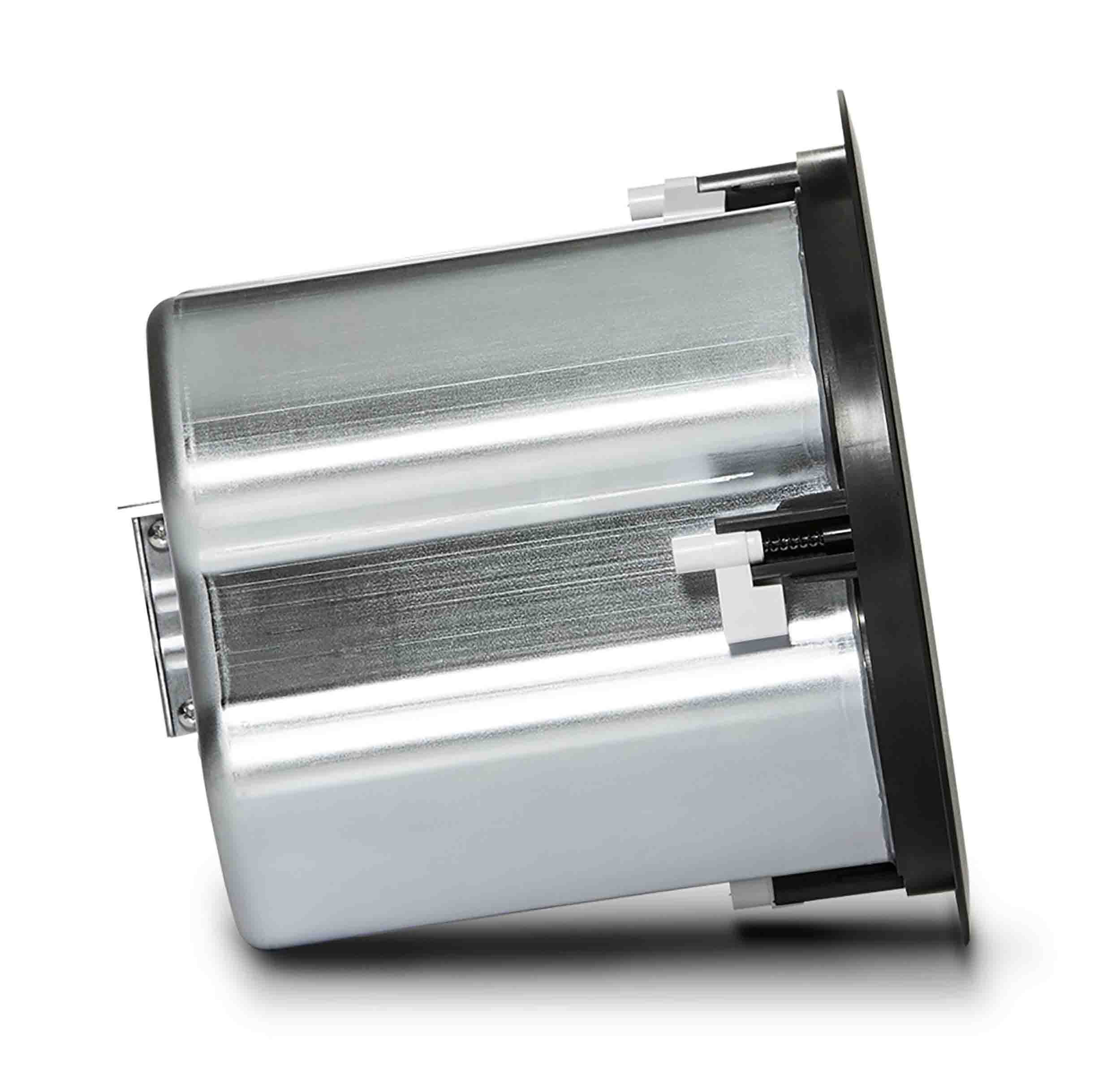

JBL CONTROL 16C/T, Two Way 6.5" Coaxial Ceiling Loudspeaker in White - Pair

The JBL 6.5-inch Two-Way Ceiling Loudspeaker Pair in White provides high-quality full-range audio for commercial, professional, and distributed sound installations. Each speaker combines a 165 mm, 6.5-inch low-frequency driver with a 19 mm, 3/4-inch high-frequency driver for smooth and detailed audio reproduction. With a 62 Hz to 20 kHz frequency range, 91 dB sensitivity, and 110° conical coverage, the pair provides consistent sound throughout a wide listening area.

Each loudspeaker supports both 8-ohm low-impedance operation and 70V or 100V distributed audio systems. The 30W multi-tap transformer provides 30W, 15W, and 7.5W settings at 70V or 100V, plus a 3.8W setting at 70V. The removable locking 4-pin connector provides secure input and loop-through connections, while the integrated strain relief supports two cables or flexible conduits for professional installation.

The speakers feature fire-rated ABS baffles and zinc-plated steel backcans for reliable commercial use. Each unit includes a C-ring support backing plate, two tile support rails, cutout template, paint shield, removable locking connector, and grille. With UL1480 and UL2043 compliance and suitability for air-handling spaces, this pair is well suited for schools, offices, retail environments, meeting spaces, hospitality venues, and other professional audio installations.

Product Specifications:

Product Type: Two-Way Ceiling Loudspeaker Pair

Color: White

Quantity: 2 Speakers

Application: Commercial and Professional Distributed Audio

LF Driver: 165 mm, 6.5"

HF Driver: 19 mm, 3/4"

Frequency Range (-10 dB): 62 Hz to 20 kHz

Frequency Response (±3 dB): 96 Hz to 15 kHz

Sensitivity: 91 dB, 1 kHz to 16 kHz

Coverage Angle: 110° Conical

Directivity Factor (Q): 7.8

Directivity Index (DI): 8.2 dB

Maximum SPL: 108 dB at 1 m, Low-Impedance; 116 dB Peak

Maximum SPL, 70V/100V: 106 dB at 1 m

Impedance: 8 Ohms, Direct/Bypass Setting

Continuous Program Power: 100 Watts

Continuous Pink Noise Power: 50 Watts

Peak Power: 200 Watts

Transformer Taps: 30W, 15W, 7.5W at 70V/100V; 3.8W at 70V

Crossover Network: 12 dB/Octave, 2nd Order

LF Crossover: Low-Pass to LF Driver

HF Crossover: High-Pass to HF Driver

Input Connector: Removable Locking 4-Pin Connector with Screw Terminals

Maximum Wire Size: 12 AWG, 2.5 mm²

Connector Wiring: Pin 1 + Input, Pin 2 - Input, Pin 3 + Loop Through, Pin 4 - Loop Through

Strain Relief: Two Cables or Two Flexible Conduits

Baffle Flammability: UL94-V0 and UL94-5VB

Backcan Material: Zinc-Plated Steel

Ceiling Cutout: 8.8" Diameter

Ceiling Thickness: Up to 1.5" with Stock Dog-Ears

Optional Thick-Ceiling Support: Up to 2.4" with MTC-TCD Dog-Ears

Safety-Seismic Attachment: One Top-Surface Attachment Point

Safety Certifications: UL1480, UL2043, NFPA90, NFPA70

Transformer Certification: UL Registered per UL1876

Compliance: RoHS, C-Tick N108, CE, IEC60849/EN60849
