Description

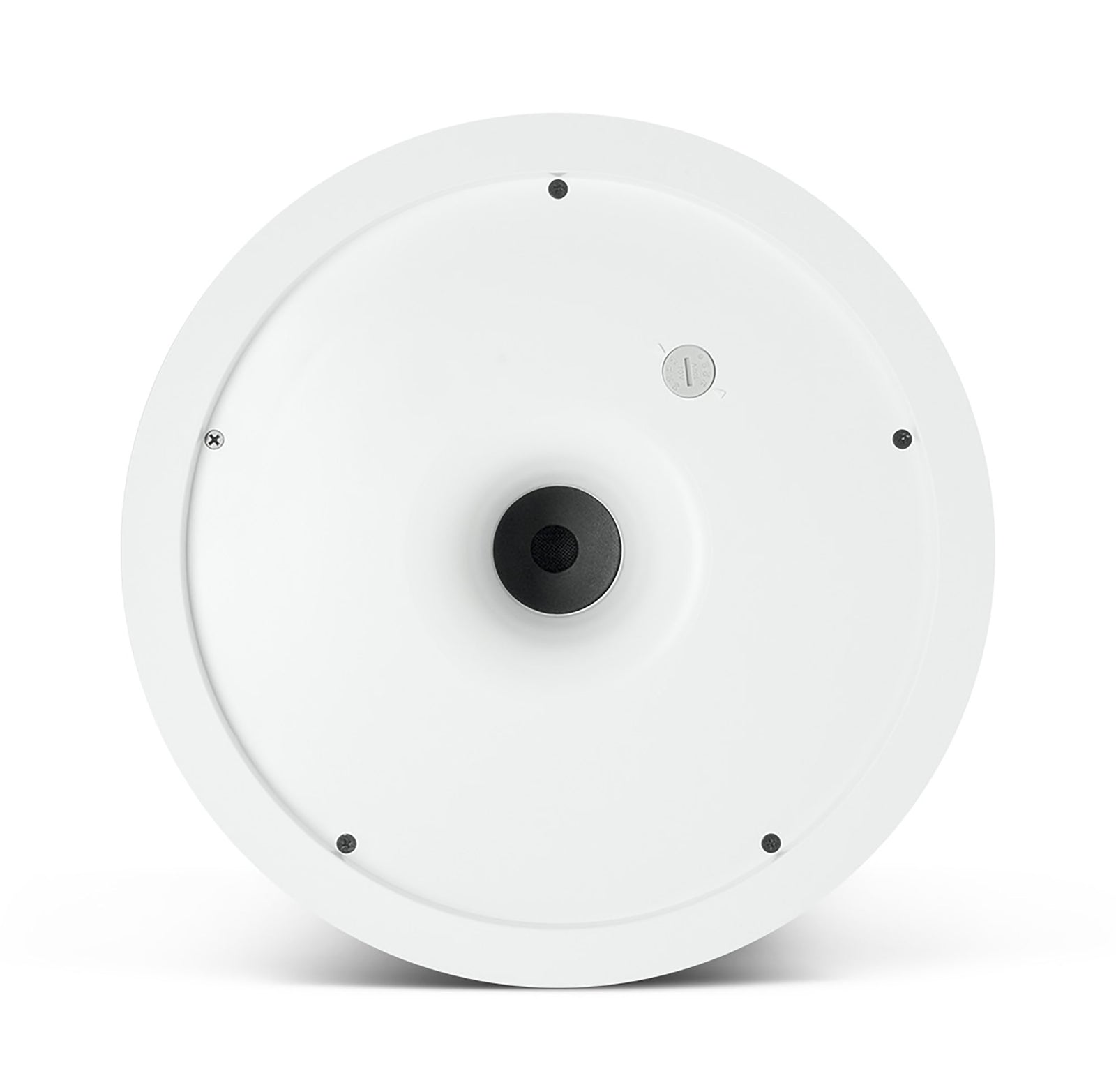

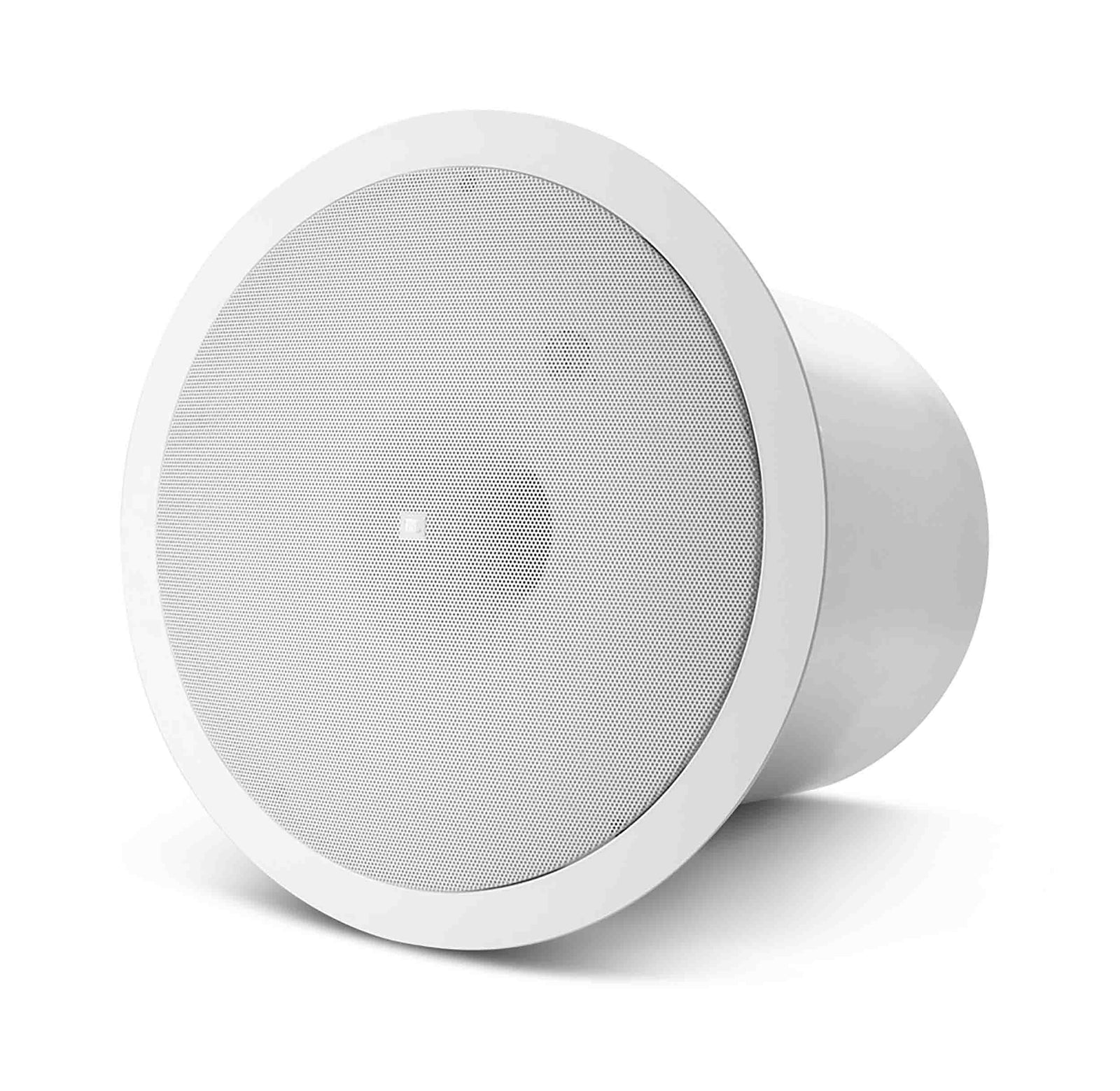

The JBL CONTROL 19CS is a passive 8" in-ceiling installation subwoofer with Sonic Guard overload protection circuitry designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 8-Ohm power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CS is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: Subwoofer
Power Handling: 100 W RMS
200 W Program
Impedance: 8 Ohms
LF Driver: 1 x 8" / 20 cm Polypropylene-Coated Woofer
Frequency Range: 42 Hz to 200 Hz -10 dB
Color: White
Number of Included Speakers: 2
Speaker Configuration: Subwoofer
Power Handling: 100 W RMS
200 W Program
Impedance: 8 Ohms
Enclosure Type: Bass-Reflex
Shielded: No
LF Driver: 1 x 8" / 20 cm Polypropylene-Coated Woofer
LF Voice Coil: 1.5" / 3.8 cm
Frequency Range: 42 Hz to 200 Hz -10 dB
Maximum SPL: 115 dB (Corner Mount)
Sensitivity: 95 dB SPL (Corner Mount)
89 dB SPL (Ceiling-Center Mount)
Coverage Angle: 180° (Conical)
Protections: Overvoltage
I/O: 1 x Screw Terminal 4-Pole Input/Thru (Locking, Removable)
Maximum Wire Gauge: 12 AWG
Certifications: UL
Environmental Protection: No
Color: White
Cutout Depth: 12.5" / 31.8 cm
Cutout Size: 12" / 30.5 cm
Construction Material: Medium-Impact Polystyrene, Steel
Dimensions: 13.6 x 13.6" / 34.5 x 34.5 cm
Weight: 12 lb / 5.5 kg
