Description

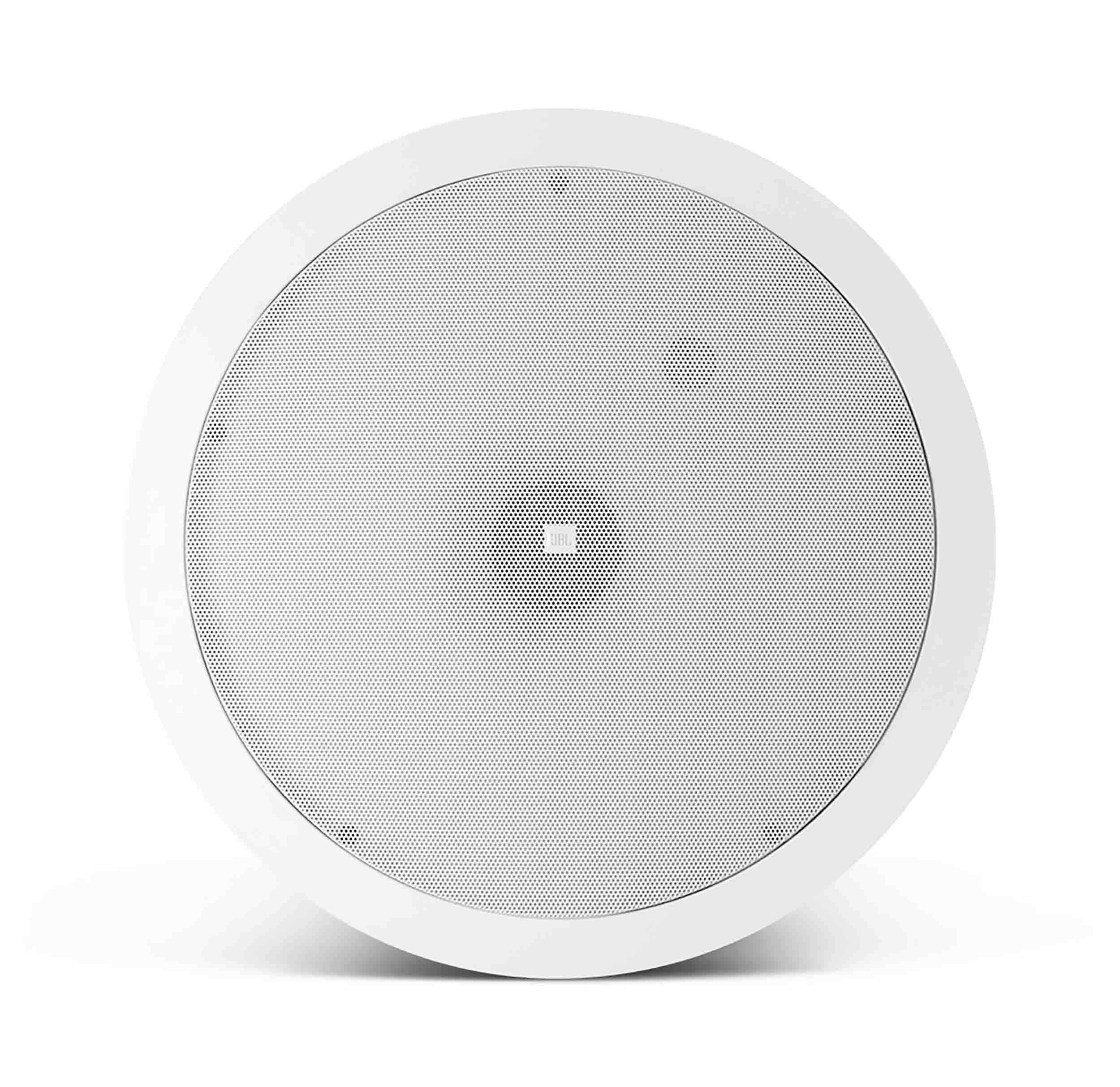

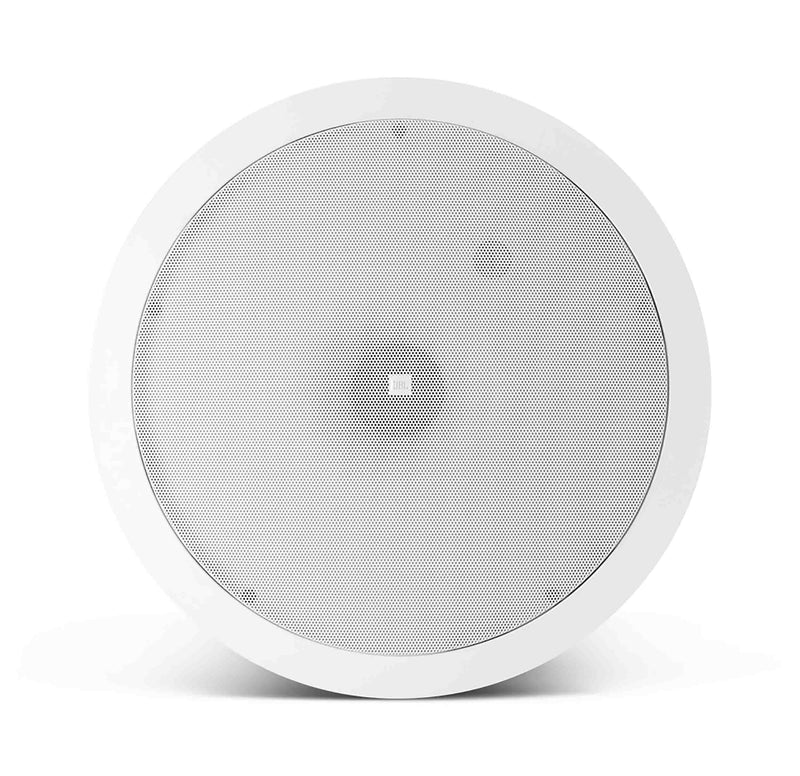

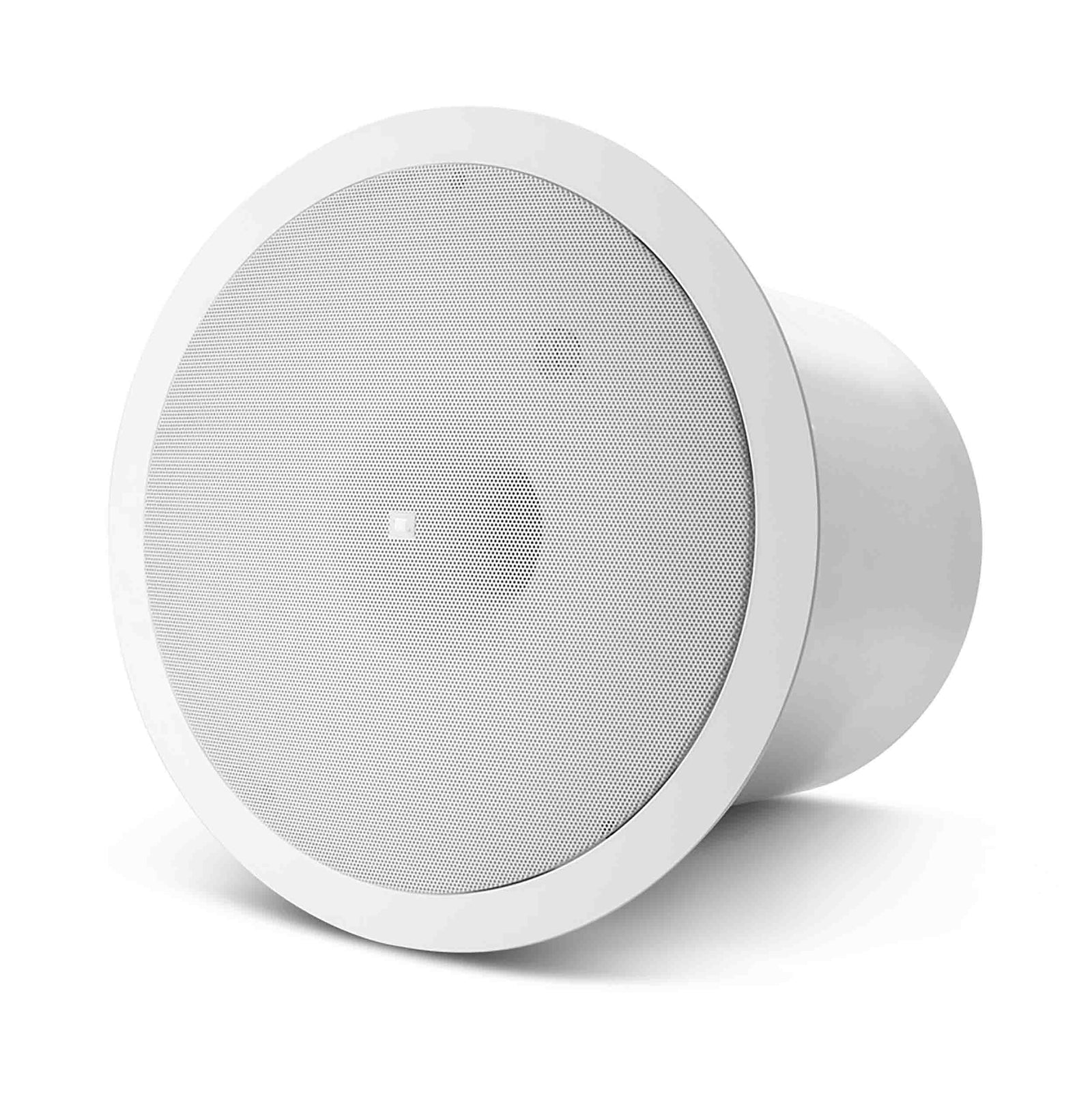

The JBL CONTROL 19CST is a passive 8" in-ceiling installation subwoofer with a multi-tap transformer designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 70V/100V power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CST is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz. The Nested Chamber design and Linear Dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation.
Product Specifications:
Frequency Range: 42 Hz - 200 Hz
Power Rating: See transformer taps
Transformer Taps: 75W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle: 180° conical
Maximum SPL (1m): 108 dB (70V/100V, center of ceiling)
114 dB (70V/100V, near corner)
Nominal Impedance: 8 ohms
Drivers: 200 mm (8.0 in) subwoofer
Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Input Connectors: Removable locking connector with screw-down terminals.
Outside Dimensions (H x Dia): 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in)
Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)
Net Weight (each): 6.3 kg (14 lb)
Shipping Weight (pair): 14.3 kg (32 lb)
Color: White

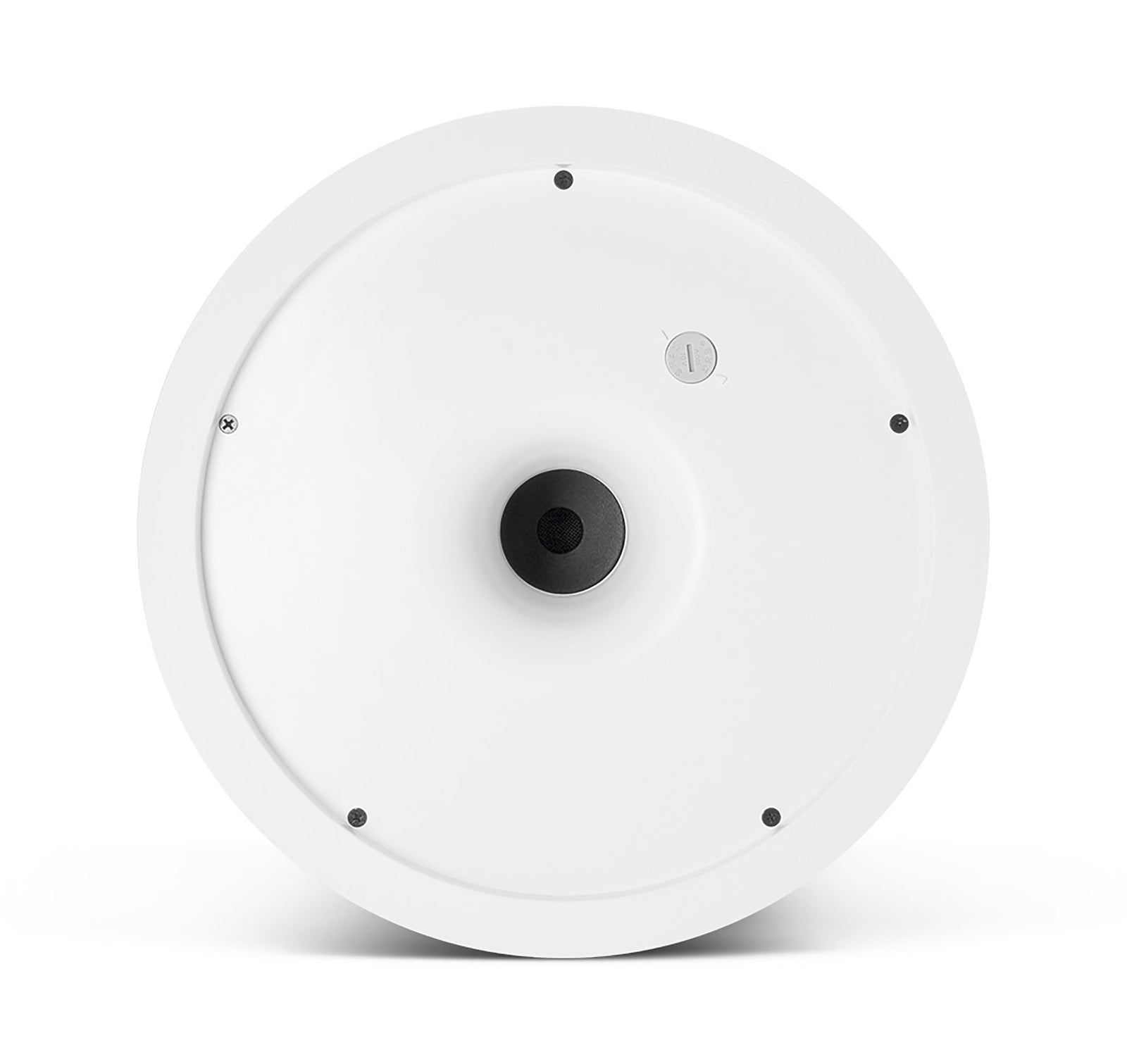

Backcan: formed steel (included "blind-mount")
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Plenum Usage: Yes, backcan included
