Description

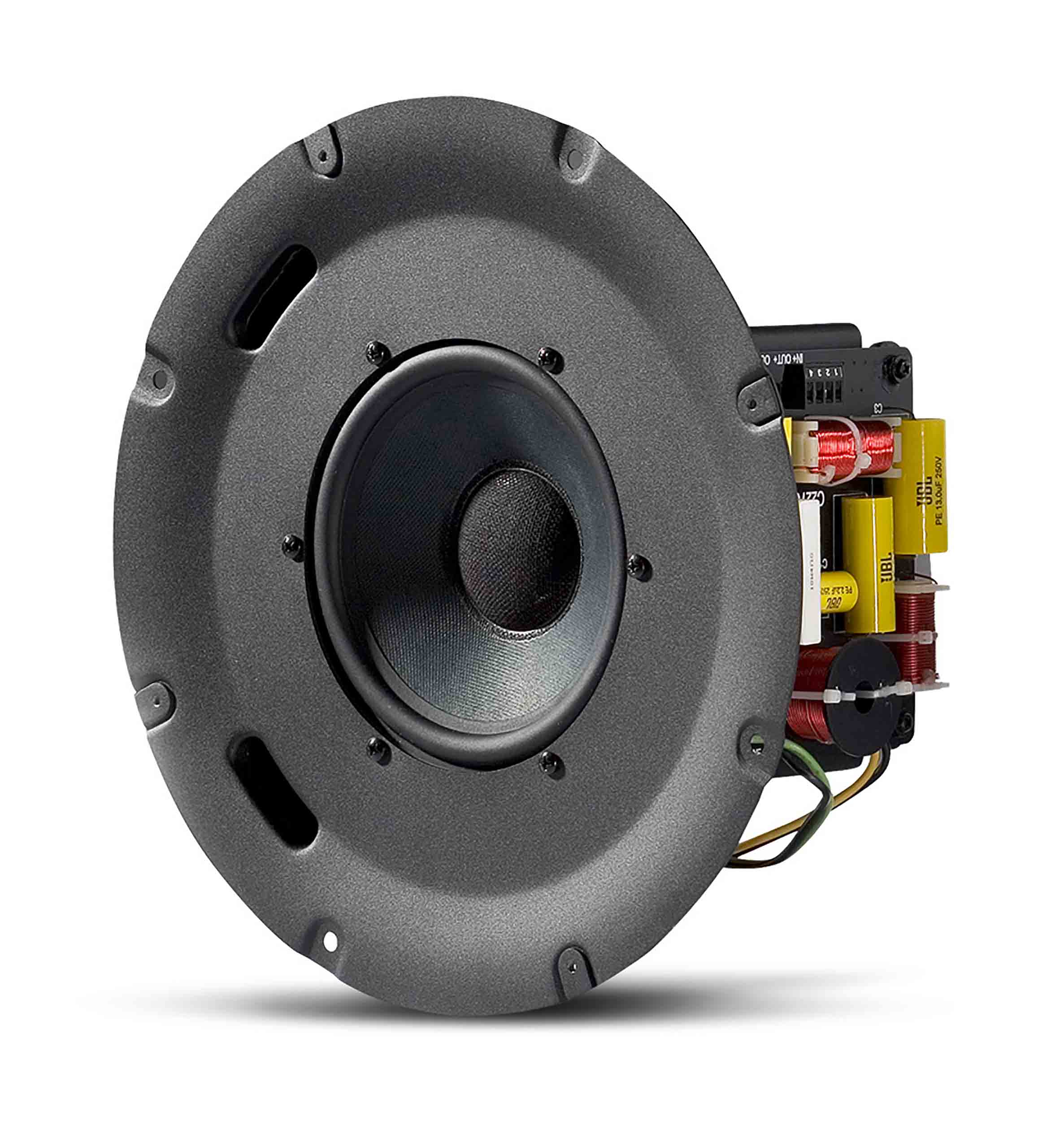

The JBL Control 227C is a passive 6.5" coaxial ceiling loudspeaker designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 150W (600W peak). Equipped with a durable 6.5" Kevlar-reinforced woofer and a 1" exit titanium compression driver, the Control 227C yields a frequency response of 74 Hz to 17 kHz.
Product Specifications:
Frequency Range (-10dB): 43 Hz - 19 kHz
Power Rating: IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak)
Sensitivity: 90 dB (1 kHz - 16 kHz)
Coverage Angle: 120° conical, constant directivity
Frequency Response (-3 dB): 75 Hz - 17 kHz
Impedance: 8 ohms
Drivers: LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Color: White
Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Weight (each): 4.1 kg (9.0 lb)
Shipping Weight (pair): 227C: 5.4 kg (12.0 lb)
Maximum SPL (1m): 112 dB (118 dB peak)
Input Connectors: Screw locking barrier strip for bare wire
Backcan: formed steel (wood-lined; accessory)
Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
Plenum Usage: Yes, with accessory backcan
